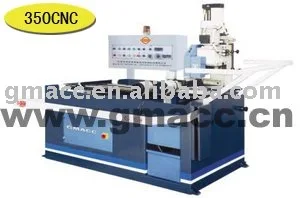

full auto metal disk saw machine

Product Overview

Description

                              full-auto disk saw machine :

GM-AD-350YCNC metal disk saw machine full-auto feeding type is a kind of automatic feeding materials , automatic cutting machine ,cutting various cross section shapes to steel materials, stainless steel materials and so on,.

1. Construction Machine

Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.

2. Design Principle

In the process of cutting, the other work piece clamping, feed sawing, cut back knife, tongs loosened by the electrical, hydraulic control order.

3. Major Performance

The machine is operated light, noise and no dust pollution, cutting good internal and external incisions, no thorns, production efficiency, and the advantages of scarfed various angles.

4.      Main Parameters

NAME	UNIT		GM-AD 350CNC
Cutting capacity(90°)	mm	bar	60
	mm	pipe	110
	mm	square	100×100
	mm	rectangle	110×50
The main motor power	KW		2.4-3.0
Rotate Speed	r/min		30/60
Largest Opening of Pincers	mm		160
The journey of the head of machine	mm		180
The journey of front and back clamp	mm		20
Saw Blade Size	mm		350
Saw blade vertical precision	mm		±0.15
Feeding precision	mm		±0.15
Length*width*height	mm		2200*1320*1880
Weight	KG		1200
