C2/200 Mini lathe machine
- Category: >>>
- Supplier: Shanghai Zhong Jing Imp. & Exp. Corporation
Share on (322912216):
Product Overview
Description
Product Description

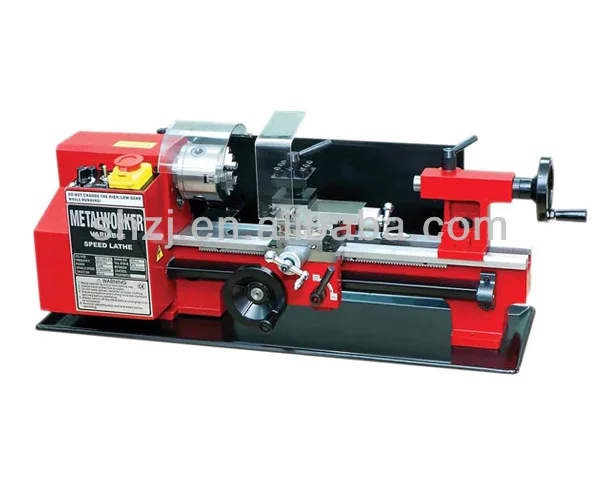

C2/200 Mini Lathe
Feature:

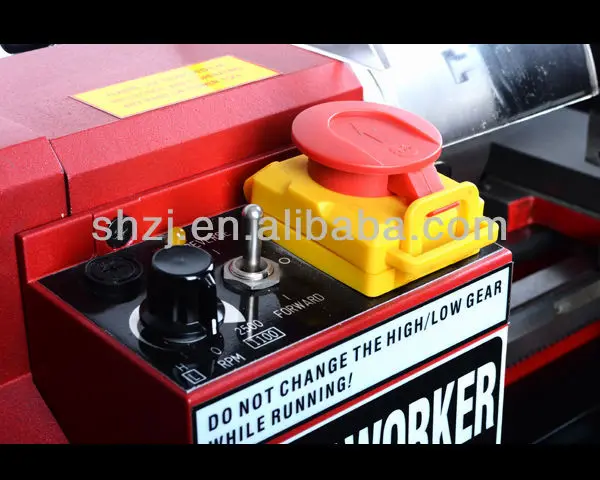

1.Safety Switch
2.Variable speed

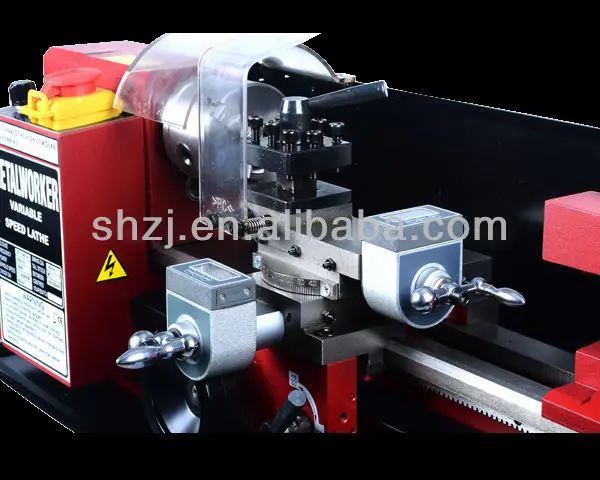

3.Four position turret post

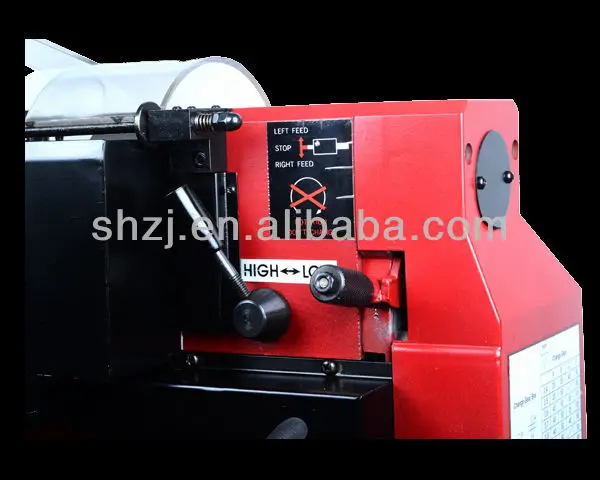

4.Complete set of changing gear
5.High accuracy
Specification:
Model | C2 (MODEL 200) |
Swing over bed | 180mm |
Swing over saddle | 110mm |
Distance between centers | 200mm |
Hole through spindle | 20mm |
Cross slide travel | 65mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Spindle speed Low range | 100-1100rpm±10% |
High range | 100-2500rpm±10% |
Motor output power | 250W |
Range of threads Metric version | 0.4-2.0mm (10 thread pitches) |
Imperial version | 12-52 TPI (8 thread pitches) |
Overall dimension (LxWxH) | 620 x 300 x 300mm |
Packing size (LxWxH) | 670 x 330 x 330mm |
Weight(Net/Gross) | 33/36kg |
Stadand accessory:
-80mm 3-jaw Chuck
-MT2 Center
-Change gear set
-Wrench set
-Oil can

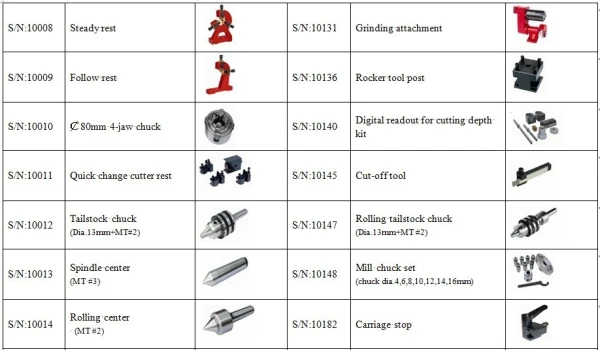

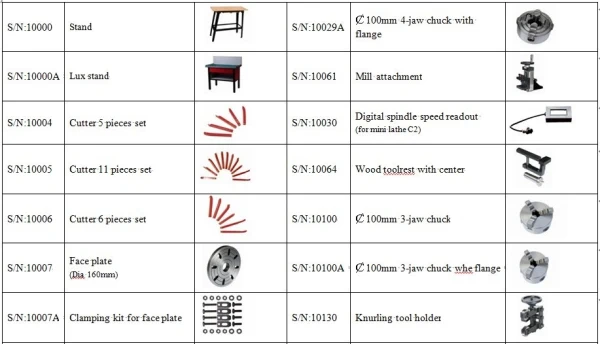

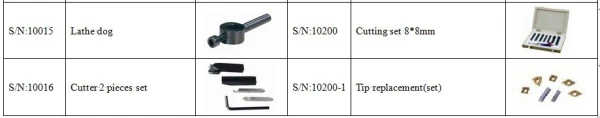

Optional accessory:
