5 gallon water cap labeling sealing machine

Product Overview

Description

5 gallon water cap labeling sealing machine

 non spill labeling machine,non-spill bottle cap,non spill water cap,55mm non spill bottle cap capping machine, laebling machine,sealing machine,packaging machine, PC BOTTLE CUPS sticking film machine,barreled water labeling machine.non spill caps



FRTB-402C automatic 5 Gallon Cap Sealing Machine



1.  Scope of Application:
This machine is suitable for sticking flim on the caps of barreled water and other bottle caps.

2.  Features & Functions:
1)      Procedures: Capping, Fliming and Feeding, Cutting Flim and Heat Sealing, Automatic Cap outputing;
2)      The machine adopts the advanced and durable Stamping Die Plain Cutter from Janpa;
3)      The machine adopts PLC Controlling System and Sprue Puller Tracing by Electric Eye, in order to guarantee accurate positioning, stable features, simple and easy operation; And operator can manage the machine very well without training.
4)      The machine has compact configuration, reasonable design, and has unique design on cutting and heating parts. The operator can change the cutter very easily, and it achieves human operations.
5)      The shield of machine is made of Stainless Steel and Aluminum Alloy, and it meets the santiary standard of GMP workshop.
6)      Advantages of Anti-fake Heat Sealing Film: a) One-off opening has the function of anti-fake, and it cannot be recovered once open; b) It adopts fully automatic heating and sealing crafts without glue and hand touch, so it can avoid the pollution of cap; c) The Sealling Protection System can ensure the dustproof and germproof.



3.  Technical parameters
     Speed: 2400pcs / H
     Power: 310 W
     Voltage: 220 V
     Frequency: 50/60HZ
     Maximum Air Consumption: 0.15CBM/ Min.
     Size: 1700×800×2200MM
     Weight: 900KGS

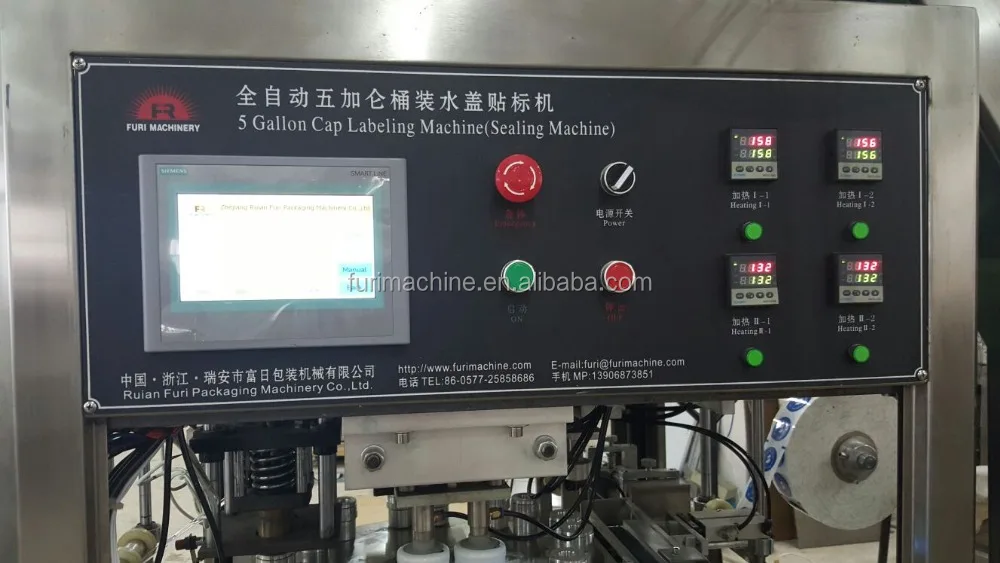

Machine Operation Panel

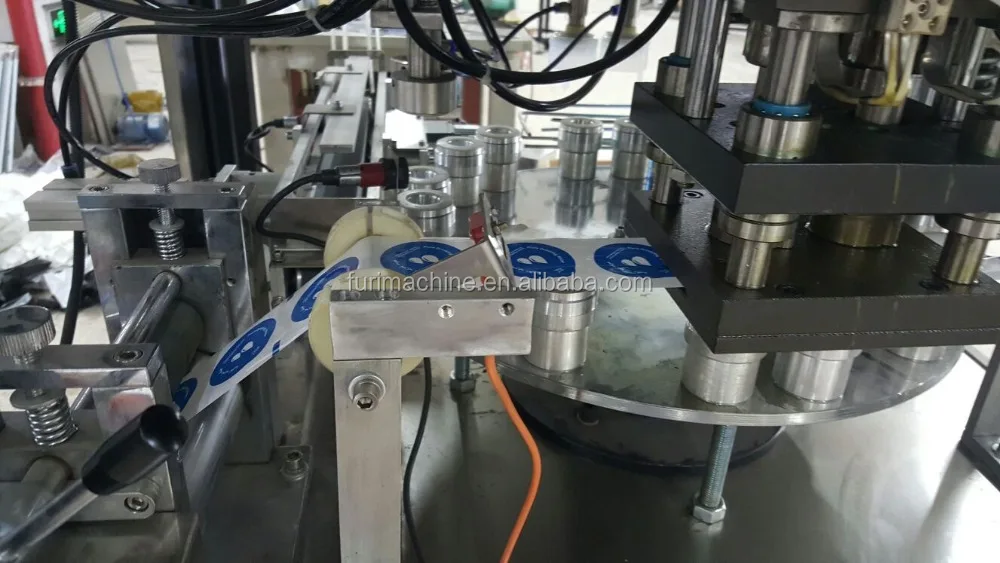

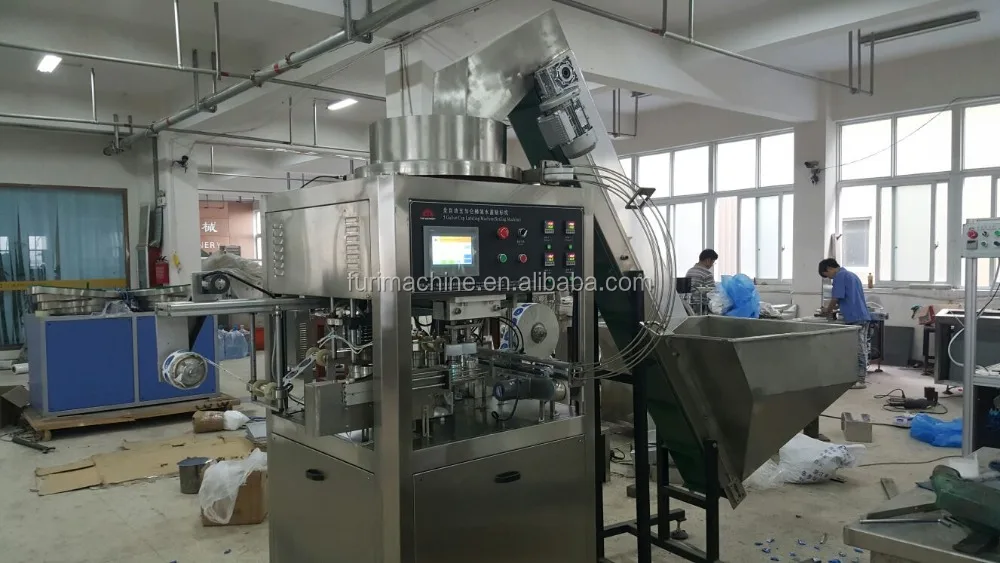

Machine in Assembly plant

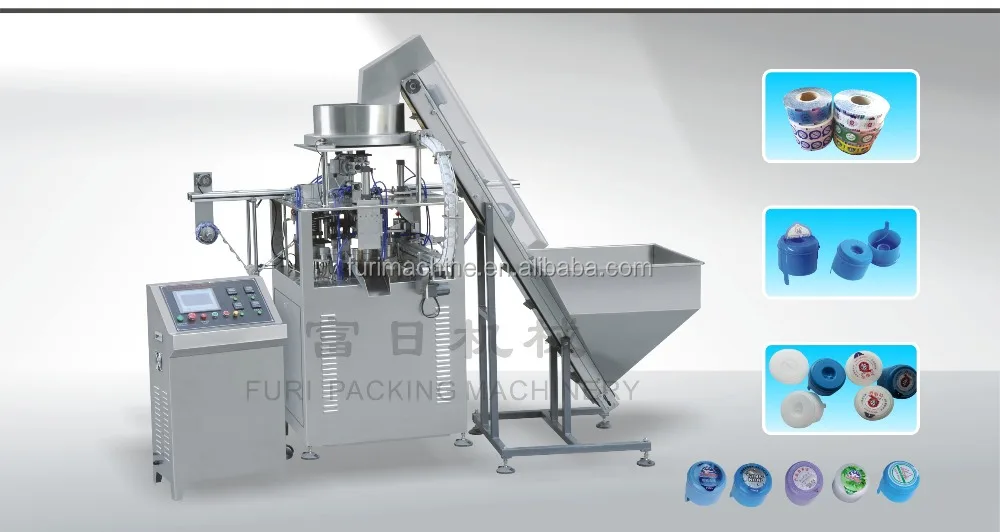

Finished Machine

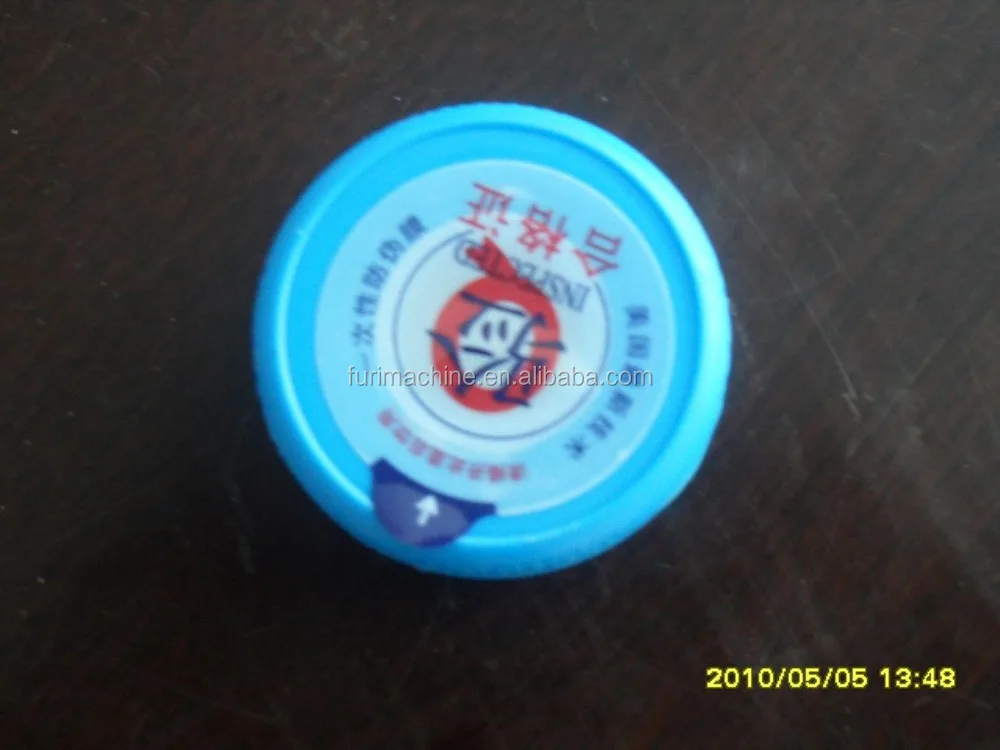

Caps After Sealing/Labeling





Machine Packing & Loading.
