Yonthin Flat Embroidery Machine YX 921 400 X 750mm Embroidery Area Easy to Operate

Product Overview

Description

TECHNOLOGY PARAMETER:

1.Model: YX-921/400/750MM

2.Heads:   21

3.Colors:  9

4.Head interval: 400mm

5.Embroidery area(x.y): 400×750mm



CONTROLLER:

1.Aopt Yonthin Ultra-modern computerized control system with color LCD Network management function, with USB floppy driver, and the under thread detecting system,with separate controller in each machine heads.

2.Drive motor: 3 phase subsection drive.

3.Main motor: High speed Servo motor or Toshiba Induction motor.



MECHANICAL:

1.Machine body: adopt molding square girder, after the high temperature& heat treatment to finalize the design.

2.Wooden table: Adopt log basic board, and procedures With high temperature and high pressure.

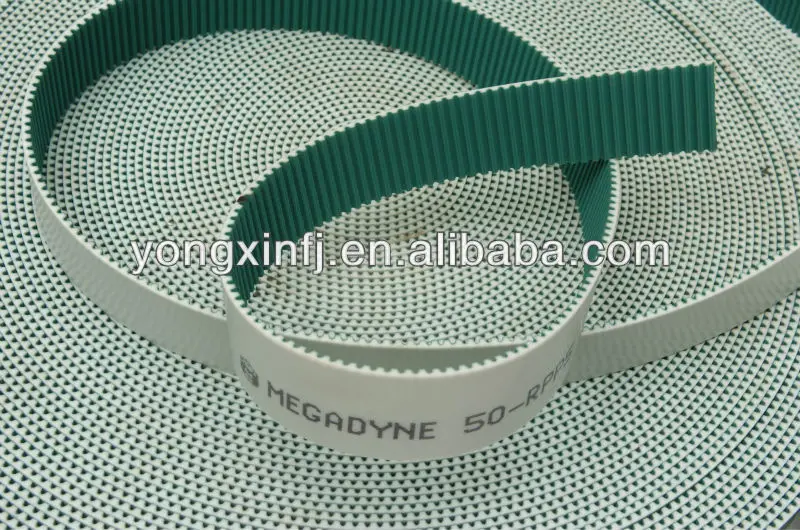

3.Drive: adopts Improved liner guide rail with imported Italy driving belt.

4.Bearing: Original Japanese bearing.

5.Original Japanese rotary hooks and bobbin cases (HIROSE or KOBAN).

6.The umbrella gear inside the rotary made in TAIWAN.

7.Thread Hooking: adopt motor control the concentrate catching.

8.Thread cutting system: the cutter adopting imported Taiwan materials.

Remark:

According to customer's different requirements we can make embroidery machine with different Specifications, Such As: "machine heads number", "Color number" and "embroidery area "etc

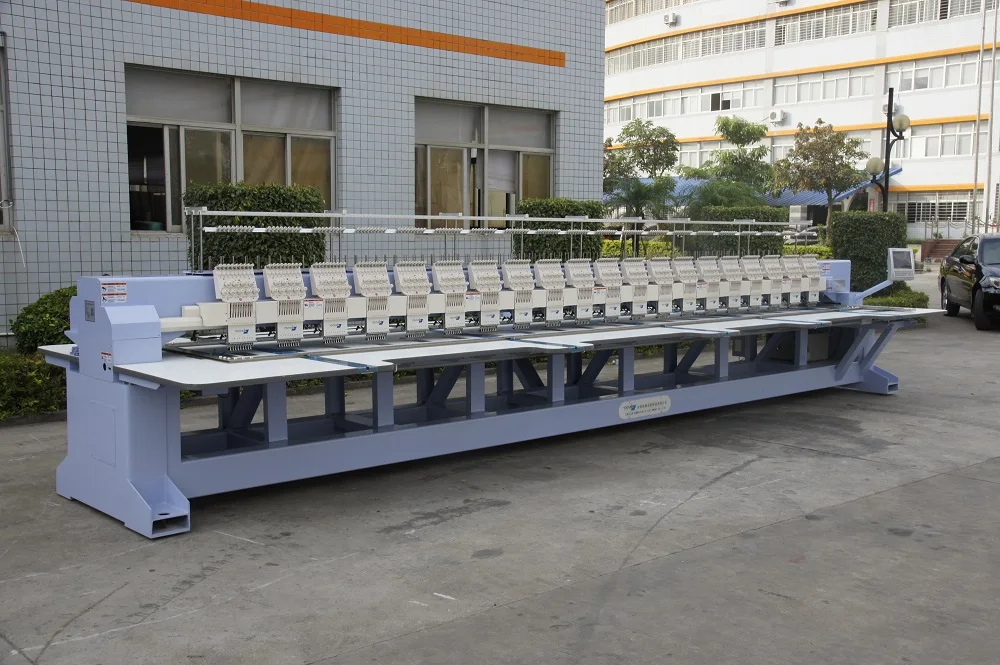

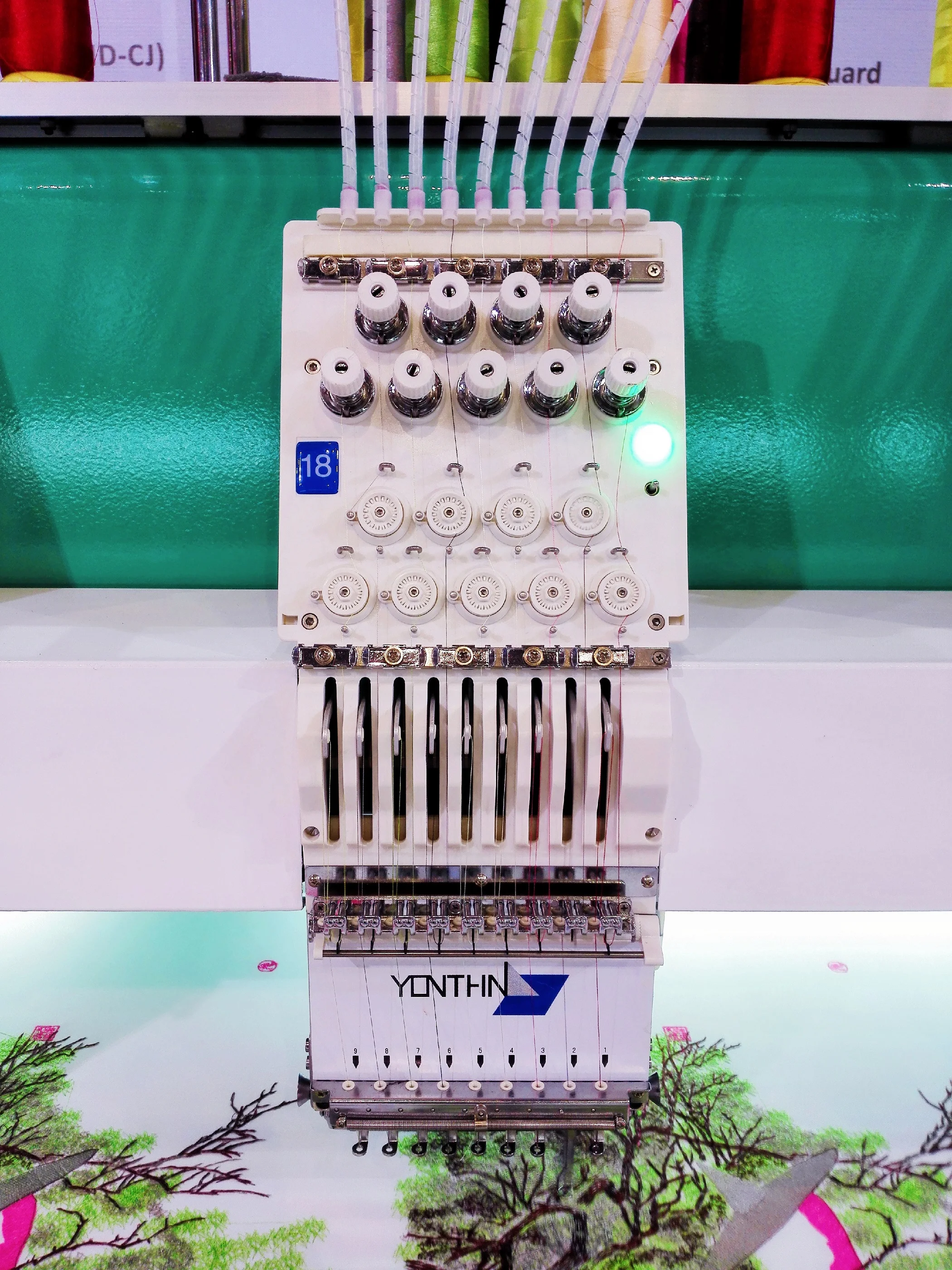

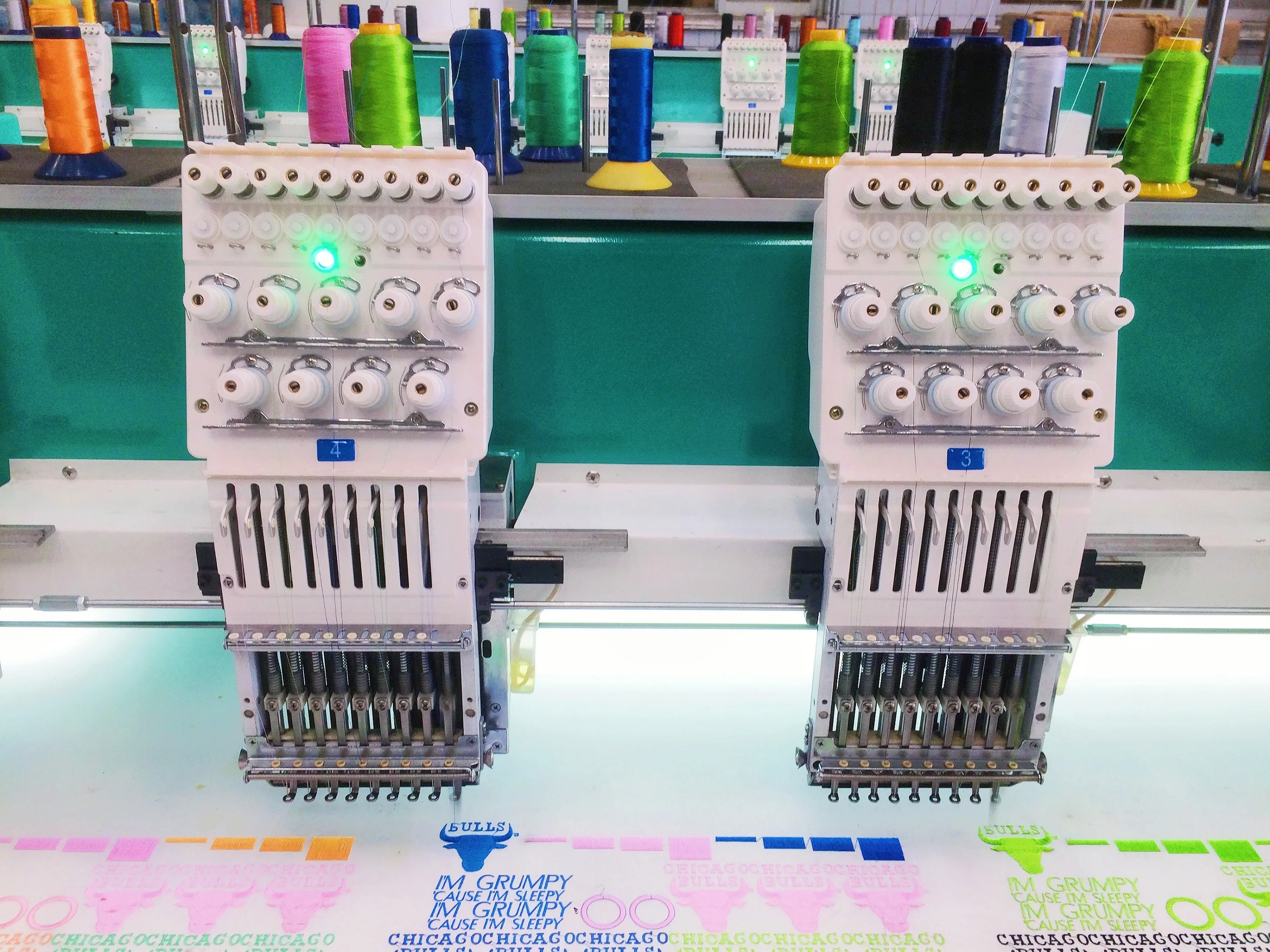

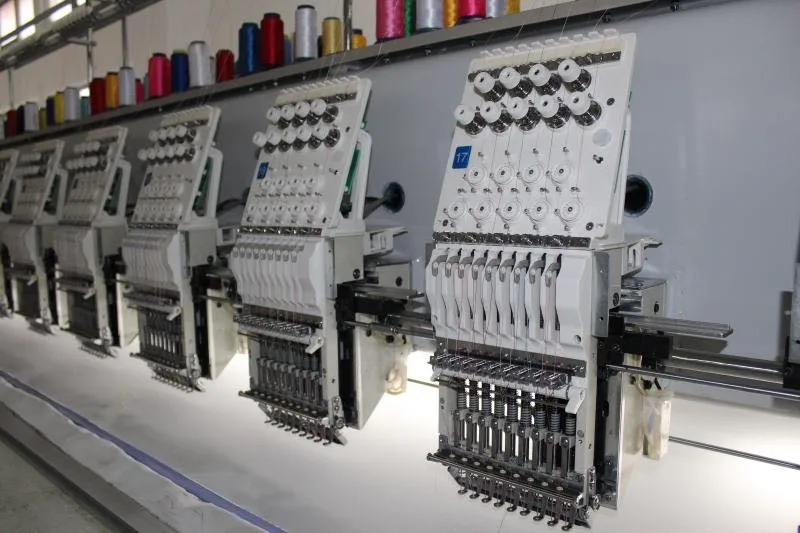

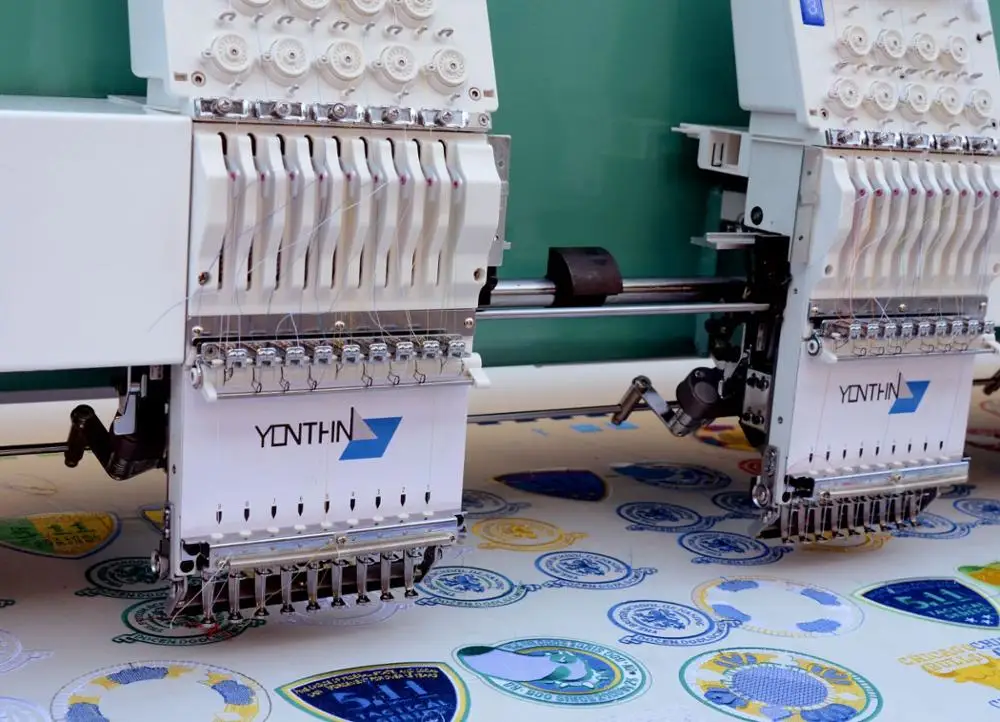

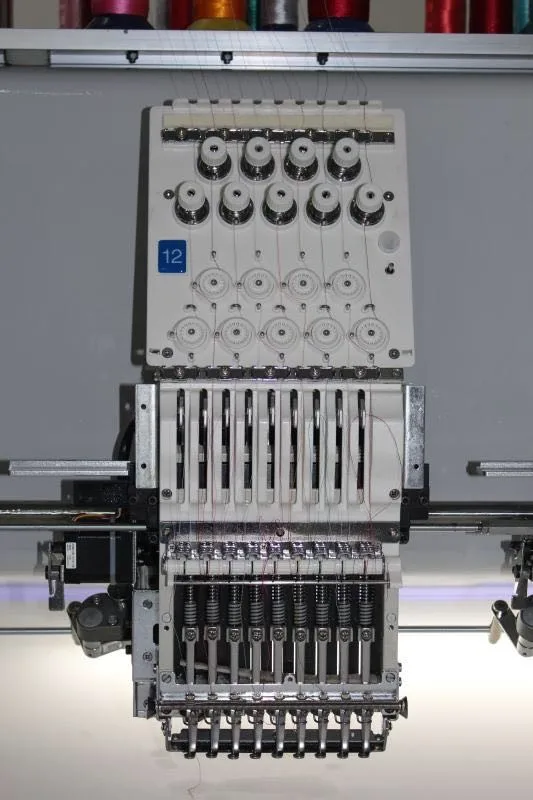

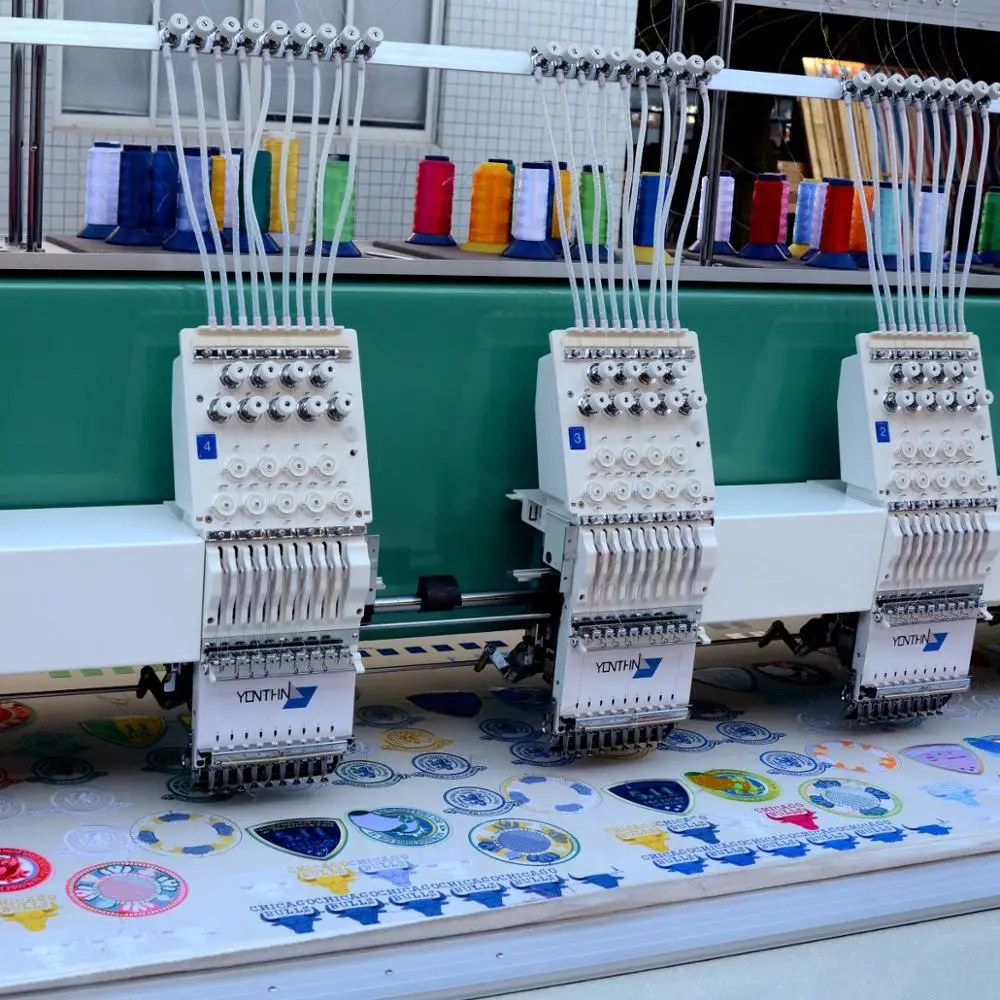

PRODUCT DETAIL PICTURES:

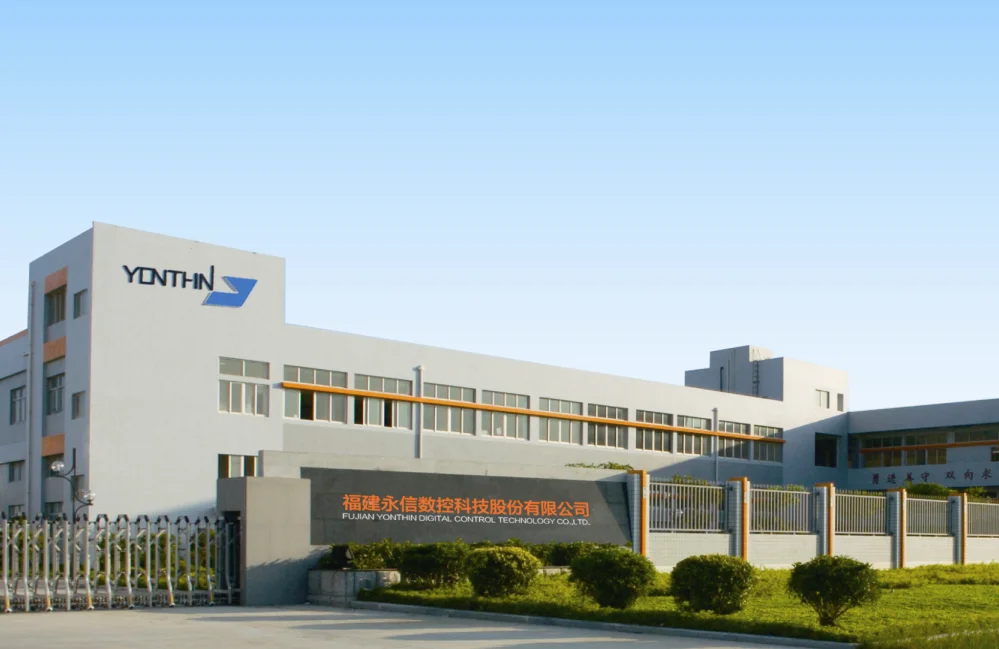

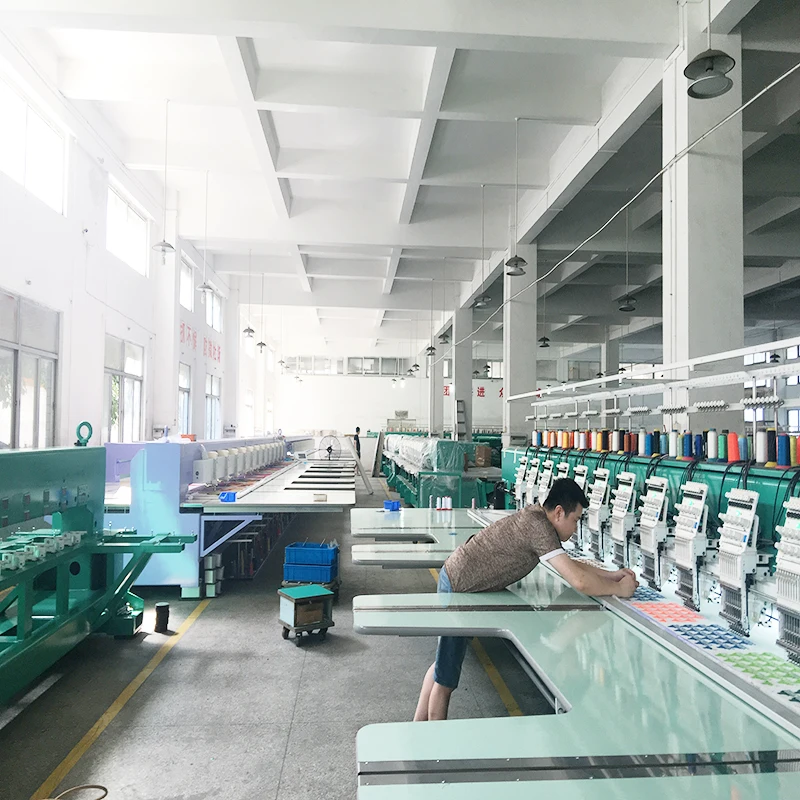

COMPANY PICTURES:





PRODUCT SAMPLES:
