Single Door Magnetic Lock with 800lbs holding force With Buzzer YM 350BZ
Single Door Magnetic Lock with 800lbs holding force With Buzzer YM-350BZ
Single Door Magnetic Lock with 800lbs holding force With Buzzer YM-350BZ
Single Door Magnetic Lock with 800lbs holding force With Buzzer YM-350BZ
Single Door Magnetic Lock with 800lbs holding force With Buzzer YM-350BZ
Single Door Magnetic Lock with 800lbs holding force With Buzzer YM-350BZ

Single Door Magnetic Lock with 800lbs holding force With Buzzer YM 350BZ

Share on (326206198):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

When set up 1-30 as door close time, if the door doesn't close after 30secs,.it will alarm till the door close.Single door electric lock with buzzer and suitable for wooden door and metal door and .LED Indicates the Door Status.

\t
Size
\t
285Lx55Wx27.5H(mm)
\t
Armature Plate Dimension
\t
190Lx45Wx11H(mm)
\t
Holding Force
\t
350kg(800Lbs)
\t
Input Voltage
\t
12 or 24VDC
\t
Current
\t
12V/480mA or 24V/240mA
\t
Signal Output
\t
Dry Contact,Max Rating of Contact Current 3A
\t
LED
\t
Red indicates the door is unlock,Green indicates the door is lock
\t
Buzzer
\t
5/10/20/30sec
\t
Suitable
\t
Wooden door , Glass door ,Metal door , Fireproof door
\t
Surface Temp
\t
≤+20℃
\t
Operating Temp
\t
-10~+55℃(14-131F)
\t
Humidity
\t
0~95%(non-condensing)
\t
Cover Finish
\t
Anodized aluminum
\t
Lock Finish
\t
Zinc
\t
Armature Plate Finish
\t
Zinc
\t
Weight
\t
2.7kg

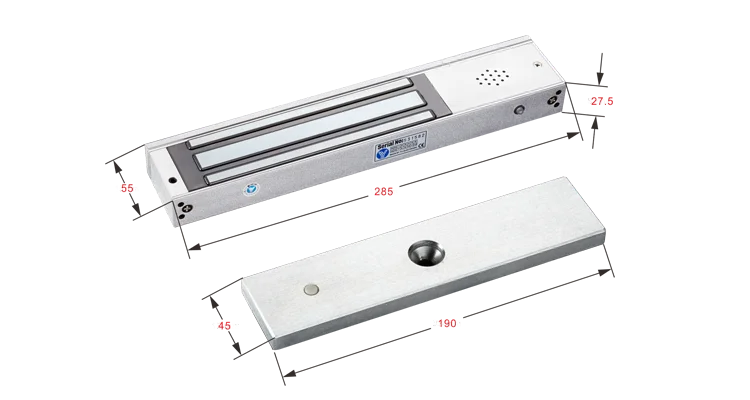

Dimension Diagram
