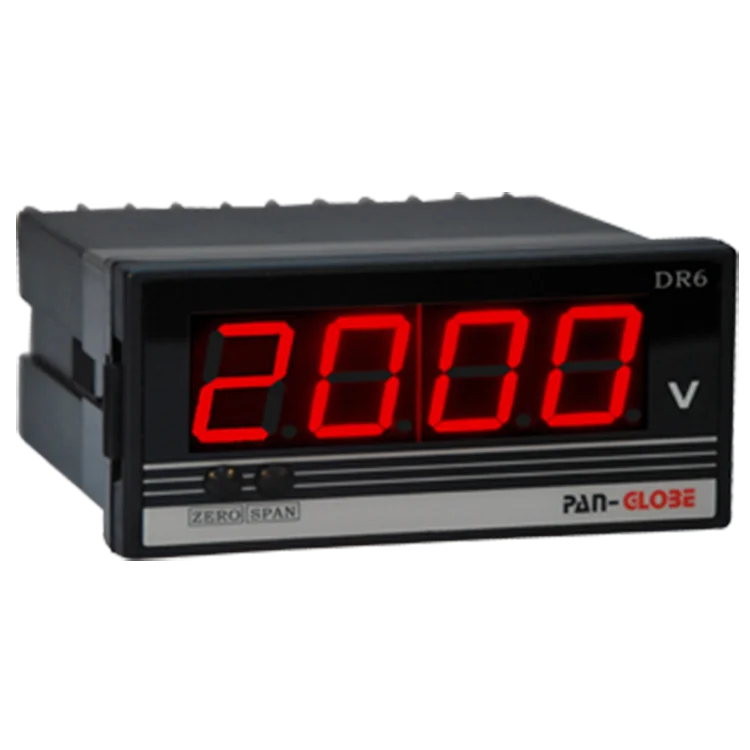

Digital voltmeter

Price:RUB 1,130.07 - RUB 2,109.47

Quantity:

DR series ampere voltage meter

Features:

1. Size: 48 x 96mm; 96 x 96mm

2. Sampling speed: 3 times / second

3. Zero adjusting (fixed decimal point)

4. Display range: ±1999

5. 0.8 inch large red LED display

Specifications:

Items of properties	Specific parameters
Power supply voltage	AC220V±15% 50/60Hz
Maximum display	1999 (AC displays effective values)
Input mode	Single terminal input
A/D conversion	Dual integral
Measurement speed	Approx. 3 times/second
Frequency range	40-200Hz (only for counterflow)
Overflow display	''1'' or ''-1''
Polarity display	Only display “-”, only for direct current
Display	0.8-inch red digital tube
Ambient temperature	-10~60°C
Ambient humidity	0~90%RH
Power consumption	≤4VA
Voltage resistance	AC 1500V 1min
Insulating resistance	DC 500V≥100 MΩ
Accuracy	0.5%FS ± 2 digit
Weight	Approx. 350g

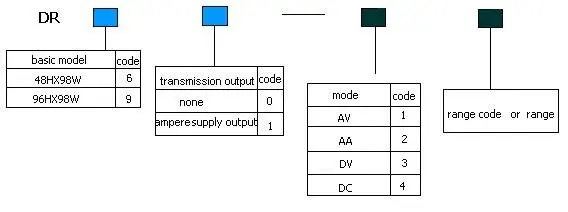

Ordering information

DR meter order info DR6 Voltage Ampere Meters.png
