KZ3100 UV/Visible spectrophotometer

Product Overview

Description

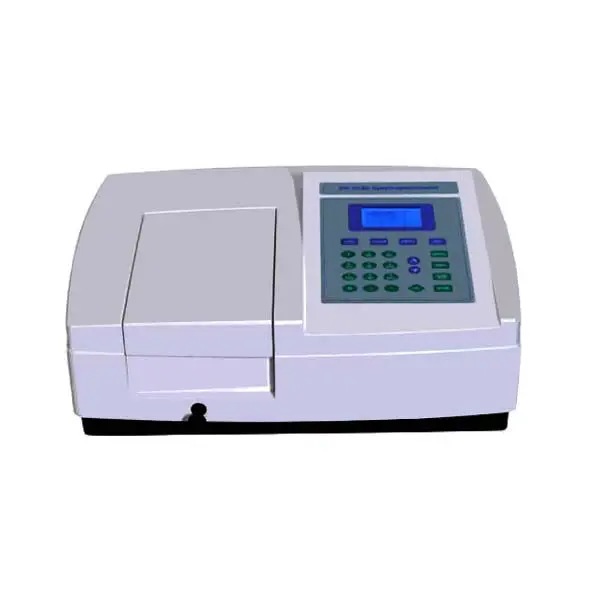

KZ3100 UV/Visible spectrophotometer

This instrument uses 128*64 bit dot matrix LCD, which can directly display the wavelength, transmittance, absorbance, concentration and standard curves.
 It uses synchronous sine mechanism which has the advantages of high wavelength accuracy and good reproducibility.
With 24 bit high speed high accuracy A/D conversion, the instrument has very high sensitivity and reaction rate.
It can directly form standard curves, and can implement relative test using the standard curves. It can continuously test and save as many as 200 group data, and can save 200 standard curves, and the user can transfer any curve by its number. The measured data can be saved when the electricity supply is cut off suddenly.
Wavelength can be automatically calibrated, set, and deviation can be automatically repaired.
The tungsten lamp or deuterium lamp is directly set onto a socket, and the optical debugging is not needed after the change of lamp.
The high quality grating and the sealed optical path guarantee the ultra low stray light.
Using the scanning software of our company, it can perform the following functions: photometric analysis, quantitative measurement, qualitative measurement, multi wavelength measurement, DNA/protein measurement and data analysis

Technical indications

Type	KZ3100
Wavelength range	190-1100nm
Spectral bandwidth	2nm
Wavelength accuracy	±0.8nm
Wavelength reproducibility	≤0.2nm
Photometric accuracy	±0.3%T
Photometric reproducibility	≤0.2%T
Stray light	≤0.1%T
Stability	±0.002A/h(500nm)
Photometric range	0-200%T,-0.3-3A,0-9999C
Data output	USB interface
Print output	Parallel port
Display system	128*64  LCD
Light source	Imported long-life tungsten lamp, deuterium lamp
Detector	Imported silicon photo diode
Power source	AC 220V/50Hz or 110V/60Hz
Dimension	460*380*180mm
Weight	18kg
