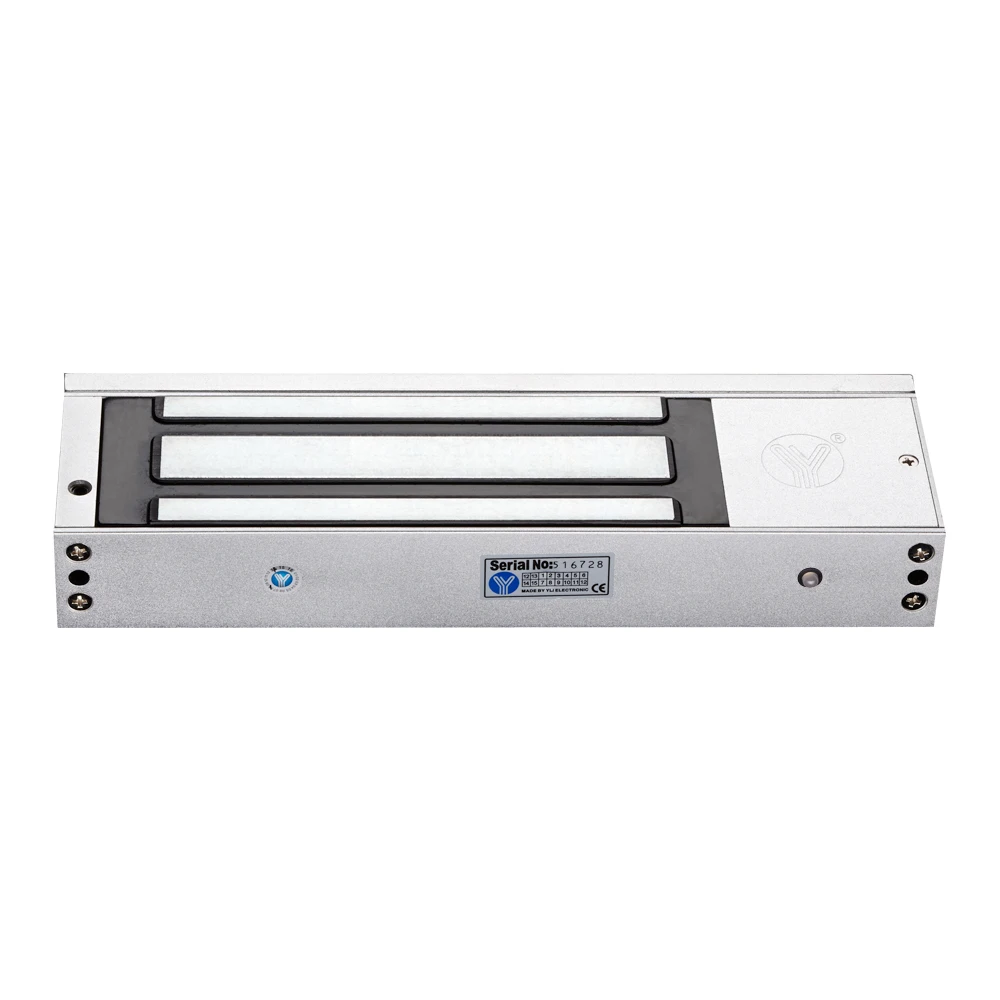

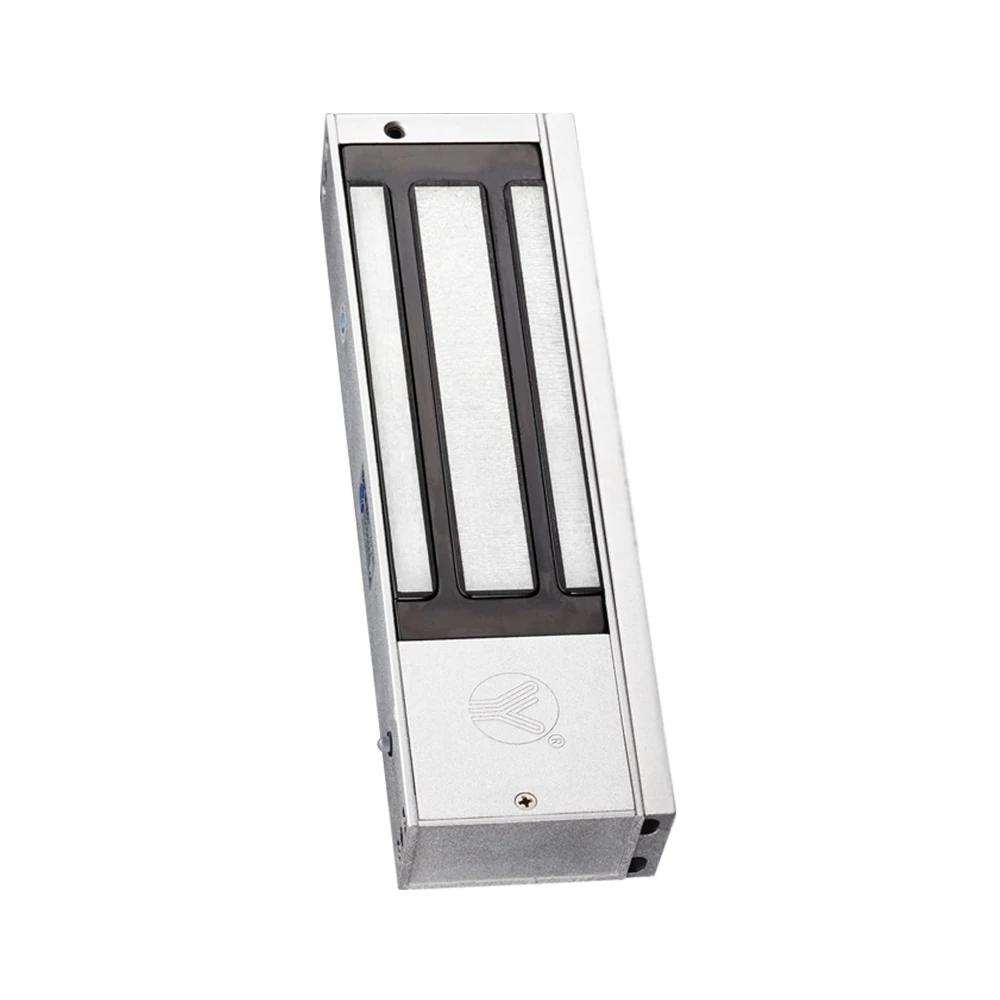

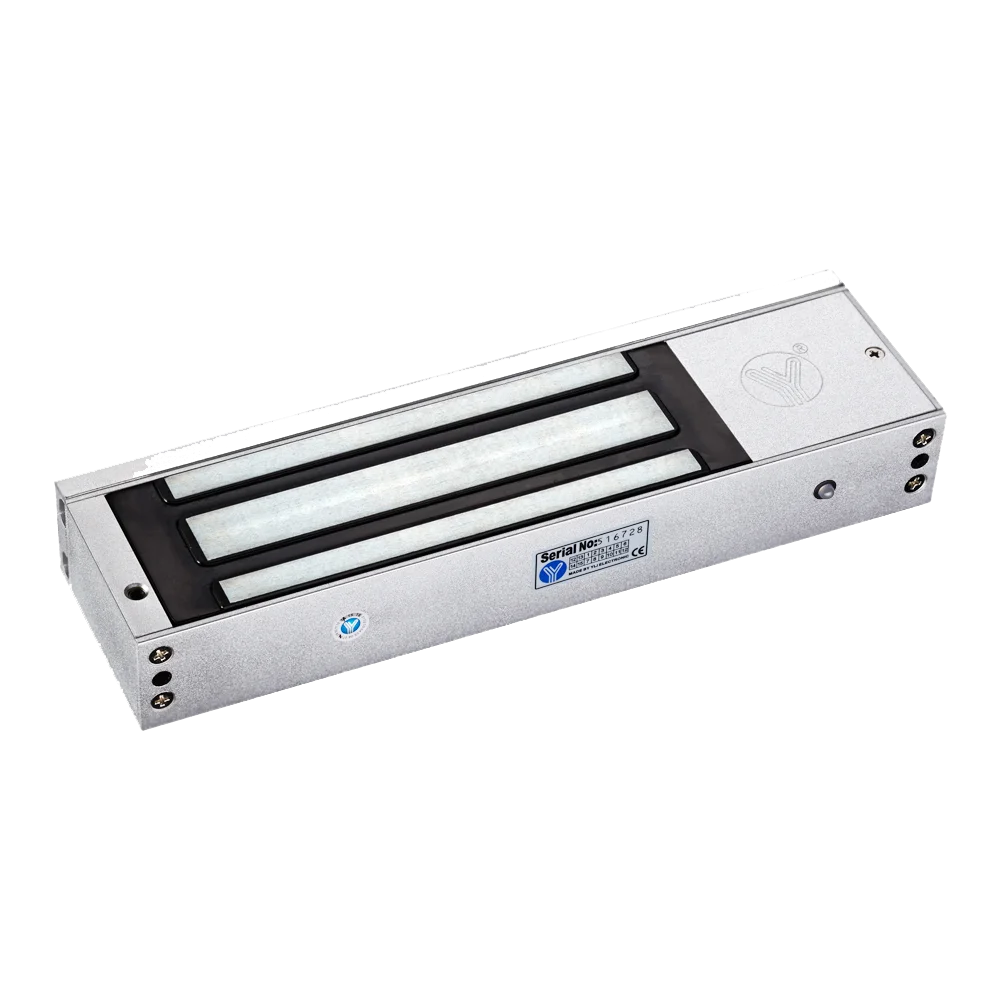

Single Door electric magnetic Lock with Time delay (1200lbs) YM 500NT(LED)
- Category: >>>
- Supplier: Shenzhen Yli Electric Lock Co. Ltd.
Share on (326436915):
Product Overview
Description
Product Description
Product Application
Inbuilt time delay mode and can set up 0,3,6,9sec .It is suitable for the card reader which is with time delay and LED indicator. Holding force: 1200lbs

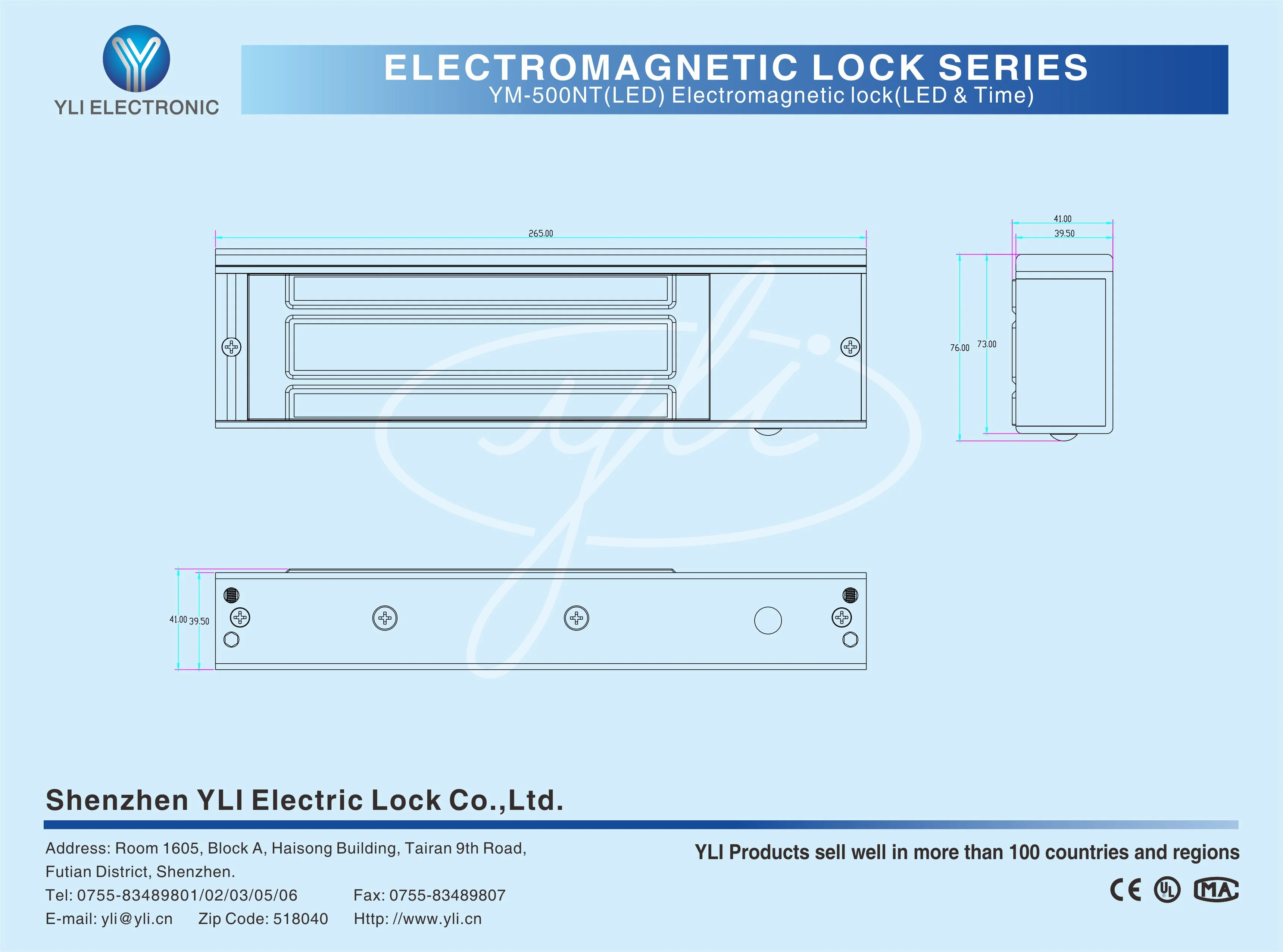

Size | 265Lx74.8Wx38.8H(mm) | ||||
Armature Plate Dimension | 185Lx60Wx13H(mm) | ||||
Holding Force | 500kg(1200Lbs) | ||||
Voltage | 12 or 24VDC | ||||
Current | 12V/420mA or 24V/210mA | ||||
Signal Output | Dry Contact,Max Rating of Contact Current 3A | ||||
Time | 0/3/6/9sec. | ||||
LED | Red indicates the door is unlock,Green indicates the door is lock | ||||
Suitable | Wooden door , Glass door ,Metal door , Fireproof door | ||||
Surface Temp | ≤+20℃ | ||||
Operating Temp | -10~+55℃(14-131F) | ||||
Humidity | 0~95%(non-condensing) | ||||
Cover Finish | Anodized aluminum | ||||
Lock Finish | Zinc | ||||
Armature Plate Finish | Zinc | ||||
Weight | 4.5kg | ||||
