Pneumatic Tofu Press Y 2 Tofu forming machine tofu machine
- Category: Bean Product Processing Machinery >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (326900008):
Product Overview
Description
Pneumatic Tofu Press
Tofu Press Y-2 Tofu forming machine- tofu machine

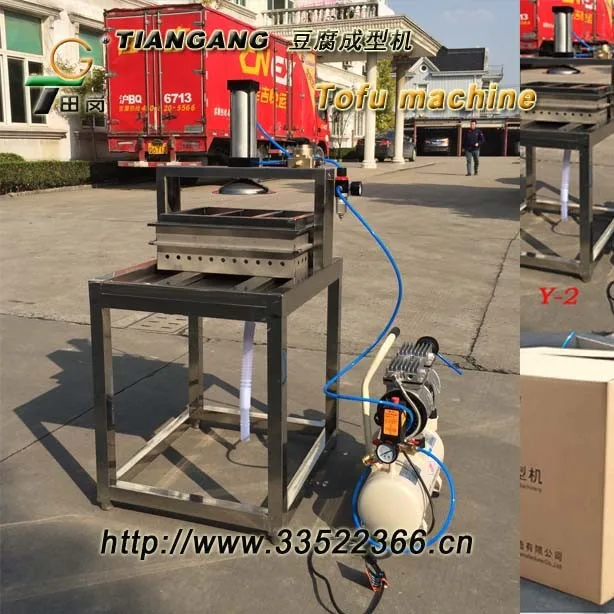

Y-2 aerodynamic force tofu press machine
Description:

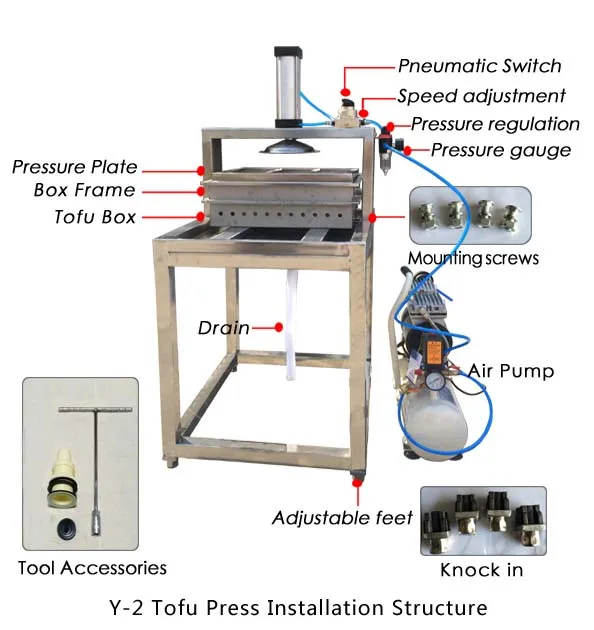

Consist of full stainless steel , rack, tofu mould ,pressure control system and air Compressor .Simple structure, easy to operate, wash convenient , the tofu press height can easy control, the tofu looks nice , production operations save time and strength.
Apply to Beancurd Mill, chains shop, canteens, restaurants etc.
Technique data:
diameter of air cylinder :63mm, route:150mm
Maximun pressure:0.8MPa

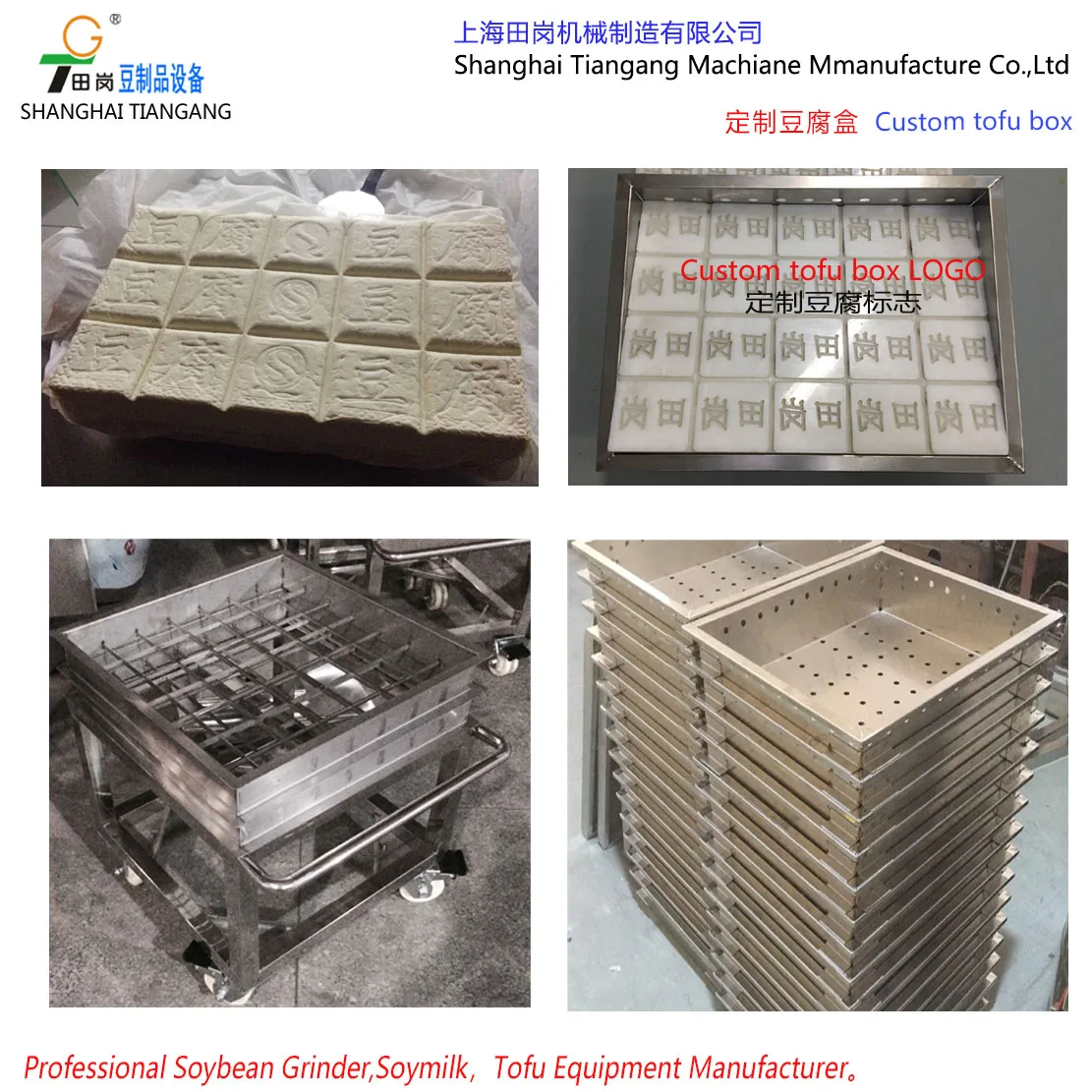

tofu mould:320*320*80mm
machine size:610*580*1200mm
Weight:22kg
Y-2 can press one mould once only.
Tofu Pressing Forming Machinery

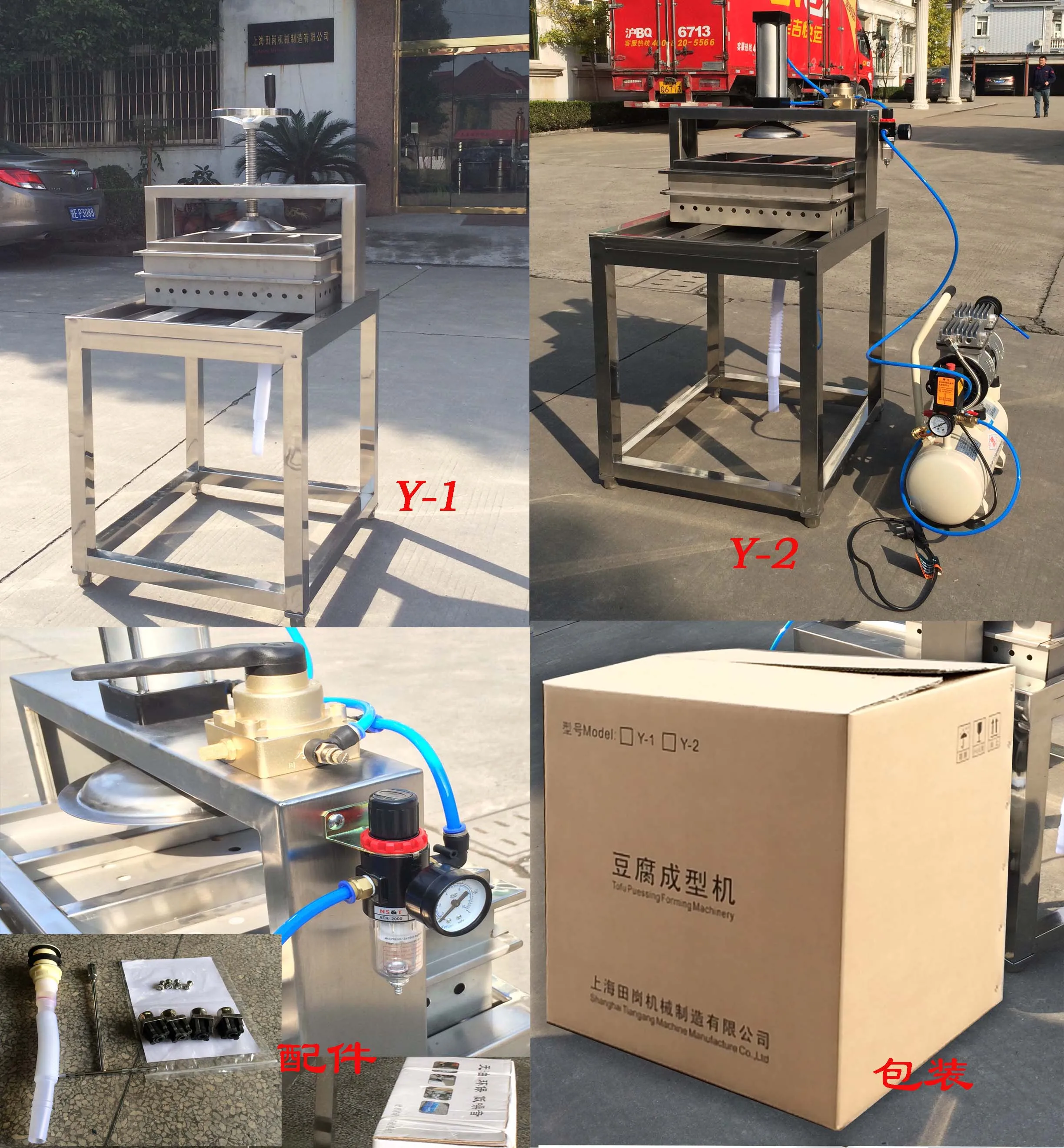

Technical Data | Pressure mode | Tofu Box Size | Forming Quantity | Weight | Size |
Y-1 | Hand operated | 320*420*80mm | A box | 20Kg | 610*580*1200mm |
Y-2 | Air compressor | 320*420*80mm | A box | 38Kg | 610*580*1200mm |
Y-3 | Air compressor | 320*420*80mm | Two boxes | 85Kg | 950*950*1350mm |
Customized | Air compressor | According to demand | Six boxes | 250Kg | 950*3000*1350mm |
Related Products
Shanghai Tiangang Machinery is a professional soybean processing machinery manufacturer.
Main products:
Soybean Grinding Machine, Colloid mill, Soya milk machine, Tofu machine.
Company Information
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.

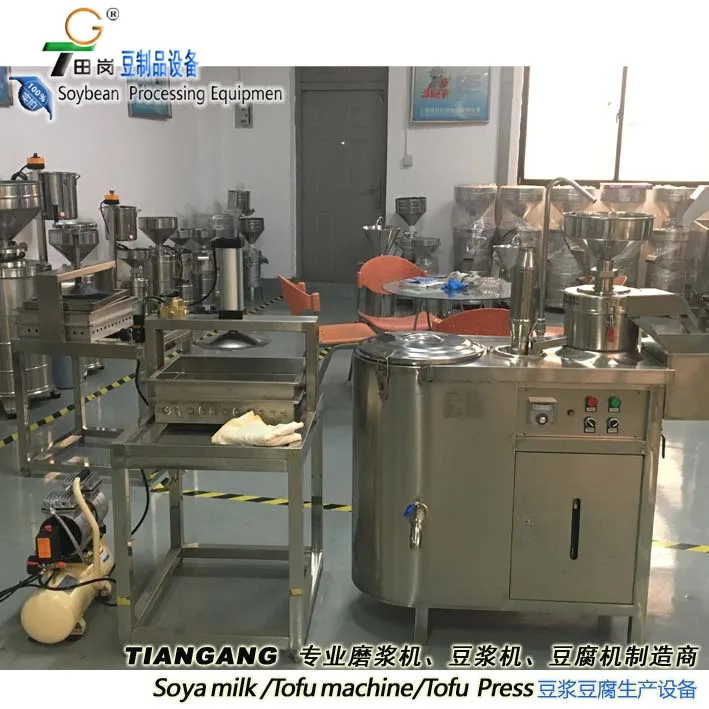

Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
