Copolymer coated aluminum tape
- Category: >>>
- Supplier: Hangzhou Linan Tianhong Telecommunication Material Co. Ltd.
Share on (327403976):
Product Overview
Description
Product Description
1.Application
1.For optical cable,telephone cables, telecommunication cable
2.Used as waterproof materials
3.For cable shielding
4.Widely used in electronics, electrical, telecommunication
5.ISO and SGS certificate
6.Base material: aluminum foil
2.Specifications
Thickness, length and width can according to customer requorements.
Name | Single side Aluminum tape |
Thickness | 150µ-600µ |
Width | 16mm-600mm |
ID(inner diameter) | 53.5mm / 76mm / 102mm / 150mm (2.1in / 3.0in / 4.0in / 5.9in) |
ID material | Plastic or Metal |
OD(outer diameter) | 500mm-900mm |
Length | 1000m-2050m |
Color | Silver/Green/Blue |
Packaging | 1.Carton,Then put on a plywood pallet 2. Inner-plastic bag,Outside-carton,Then put on a plywood pallet |
Name | Double side Aluminum tape |
Thickness | 200µ-600µ |
Width | 16mm-600mm |
ID(inner diameter) | 53.5mm / 76mm / 102mm / 150mm (2.1in / 3.0in / 4.0in / 5.9in) |
ID material | Plastic or Metal |
OD(outer diameter) | 500mm-900mm |
Length | 1000m-2050m |
Color | Silver/Green/Blue |
Packaging | 1.Carton,Then put on a plywood pallet 2.Inner-plastic bag,Outside-carton,Then put on a plywood pallet |
S.NO. | Item | Unit | Requirement | |
1 | Appearance |
| The surface is plain, smooth, uniform. | |
2 | Tensile Strength | Mpa | ≥50 | |
3 | Break Elongation | % | ≥15 | |
4 | Bond Strength between steel tape and plastic film | N/cm | ≥6.13 | |
5 | Cutting Strength of Heal Seal of Plastic Clad Steel tape |
| Damage between coating and steel tape, no cutting damage between heat seal area of coating | |
6 | Heat Seal Strength of Plastic Clad Steel Tape | N/cm | ≥17.5 | |
7 | Water Tolerance(68±1°C,168h)Bond Strength | N/cm | ≥6.13 | |
8 | Jelly Resistance(68±1°C,168h) |
| No separation between steel tape and pastic film | |
9 | Corrison Resistance(0.1mol/L HCI,480h) | Grade | ≥7 | |
10 |
Dielectric Strength | One-sided Plastic Clad Steel Tape 1kV, DC, l min. |
| Without Breakdown |
Two –seded Plastic Clad Steel Tape 2kV, DC, 1 min |
| Without Breakdown | ||
3.Test report and test machine
| Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile atrength (MPa) | Elongation at break (%) |
| ALUMINIUM TAPE | 40.000 | 0.246 | 615.02 | 62.502 | 20.243 |

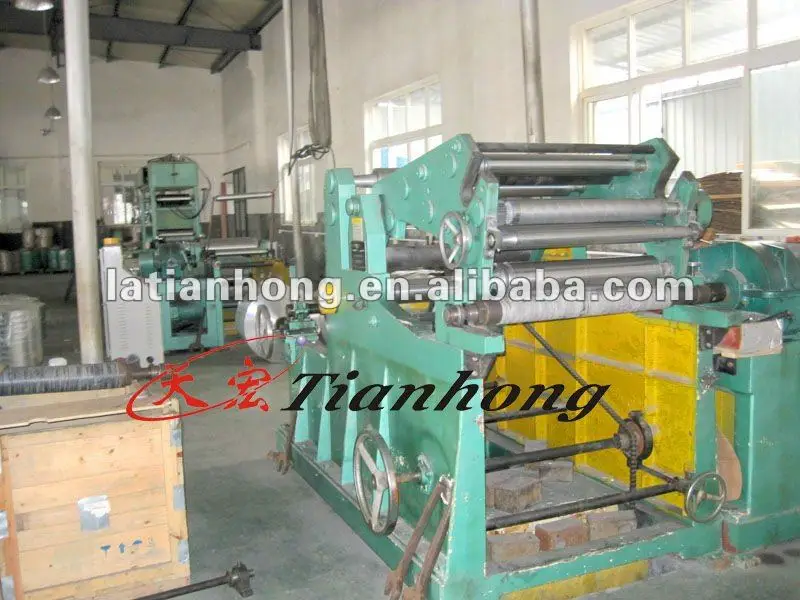

4.Production line: Paster & Cutting

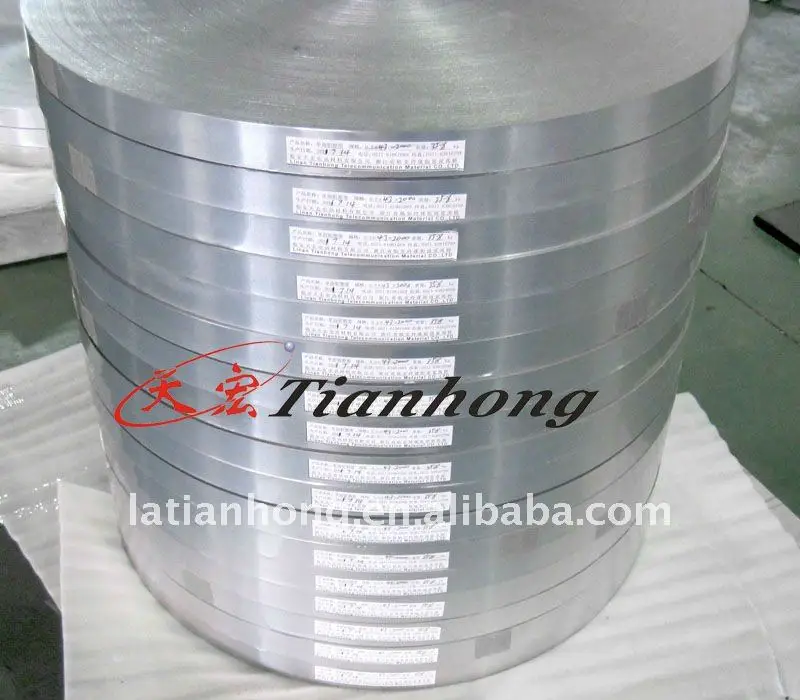

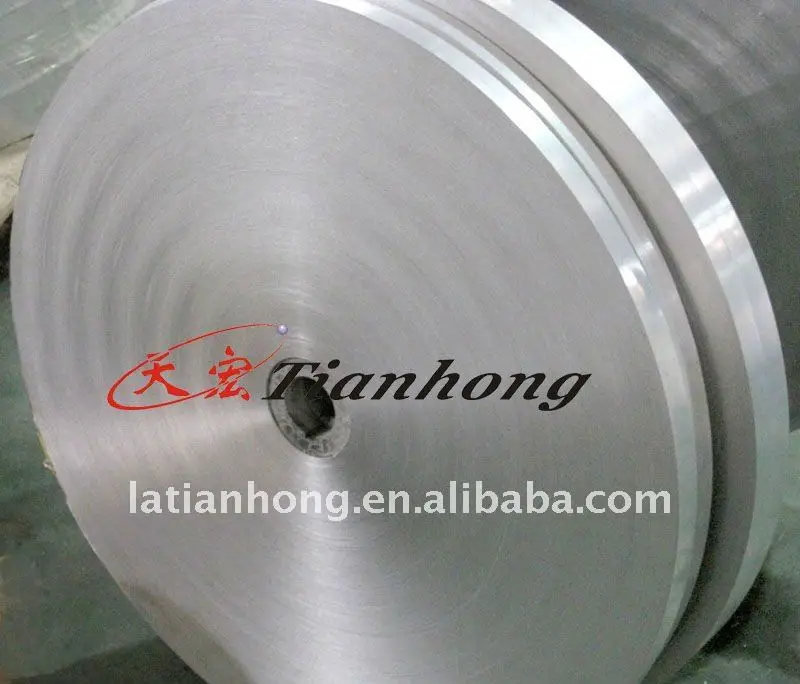

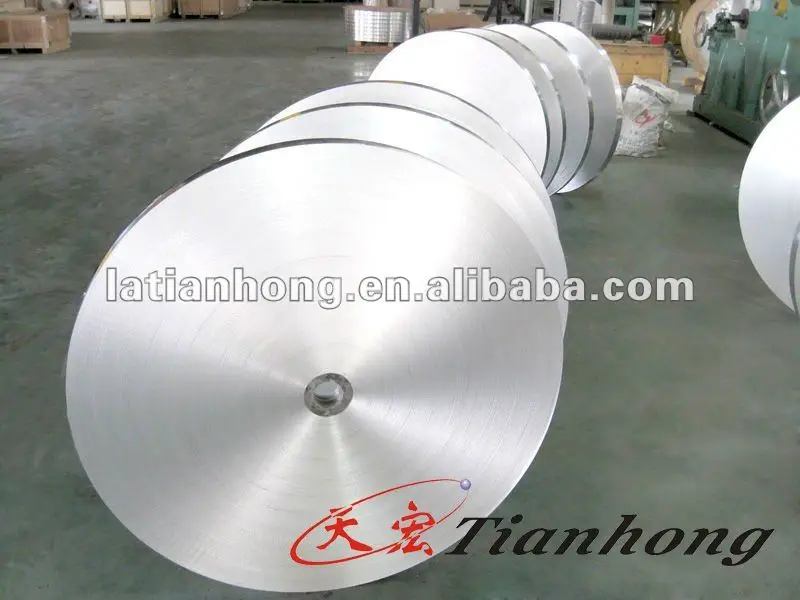

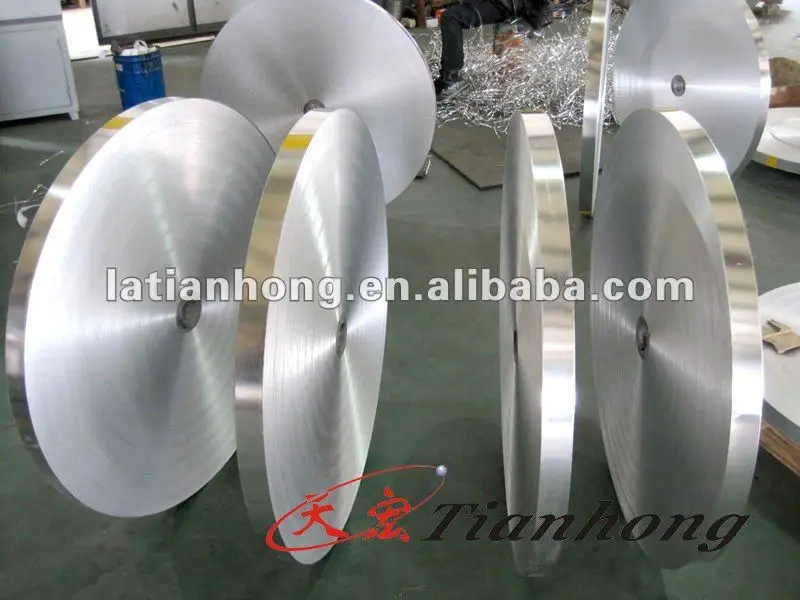

5.Product pictures
Packaging & Shipping

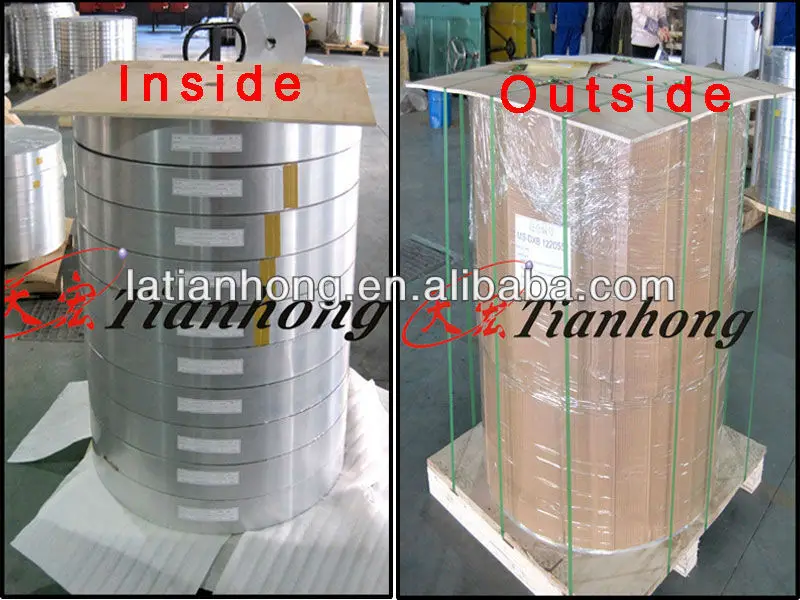

6.Packaging photos
Inner-Kraft paper,Then put on a plywood pallet

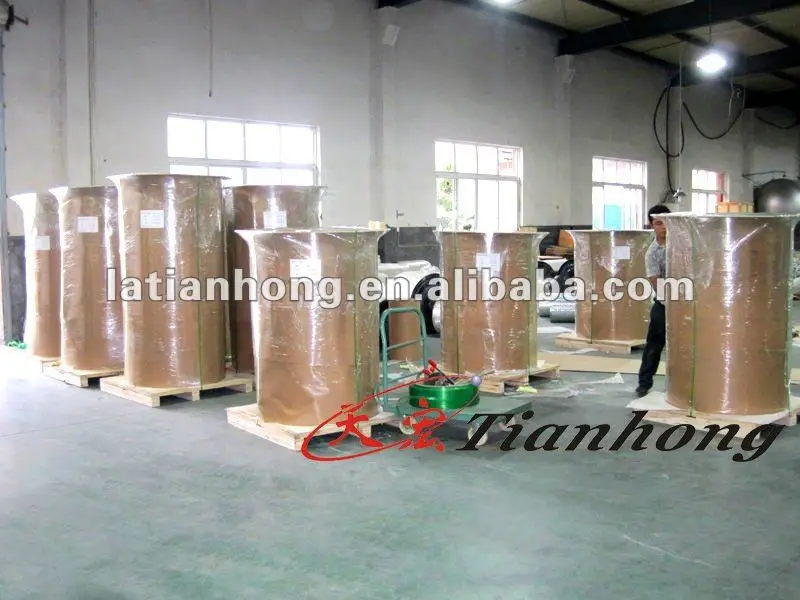

7.Warehouse

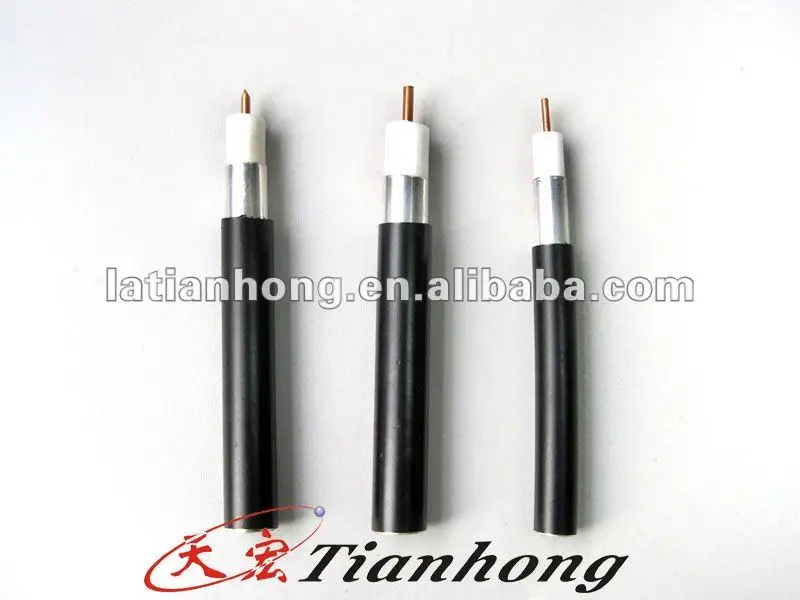

8.Application to Cables
9.Certificate:We have ISO,Supply SGS,Certificate of original,MSDS,Test report,ect
Our Services
10.Sample: We are manufacturer,We supply free sample,But please pay express fee.
11.Contact:Please feel free to contact with me.
Mobile:86-15168349992
