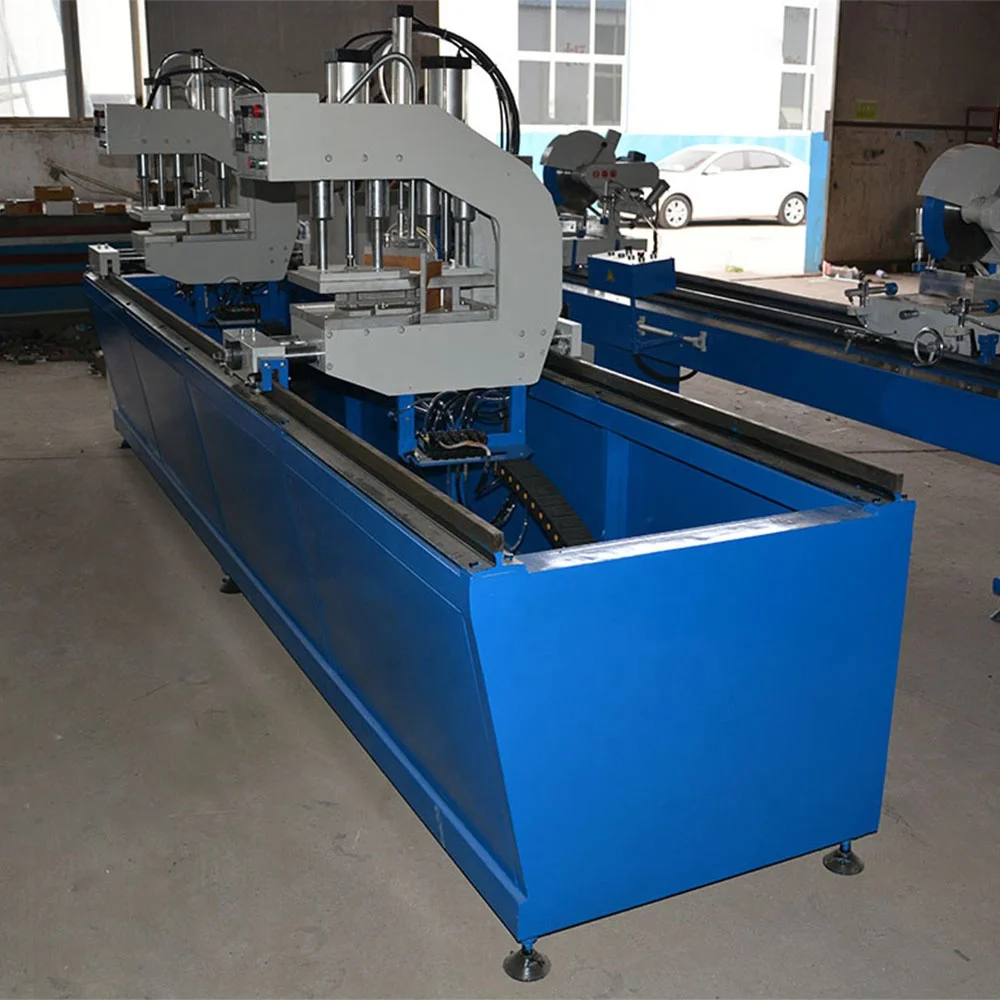

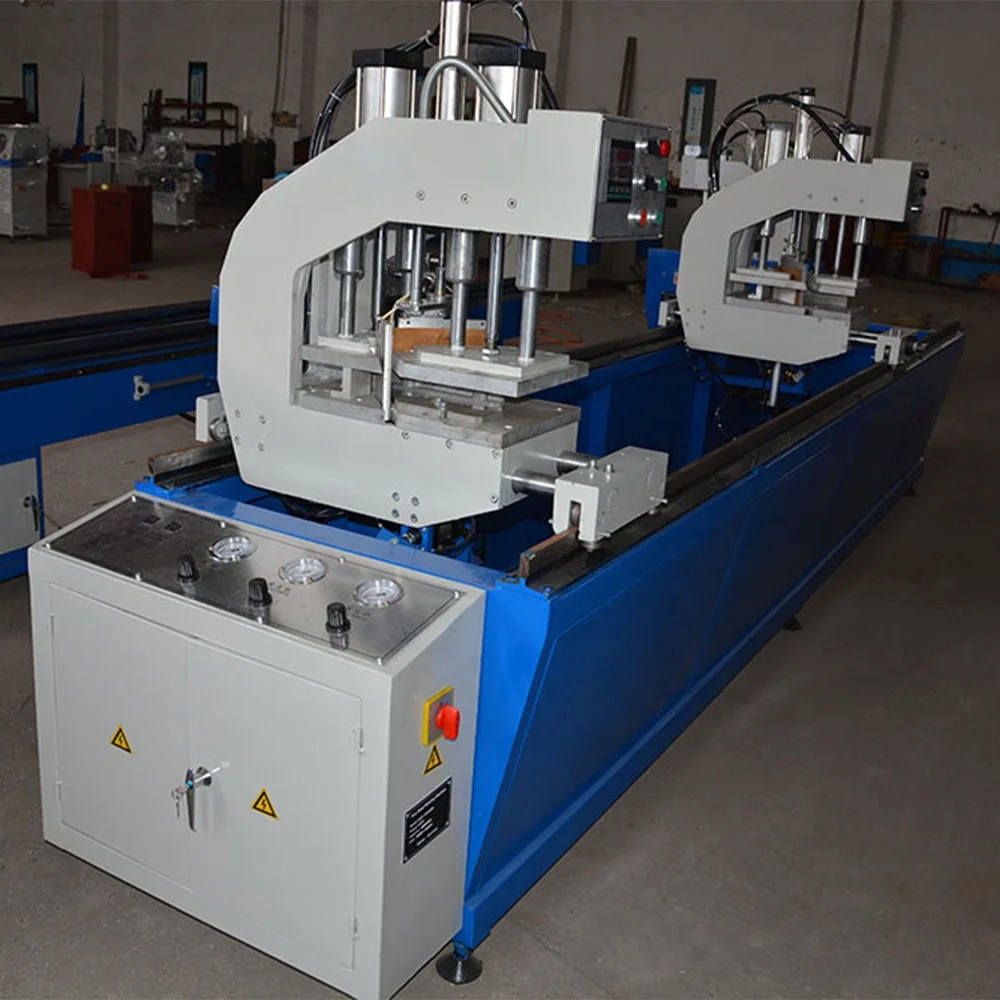

Two head welding machine for vinyl pvc upvc profiles windows doors welder

Product Overview

Description

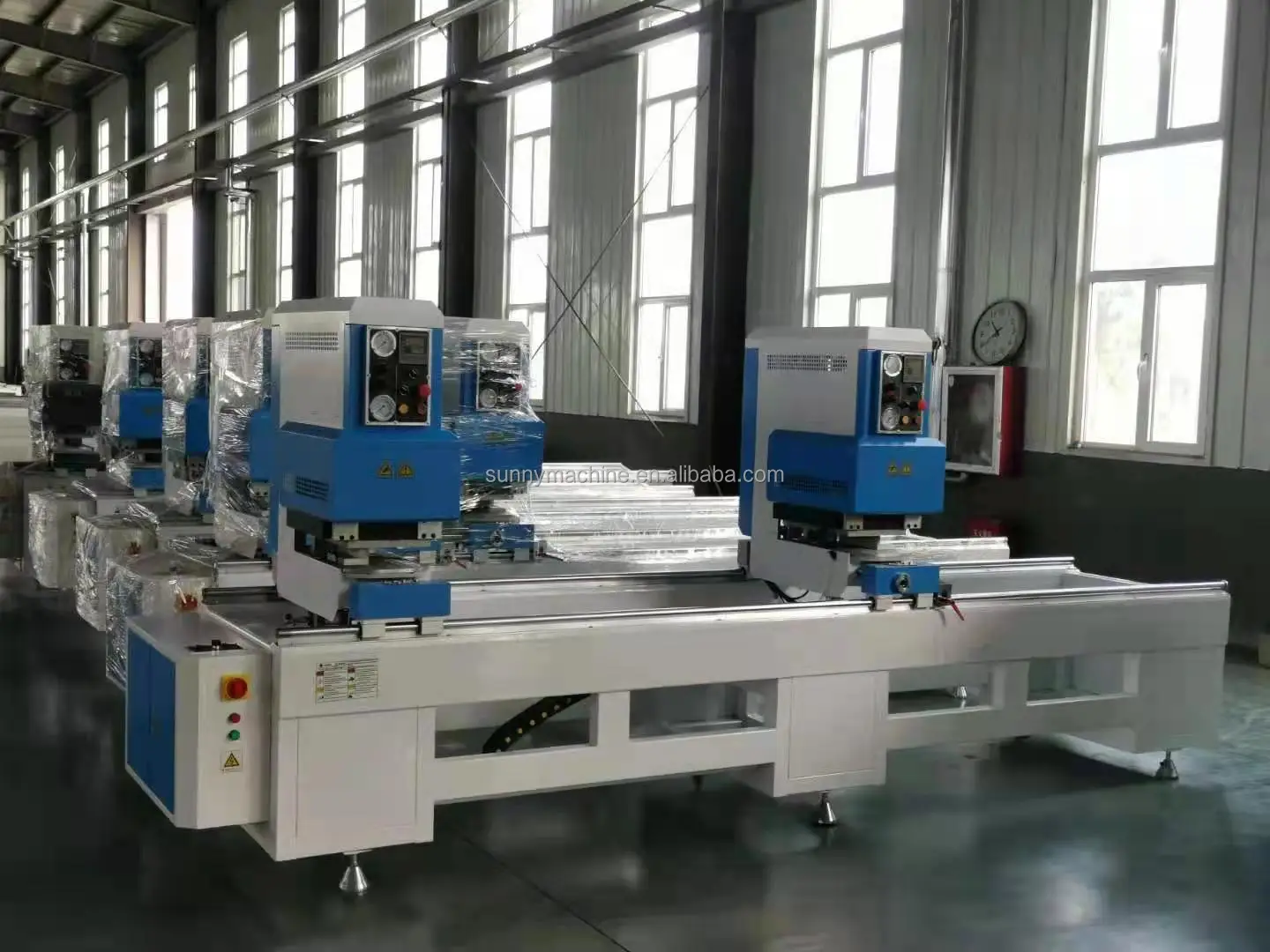

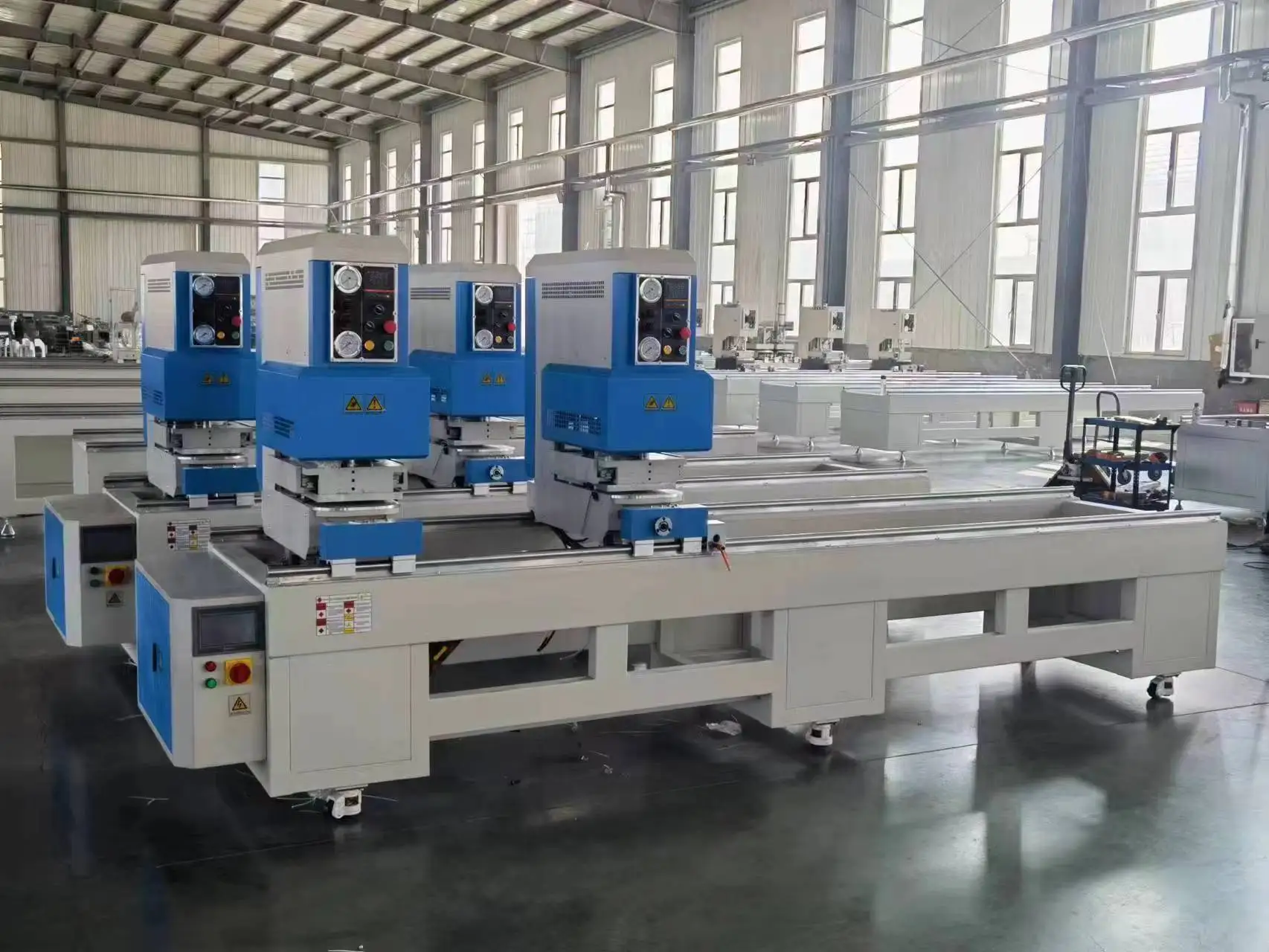

SHJ02-3500.2/2A Double-head Welding Machine



Function:

The machine applies to welding for plastic door and window .It can weld many shapes and their intercombination .it is PLC controlled and pneumatic drive .It has the characteristics of high automation level, better reliability, wider working range, etc. its 2 working parts can work singly, synchronously or do combinational working. It adopts  track. Which makes its anchor points more accurate, better reliability and it has a longer life.

Technical Parameter:
Air pressure:0.4-0.6MPa
Air consumption:100L/min
Input power:220V 50HZ(adjustable)
Total power:2.5KW

Welding profile height: 20-100mm

Welding length: 400-3300mm

Overall dimension; 4400*1100*1650mm

Weight: about 1200kgs



Main Parts brand:

PLC: Omron

Solenoid valve: FESTO (Germany)

Cylinder: JPC (FESTO JOINT Venture brand)

Air filter device: STNC

Electrical button and Switch: Schneider

AC contactor and circuit Breaker: Schneider

Temperature Controller: Omron (Japan)
