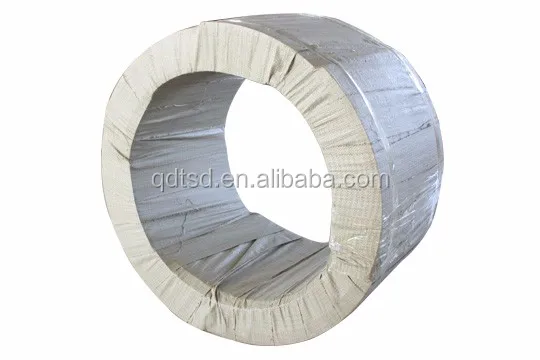

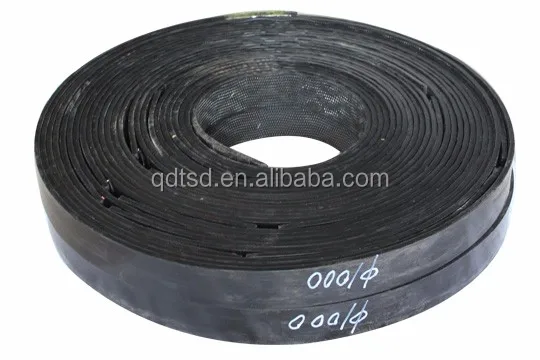

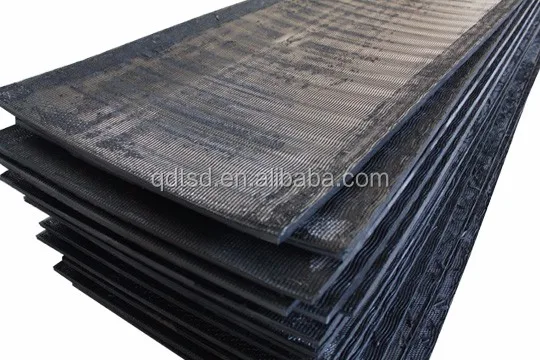

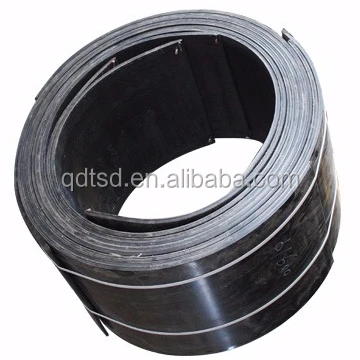

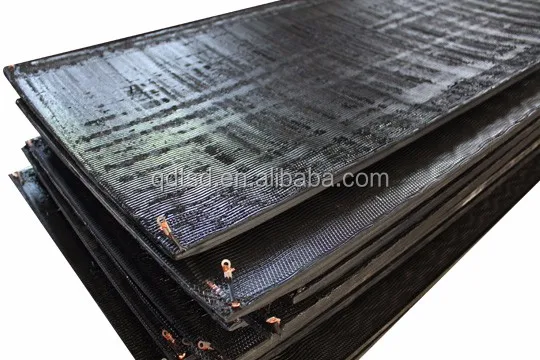

Polyethylene Electric Hot Melt Sleeve for Insulation Pipelines

Product Overview

Description

Electric Hot Melt Sleeve



The manufacturing of electric hot melt sleeves involving processes like compounding special electric hot network on PE plates, bending and batching. It is a kind of connect pipe fitting that joints jacketed pipes through electric hot melting. The application of special heating wire network gives the sleeve a perfect melting performance in the joint part, with very good connecting strength and sealing ability. Our product is the undated version of the first-generation sleeve in China. Performance characteristic: good bonding strength, excellent seal, high air-tightness, no PU leak, corrosion resistant, aging resistant, and easy to operate. Electric hot melt sleeve is an emerging connect fitting in anti-corrosion and thermal insulating industries. Its largely outperforms heat-shrinkable strip in terms of aging-resistance, bonding strength, and ring stiffness, further more, it applies PU foam after melting the jacketed pipes, this process needs much less time than using a heat-shrinkable strip; therefore, electric hot melting sleeves are widely welcomed in joint coating and connecting of heat distribution pipeline and oil pipeline.



Characteristics:

• winding pipe forming the basis of the characteristics of the general peak width of 60 ~ 80mm in between the narrow belt along the hot-melt welding pipe incision.


• Due to a variety of conditions, welding of the pipeline after the systemic and can not guarantee its tightness.


• pipeline to meet the needs of the project: often used in welding to conduct outreach approach, which uses hand-held extrusion welding torch welding along the incision in the wall.



Dimenstions:



DIAMETER	SIZE
DN500	1900×50×7
DN600	2200×50×7
DN710	2550×50×7
DN800	2850×60×7
DN900	3150×60×7
DN1000	3500×60×7
DN1100	3800×60×9
DN1200	4150×70×9
DN1300	4450×70×9
DN1400	4750×70×9
DN1500	5000×70×9
DN1600	5350×70×9
DN1700	5700×70×9
DN1800	6010×70×9
DN2000	6700×70×9
DN2200	7350×70×9
