Фрикционная и шлифовальная машина для тормозной башмака модели ZM 280II

Product Overview

Description

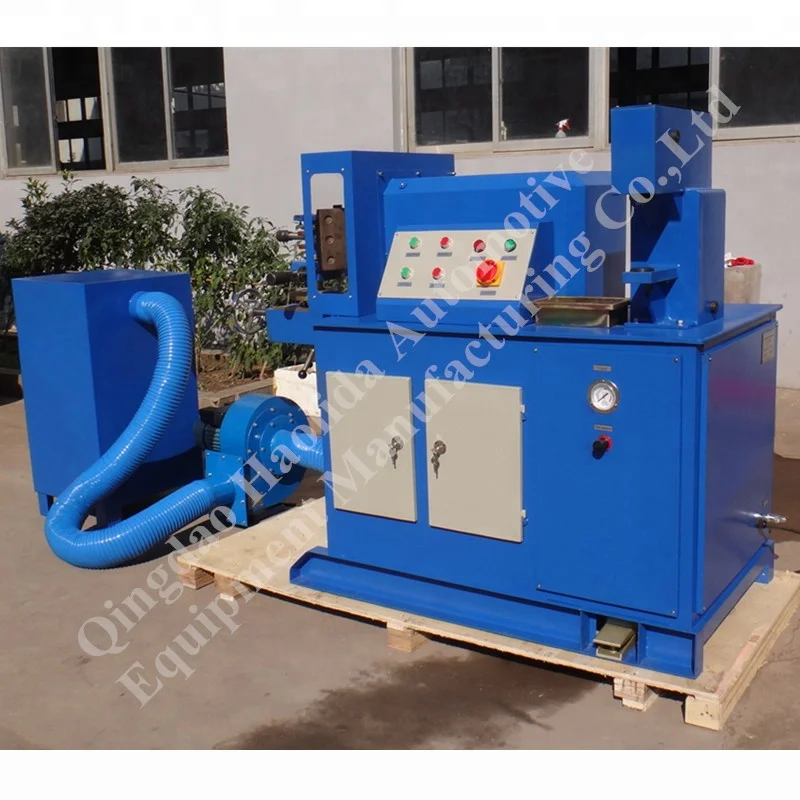

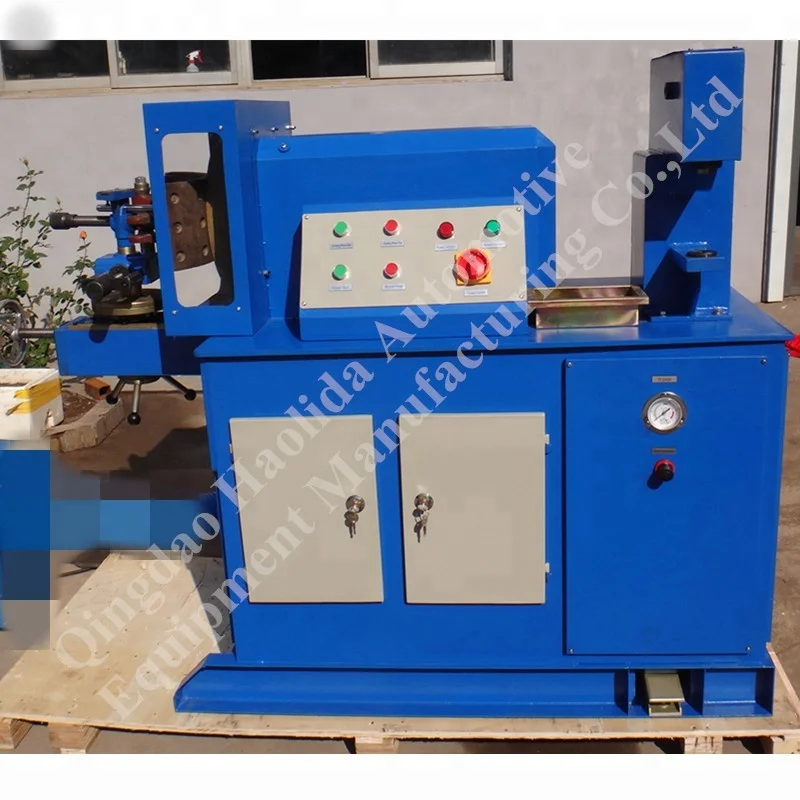

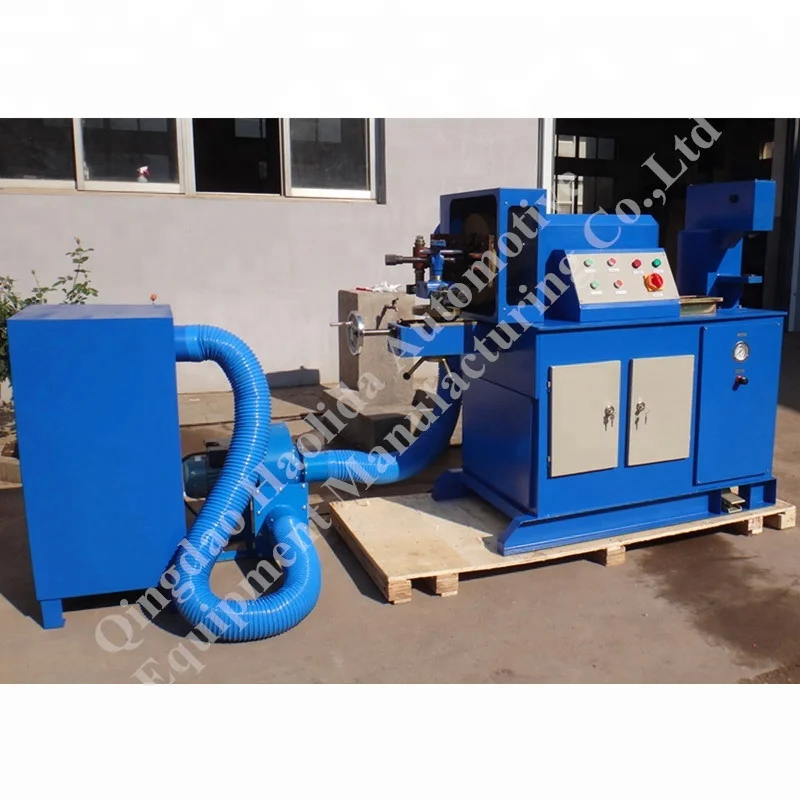

ZM-280II Model Brake shoe riveting and grinding machine



General introduction

It is used for riveting rivets of all kinds of brake shoes\\brake disc\\brake drum\\brake lining \\ brake pad and other auto parts.

It can grind any sizes of  brake shoes

It is matched with dust collecting system, to collect dust, it is environment friendly.



Technical parameter:



Model no	ZM-280II
Material	Metal plate
Painting	High quality paint
Color	Blue&black
Max rivet force	60KN(6T)
Suitable rivet diameter	3-10mm
Power	1.5KW
RPM of grinding wheel spindle	3000r/min
Max grinding width	280mm
Accessories:
Riveters: 6pcs, used for working on Φ3, Φ4,Φ5,Φ6,Φ8,Φ10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 100% in advance
Delivery time	10days after receiving down payment
HS code	8463900090
Packing sizes	Export plywood case 1300*780*146mm=1.48CBM N.W: 90kgs G.W: 120kgs
