Price:$1,800.00

Quantity:


Product Overview

Description

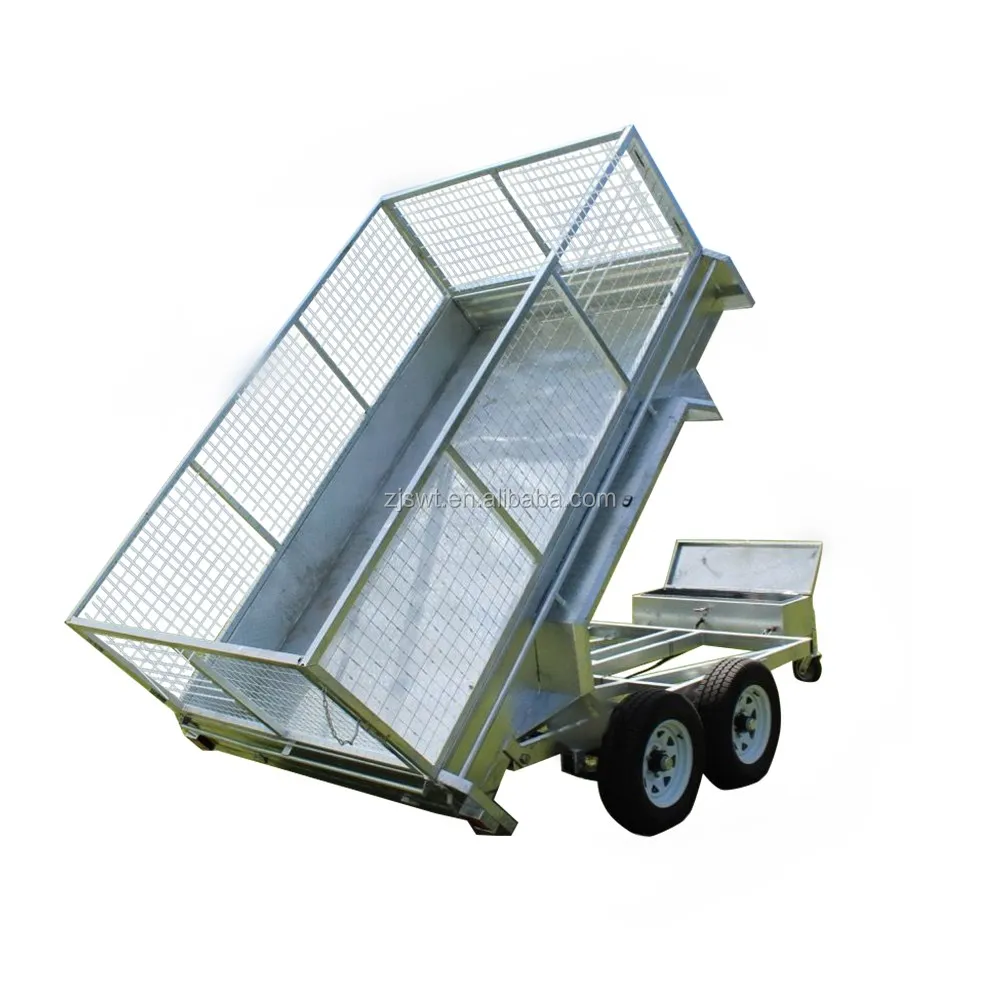

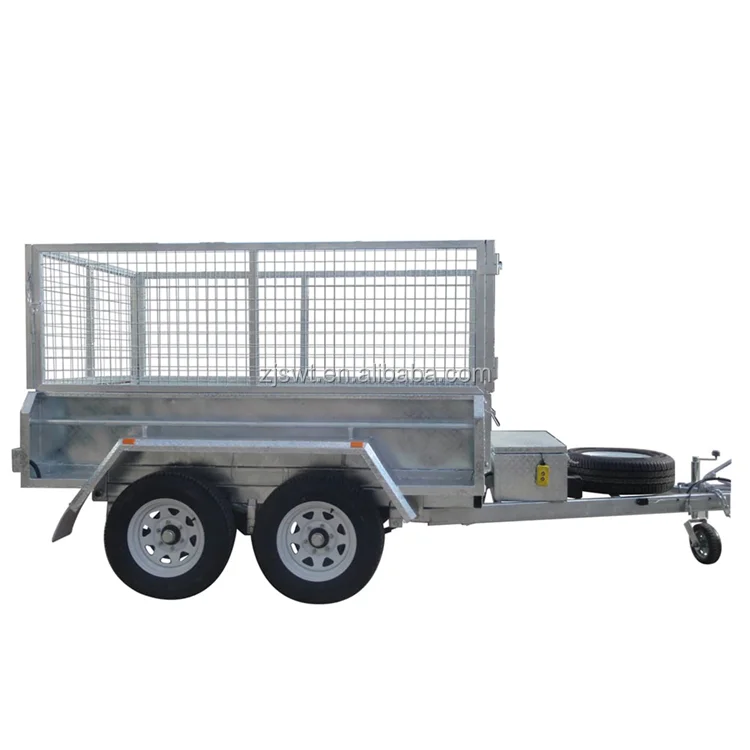

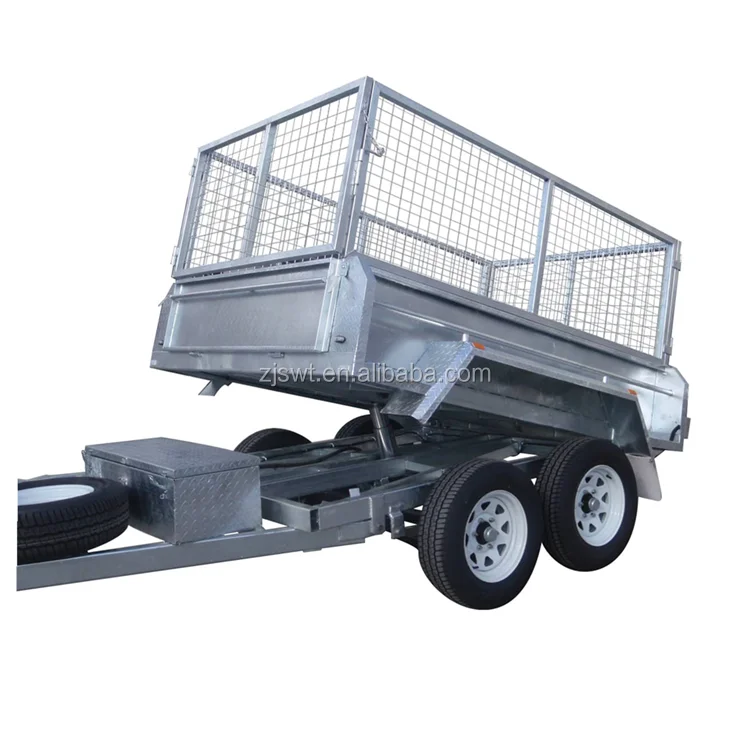

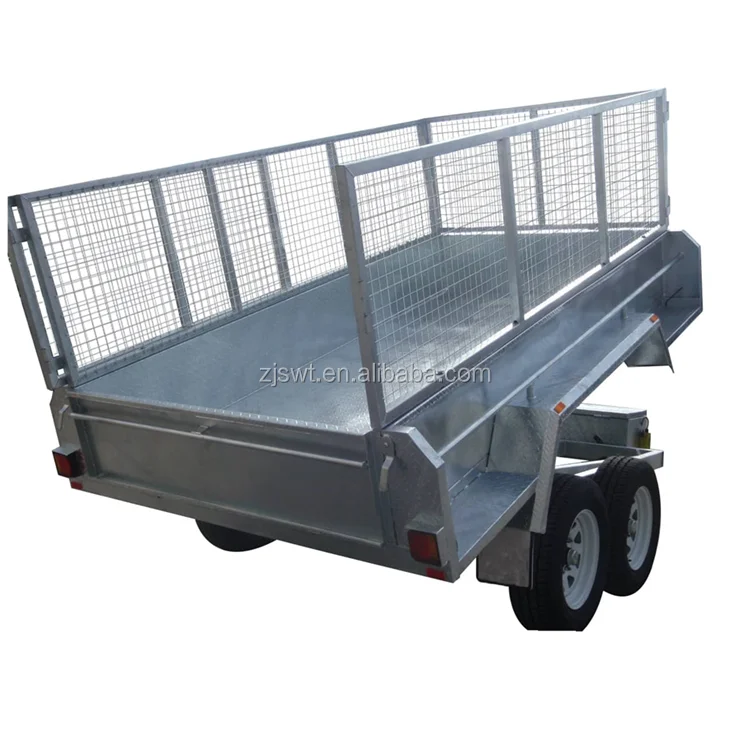

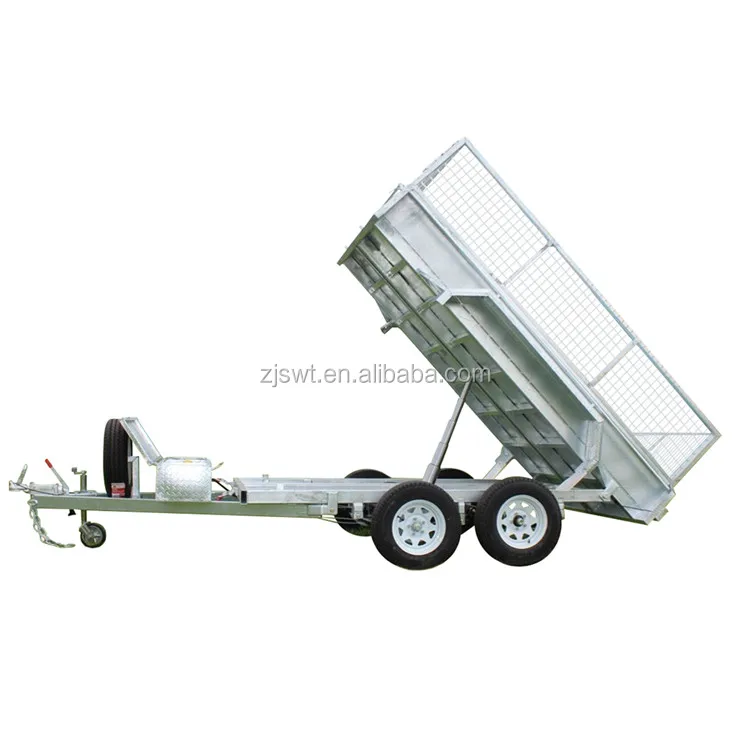

10x5 hydraulic tipping trailer with cage

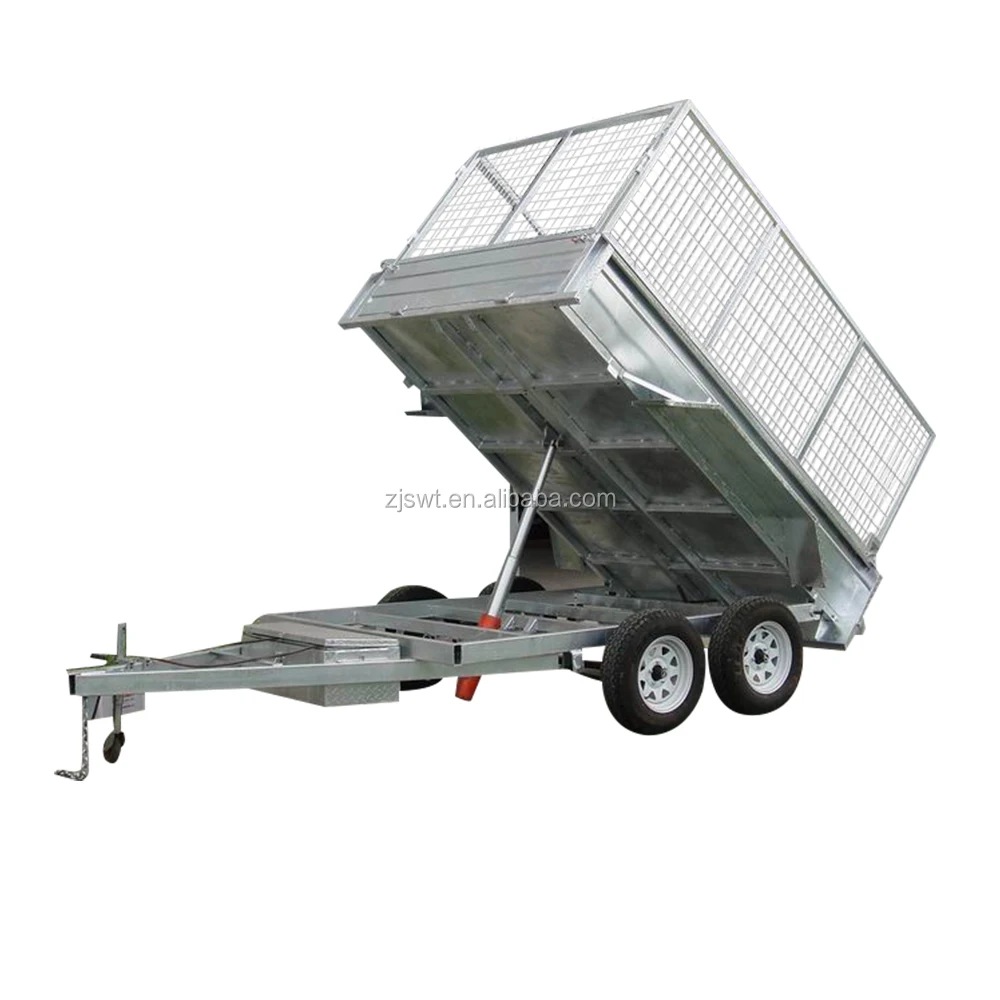

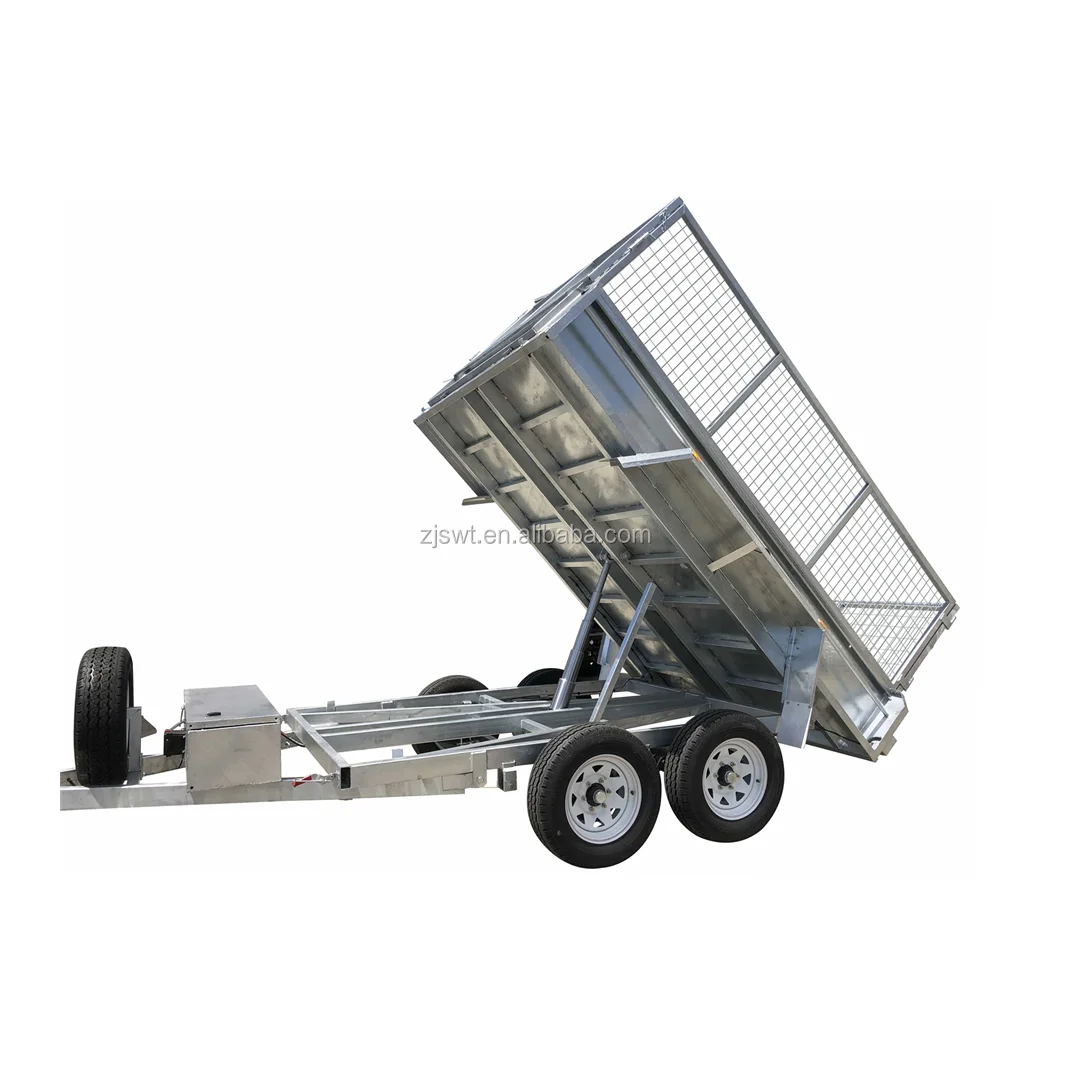

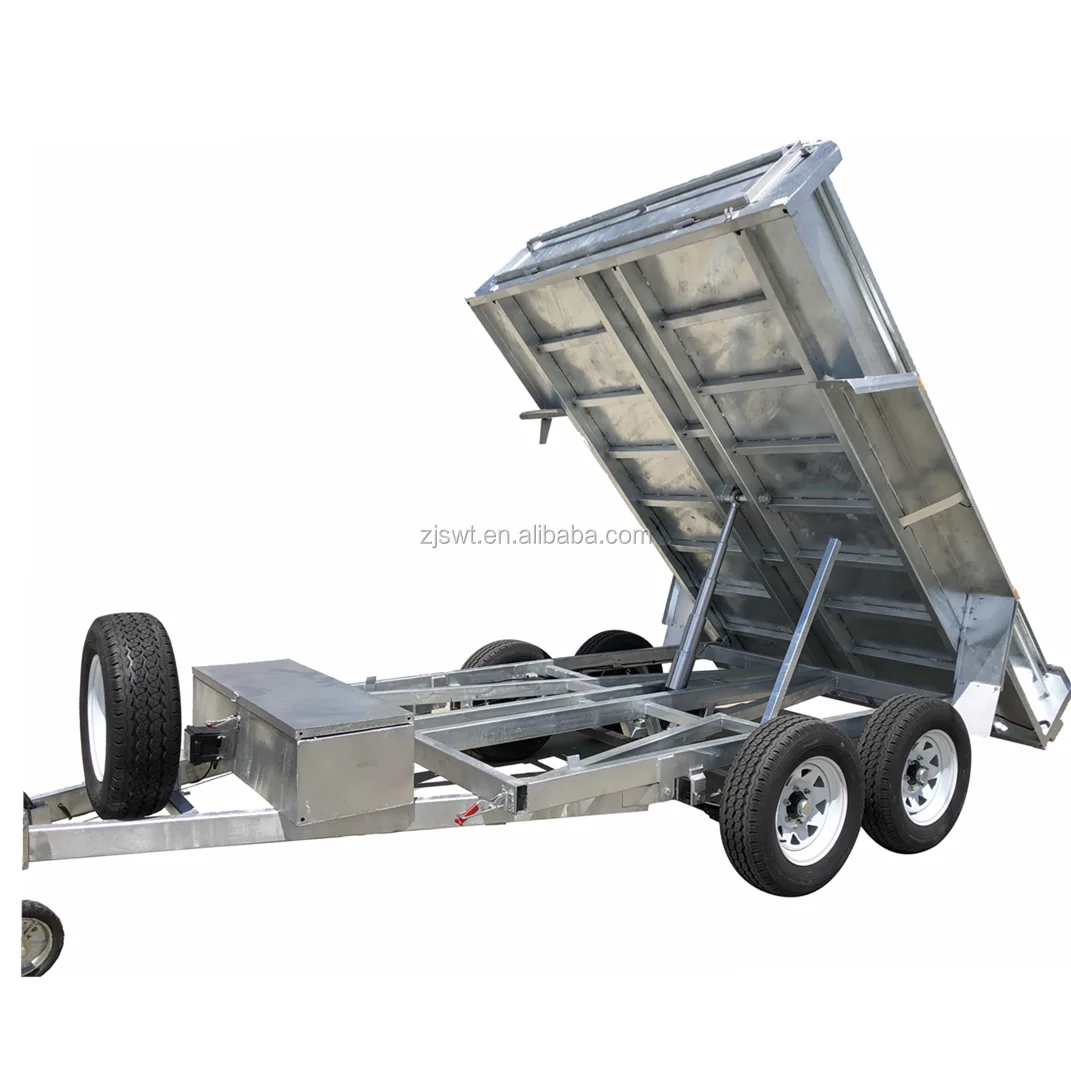

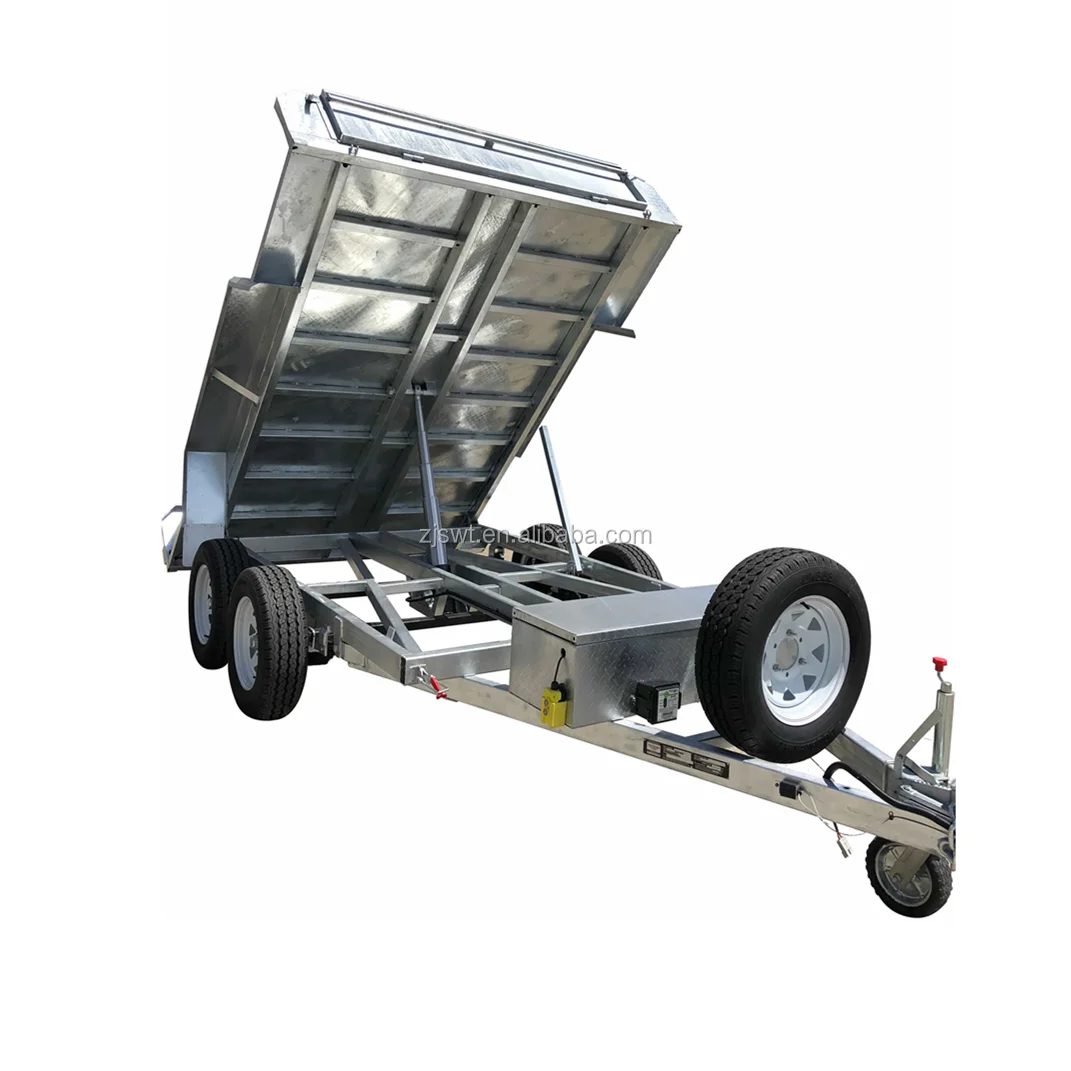

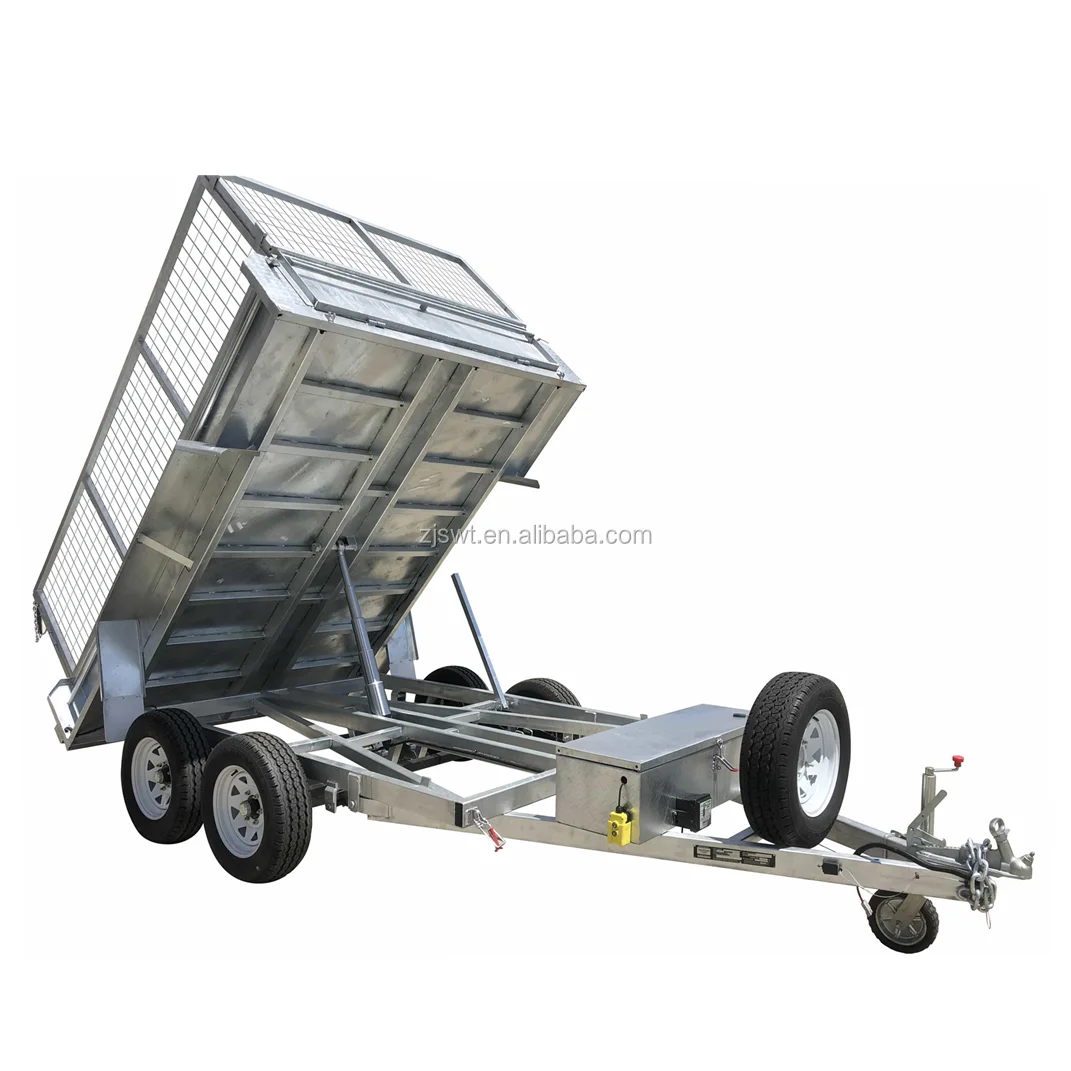

2 axle Hydraulic tipping tipper trailers for 8x5
SIZE
MODEL NO
OVERALL SIZE
INNER BOX SIZE
SPRING
WHEEL
SURFACE TREATMENT
GVW
8x5Ft
SWT-HTT85
4150x2025x800mm
2440x1525mm
6leafs
185R14C
Hot Dipped Gal
2000KGS
9x5Ft
SWT-HTT95
4410x2025x800mm
2700x1525mm
6leafs
185R14C
Hot Dipped Gal
2000KGS
10x5Ft
SWT-HTT105
4760x2025x800mm
3050x1525mm
6leafs
185R14C
Hot Dipped Gal
2000KGS


Description For Fully Welded Hydraulic Tipping Box Trailer
Drawbar
100X50X4MM SQUARE TUBE,1600MM LONG.WITH 2X10MM SAFETY CHAIN
Chassis
LOWER 100X50X4MM SQUARE TUBE
UPPER 100X50X3MM SQUARE TUBE Floor & Sides
2.5MM CHECKER PLATE FLOOR,FULL WELD WITH TRAILER PANELS AND CHASSIS
Axle
ONE 50X50 SOLID SQUARE DISC BRAKED AXLE AND ONE NONE BRAKED AXLE
Spring
60X6MMX7LEAFS ROCKER ROLLER SUSPENSION
Wheel
185/70R14C WHEEL WITH PAINT RIM (WITH EMARK &DOT)
Jockey wheel
HEAVY DUTY JOCKEY WHEEL
Coupling
50MM AU STRANDARD / 1 7/8 NZ STANDARD
Lights
LED LIGHT SETS WITH 7PIN PLUG (WITH EMARK &DOT)
Surface Treatment
Hot dipped galvanized
