Bonded aluminum coating polyester foil
US $3000-$4500

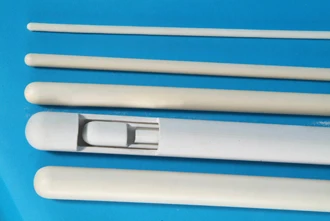

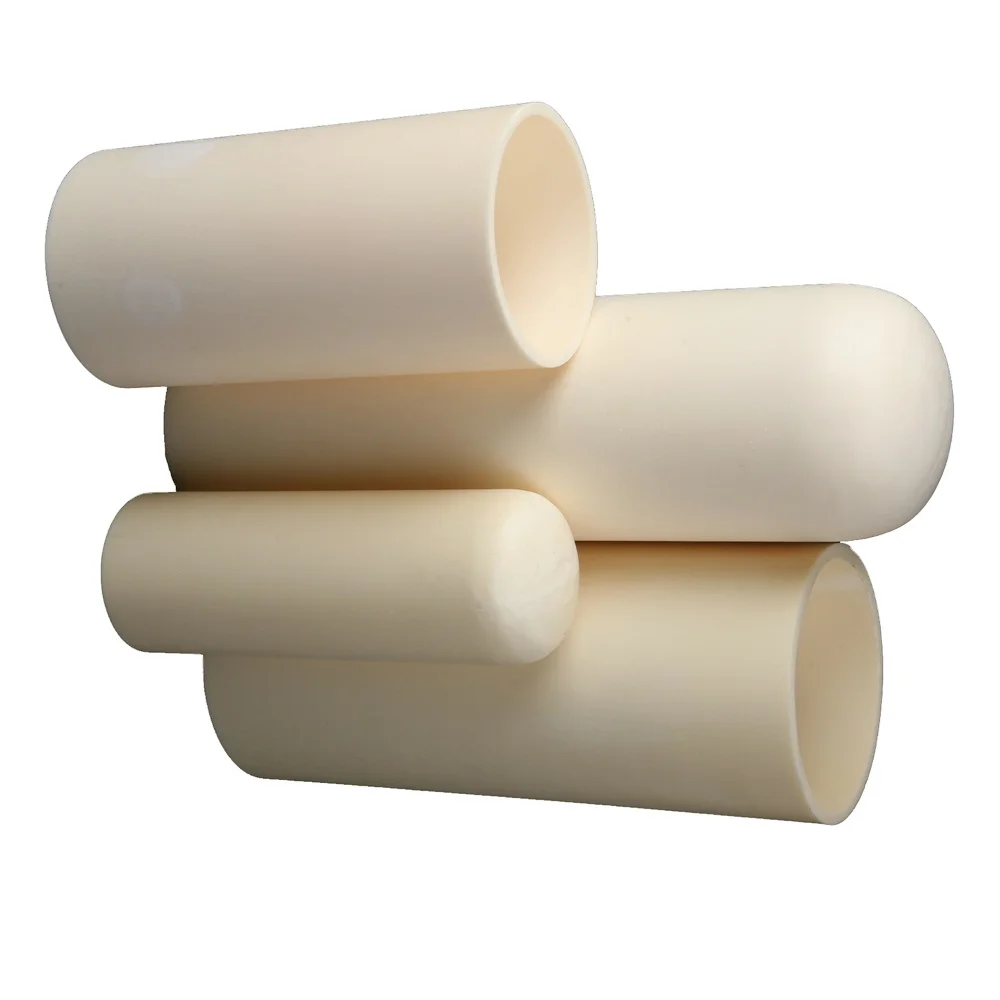

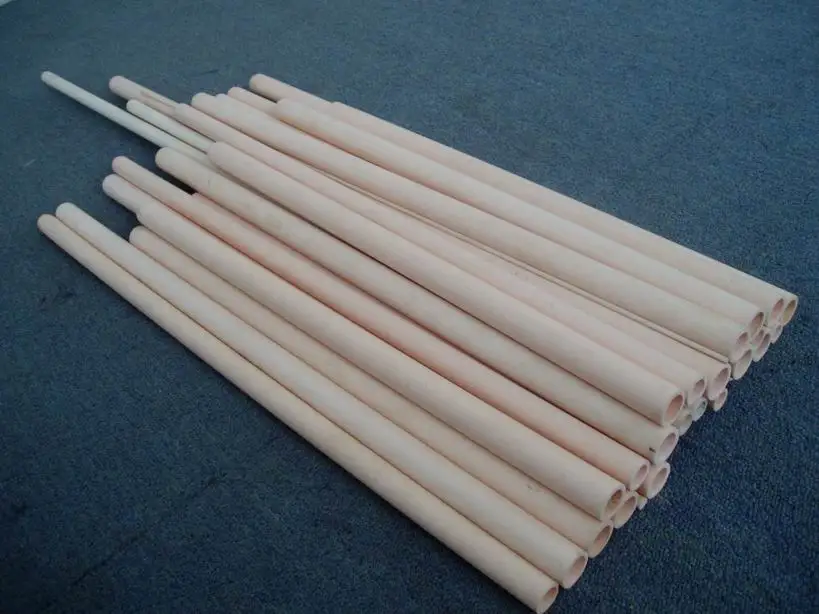

AL2O3 al2o3 aumina content series tube
- Category: Electronic Products & Components Processing >>>
- Supplier: Tianjin Century Electronics Co. Ltd. [Tianjin China]Tianjin
Share on (332791815):
Product Overview
Description
Product Description
Specifications
| Unit | Value | |||
|---|---|---|---|---|
| High Alumina | Corundum | |||
|
Al2O3 Content |
% |
85 |
99 ~ 99.5 |
|
|
SiO2 Content |
% | 12 | 0.2 | |
|
Fe2O3 Content |
% | 0.2 | 0.05 ~ 0.1 | |
| 7 | 8 ~ 9 | |||
|
Bulk Density |
g/cm3 | 3.5 ~ 3.6 | 3.7 ~ 3.9 | |
| 3.4 ~ 3.5 | 3.7 ~ 3.8 | |||
| 3.4 ~ 3.5 | 3.7 ~ 3.85 | |||
|
Water Absorption |
% | < 0.2 | 0.1 ~ 0.2 | |
|
Bending Strength |
MPa | 180 | 200 | |
| 140 | 150 | |||
| ℃ |
Long term 1450 Short term 1600 |
Long term 1600 | ||
|
Max. Operating Temperature |
℃ | 1600 | 1800 | |
Key Features
High Mechanical Strength
High Thermal Conductivity
High Spalling Resistance
High Softening Temperature
Excellent Insulativity
Etching Resistance
Applications
Temperature Measuring Meters
Protection and Insulation for Thermocouples, Thermometers
Chemical Analysis for Steel, Iron
High Softening Temperature
Furnace Tube for Resistance Furnaces, Heat Treatment Furnaces
Various Insulating Parts for High Temperature resistance and Etching Resistance
Structure Model
Round, Oval
Mono-hole, Double-hole, Multi-hole
Threaded
Rhombohedral
Packaging & Shipping
Company Information
advantages
Our Exhibition
Products testing
FAQ
contact us
