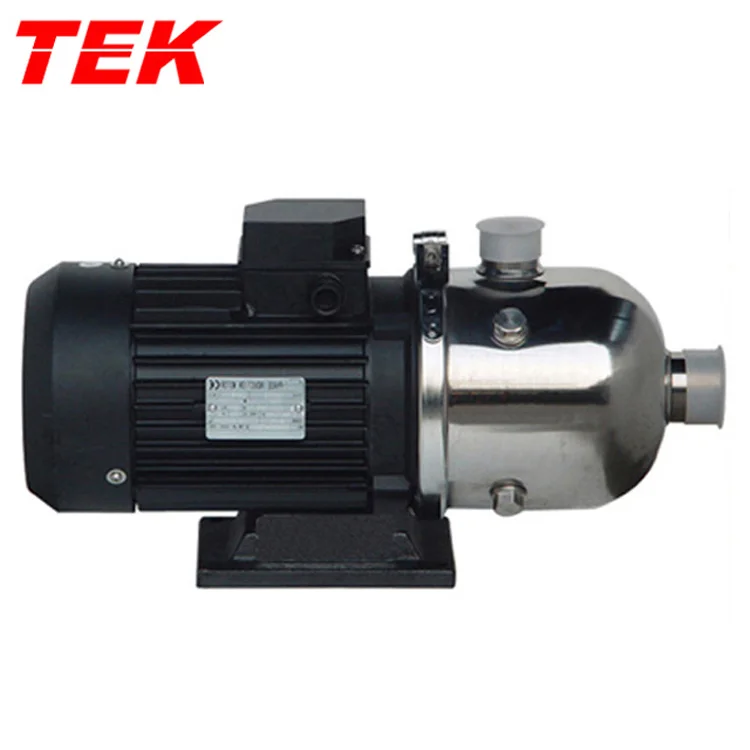

CHL8 CHL8 10 CHL8 30 CHL8 40 CHL8 50 Series Light Stainless Steel Multistage Horizontal Centrifugal Pump OEM

Product Overview

Description

CHL8 CHL8-10 CHL8-30 CHL8-40 CHL8-50 Series Light Stainless Steel Multistage Horizontal Centrifugal Pump OEM



Application

CHL8  type pump are mainly used in industrial field:
Air-conditioning system
Cooling system
Industrial cleaning
Water treatment(Water purification)
Aquiculture
Fertilizing / metering system
Environmental application
Other special applications
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value,temperature, solvent and oil content.
Operation condition
Liquid temperature:
Normal temperature type: -15°C~+70°C
Hot water type: +70°C~+110°C
Highest ambient temperature: +40°C
Max.operation pressure :10 bar
Max.inlet pressure is limited by max.operation pressure
Pump

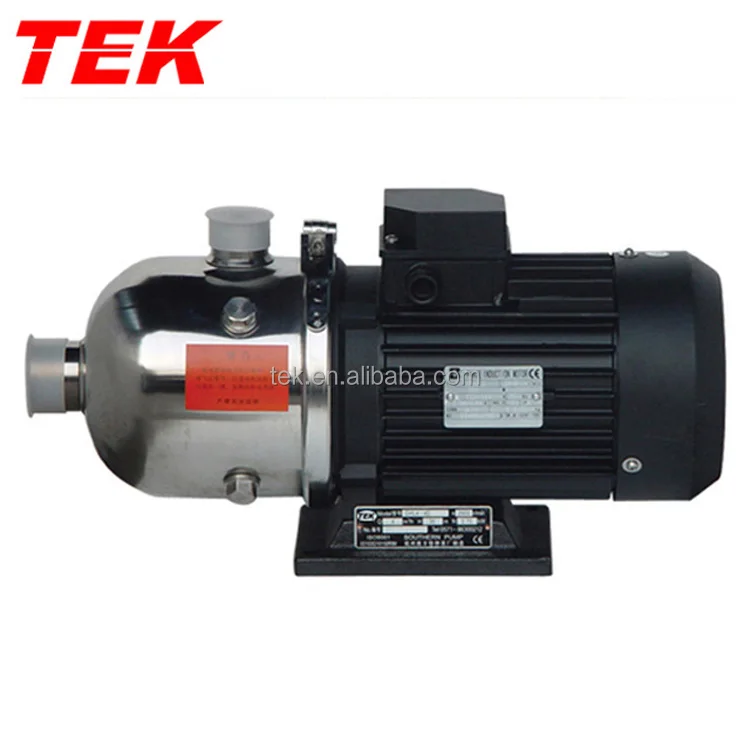

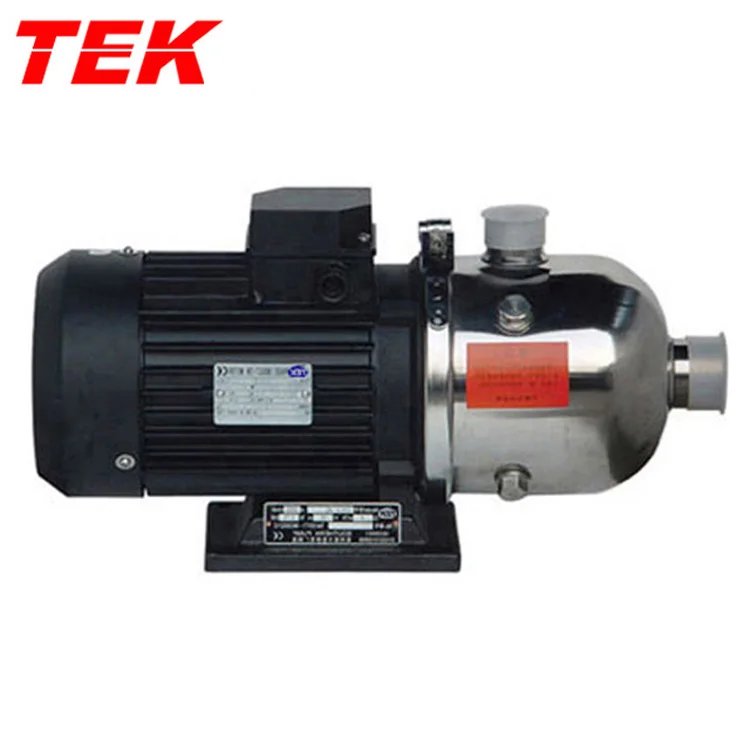

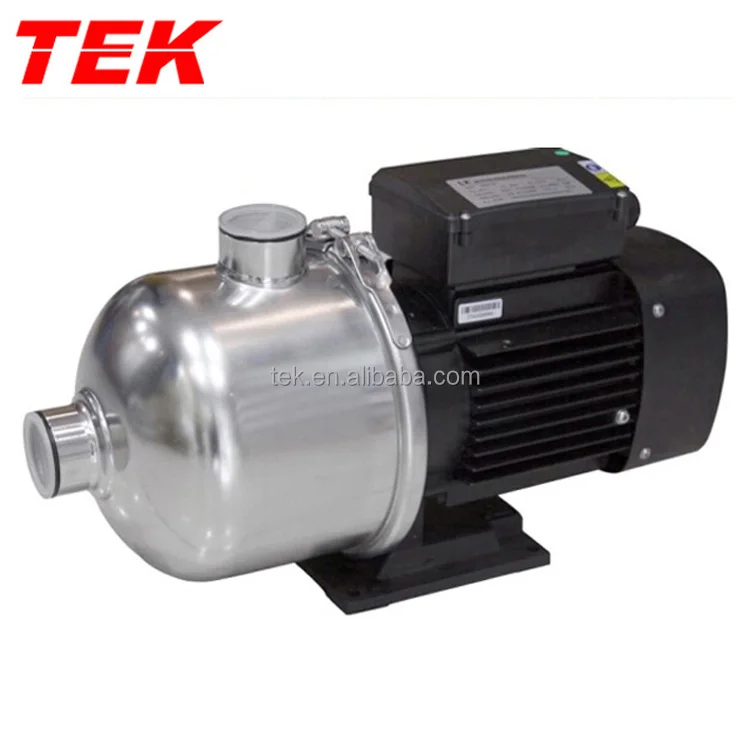

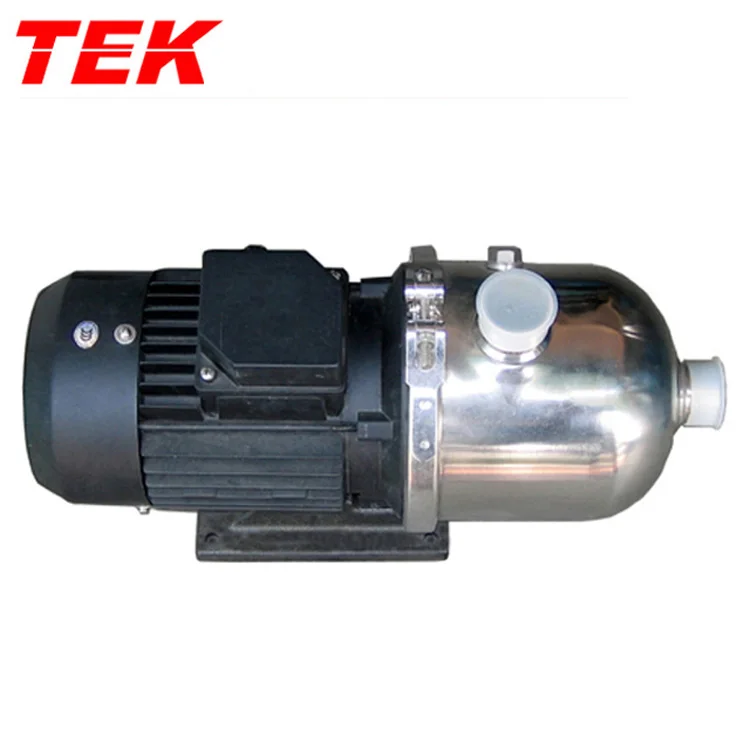

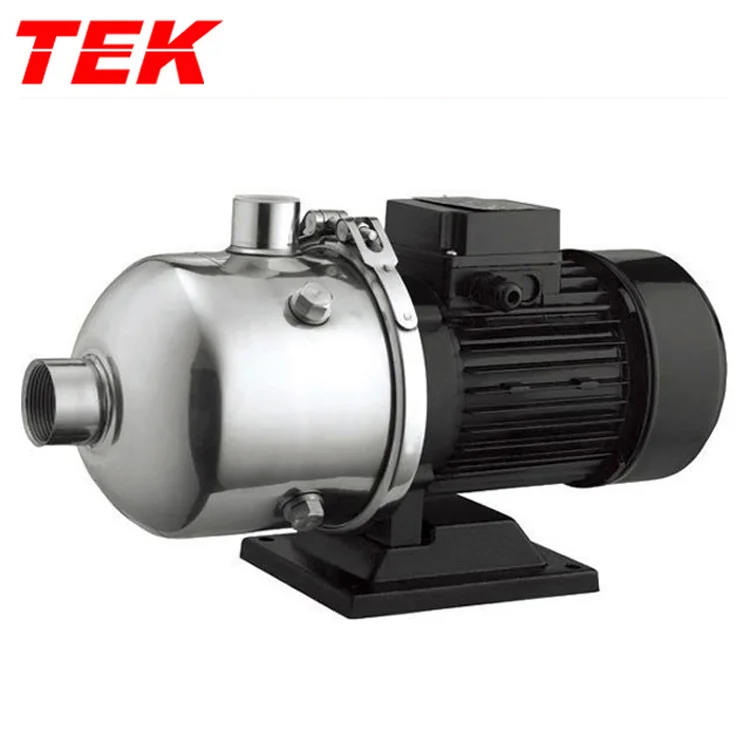

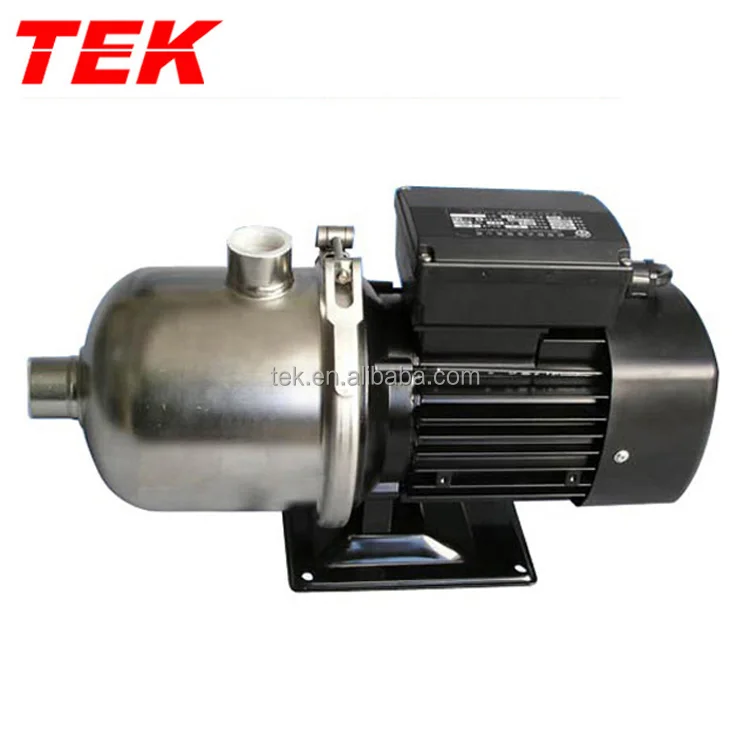

Horizontal multistage non-self-priming centifugal pump, attached with long shaft electric motor.
Compact structure renders small size of pump;axial inlet and radial outlet.
Product Power: 0.75-2.2 KW
