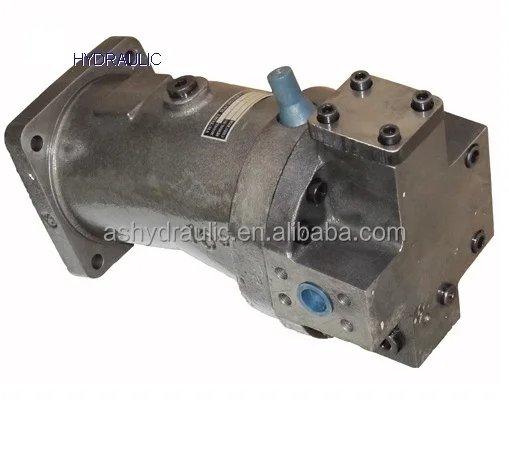

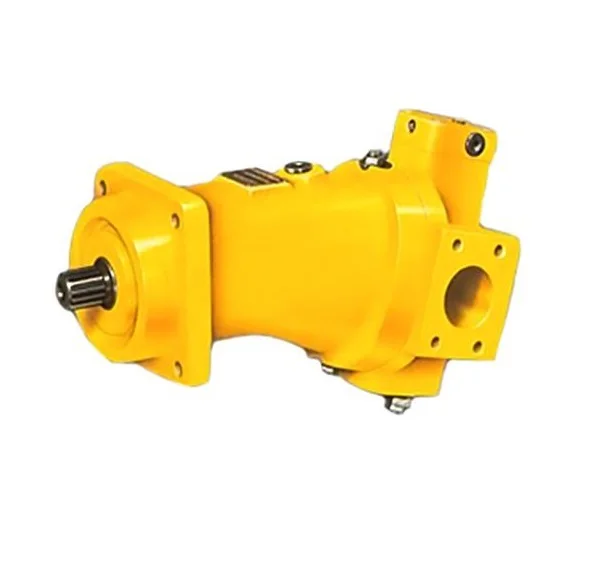

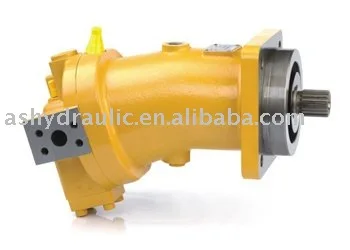

Hot sales Rexroth A7V of A7V20,A7V28,A7V40,A7V55,A7V58,A7V78,A7V80,A7V107,A7V117,A7V160, A7V250,A7V500 variable piston pump

Product Overview

Description

Hot sales Rexroth A7V of A7V20,A7V28,A7V40,A7V55,A7V58,A7V78,A7V80,A7V107,A7V117,

A7V160,A7V250,A7V500 variable piston pump

1. Completely interchangeable with original

2. Series 2.0, axial piston unit, bent axis design

3. Size 20 to 500

4. Widely used for open circuit

5. Drive shaft capatable of accepting radial load

6. High performance, low noise and long service life

7. Suitable for walking mechanical or industrial areas

8. Compact structure, easy installation and maintenance

9. Very competitive price

10. 1 year of warranty

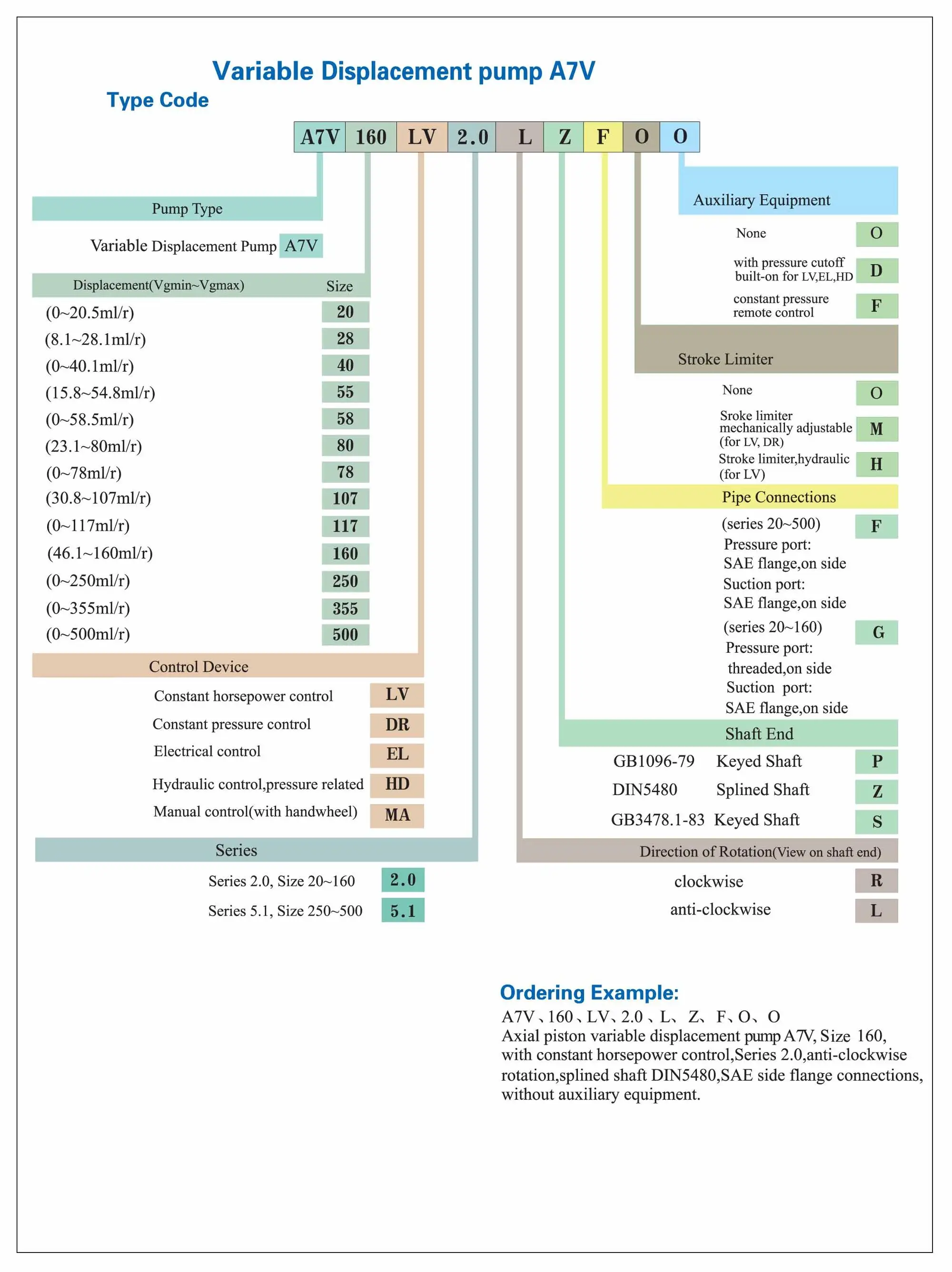

Some models for your reference:

A7V58EM2.0RPF00	A7V117EL2.0RPF00	A7V58EL2.0LZF00	A7V160LV2.0LZF00
A7V78EL2.0RPF00	A7V160LV2.0LZF00	A7V80EL2.0RPF00	A7V160LV2.0RPF00
A7V80LV2.0RZF00	A7V80LV2.0RPF00	A7V160LV2.0LZFH0	A7V160LV2.0RPFMO
A7V107EL2.0RPF00	A7V160EL2.0RPF00	A7V107LV2.0RPF00	A7V250LV5.1RPFH0
A7V107LV2.0LPF00	A7V160LV2.0RZFM0	A7V107LV2.0RZF00	A7V107LV2.0LZFM0
A7V250EL5.1RPF00	A7V117LV2.0LPF00	A7V160LV2.0LPF00





Technical Specifications:





Size	20	28	40	55	58	80	78	107	117	160	250	355	500
LV Constant HP control	**	**	**	**	**	**	**	**	**	**	**	**	**
DR Constant pressure control	**	**	**	**	**	**	**	**	**	**	**	**	**
HD Hydraulic control	**	**	**	**	**	**	**	**	**	**
EL Electric control(Proportional)			**	**	**	**	**	**	**	**	**
MA Manual control	**	**	**	**	**	**	**	**	**	**	**
NC Numerical control							**	**
Displaceent Vgmax  ml/r	20.5	28.1	40.1	54.8	58.8	80	78	107	117	160	250	355	500
Displacement Vgmin ml/r	0	8.1	0	15.8	0	23.1	0	30.8	0	46.2	0	0	0
Max speed nmax0.09 r/min	3800	3800	3200	2360	2850	2120	2540	1900	2240	1650	1400	1250	1120
Max speed  nmax0.1 r/min	4100	3000	3400	2500	3000	2240	2700	2000	2350	1750	1500	1320	1200
Max speed nmax0.15 r/min	4750	3600	3750	3000	3350	2750	3000	2450	2650	2100	1850	1650	1500
Max flow Qmax0.09 L/min	76	76	124	125	161	164	192	197	254	256	340	430	543
Max flow Qmax0.1 L/min	82	82	132	133	170	174	204	208	267	271	364	455	582
Max flow Qmax0.15 L/min	94	98	146	160	190	213	227	254	300	326	449	568	728
Max power(Δp=35Mpa) Pmax0.09 KW	45	46	75	75	97	99	116	119	153	154	204	259	326
Max power(Δp=35Mpa) Pmax0.1 KW	49	49	80	80	102	105	123	125	161	163	218	273	350
Max power(Δp=35Mpa) Pmax0.15 KW	57	59	88	96	114	128	136	153	181	196	270	342	437
Flow NE=1450 r/min L/min	28.8	39.5	56.4	77.1	82.3	112.5	109.7	150.5	164.6	225	--	--	--
Max power(Δp=35Mpa) NE=1450r/min KW	17	24	34	46	50	68	66	91	99	135	--	--	--
Torque M(Δp=10Mpa) Vgmax N.m/10Mpa	32.6	44.6	63.7	87	93.2	127.5	124	169.7	186	254	397.5	561.5	795
Torque M(Δp=10Mpa) Vgmin N.m/10Mpa	--	12.9	--	25.1	--	36.8	--	49	--	73.5	--	--	--
Torque M(Δp=10Mpa) Vgmax	114	156	223	305	326	446	431	594	651	889	1391	1975	2782
Torque M(Δp=10Mpa) Vgmin	--	45	--	88	--	129	--	171	--	257	--	--	--
Moment of interia Kgm2	0.0017	0.0017	0.0052	0.0052	0.0109	0.109	0.0167	0.0167	0.0322	0.0322	0.088	0.160	0.270
Weight Kg	19	19	28	28	44	44	53	53	76	76	105	165	245









Real photos bought by our wholesaler and distributor from Indonesia:
