Hot sales Yuken PV2R of PV2R1,PV2R2,PV2R3,PV2R4 single hydraulic vane pump

Product Overview

Description

Hot sales Yuken PV2R of PV2R1,PV2R2,PV2R3,PV2R4 single hydraulic vane pump

1. Completely interchangealbe with original

2. These pumps are high pressure and high performance, which have been developed especially for low noise operation

3. To comply with a variety of applications including injection moulding machines, PV2R series single pumps provide the output flow of such a wide range as from 5.8 to 237 cm3/rev (.354 to 14.46 cu.in./rev).

4. The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit

5. Therefore, the replacement of the driving parts can be done easily

6. Very competitive price and fast delivery time

7. 1 year of warranty

8. Precisely made, the product is widely used in cutting, plastic, leather, forging and engineering machinery fields, and the like

9. Short delivery time





Some models for your reference:

PV2R1-6-F-RAA-4222	PV2R1-10-F-RAA-4222
PV2R1-12-F-RAA-41	PV2R1-25-F-RAA-41
PV2R1-14-F-RAA-41	PV2R1-31-F-RAA-41
PV2R1-17-F-RAA-41	PV2R2-33-F-RAA-41
PV2R1-19-F-RAA-41	PV2R2-47-F-RAA-41
PV2R1-23-F-RAA-41	PV2R2-59-F-RAA-41
PV2R1-28-F-RAA-41	PV2R3-52-F-RAA-31
PV2R2-26-F-RAA-41	PV2R3-66-F-RAA-31
PV2R2-41-F-RAA-41	PV2R3-94-F-RAA-31
PV2R2-53-F-RAA-41	PV2R4-136-F-RAA-30
PV2R2-65-F-RAA-41	PV2R4-184-F-RAA-30
PV2R3-60-F-RAA-31	PV2R4-237-F-RAA-30
PV2R3-76-F-RAA-31	PV2R4-153-F-RAA-30
PV2R3-116-F-RAA-31	PV2R4-200-F-RAA-30



Technical Specifications:

Yuken PV2R Series Single Pumps





Model	Displacement ml/r	Max Pressure MPa			Input power kw*	Speed r/min		weight kg
		Special oil	Antiwear oil	Common oil		Min	Max
PV2R1-6	6.0	21	17.5	16	3.4	750	1800	9.0
-8	8.2				4.4
-10	9.7				4.9
-12	12.6				6.0
-14	14.0				6.5
-17	17.1				7.8
-19	19.1				8.7
-23	23.0				10.4
-25	25.3	16	16		11.5
-28	28.1				12.6
-31	31.0				14.5
PV2R2-26	26.6	21	17.5	14	12.7	600	1800	19.0
-33	33.3				15.5
-41	41.3				18.6
-47	47.2				20.7
-53	52.5				23.8
-59	58.2				26.5
-65	64.7				29.3
PV2r3-52	52.2	21	17.5	14	23.4	600	1800	36.7
-60	59.6				26.6
-66	66.3				29.4
-76	76.4				33.1
-85	84.9				36.5
-94	93.6				40.1
-116	115.6				48.9
-125	125.0	16	16		36.3		1200
-136	135.2				39.5
-153	153.0				44.5
PV2r4-125	125.0	17.5	17.5	14	54.3	600	1800	60.2
-136	136.0				60.8
-153	153.8				66.5
-184	184.0				81.4
-200	200.0				88.0
-237	237.0				102.0

Input power at P=16 MPa and n=1500r/min.

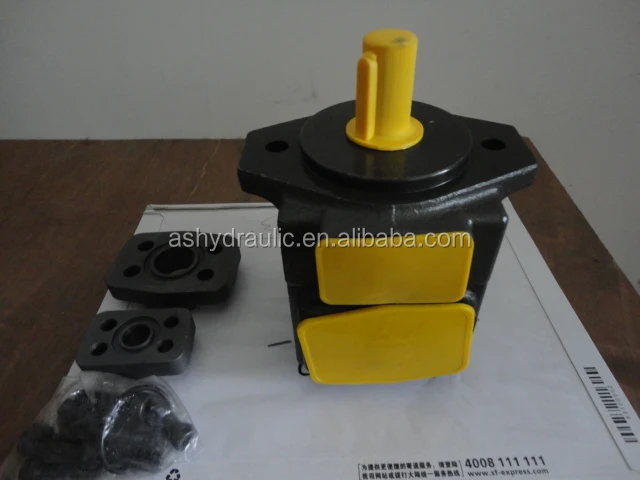

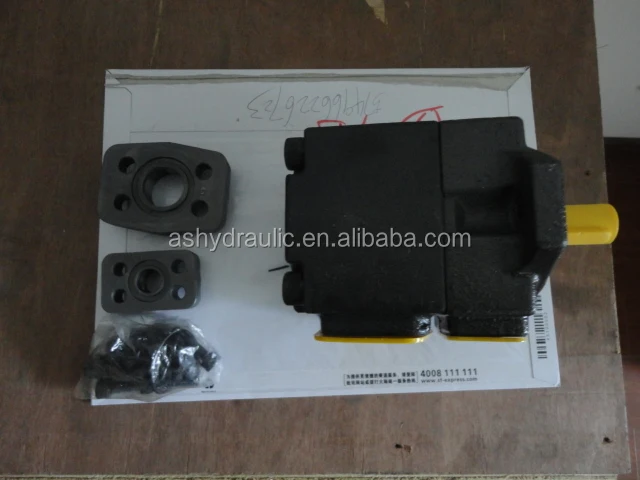

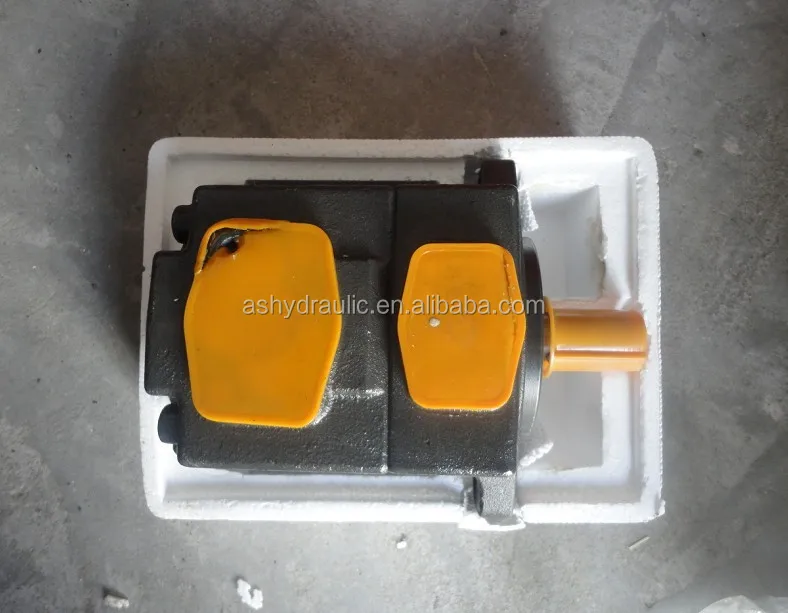

Real photos bought by our manufacturer India:
