Hot sales CBN of CBN E3,CBN F3,CBN E4,CBN F4,CBN E5,CBN F520,CBN F525,CBN F532,CBN F540,CBN F550,CBN F563 hydraulic gear pump

Product Overview

Description

Hot sales CBN of CBN-E3,CBN-F3,CBN-E4,CBN-F4,CBN-E5,CBN-F520,CBN-F525,CBN-F532,CBN-F540,CBN-F550,CBN-F563

hydraulic gear pump

1. Adopt high strength aluminum allloy body
2. High performance, low noise and long service life

3. Easy maintenance

4. Axial interval self compensation and radial balance bushings, anti-friction DU bearings

5. The products are widely used used in forklift trucks,cranes,bulldozers,loaders,excavators,

road roller,hydraulic platforms,special trucks and other industries such as mine,harbor,

metallurgical, light industry and agricultural industry etc.

6. Very competitive price

7. 1 year of warranty

8. Short delivery time







Technical Specifications:



Model	Nominal displacement ml/r	Rated pressure Mpa	Max. pressure Mpa	Min. speed rpm	Rated speed rpm	Max. speed rpm	Volumetric efficiency(≥%)	Weight Kg
CBN-F520-BF**	20	20	25	600	2500	3000	92	5.1
CBN-F525-BF**	25	20	25	600	2500	3000	92	5.3
CBN-F532-BF**	32	20	25	600	2500	3000	93	5.6
CBN-F540-BF**	40	20	25	600	2500	3000	93	5.9
CBN-F550-BF**	50	20	25	600	2500	3000	93	6.3
CBN-F563-BF**	63	20	25	500	2500	3000	93	6.8

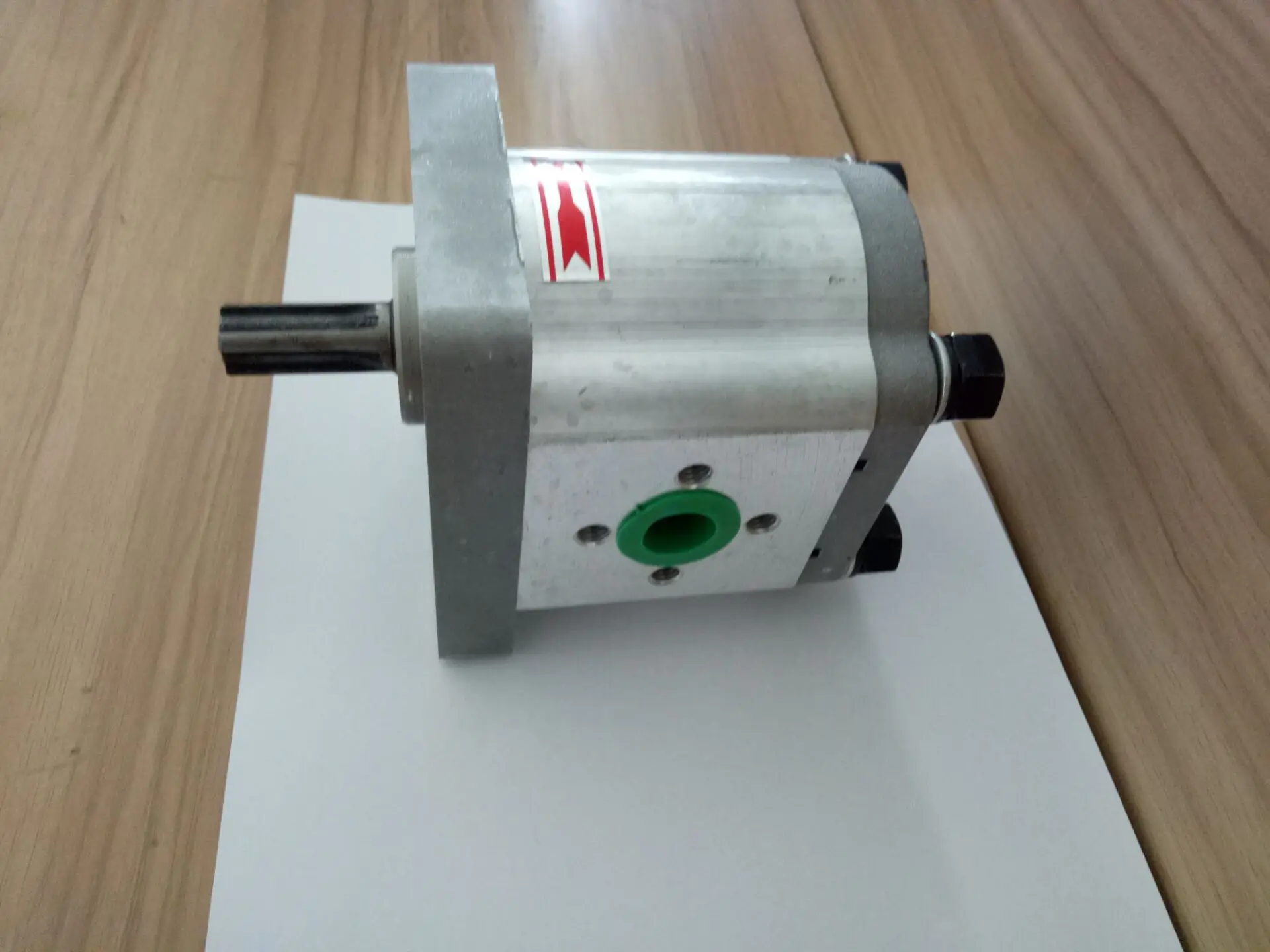

Real photos bought by the importer from USA:
