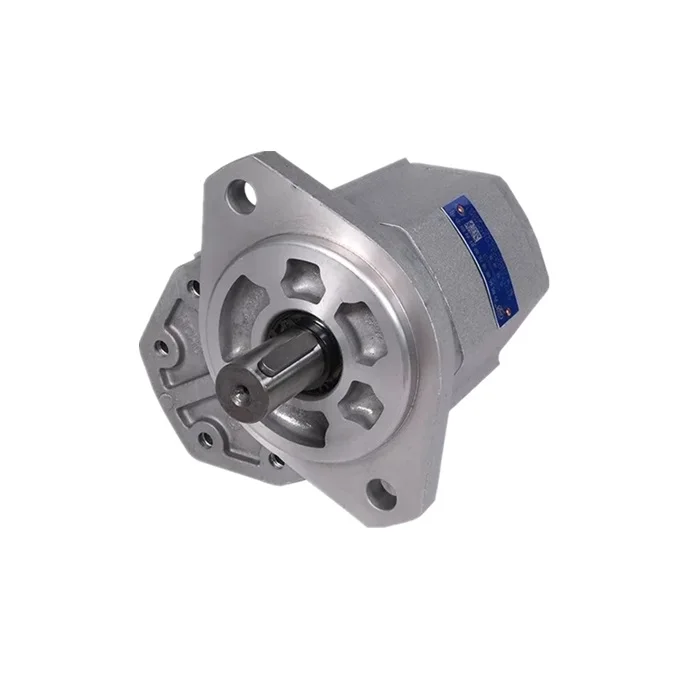

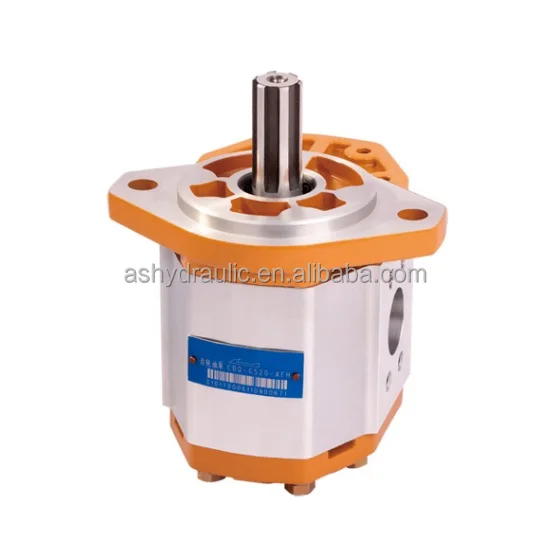

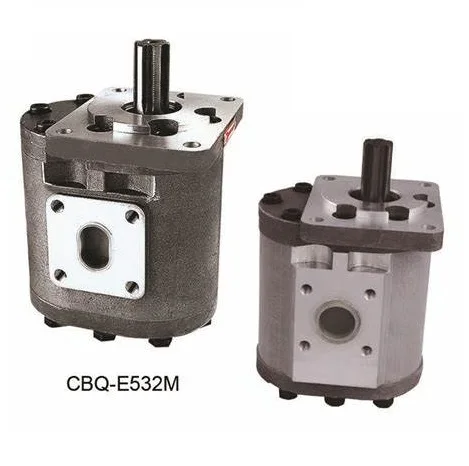

Hot sales CBQ of CBQ-G520,CBQ-G525,CBQ-G532,CBQ-G540,CBQ-G550,CBQ-G563 hydraulic rotary gear pump
1. Adopt high strength aluminum alloy body
2. High performance, low noise and long service life
3. Axial interval self compensation and radial balance bushings, anti-friction DU bearings
4. Easy maintenance
5. Widely used in forklift trucks,cranes,bulldozers,loaders,excavators,road roller,
hydraulic platforms,special trucks and other industries such as mine, harbor,
metallurgical, light industry and agricultural industry etc.
6. Very competitive price
7. 1 year of warranty
8. Short delivery time

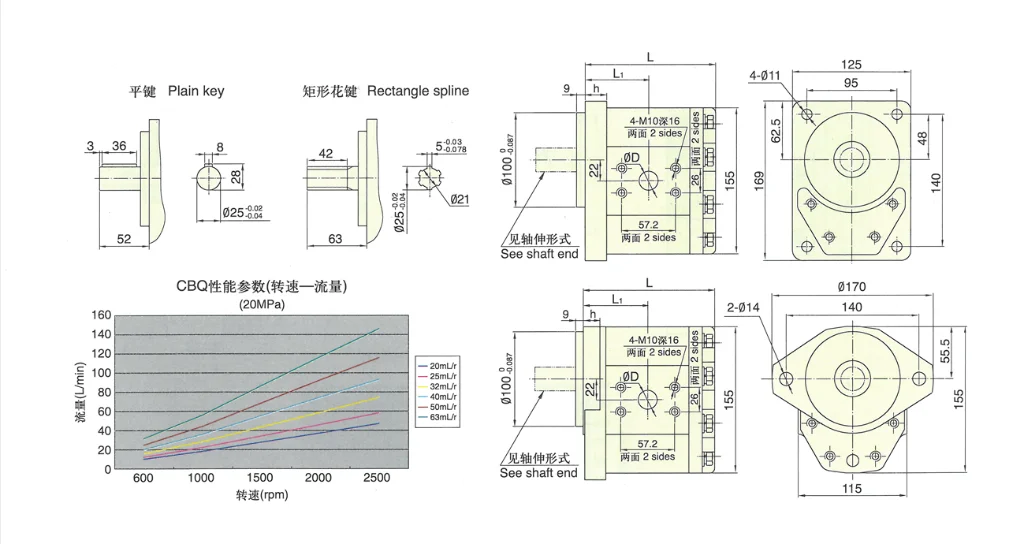

Technical Specifications:


| Model | Nominal displacement ml/r | Rated pressure Mpa | Max. pressure Mpa | Min. speed rpm | Rated speed rpm | Max. speed rpm | Volumetric efficiency(≥%) | Weight Kg |
| CBQ-G520-*F** | 20 | 25 | 28 | 600 | 2500 | 3000 | 92 | 5.7 |
| CBQ-G525-*F** | 25 | 25 | 28 | 600 | 2500 | 3000 | 92 | 6.0 |
| CBQ-G532-*F** | 32 | 25 | 28 | 600 | 2500 | 3000 | 93 | 6.3 |
| CBQ-G540-*F** | 40 | 25 | 28 | 600 | 2500 | 3000 | 93 | 6.8 |
| CBQ-G550-*F** | 50 | 20 | 25 | 600 | 2500 | 3000 | 93 | 7.3 |
| CBQ-G563-*F** | 63 | 20 | 25 | 500 | 2000 | 2500 | 93 | 8.0 |

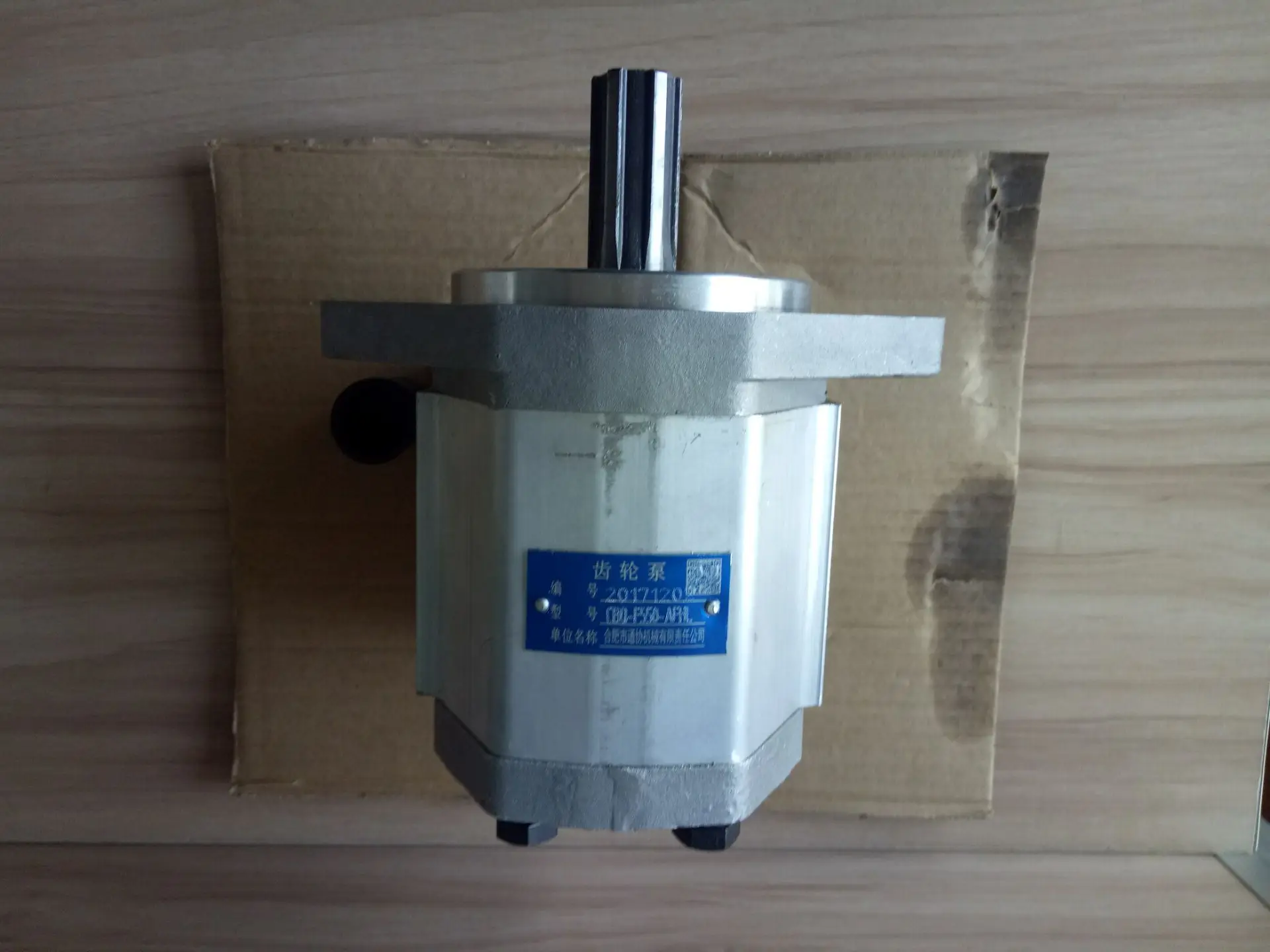

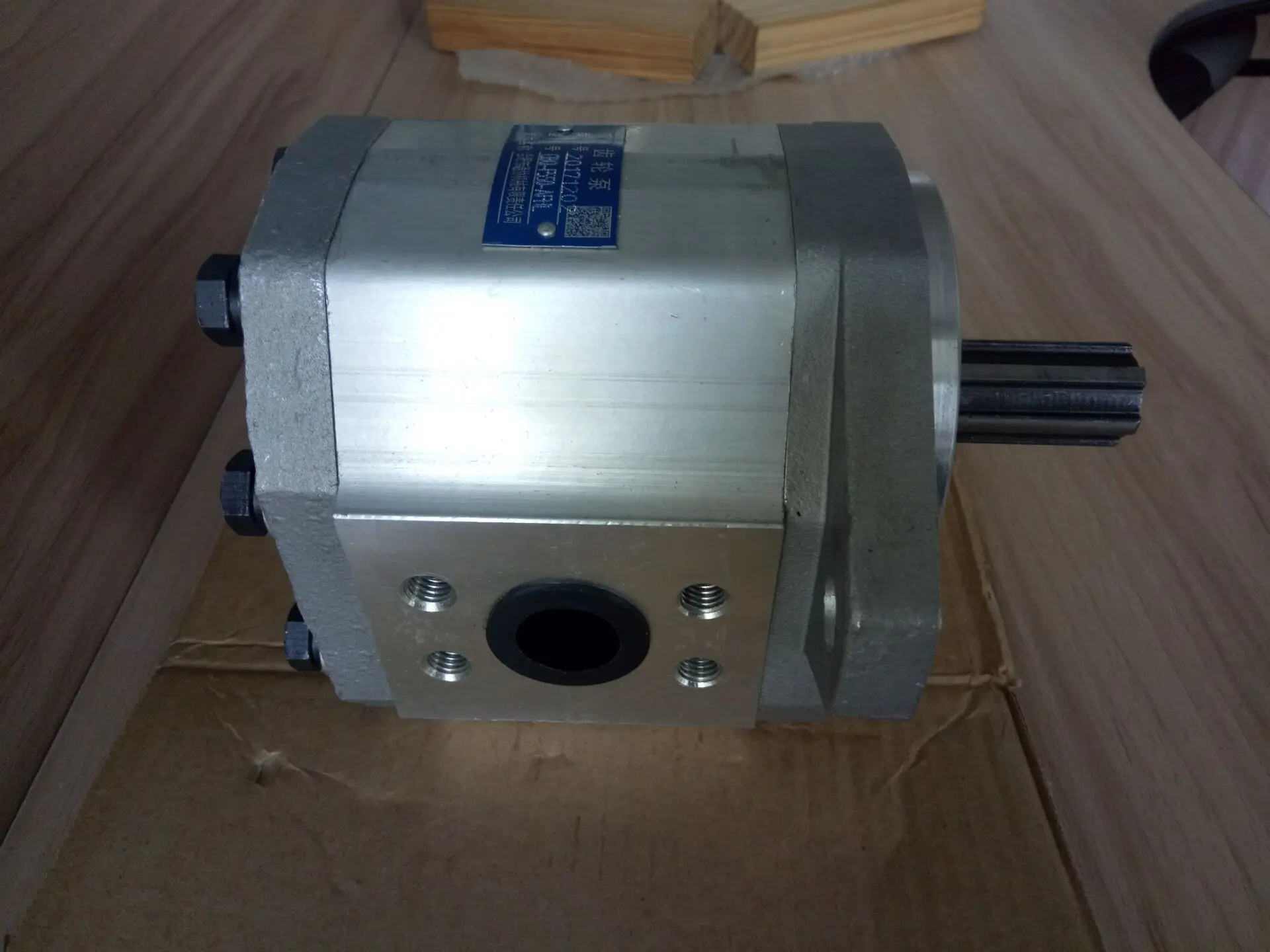

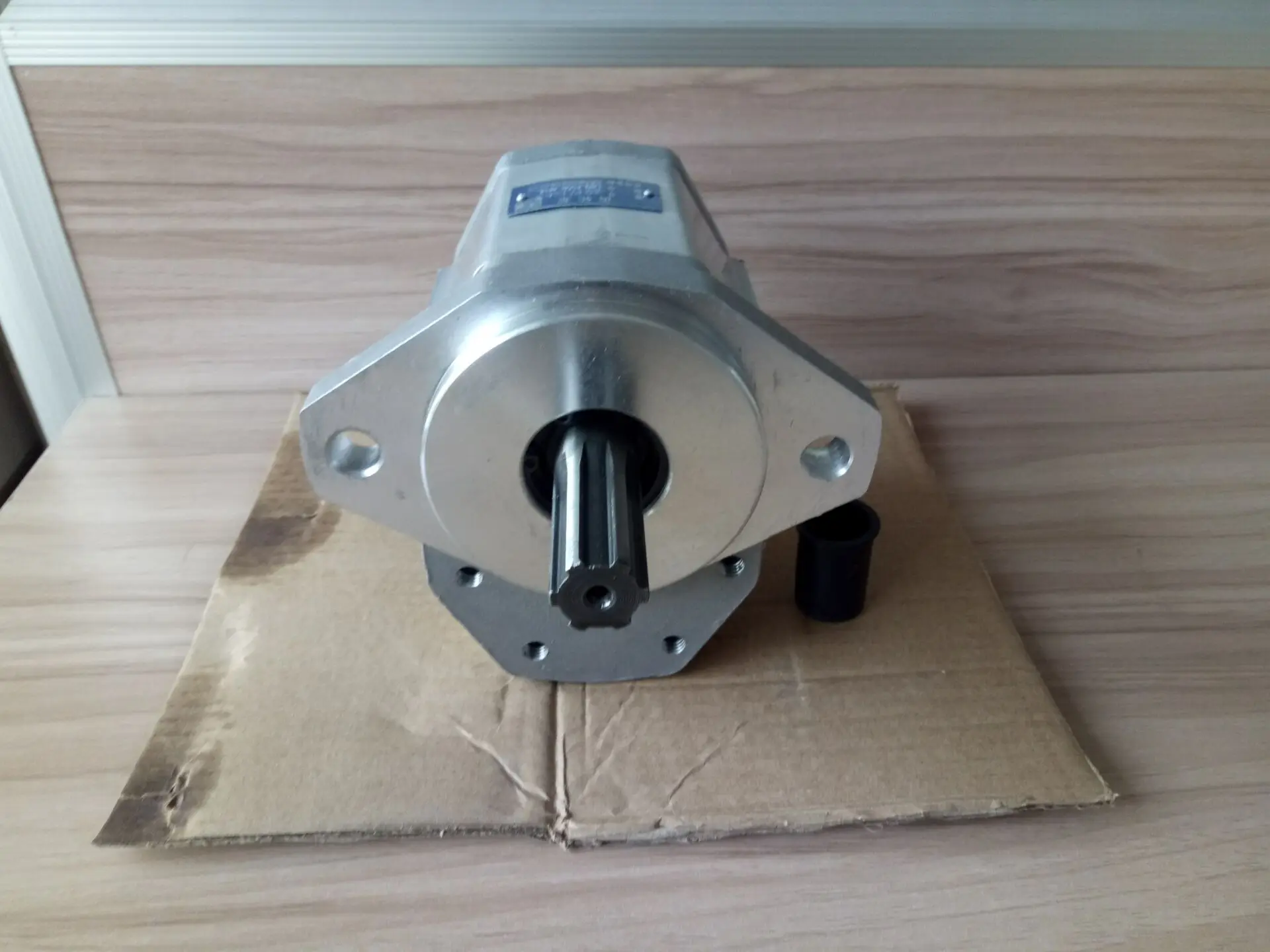

Real photos bought by the importer from Peru:
