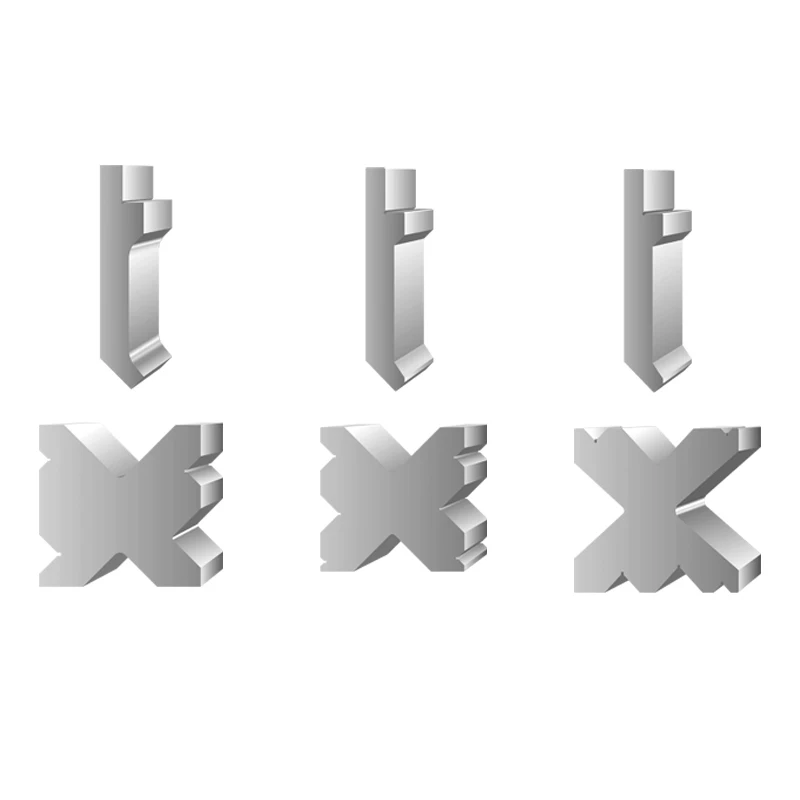

Press Brake Punches and Dies (ADH Brand)

Product Overview

Description

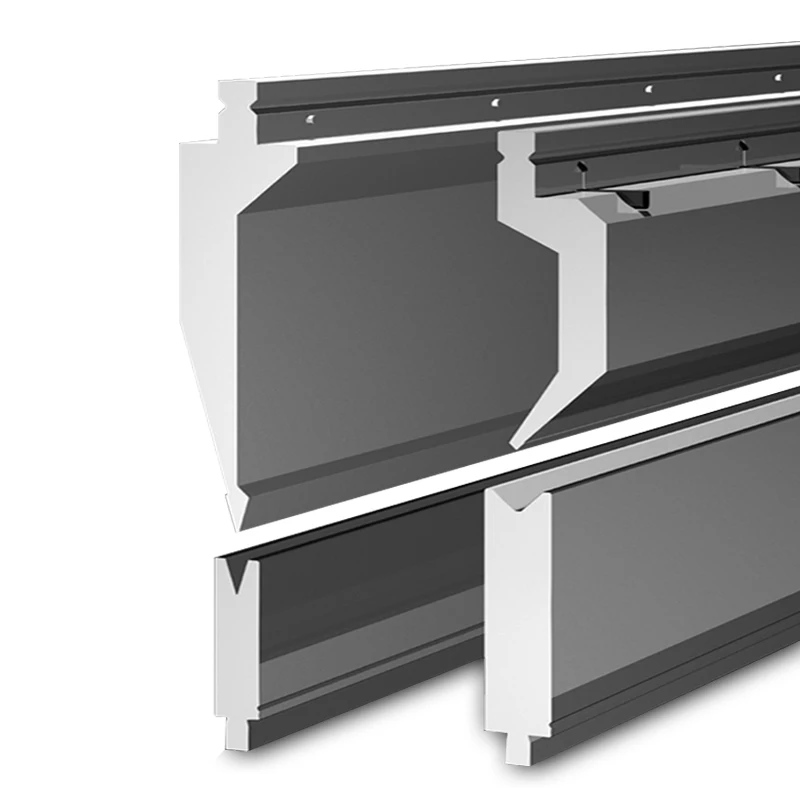

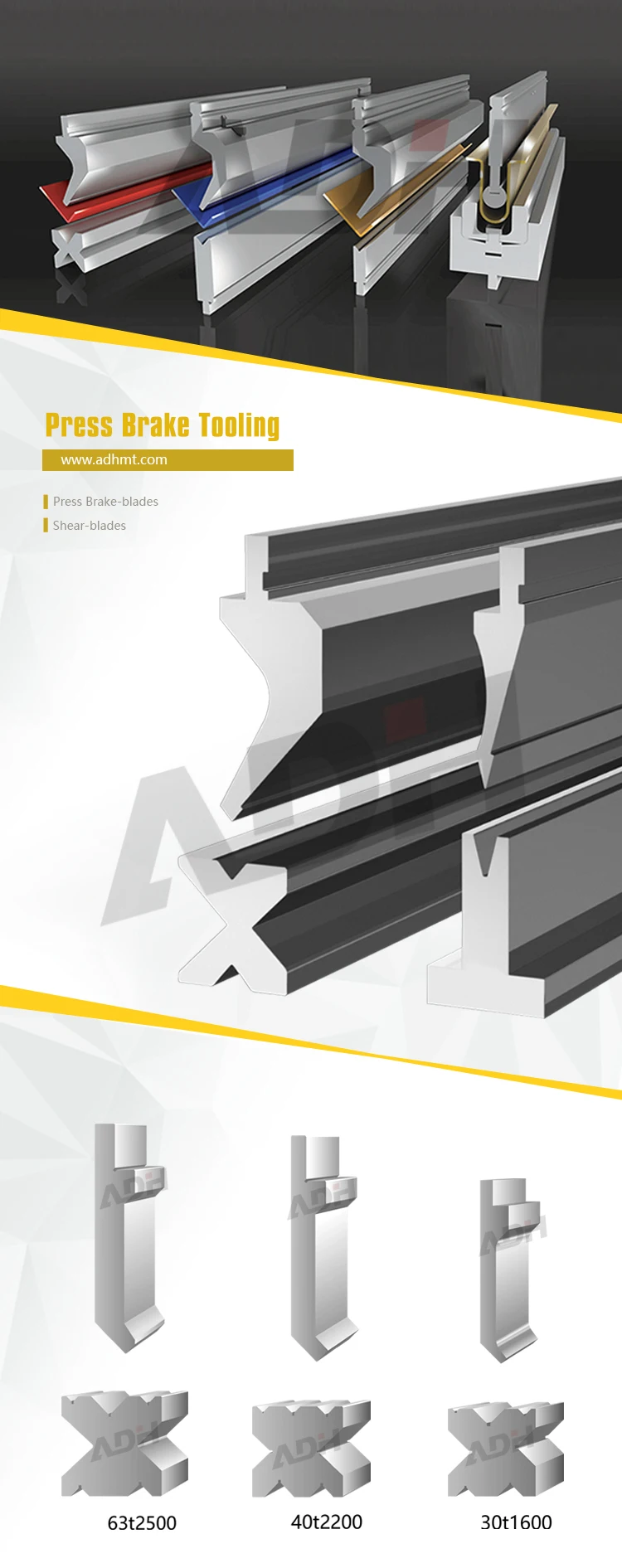

Press Brake Tooling

In general, press brake die can be divided into the upper die, the lower die, guide rail, lower die base etc. These dies have a wide range of versatility, most of them can be fabricated.

The different die should be used for fabricating different workpiece. You need to know the fabrication parameters of press brake machine as well as the die very well, then it is possible for you to choose the right press brake die to match each other.

• Press brakes toolings material: Cr12Mo1v1,42CrMo, T10a
• Hardening: HRC: 52 ° -60 °
• Tolerance: ±.002
• Standard length: 835mm, 800mm, 550mm

(Standard press brake toolings in stock, non - standard bending machine mold can be customized according to customer drawings)

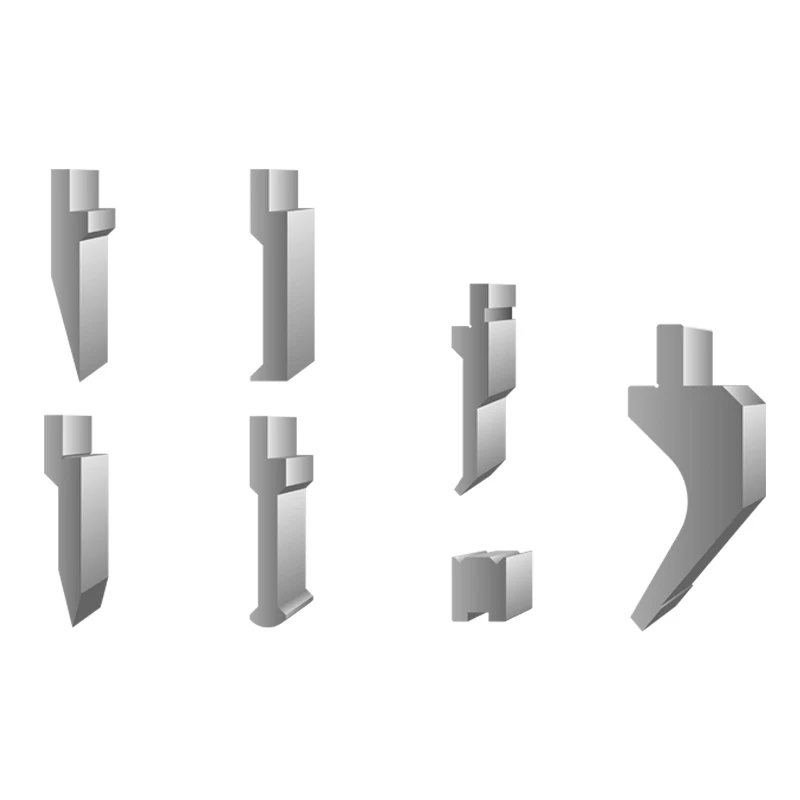

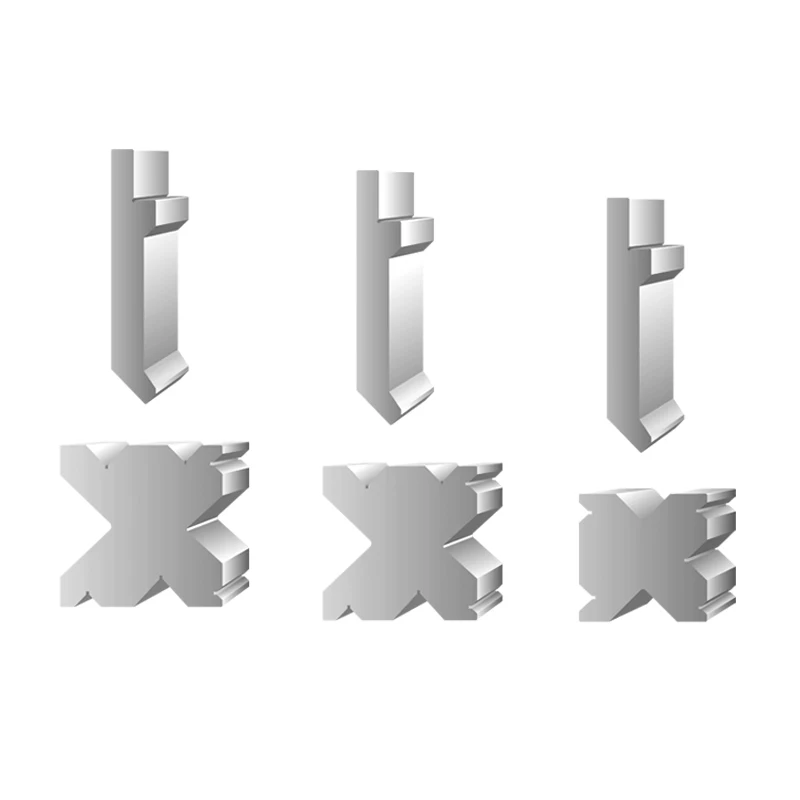

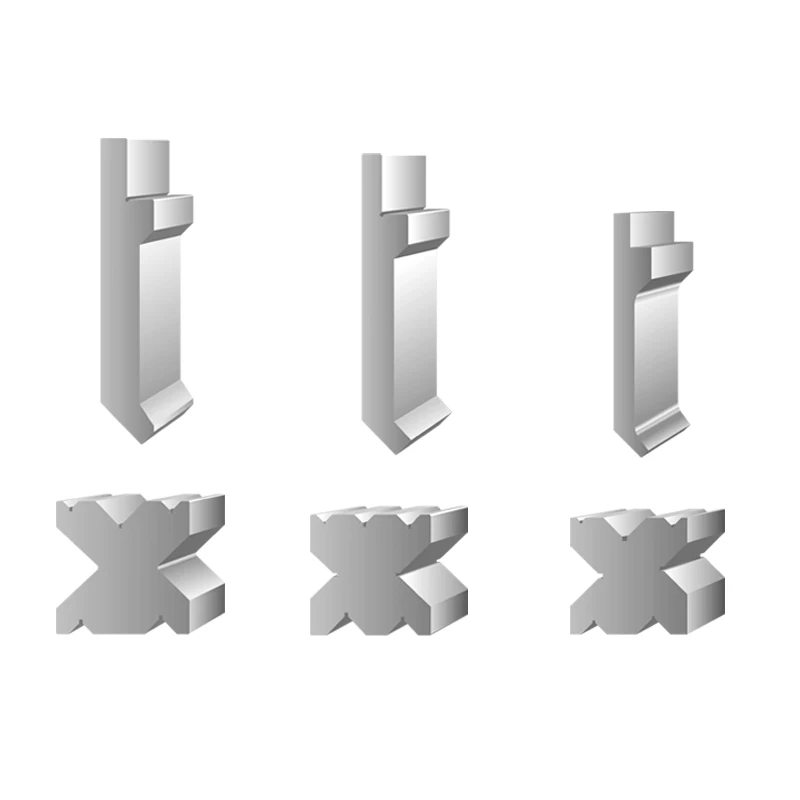

The dies including: offset die, concentric lower die, upper die, lower die, composite forming mold, etc.



The selection of press brake toolings mainly adopts T8, T10 steel, and some better material such as 42CrMo. 42CrMo is a high strength alloy quenched and tempered steel, with high strength and good toughness, can work below 500 degrees. It requires high strength, high toughness and good wear resistance.

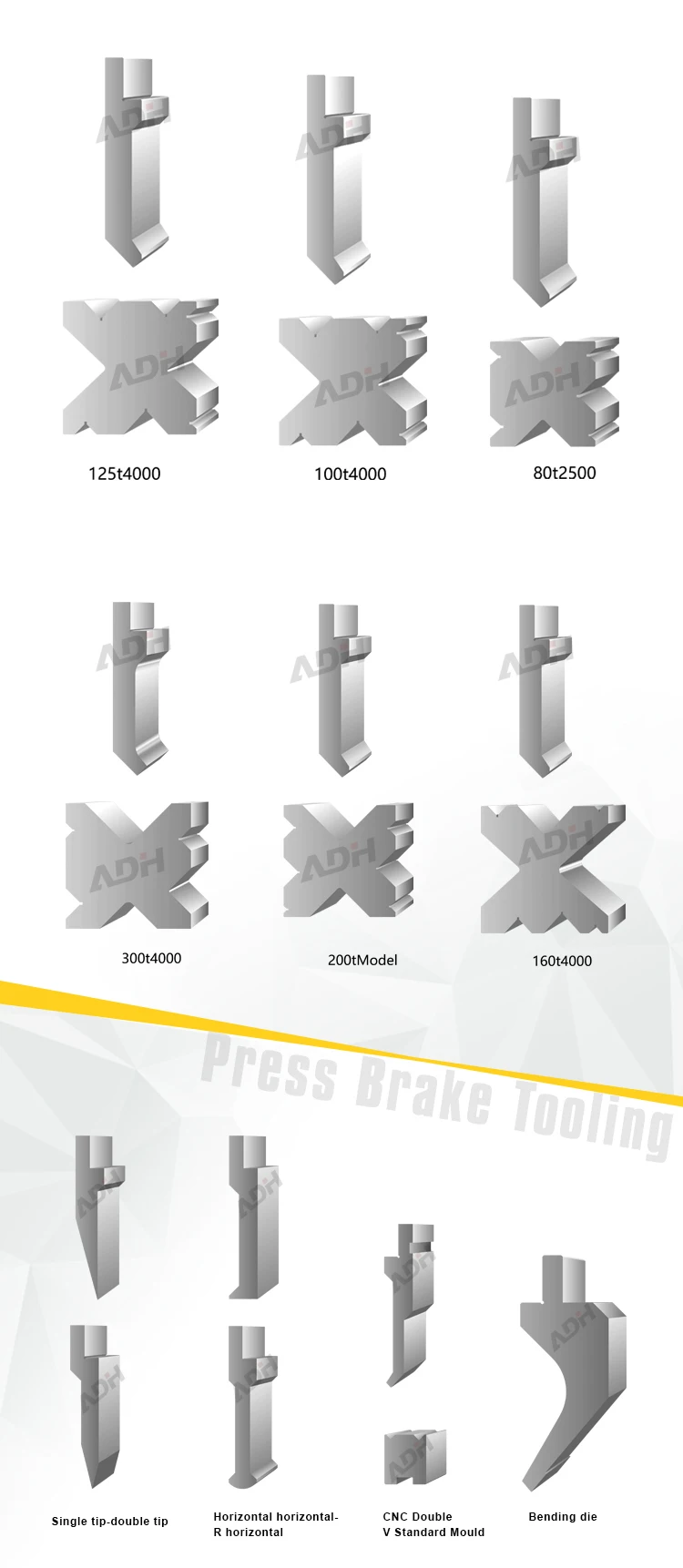

Press Brake Model :

30T / 1600	40T/1600	40T/2500	63T/2500
63T/3200	80T/2500	80T/3200	100T/2500
100T/3200	100T/4000	125T/2500	125T/3200
