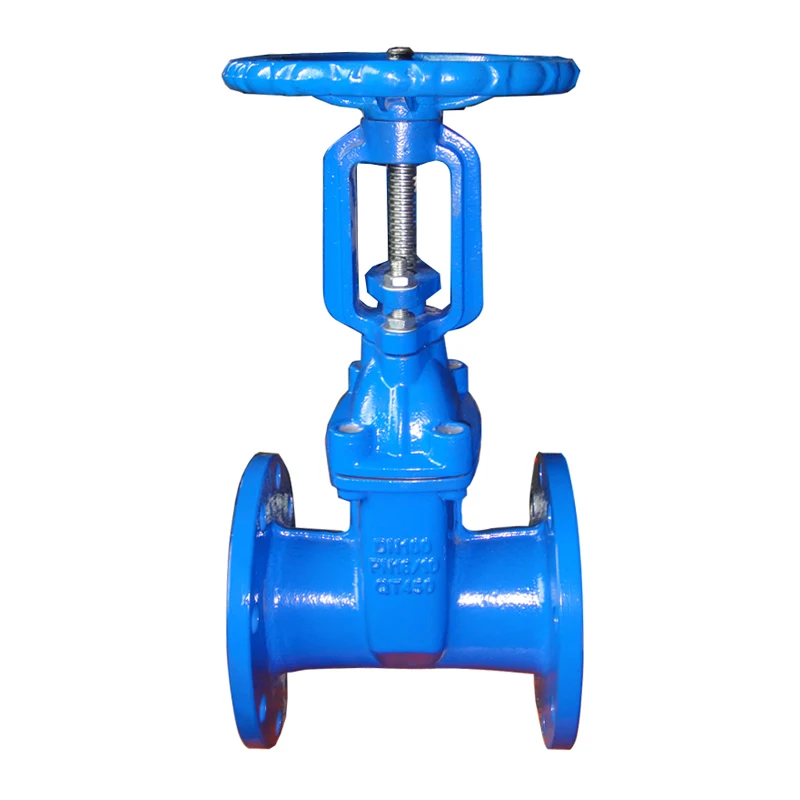

ductile iron rubber lined wedge gate valve for water size DN50 to DN600 PN10 16,professional valve factory,competitive price

Share on (336902975):


Price:

Quantity:


Product Overview

Description






Product Description

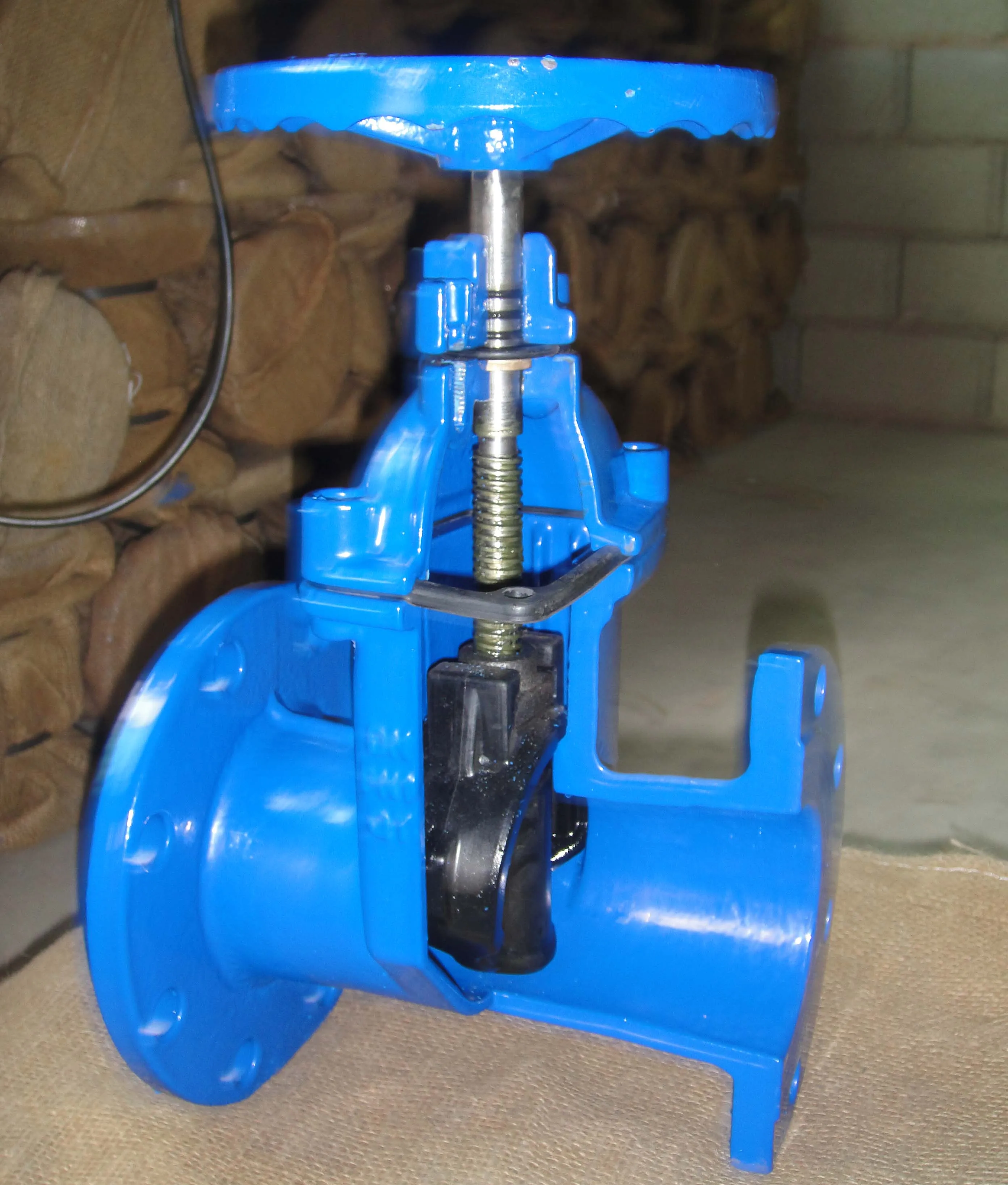

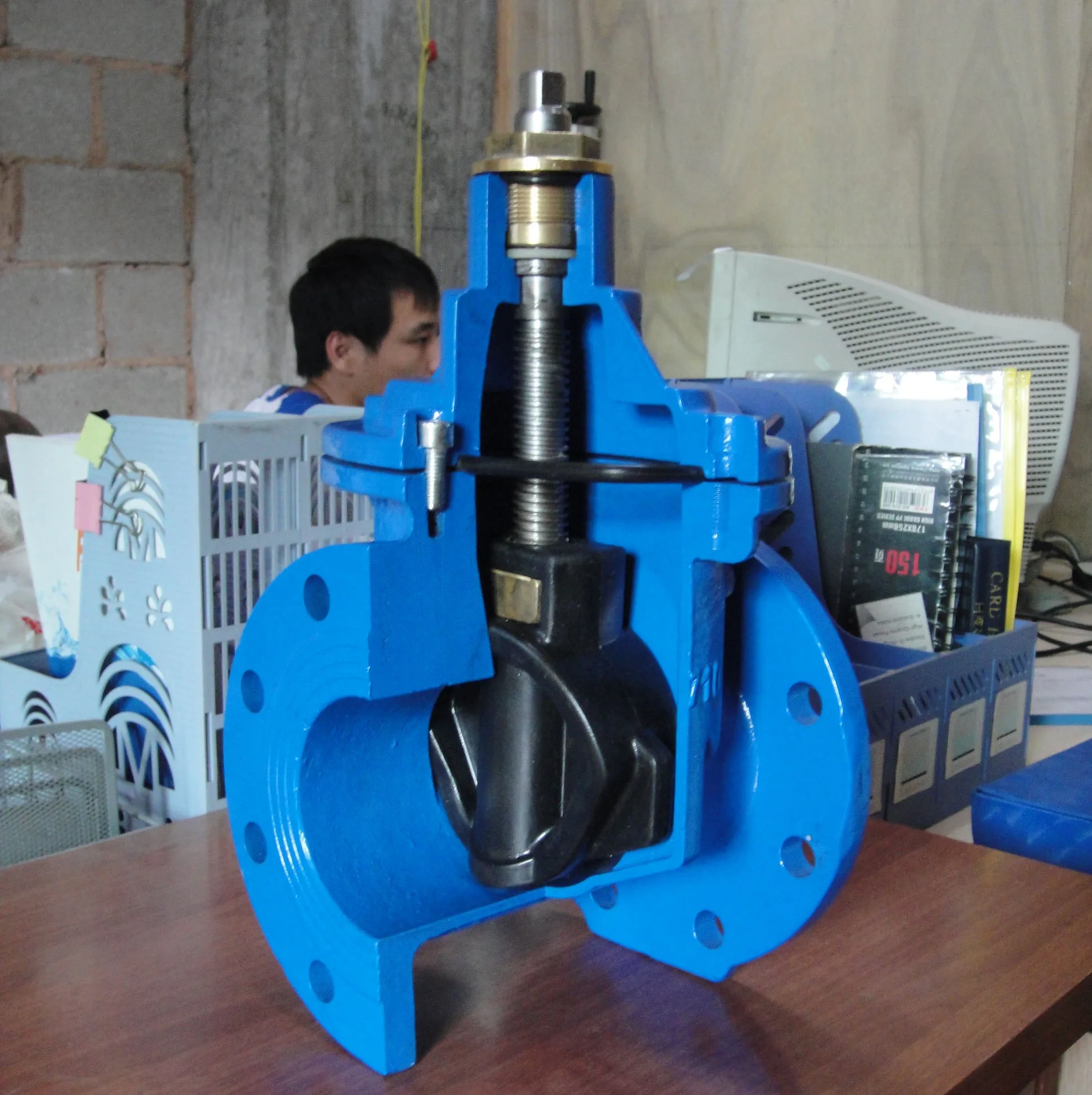

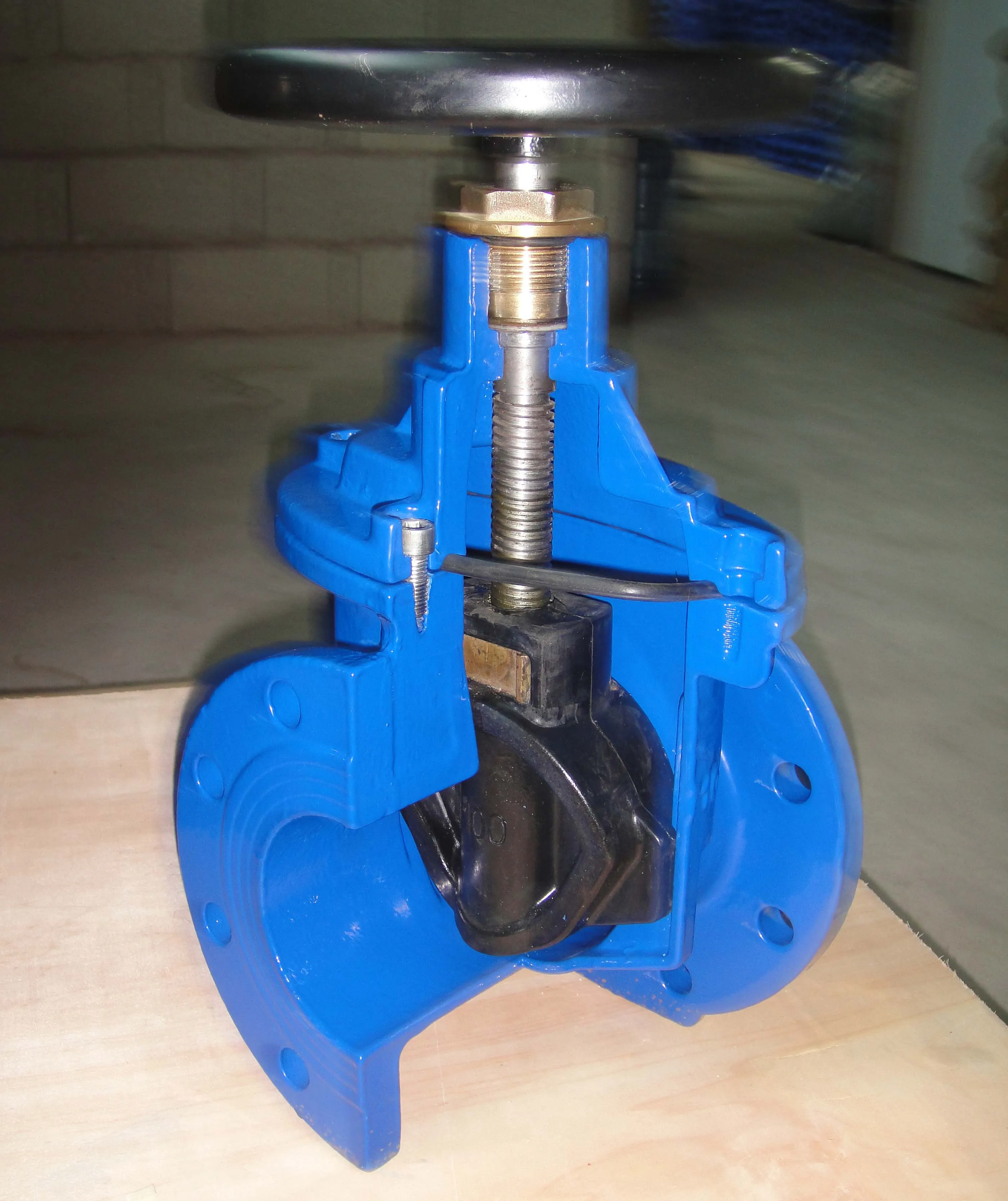

ductile iron rubber Lined Gate Valve





1.Products:  Rubber lined Gate Valve


2.Material Of body: Ductile Iron(GGG50)
3.Dimensions: DN50 - DN1200
4.Pressure: PN10,PN16


5.Connection type: Flanged, BS4504 PN10.PN16/EN 1092


6.Seal Type: Soft seal(EPDM or NBR)


7.Design Standard: BS5163,DIN3352 F4,F5


8.Face to face dimensions: BS5163,DIN3202 F4,F5


9.Each valve be tested according to test standard: BS5163


10. Work Temperature: ≤80°C


11.Media:water


12.Stem type:non rising stem

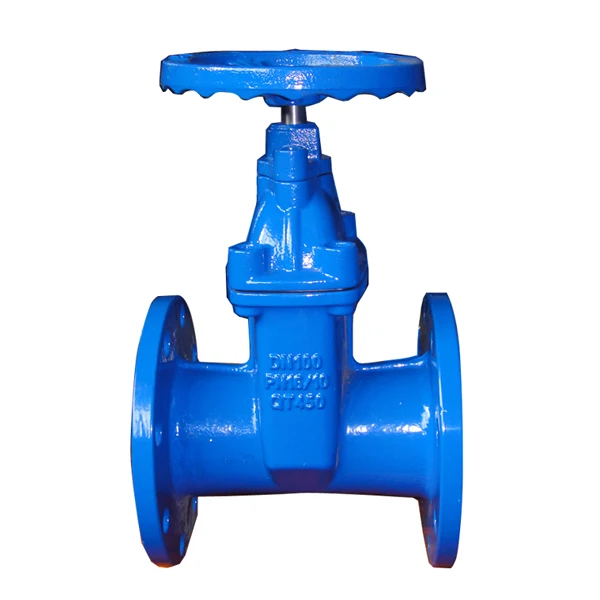

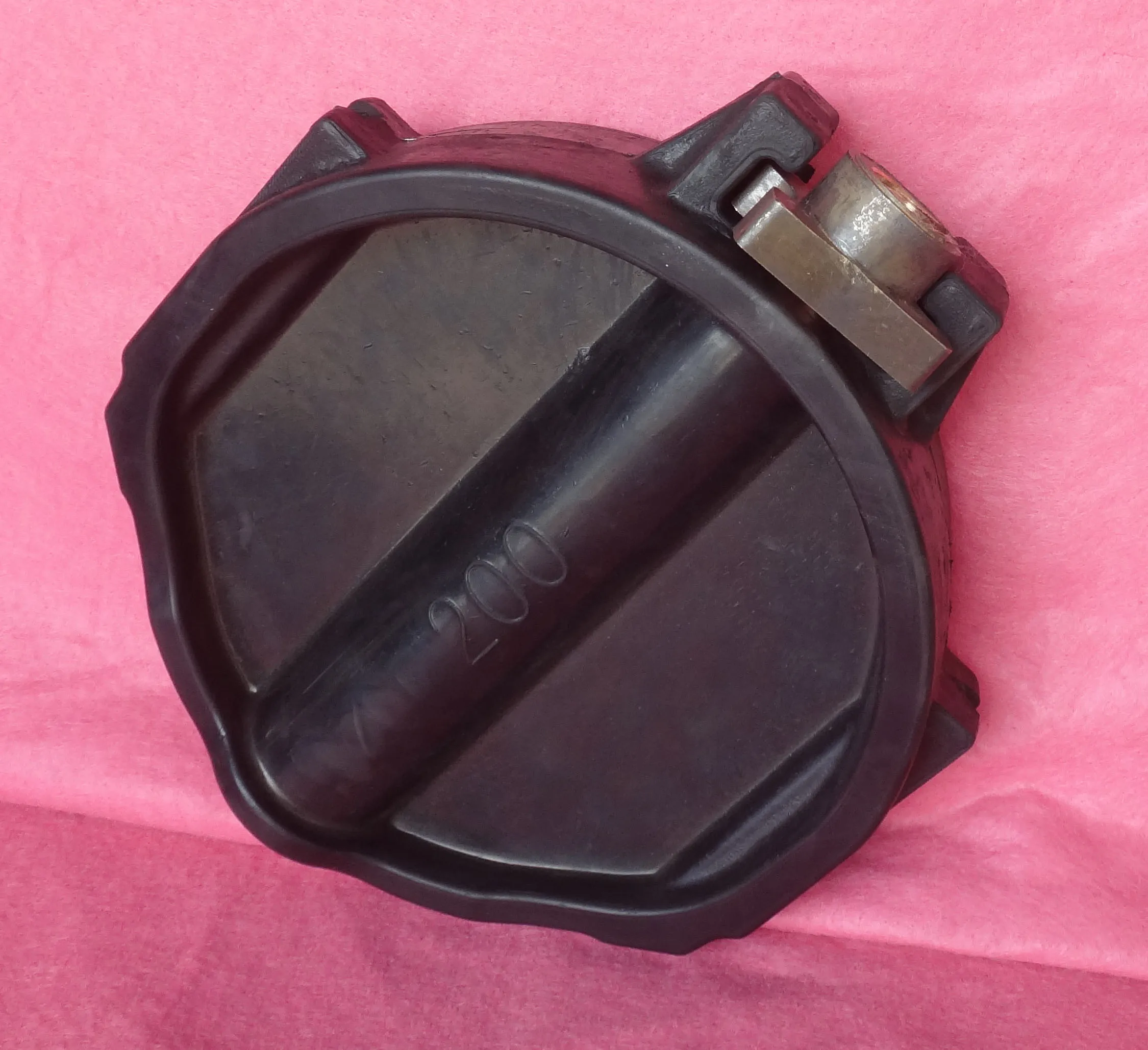

Rubber lined gate valve.jpgRubber lined gate valve 2.jpg

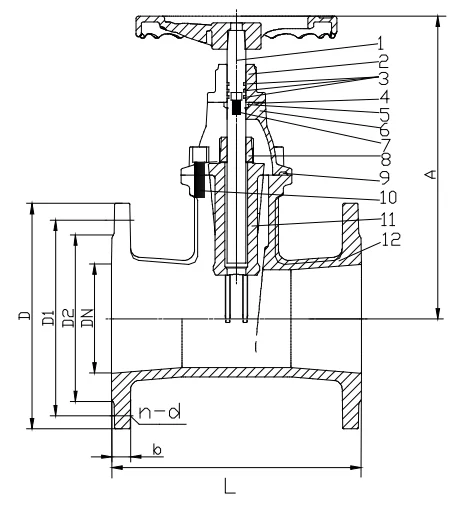

 Drawing of rubber lined gate valve


Gate Valve Drawing.png

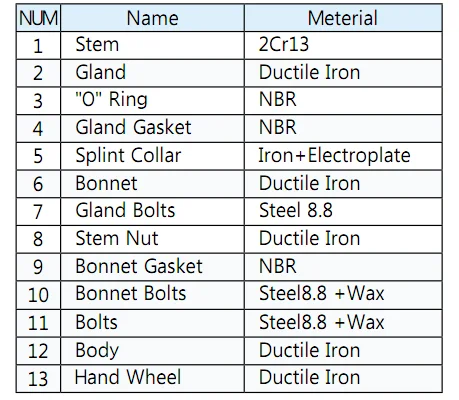

Rubber lined components and materials list for rubber lined gate valve





Gate Valve Materials.png

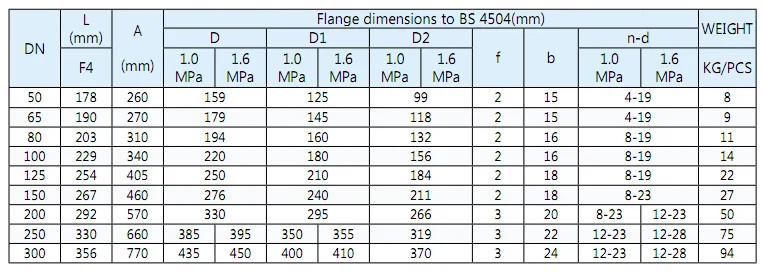

Dimensions for rubber lined gate valve (DN50-dn300,F4)


Gate Valve Dimensions.png






Packaging & Shipping

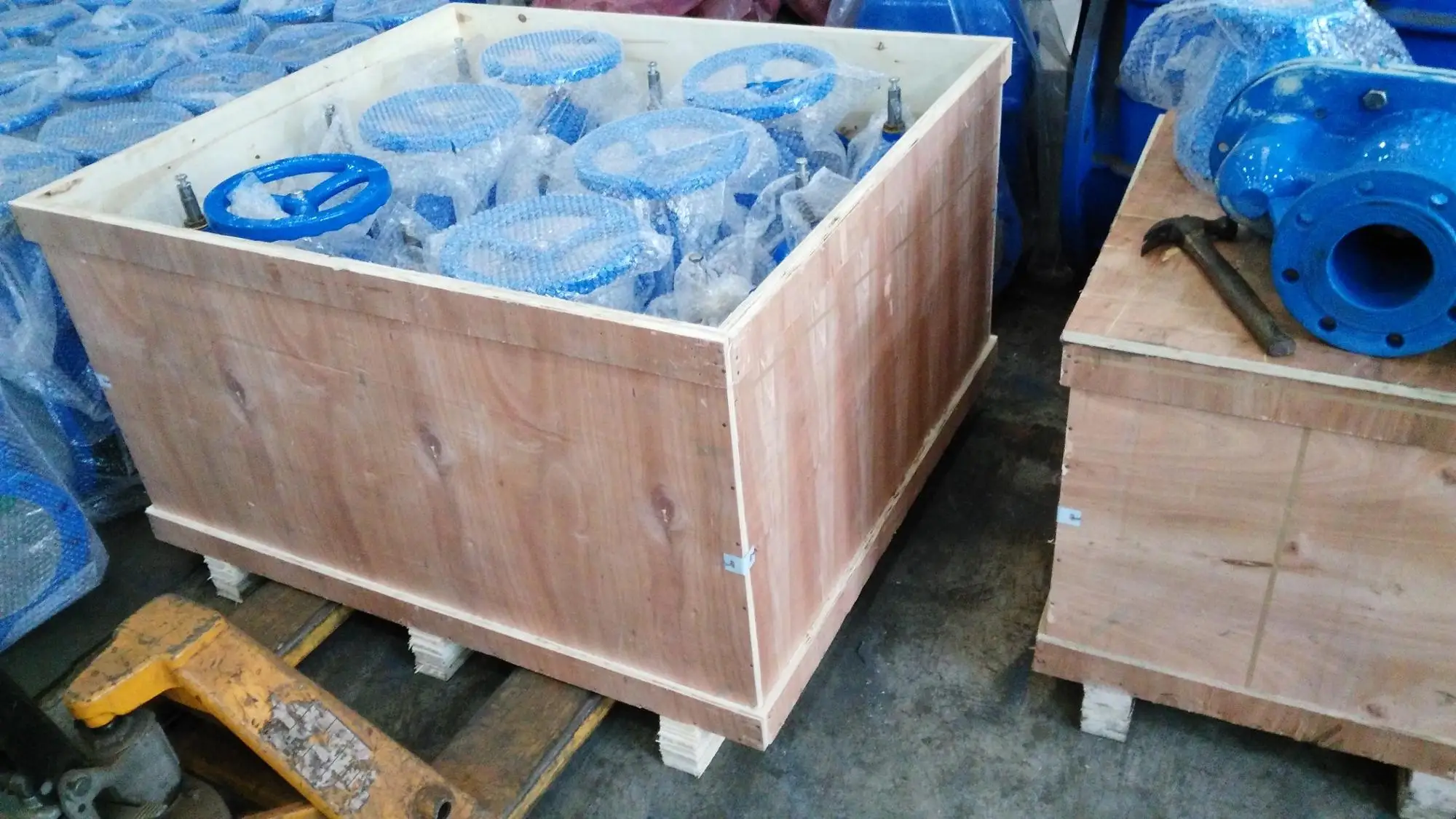

 Packing 1



















Our Services


 Our service











Company Information





We are a pressessional manufacturer of ductile iron valves in Fujian province,China,we manufacture resilient seated gate valve,swing check valve,ball check valve,flexible disc check valve,tiling disc check valve,flanged butteffly valve,air valve,and Y strainer.etc





Our Company passed ISO9001:2015 certificate,WRAS certificate.





Our products have been exporting to Europe,North America,South American market,Middle East,Russia,and many countries in Southeast Asia for many years











FAQ





1 Are you a factory or a trading company?


We are a factory,an original manufacturer,a professional manufacturer of ductile iron valves for water supply and drainage pipeline system.Our factory is located in Luncang Town,Nan'an City,Quanzhou,Fujian province,China,welcome to visit our factory.





2 Do you ISO certificate?


We have ISO 9001:2015,we also have Certificate of Compliance issued by ECM,and Inspection and verification certificate issued by BV,Inspection certificate issued by SGS.





3 Do you have WRAS certificate?


We have WRAS certificate for raw materials NBR/EPDM and Epoxy powder





4 Do you test every finished valve? Or just pick some samples and test it?


We test every finished valve before delivering to our customers and users,hydraulic test includes sealing test and body strength test.Sealing test:Working pressureX1.1(e.g. PN10:1.0 MpaX1.1=1.1Mpa,PN16:1.6Mpa X1.1=1.76Mpa), Body strength test:Working Pressure X1.5 (e.g. PN10:1.0 MpaX1.5=1.5Mpa,PN16:1.6Mpa X1.5=2.4Mpa





5 Could you engrave our Logo/Brand on valve body?


We can accept engraving customers' Logo/Brand on valve body,If quantity is big enough; For small quantity,it needs to pay extra cost for engraving logo and brand on valve body.If you require must engrave logo and brand on valve body.





6 Could I ask for sample to check quality before place order?


We can offer sample,contact us for detailed information after confirm the product,size and quantity.





7 How long is your valve quality warranty?


Our Warranty is 12 months.





8 What is the delivery lead time?


Normally,if order quantity is not more than 5 containers,we can finish the production in 30days for gate valves;It takes longer for Y strainer and Air valve,it takes about 40days.





9 What is the payment terms we can accept?


T/T,L/C,D/A,D/P,CAD etc.or are acceptable.





10 where is your shipment seaport?


Xiamen Seaport,it is about 100km from our factory.
