Marine Electric whistle MIC Fog horn control

Product Overview

Description

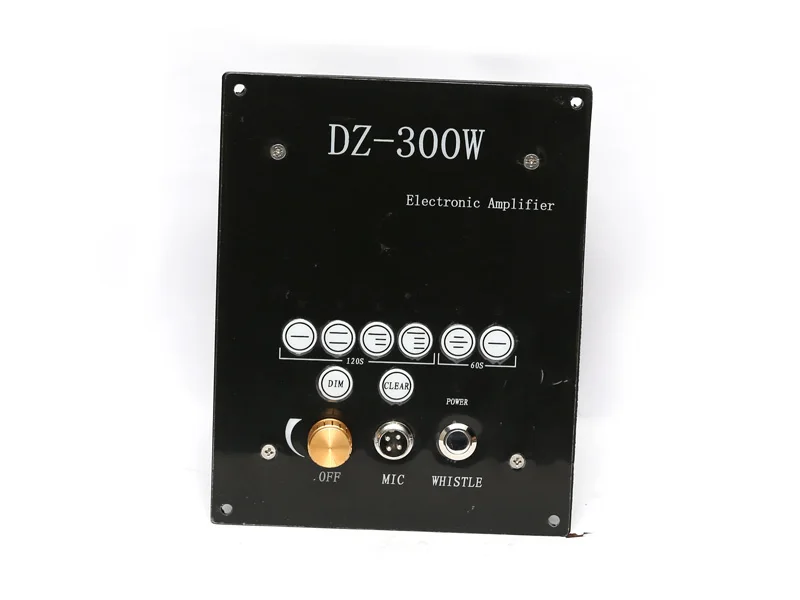

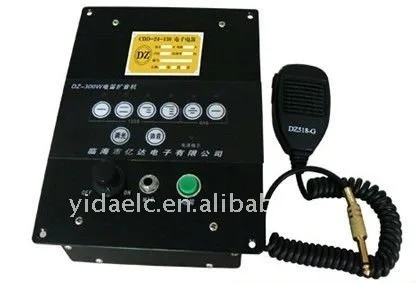

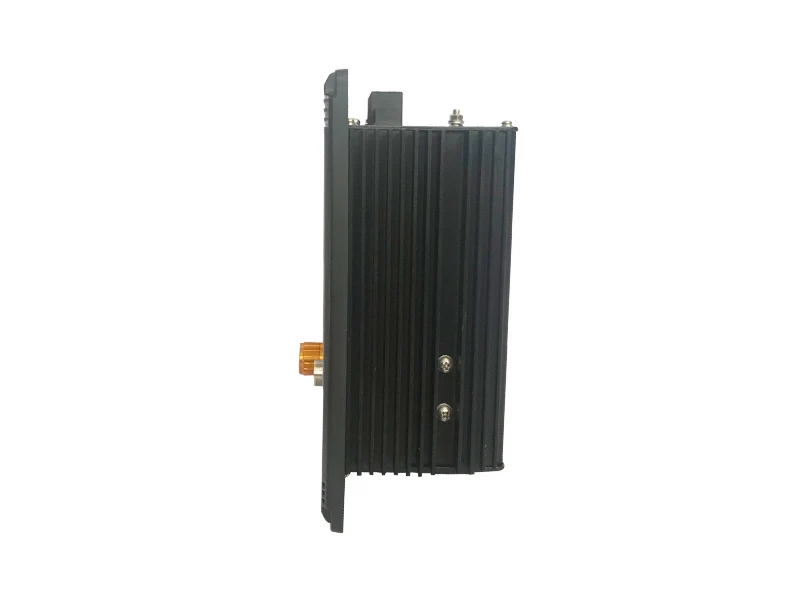

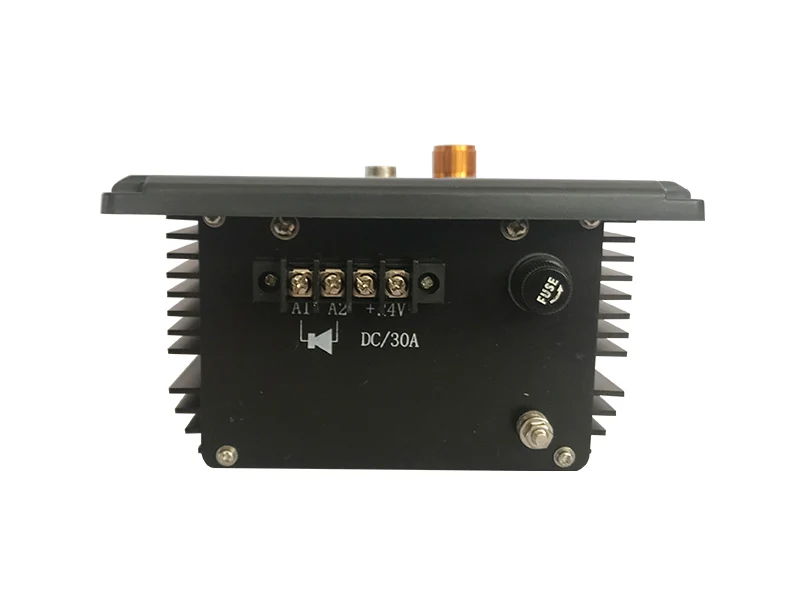

Marine Electric whistle +MIC +Fog horn control







Type: DZ-300W

Feature:

an integrated device, containing loudspeaking,whistle,Fog horn, Enlarge / diminish sound source.

Fog horn control is to control whistle to generate automatically periodic whistle signal

and indicator light signal,in accordance with CCS requirements ,

applicable to all kinds of ships.



Adopt Microprocessor Control Technology;Shell with steel materials;Panel with touch-key

(PVC);stable performance,low price,easy to operate,aesthetic appearance.

These products have high power output with MCU device, compare favorably with hooter,

and Use conveniently.



Technical parameters:

(1)Power supply: 24V;

(2)Loudness: >=130dB;

(3)Frequency: 400Hz-700Hz;

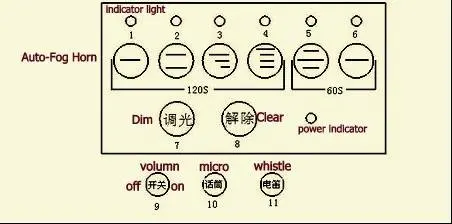

(4) Panel instruction:

123456:automatic six Fog horn pushbuttons (with six indicator lights);

1-one long siren /120 second(interval),

2-two long siren /120 second(interval),

3-one long siren-two short siren/ 120 second(interval),

4-one long siren-three short siren /120 second(interval),

5-One short-one long-one short siren/60 second(interval),

6-one long siren/ 60 second (interval),

7-Light Dimming button

8-Clearance button

9-power switch / volume

10-microphone socket

11-whistle button

Application: 200 to 1 million tons ships.







Packaging:Carton box

sets/ctn:10sets/ctn

ctn size:430*200*170mm

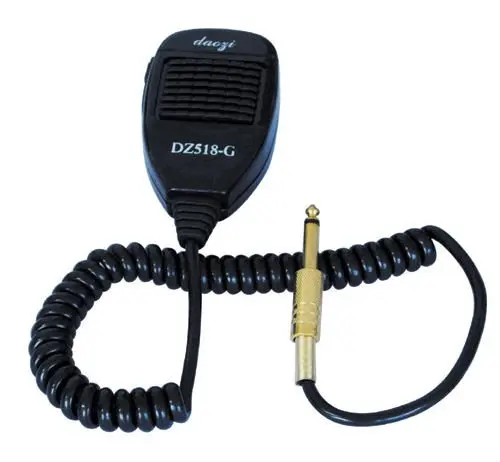

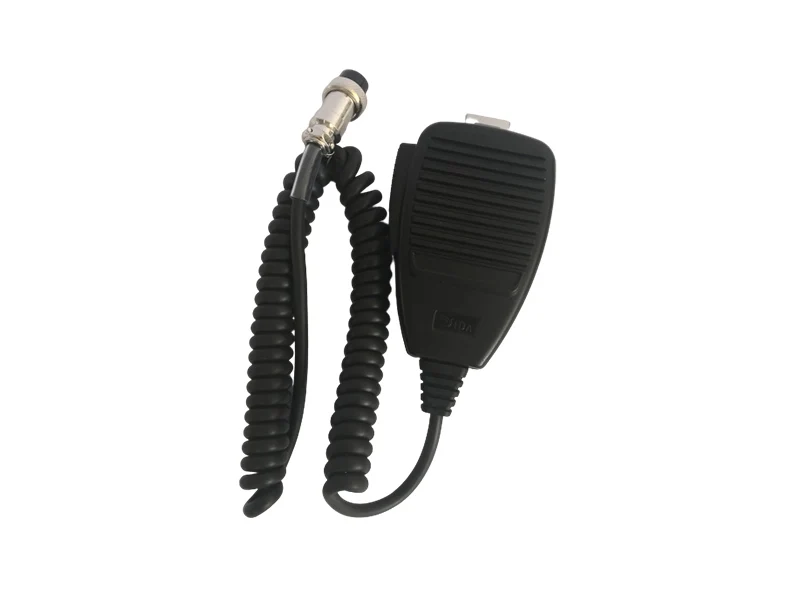

Item: Microphone for electronic siren

Model No: Dz-518G

Frequency: 300-3 Kilocycle

Impedance: 300Ω

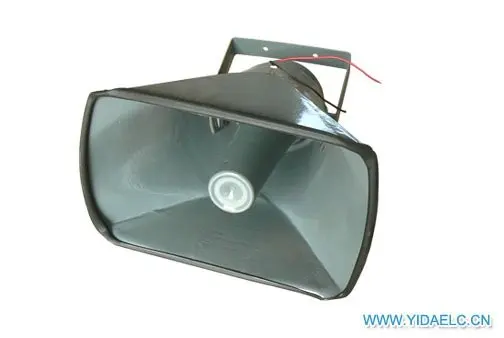

Loudspeaker:



Length: 350mm; Width: 230mm

Type: Big loudspeaker

Power: 25W

Impedance: 16Ω



Diameter: 130mm

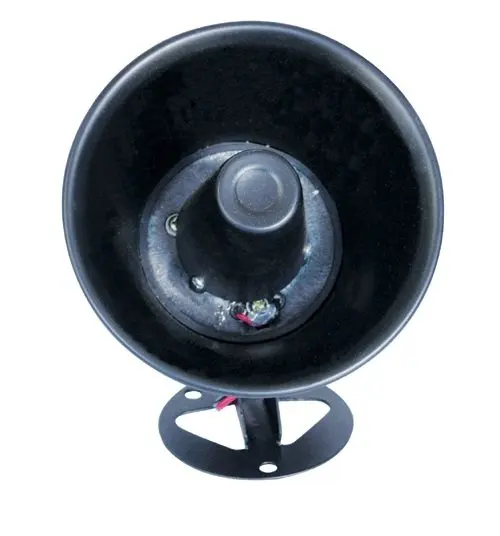

Type: Small loudspeaker

Power: 15W

Impedance: 8Ω
