Product Overview
Description
HF-Shaw Electric
HF-Shaw Electric produce and supply high quality only
We don't supply low price with low quality product.
Product Description

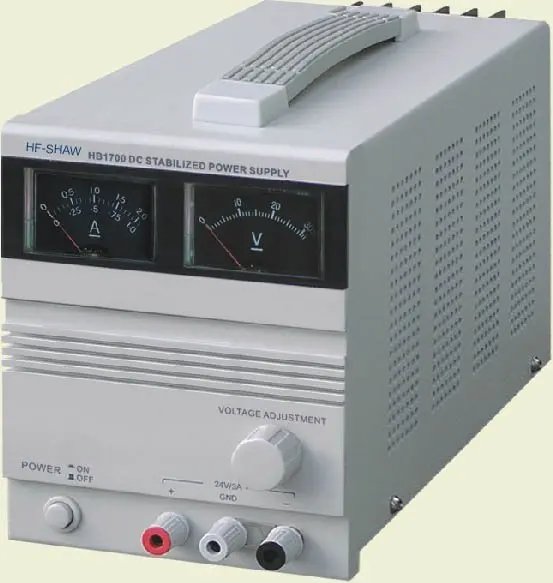

HB1700GC series fixed DC stabilized power supply
Features
·Stable voltage output, strong power
·Overload protection
·Gauge outfit indicates output voltage or current;High reliability, continuous operation for a long time
·Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC15~20A (any fixed point)
Ripple voltage: 60mVrns
Volume & weight: 44 30 22cm 7~12Kg

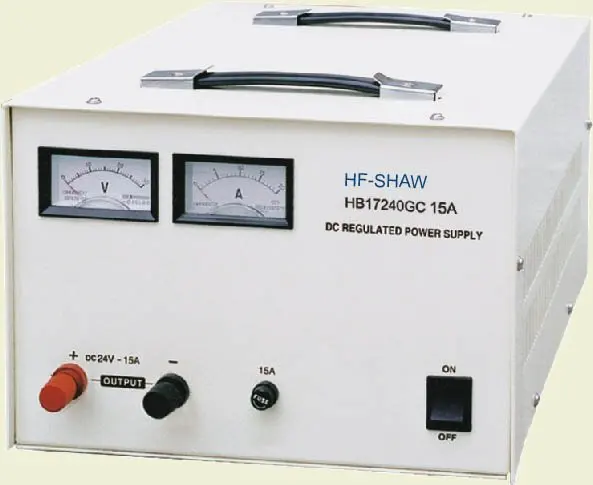

HB1700GC series fixed DC stabilized power supply
Features
·Stable voltage output, strong power
·Overload protection
·Double-display for voltage and current
·High reliability, continuous operation for a long time
·Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC0~10A (any fixed point)
Ripple voltage: 40mVrns
Volume & weight: 23 12 15cm 3~4Kg
HB1700GC series fixed DC stabilized power supply
Features
·Stable voltage output, strong power
·Overload protection
·Gauge outfit indicates output voltage or current;High reliability, continuous operation for a long time
·Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC15~20A (any fixed point)
Ripple voltage: 60mVrns
Volume & weight: 44 30 22cm 7~12Kg

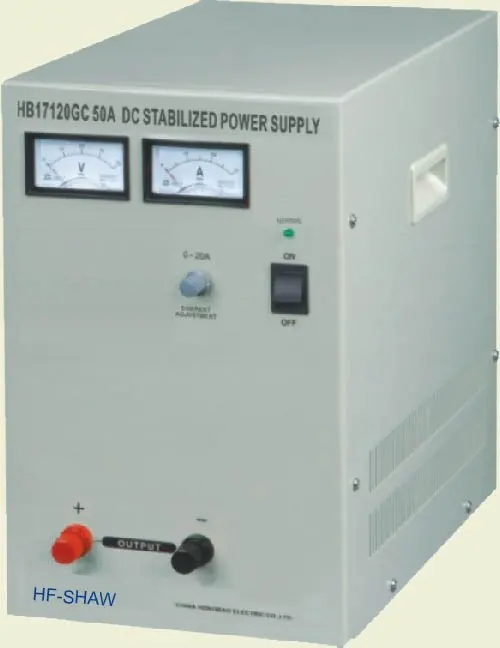

HB1700GC series fixed DC stabilized power supply
Features
.Stable voltage output, strong power
.Overload protection
.Gauge outfit indicates output voltage or current;High reliability, continuous operation for a long time
.Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC30~50A (any fixed point)
Ripple voltage: 100mVrns
Volume & weight: 44 25 34cm 30~40Kg

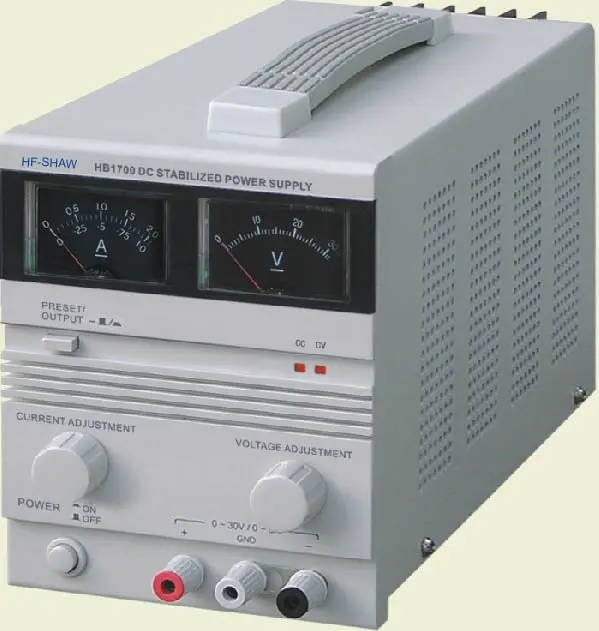

HB17300SC1~5A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
Model | Output voltage | Output current |
HB17300SC1A | 0~30V | 0~1A |
HB17300SC2A | 0~2A | |
HB17300SC3A | 0~3A | |
HB17300SC5A | 0~5A |
Power supply effect : CV 1 10-4 0.5mV
CC 2 10-3 1mA
Load effect : CV 1 10-4 2mV
CC 2 10-3+3mA
Ripple and noise : CV 1mVrms
CC 5mArms
Volume and weight : 23 12 15cm 3-4Kg

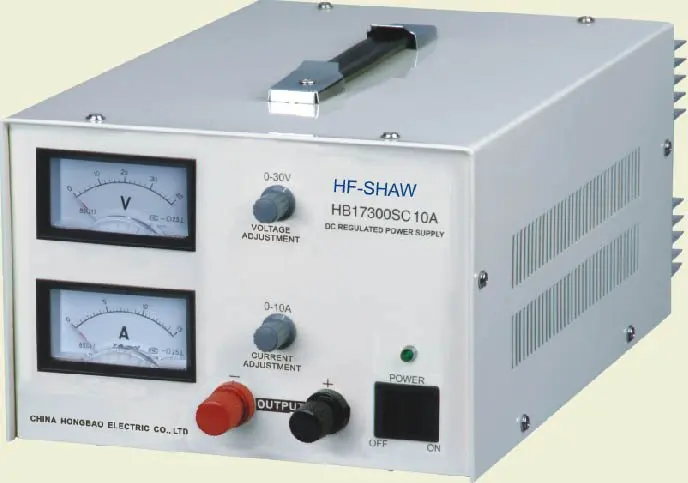

HB17300SC7~15A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High current output
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limiting
point can be adjusted randomly
·Plastic-sprayed steel frame, novel and nice appearance
·According to users' requirements, the output of fixed voltage and low
current of one circuit can be customized.
Main technical indexes
Model | Output voltage | Output current | Ripple and noise: CV≤3mVrmsCC |
HB17300SC7A | 0~30V | 0~7A | CC≤10mArms |
HB17300SC10A | 0~10A | Power supply effect : CV≤2 10-4+3mV | |
HB17300SC15A | 0~15A | CC≤2 10-3+3mA | |
Load effect : CV≤2 X 10-4+10mV | |||
CC≤5 X 10-3+10mA | |||
Volume and weight : 38 X 22 X 17 cm | |||
11.5kg-15kg | |||
HB17300SC20~30A series high-power adjustable DC stabilized power
