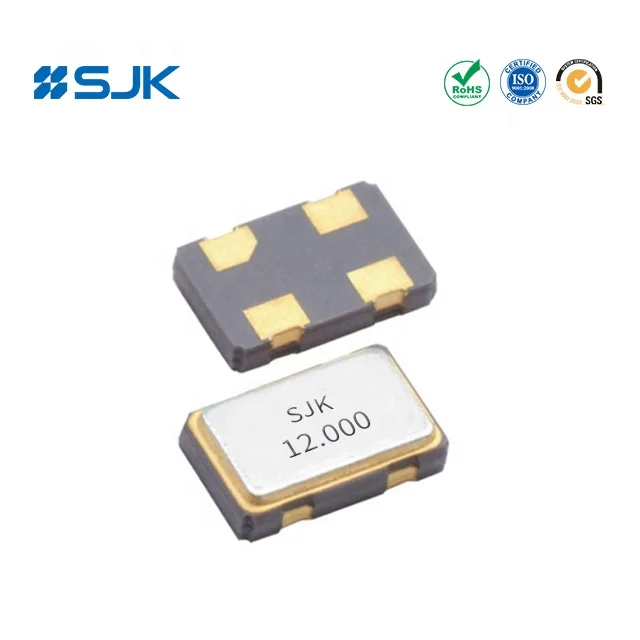

7N SMD 5032 Crystal Oscillators

Item: 7N Series (SMD 5032 Crystal Oscillator)

Frequency Range: 1~150MHz

Supply Voltage: 1.8~3.3V Size: 5.0×3.2×1.2mm

Function: 3-state

Applications: PC, Server, SONET, Ethernet, Visual, etc



Specifications and Dimensions

Features of 7N Series SMD 5032 Crystal Oscillators

Package size: 5.0×3.2×1.2mm.

Small size SMD seam sealed clock crystal oscillator units

Supply voltage: 1.8~3.3V

Wide frequency range: 1~150MHz

3-state function

Automatic mounting and reflow soldering

High stability, low jitter, low power consumption.

Applications: PC, Peripherals, Car applications, Visual, Ethernet, Sever, FA equipment, etc

RoHS Compliant /Pb-Free

Electrical Specification of 7N Series SMD 5032 Crystal Oscillators

Item /Type	7N Series (SMD 5032 Crystal Oscillator)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	1.8~3.3V
Frequency Range	1~150MHz
Supply Current	20mA Max.
Frequency Stability	±20ppm, ±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time	8ns Max.
Period Jitter	40 pSec Max.
Duty Cycle	40~60%
Start-up Time	5ms Max.
Phase Jitter (12KHz~20MHz)	1 ps Max.
Aging (at 25℃)	±3ppm /Year Max.
Packing Unit	1000pcs./Reel

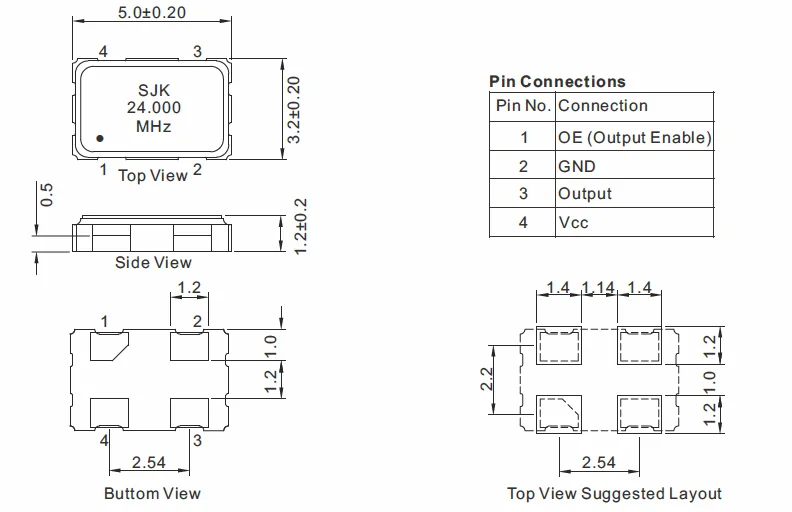

Dimensions [mm]







REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
