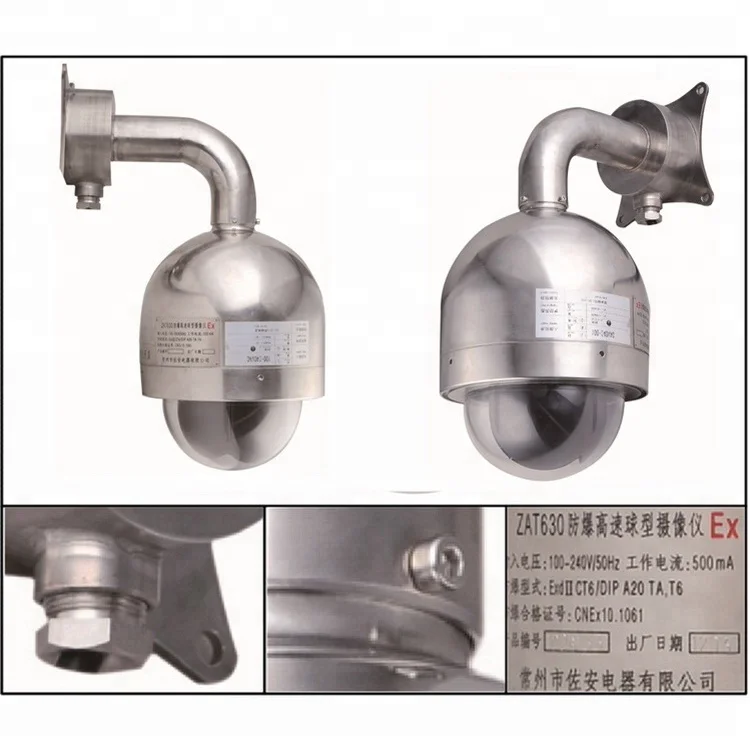

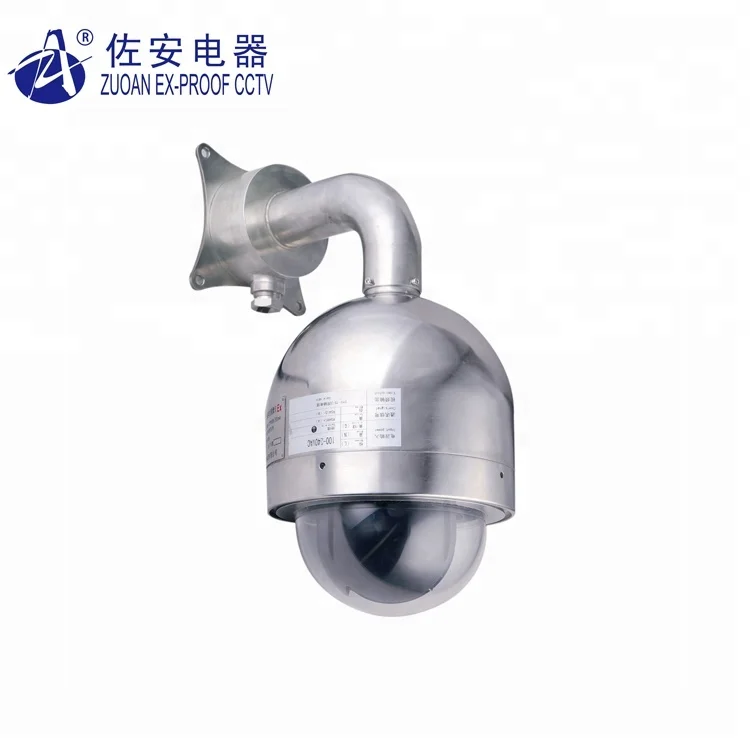

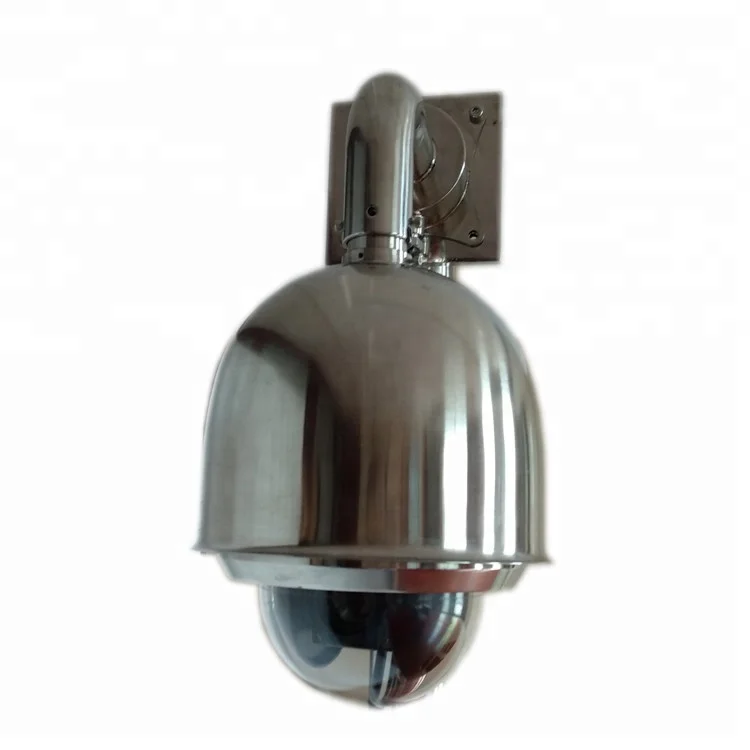

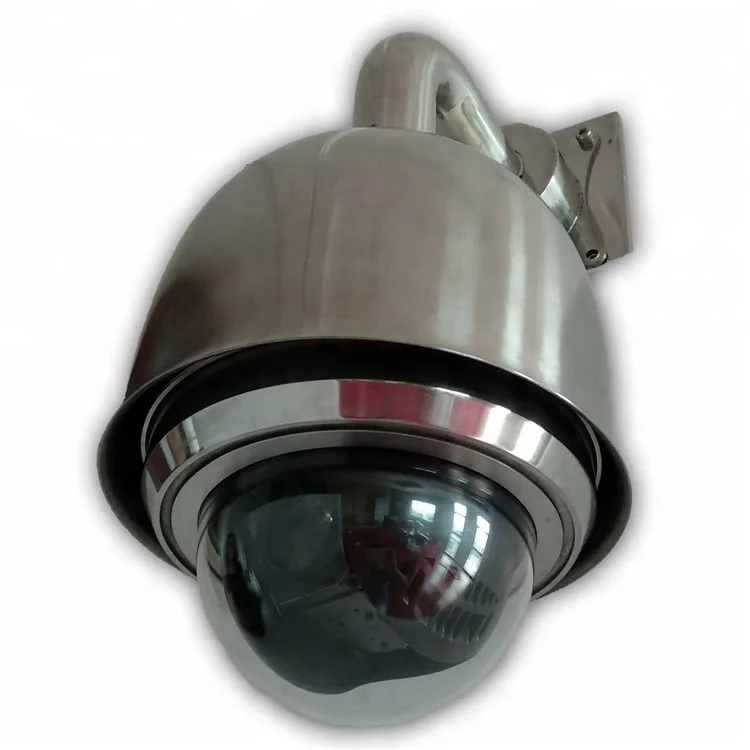

ZAT630 Explosion Proof High Speed Dome CCTV Camera housing

Product Overview

Description

Product summary:



1. explosion proof  feature



2. CNEX certificates. ZAT630 is the first style high speed dome which is researched only by Zuoan in this line. It fills in the vacancy of supervision line.



3. it is fit for the outside and inside. ZAT630 has the characteristics of high speed location and preset accuracy.



Product Parameter:



Enclosure protection	IP68
Atmospheric temperature	–20°c~+60°c
Input voltage	220VAC 50Hz (or other else)
Power	≤50W
Outer dimension	φ204mm×310mm(H)
Vertical and horizontal speed	0.1°/s ~400°/s
Rotation angle	horizontal 0~360°continuously turning, vertical0~90°
Auto-turning	yes
Menu function	Chinese-English words video, can set name of preset
Control method	RS-485
Communication agreement	Pelco-P,Pelco-D industry standard agreement and so on, baud rate (optional)
Ex-proof mark	ExdII CT6/DIP A20 TA, T6
Relative humidity	‹95%
Material	316L, 304
Weight	12kg
Camera	cameras of brand of Sony, RILI, Samsung, LG, SHILIN, Sanyo
Preset	128
