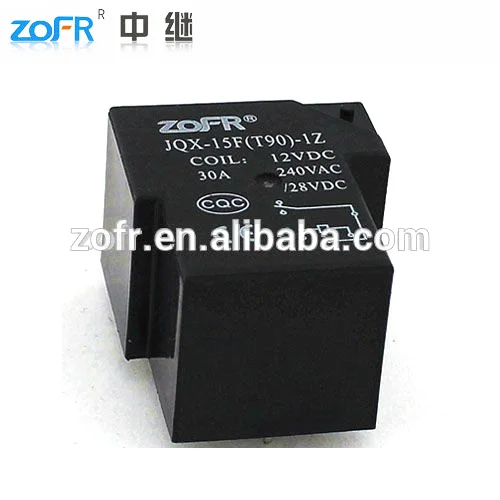

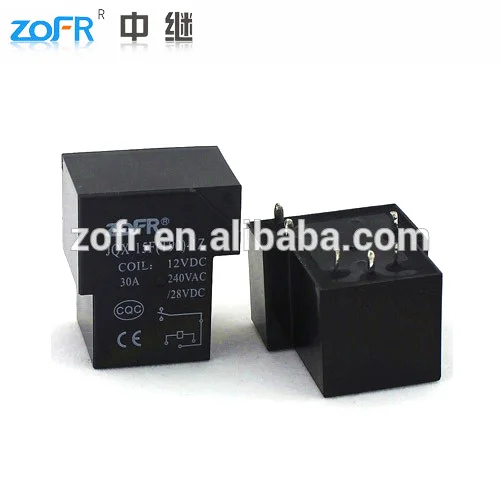

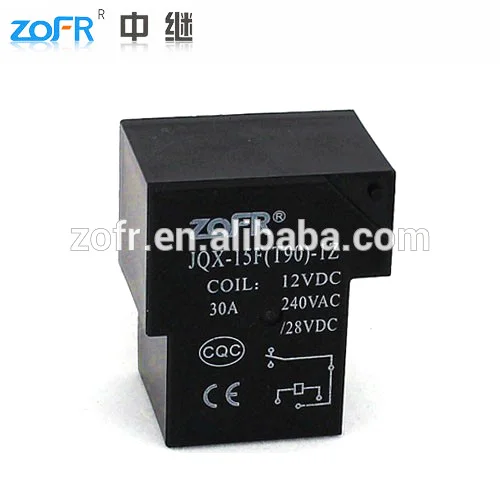

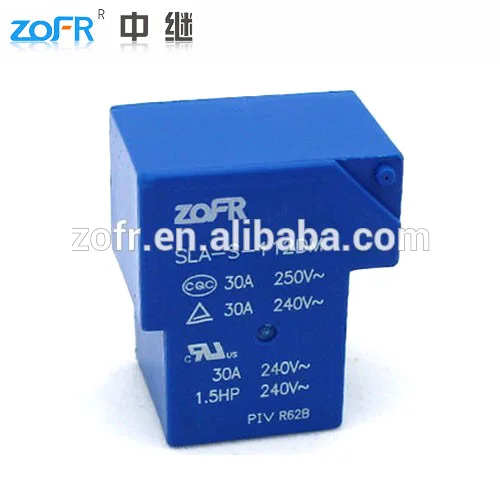

Copper material silver contacts PCB type 1A 1B 1C 4pin 5pin 6pin 12v 24v jqx 15f t90 30A relay

Share on (338930900):


Price:RUB 22.96 - RUB 35.96

Quantity:


Product Overview

Description






Product Description

Specification:



Classification

PCB Relay

Product Model

JQX-15F(T90)

Contact Form

1H, 1Z

Coil Voltage

5/6/9/12/18/24/36/48VDC

Operate Voltage

≤ 3.8/4.5/6.8/9.0/13.5/18.0/27.0/36.0VDC

Release Voltage

≥ 0.5/0.6/0.9/1.2/1.8/2.4/3.6/4.8VDC

Coil Power(W)

0.93W

Contact Rating

1H: 30A; 1Z: 20A (250VAC / 28VDC)

Contact Resistance

100mΩ

Insulation Resistance

100mΩ (500VDC)

Dielectric Strengh

Between Open Contact

1500VAC 1min



Between Coil and Contact

2000VAC 1min

Electrical Life

1×105

Mechanical Life

1×107

Ambient Temperature

-25 ~ +60°C

Outline Dimension(L×W×H)

32.5×27.5×20.5 (mm)

Mounting Form

PCB Terminal

Weight

26g







Wiring Diagram:



JQX_
