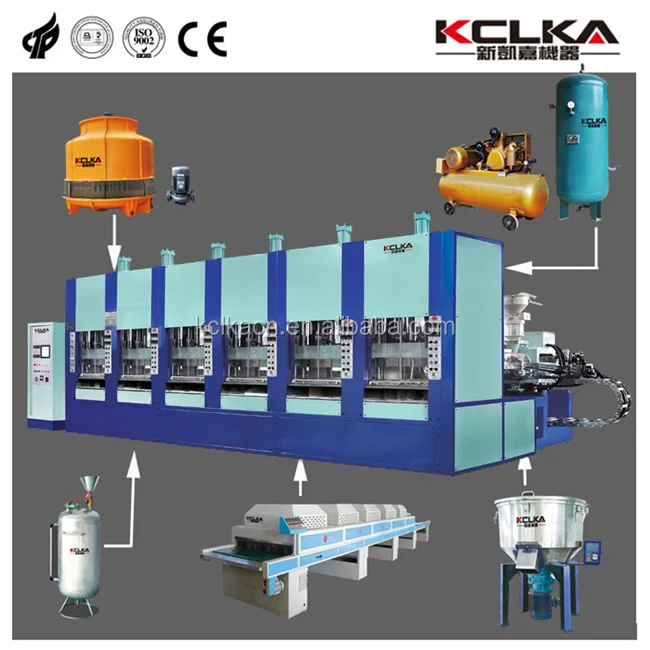

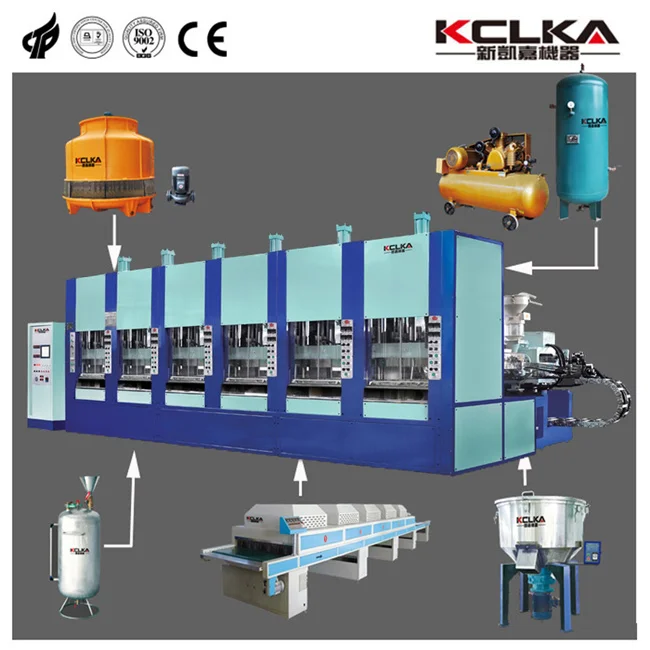

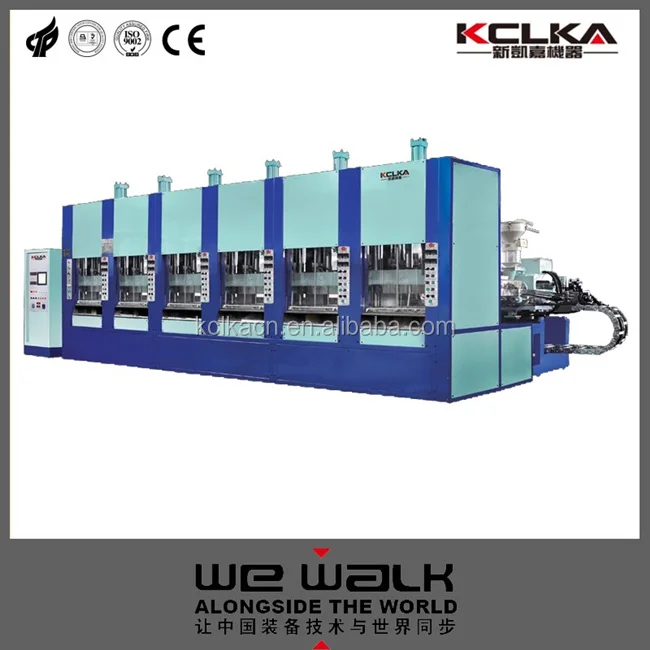

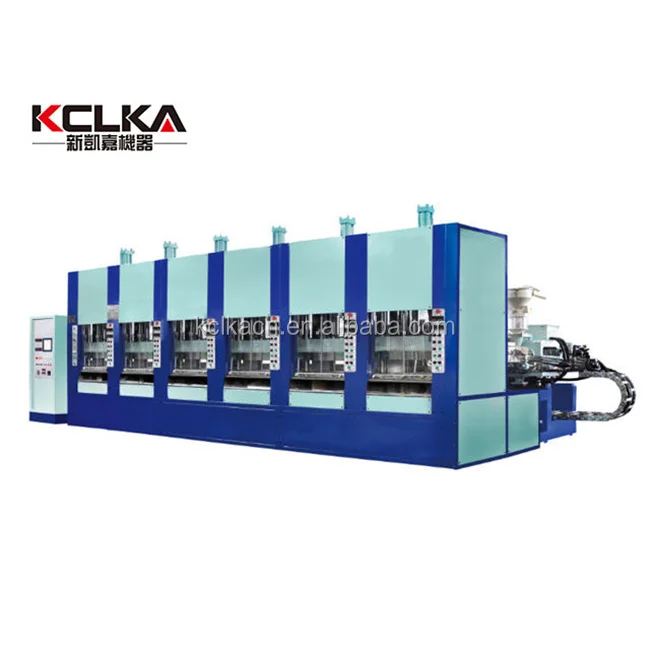

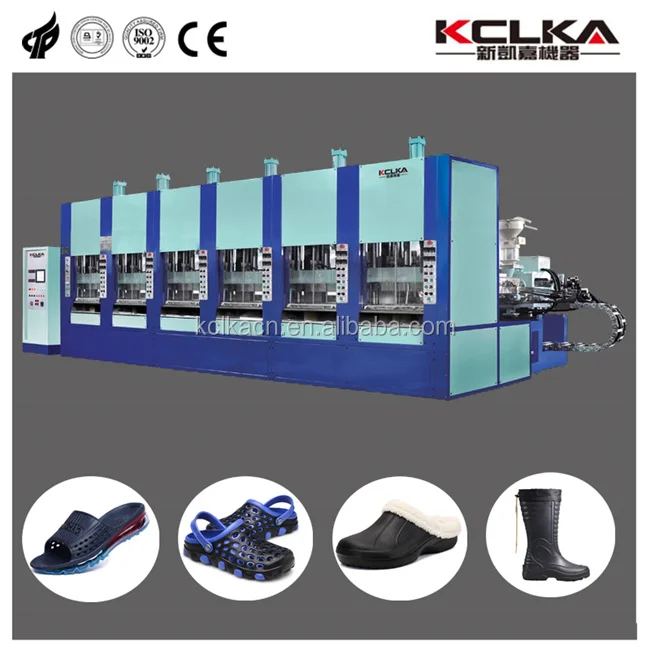

KCLKA Automatic One Color EVA Foaming Injection Servo Energy Saving System Moulding Machine

Product Overview

Description

Full-Automatic Foam EVA shoe Injection Molding Machine.



Technical Description

Mould Closing System	Unit
Work Stations		6
Clamping  Force	kg	180
Mould-Opening Stroke	mm	350
Standard Thickness of Mould	mm	100-210
Mould Plate Size	mm	2(290*550)
Height of Injection Nozzle	mm	65
Method of Heating		electric
Heating Power	kw	8.04
Injection System
Injectors	set	2
L/D Ratio of Screw		23
Diameter of Screw	mm	65
Max Injection Capacity	cc	920
Injection Pressure		1100
Injection Speed	cm/sec	10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	19.6
Motor for Injector Moving	kw	1.5
Heating Board of Mould	kw	76.8
Hydraulic System	kw/50hz	40.5
Vacuum Pump	kw	2.2
Cooling Fan of Barrel	HP	1
Total Electricity	kw	150
Oil Tank Size	L	1000
Machine Weight	kg	23800
Machine size	mm	6500*4500*2800



Servo system introduction.



Eva shoes machine have two system

1) common system

2)  servo system.

Specifications



1.Specifications are subject to change request without notice for improvement.



2.The clamping force can be increased from 150 to 210 tons, according to your requirement.



3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.



4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.





Character:



1.Low operation height

 Operation height in accord with human engineering



2.Extra height opening stroke

  Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and available for 2   plates mould,



3.Mould thickness adjusting mechanism

 Mould adjusting scope: 100-200MM



4.Rapid mould opening

  Act by toggle mechanism which opens the mould rapidly



5.Speedy injector movement

Driven by linear-track, allowing speedy moving and precise positioning.



6.Energy Saving Design

 No need water circulation for mould station,using efficient heat insulator material.



7.Space saving design

 Put oil tank together with injection base, which makes the structure compact and saves more space.
