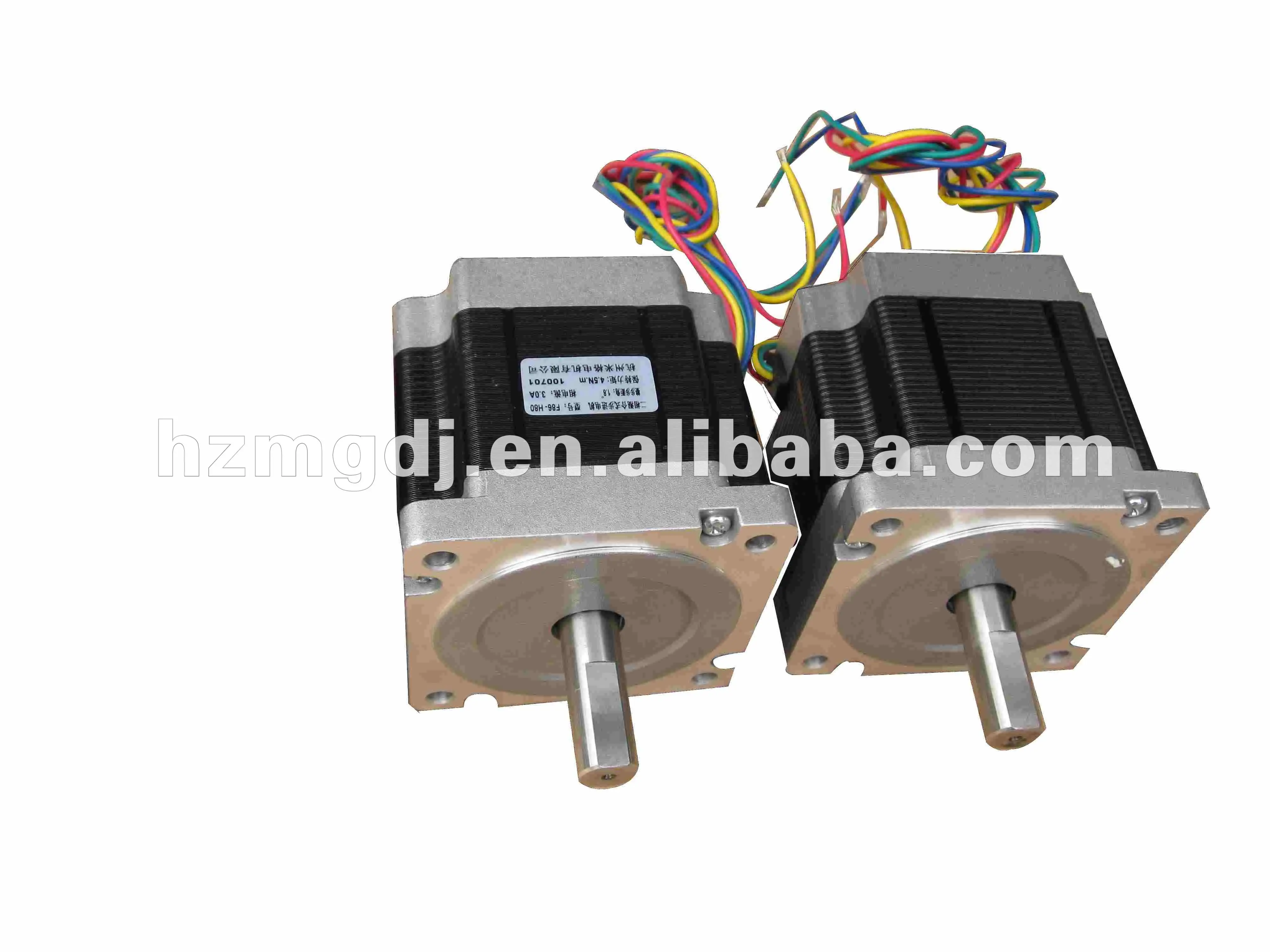

2 phase 45kg step motor
- Category: >>>
- Supplier: Hangzhou Mige Electric Co. Ltd.
Share on (339670648):
Product Overview
Description
2 phase dc motor has such advantage as high efficiency, energy-saving, low noise, low vibration, "high start torque","low start current" and reliable performance. They are easy for installation and maintenance
2 phase dc motor bipolar motor specifications:
Model | F86-H80 |
Step Angle(°) | 1.8 |
Length L(mm) | 80 |
Holding torque(N.m) | 4.5 |
Current (A/phase) | 4.2 |
Resistance(Ω) | 0.8 |
Inductance (mH) | 3.4 |
Rotor inertia (g.cm2) | 1400 |
Weight (kg) | 2.3 |
Step accuracy | 5% |
Temperature | 80 degree Max |
Environmental temperature | -20 ~ +50 degree |
Insulation resistance | 100MΩ Min 500 V DC |
Withstand voltage | 500V AC 1minute |
Shaft Radial Play | 0.02mm Max.(450g-load) |
Shaft Axial Play | 0.08mm Max.(450g-load) |
Shaft diameter (mm) | 12.7 |
Shaft length (mm) | 32 |
Please contact with us for more detailed technical information.
We can design according to clients' requirements.
