QB 60 QB60 PK 60 PK60 0.37kw Copper Wire Cast Iron Body Vortex Pump Peripheral Pump Clean Water Pump

Product Overview

Description

QB-60 QB60 PK-60 PK60 0.37kw Copper-Wire Cast-Iron-Body Vortex Pump Peripheral Pump Clean Water Pump



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year
Product Power: 0.37kw

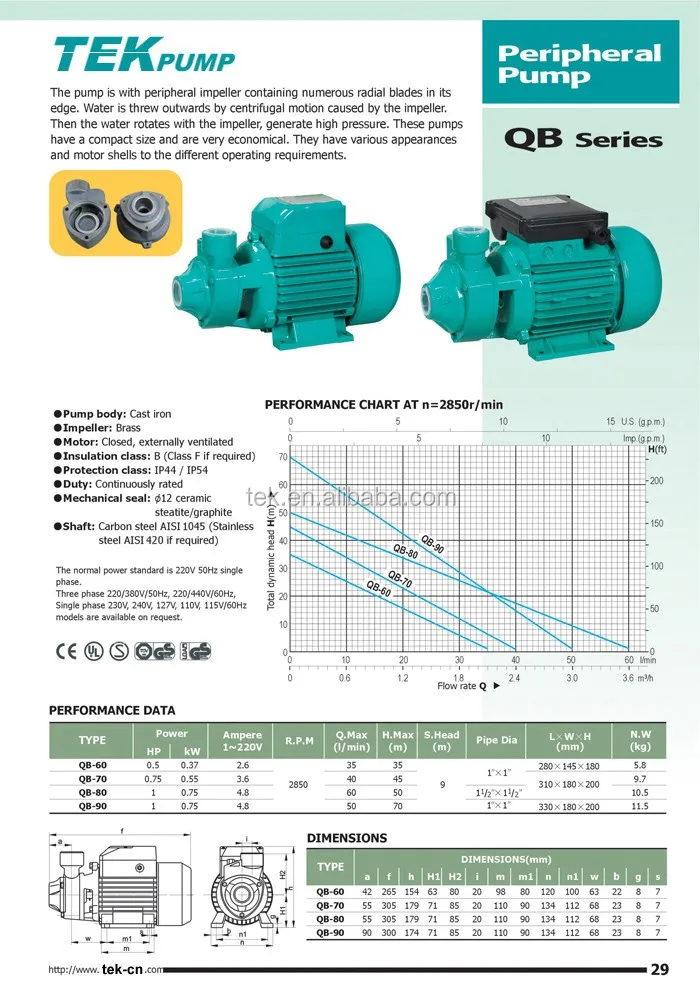

-- View technical -



Model	Power		Q.Max	H.Max	S.Max	Pipe Dia	Packing Dim.	N.W	Qty/20ft	Speed	Ampere
	kw	hp	L/min	m	m	mm	mm	kg	pcs	rpm	1~220
QB-60	0.37	0.5	35	35	9	25x25	280x150x180	5.8	3800	2850	1.6
QB-70	0.55	0.75	40	40	9	25x25	310x180x200	9.7	2800	2850	3.6
QB-80	0.75	1	50	50	9	40x40	310x180x200	10.5	2800	2850	4.8
QB-90	1.1	1.5	60	60	9	40x40	415x195x220	17	1650	2850	6.2
