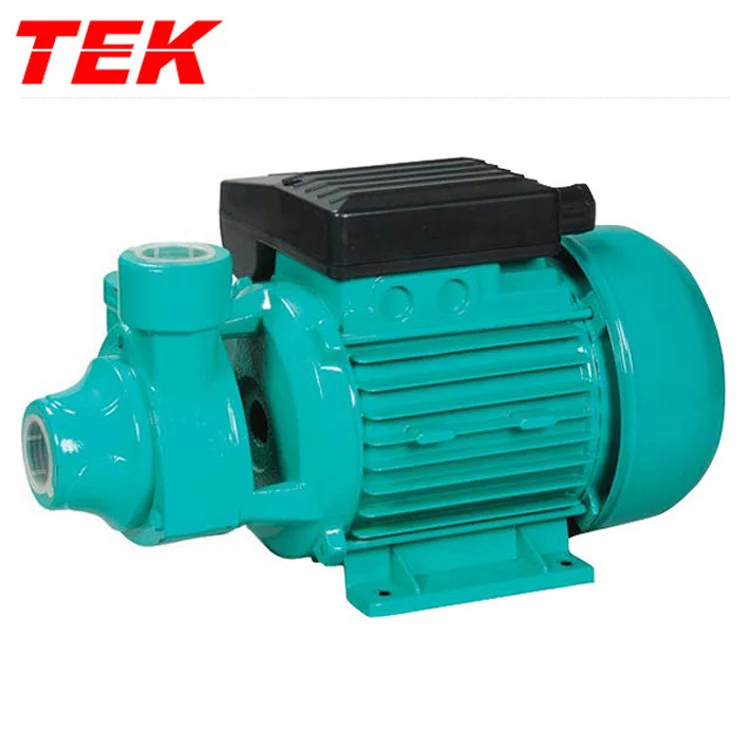

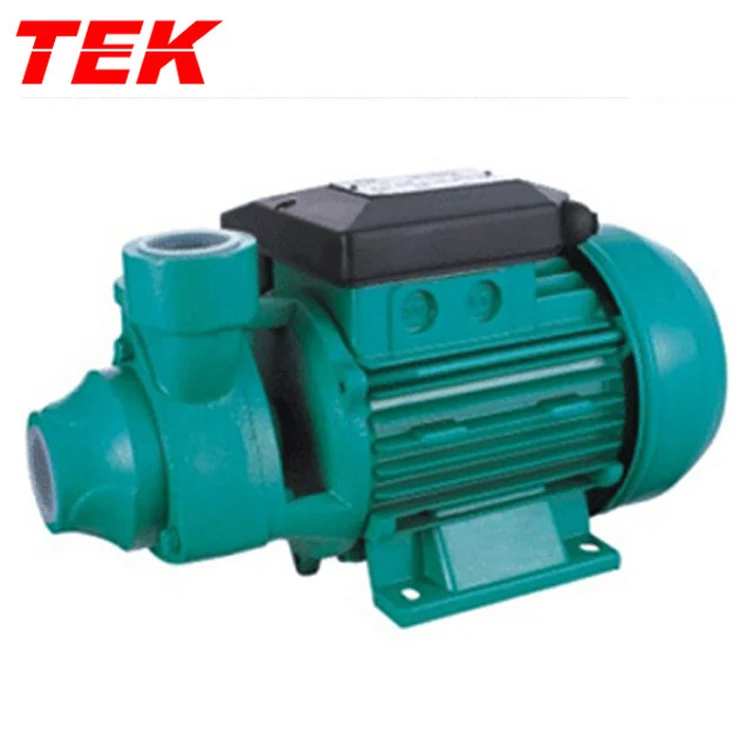

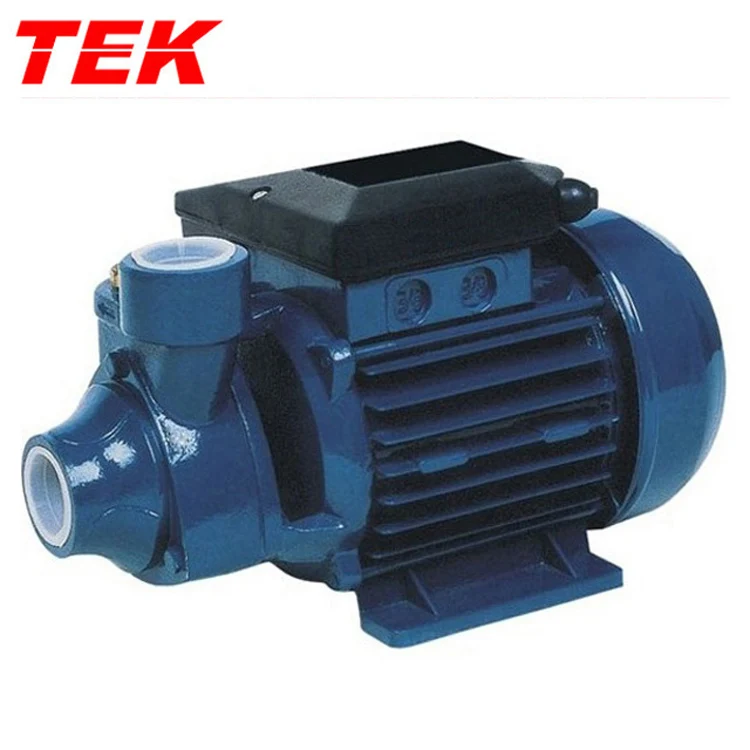

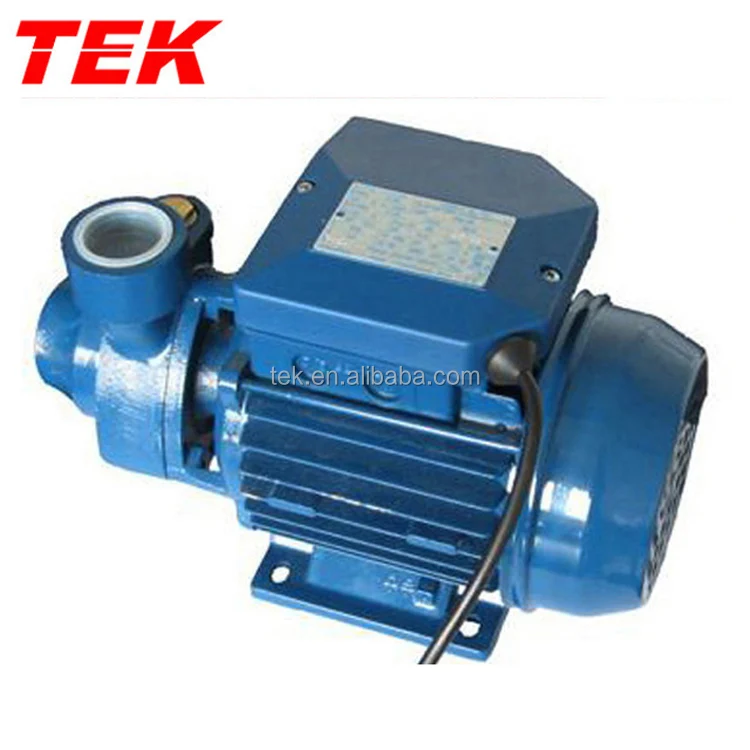

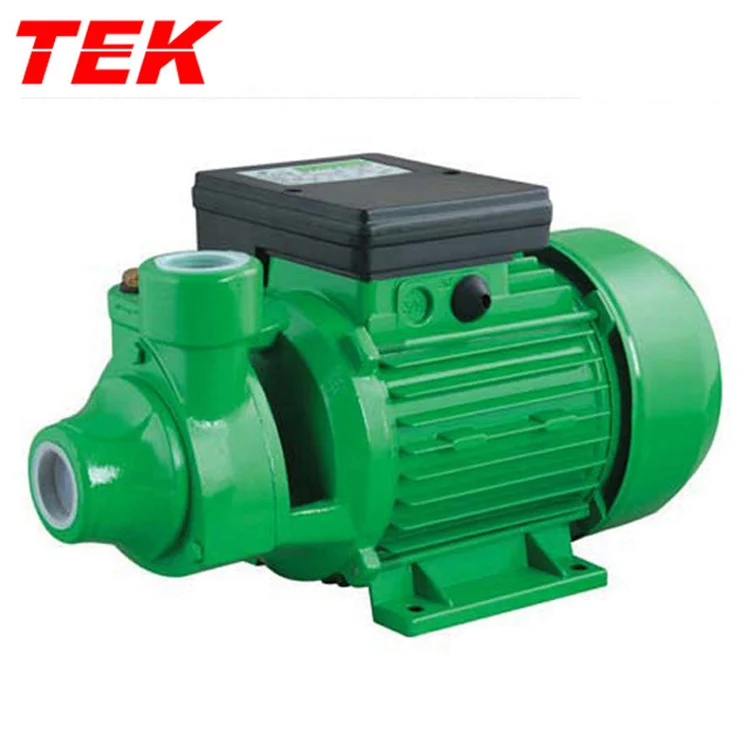

PM45 PM 45 0.37kw Copper Wire Cast Iron Peripheral Pump Vortex PM Pump Clean Water Pump OEM

Product Overview

Description

PM45 PM-45 0.37kw Copper Wire Cast Iron Peripheral Pump Vortex PM Pump Clean Water Pump OEM



MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year
Product Power:0.37-0.75kw
-- View technical --



Model	Power		Q.Max	H.Max	S.Max	Pipe Dia	LXWXH	N.W	Ampere	Speed
	kW	HP	L/min	m	m	inch	mm	kg	1~220	rpm
PM-45	0.37	0.5	35	35	9	1"x1"	290X170X180	5.9	1.6	2850
PM-50	0.55	0.75	40	40	9	1"x1"	330X185X205	9.7	3.6	2850
PM-60	0.75	1	50	50	9	1(1/2)"x1(1/2)"	330X185X205	10.4	4.8	2850
PM-70	1.1	1.5	60	60	9	1(1/2)"x1(1/2)"	425X220X255	17.2	6.2	2850
