The aluminum rod continuous casting and rolling machine is special for producing electrical aluminum rod with dia. 9.5mm by mean of continuous casting and rolling way.
§ Equipment feature
1. The aluminum rod continuous casting and rolling machine is competitive with the relative international products.
2. By adopting PLC and man-machine interface for the complete line control, it can check and display the running parameter of machines as well as indicate the breakdown.
3. The aluminum rod continuous casting and rolling machine is with perfect outlook and lower noise and vibration.
4. The aluminum rod continuous casting and rolling machine is easy to disassemble and assemble.
5. High efficiency and quality of production & low dissipation energy.
§ Equipment composition
1. The aluminum rod continuous casting and rolling line is composed of melting furnace, holding furnace, casting machine, donkey engine, seven-stand rolling mill, take-up machine, electric control system, etc.

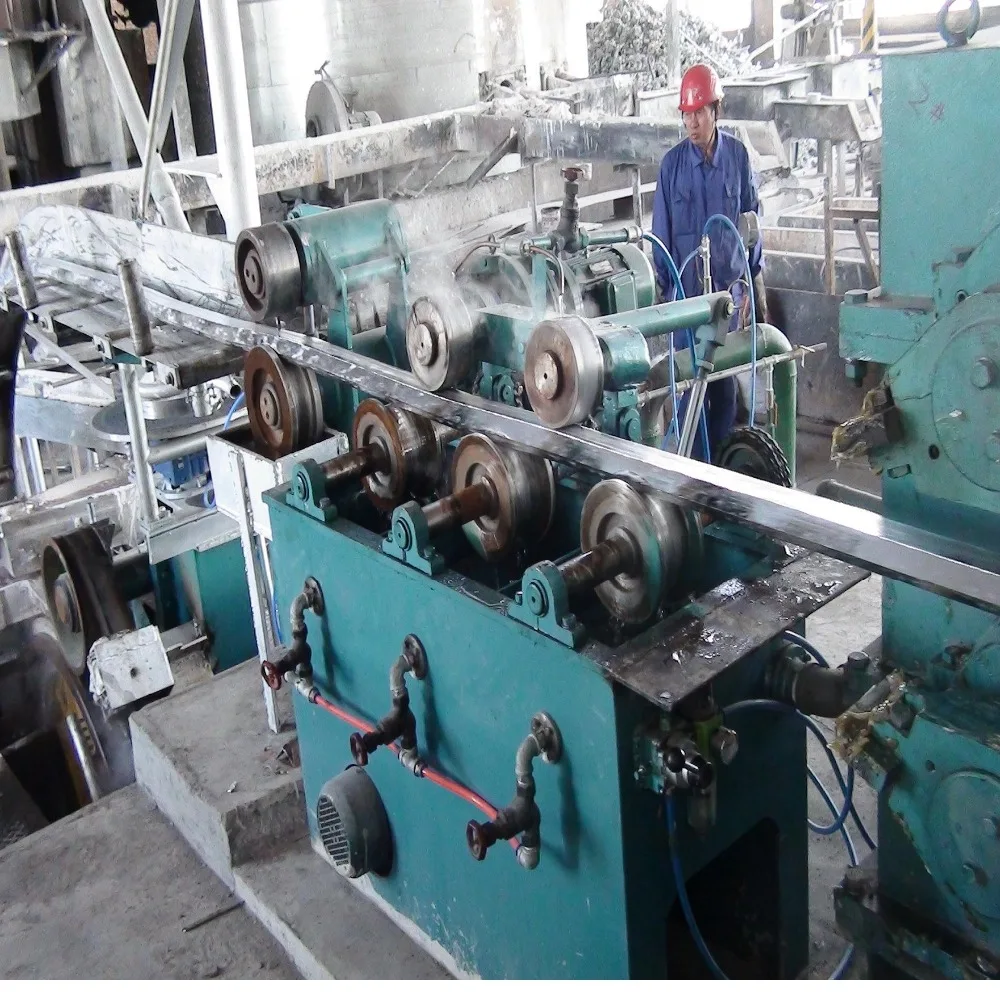

2. Molten aluminum or prepared aluminum melt flows from the holding furnace via the launder into the rotary continuous casting machine, where it is continuously casted into a trapezoidal ingot with a cross-sectional area of 600mm2. The hydraulic shearer cuts off the waste end and press it smaller or pointed so as to feed into the rolling machine, where it is rolled into rods of dia. ø9.5mm, and after passing through the grease box and guide pipe, aluminum rod is finally laid down in coil in the basket on the trolley.
§ Technical Datas

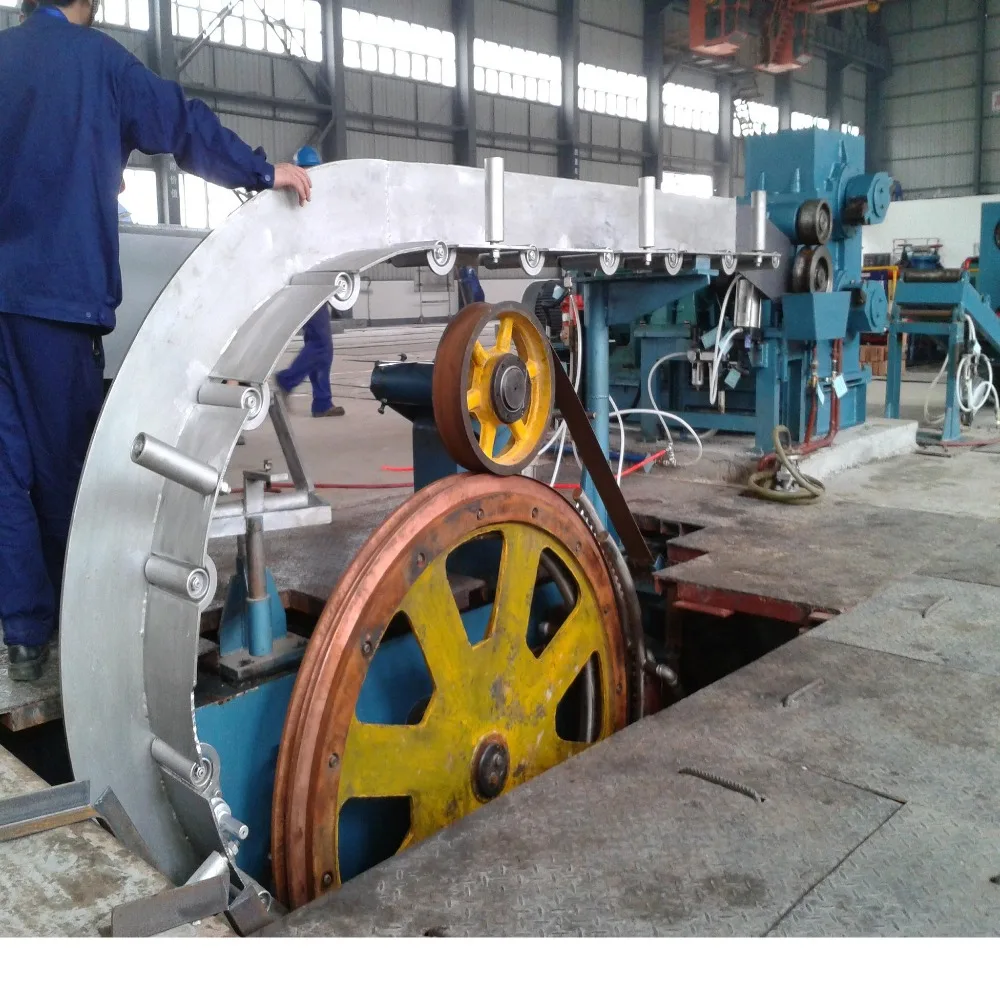

Casting Machine
Crystallizing wheel dia
Φ1200mm
Section surface of casting ingot
600mm2
Casting speed
280mm/s
Driven motor
1.5 kw (AC)
Type of casting machine
2-wheel
Cantilever balancing pendant oil hydraulic shearer
Max. shearing force
12000 kgf
Max. shearing stroke
65 mm
Motor power
4 kw

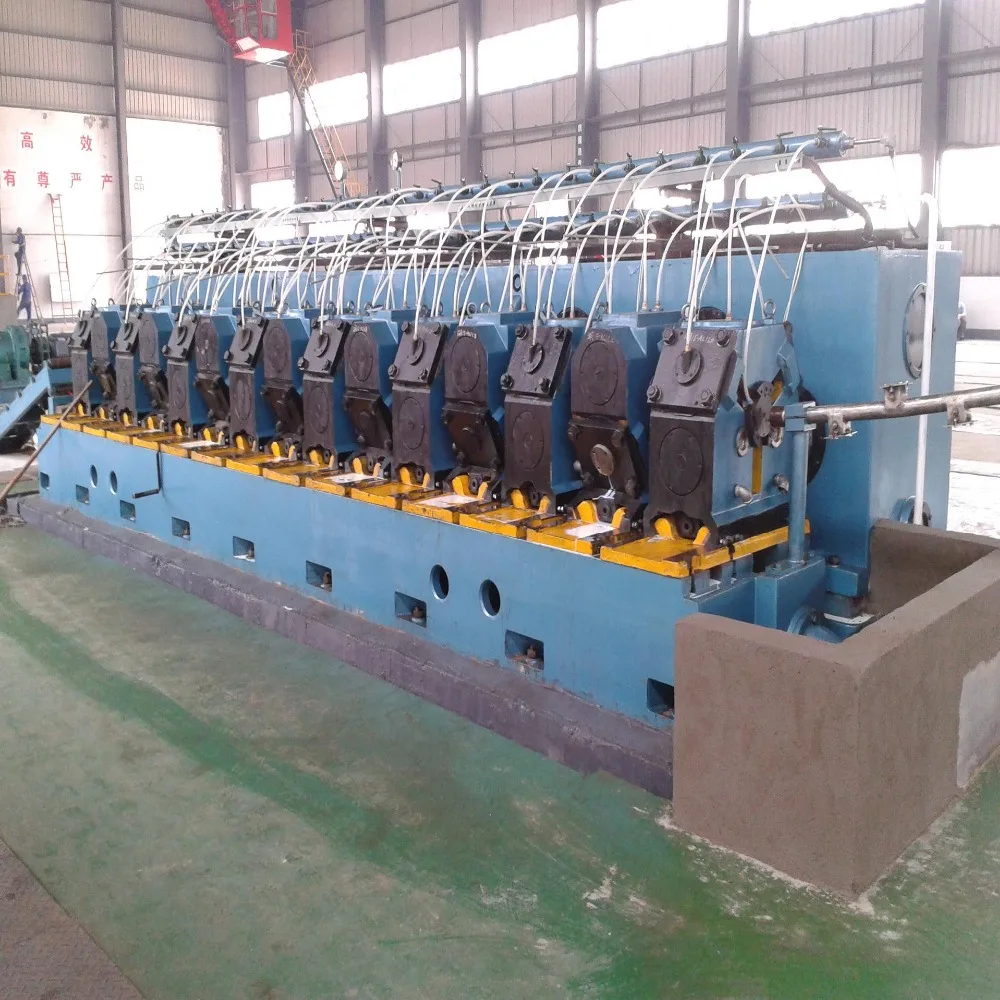

Rolling Mill
No. of rolling stand
7
Outlet rod diameter
Φ9.5mm
Max. production capacity
1.6 t/h
Finished rolling speed
2.45 m/s
Center height
902.5mm
Main motor
75 kw

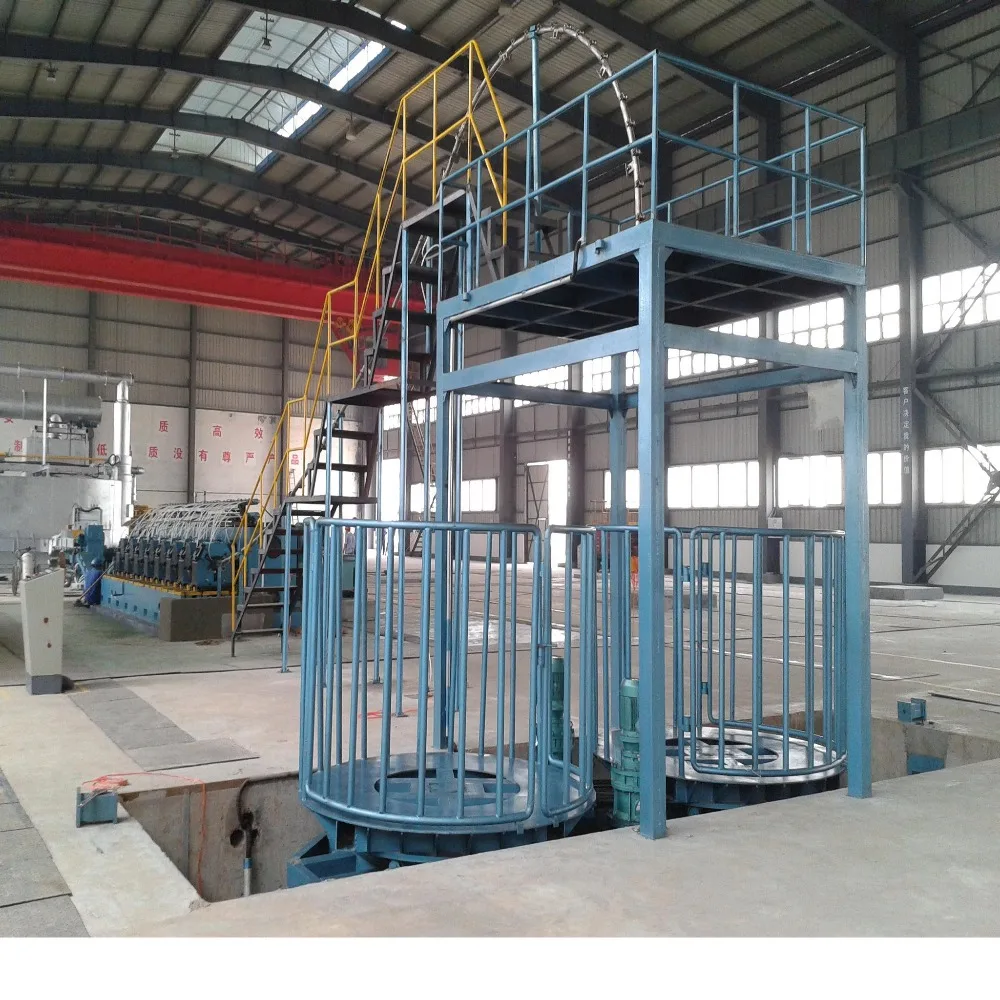

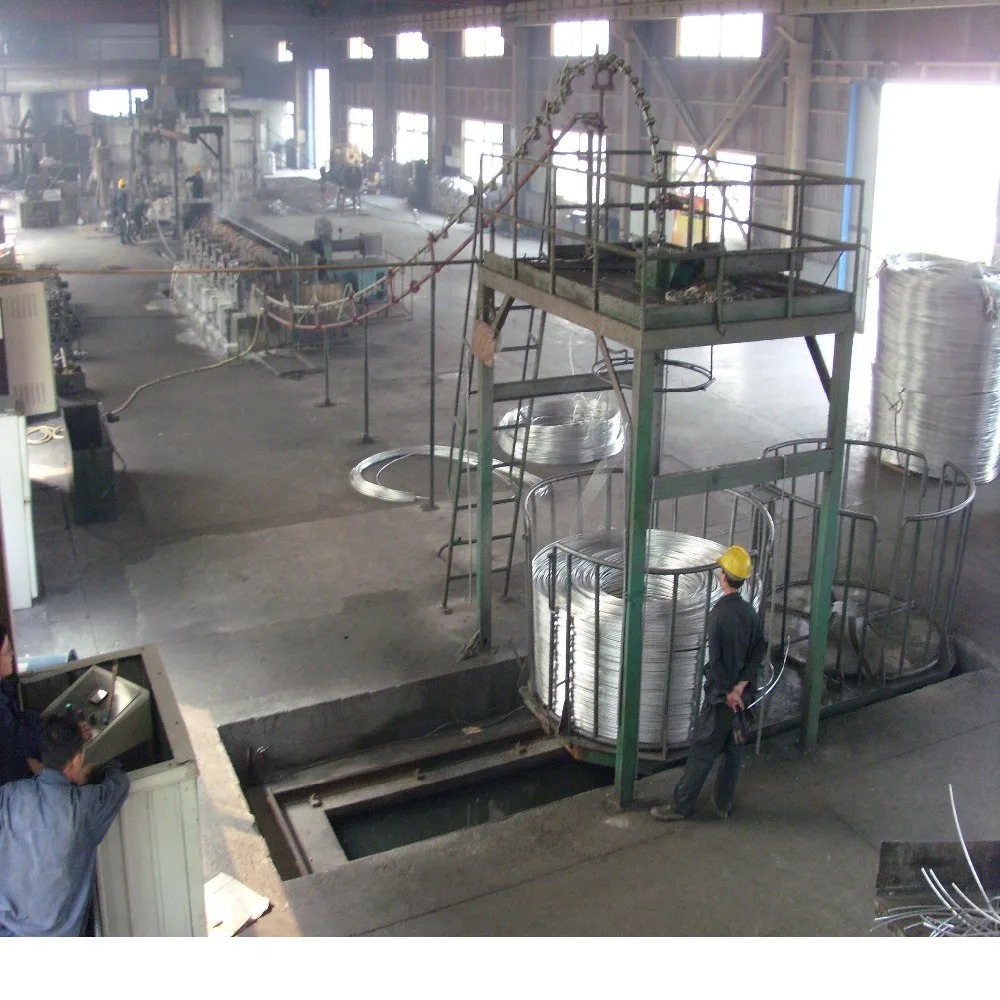

Rod Coiler
Coiling weight
1.5~2 t
Max. coiling diameter
ø 1850 mm
Coiling driven motor power
2.2 kw
Our Services
Covering an area of 20000 square meters, we now have more than 50 sets of large and medium-sized processing and manufacturing equipments. It has a well-trained design, marketing, managing, machinery processing and equipping team consists of 138 staff.
We insist on the management idea of “being faithful person, doing credible work, first cooperation will become friends forever” , hold the spirit of “keeping forge ahead in passion, aiming at surpassing”, stick to the work style of “truth-seeking and pioneering”, warmly welcome all the friends coming from all over the world to develop and negotiate together.
In China, we are a state-owned factory. We can assure that it is the best one. We have the advanced design concept and manufacture technology, our machine is stable and reliable, our aluminum and copper rod ccms have more than 70% market share in Chinese market. Our general engineer is the person who participatory designed the first line of aluminum rod continuous casting and rolling line in China.
