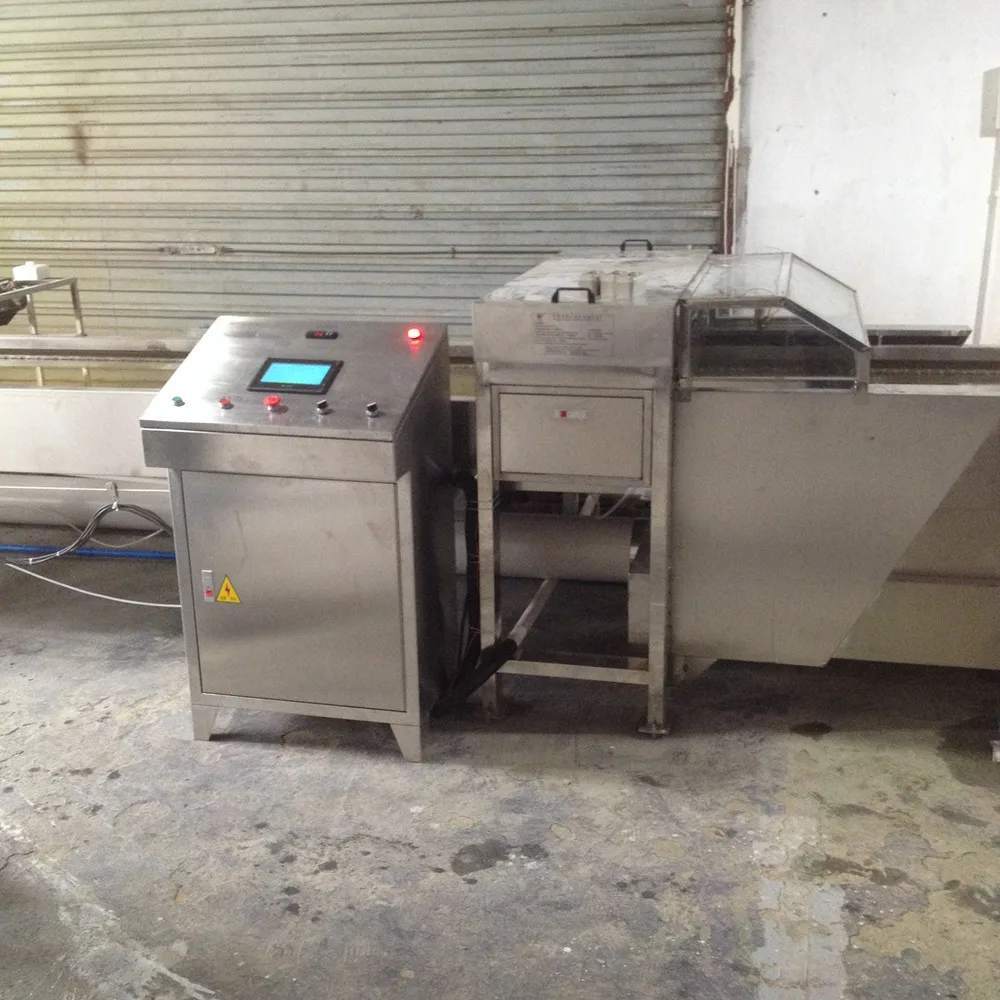

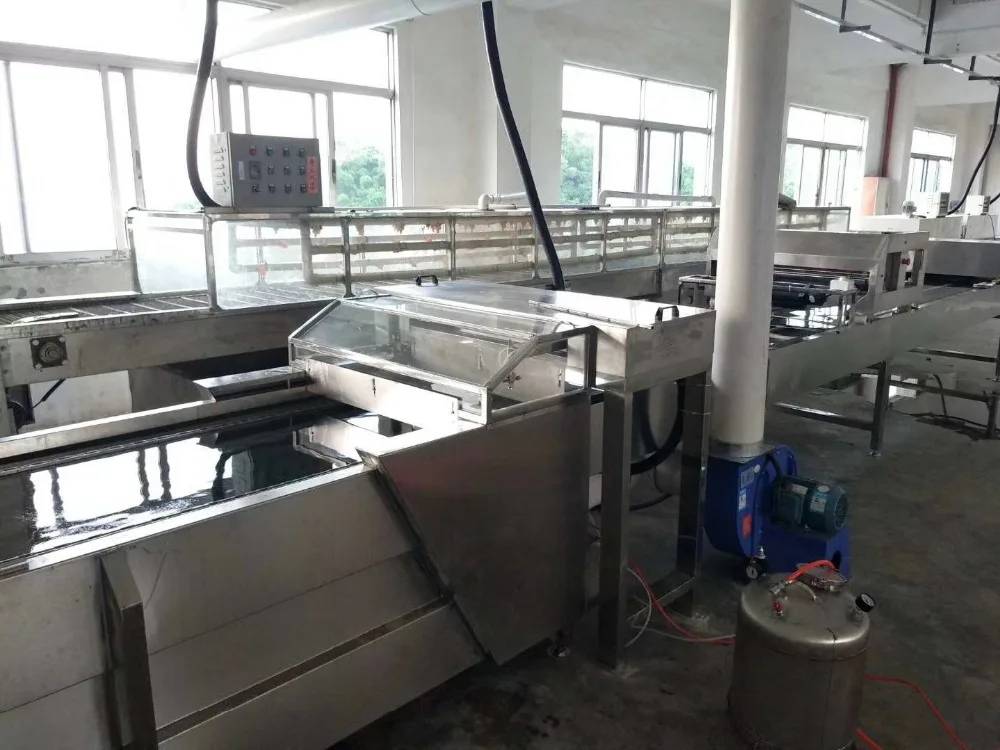

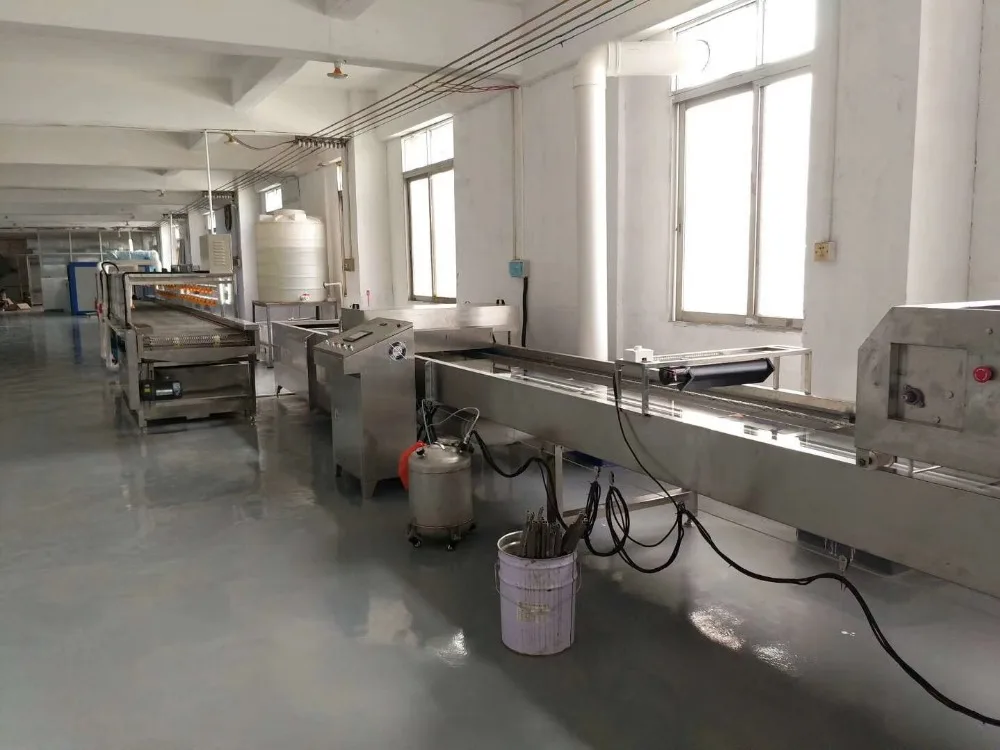

Automatic Water Transfer Printing Machine for Hydrographic Dipping and Hydro Dipping Tank
- Category: >>>
- Supplier: Chengdu Koue Technology Inc.
Share on (340701279):
Product Overview
Description
Koue L14m High Quality Full Automatic Water Transfer Printing Machine for Hydrographic Dipping and Hydro Tank
Products Description:
| Products Name | Koue L14m High quality full automatic water transfer printing machine for hydrographic dipping and Hydro Tank | |
| Model | CKAD14 | |
| Cleaning water surface | Automatic cleaning water surface | |
| Place Film | Automatic Place Film System | |
| Spray Activator | Automatic Spray Activator System | |
| Conveyer material | Stainless steel chain | |
| Speed output | speed motor with ATLEE 1 HP converter | |
| Tank Size | Outside Size | L:1400cm x W:180cm x H:160cm |
| Dipping Area | L:200cm x W:100cm | |
| Material | Stainless Steel | T=2.0mm, 201# Stainless Steel |
| Main Components | Heating Elements | 1 Sets, 220-240V, Single Phase, 50/60HZ, 9KW |
| Water Pump | Pump Power: 220V, Single Phase, 50/60 HZ, 2HP | |
| Control Panel | PLC Control Panel | |
| Water Capacity | 5000 Liter | |
| Water Temperature | RT to 40 degree, Adjustable | |
| Package | Plywood Case | |
| Net WT / Gross WT | 1200Kg(NT) / 1400Kg(WT) | |
| Package | Export Package | |
| Customized Size | Accept | |
| Warranty Policy | 24 Months and C | |
