Ultrasonic Quilting Sewing Machine

Product Overview

Description

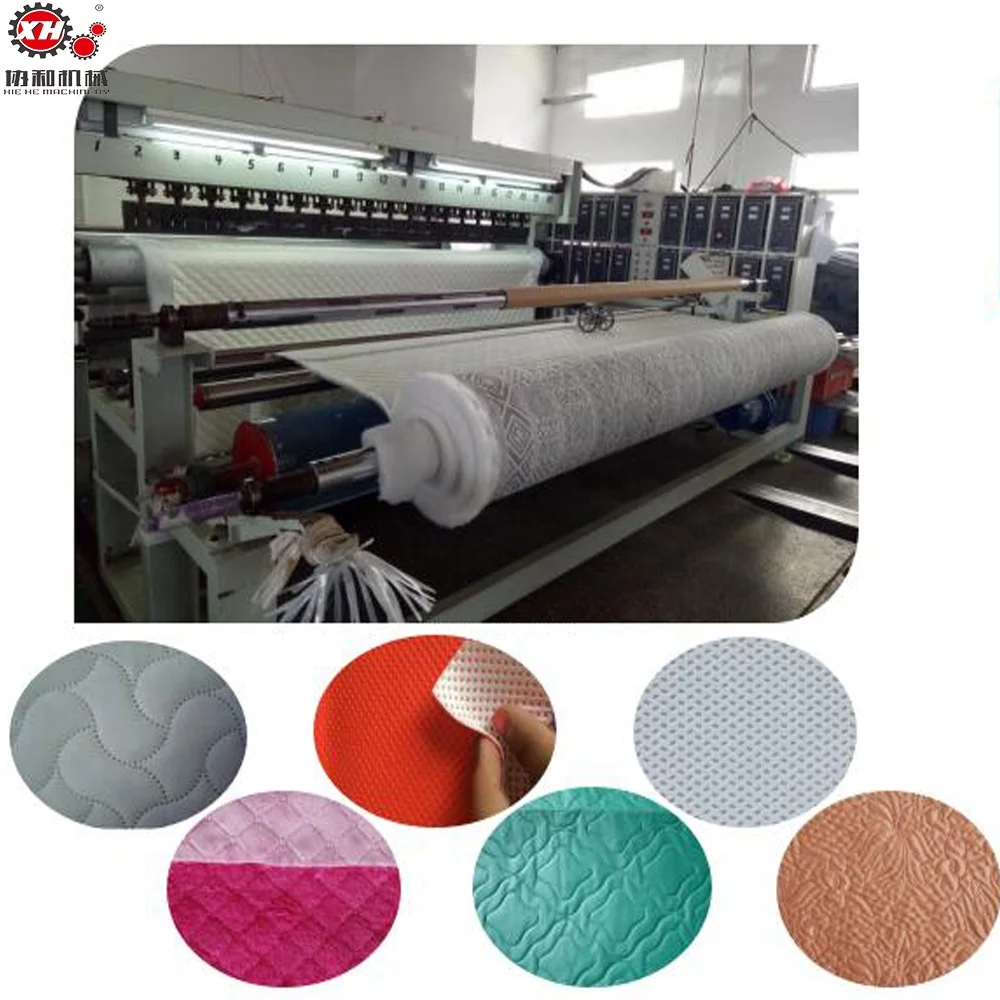

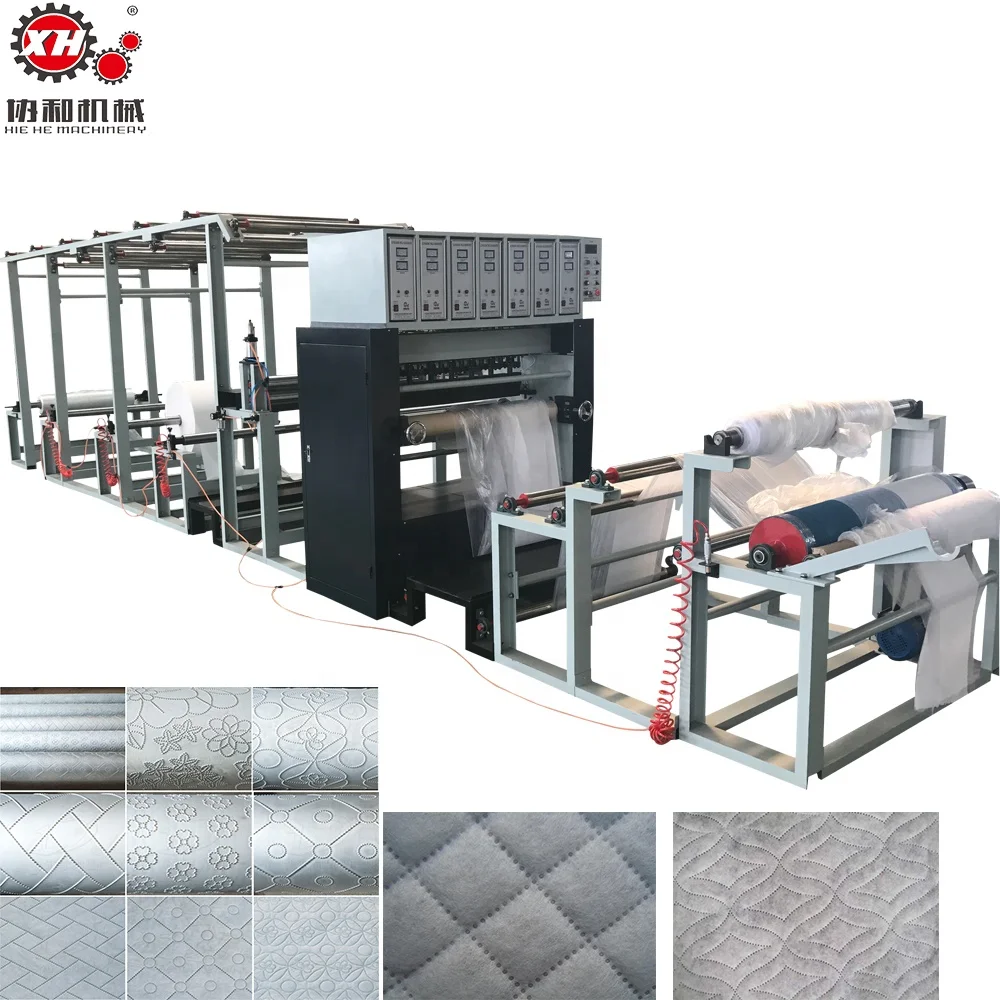

Ultrasonic Quilting Sewing Machine



    Equipment features:



       1.Change the traditional processing techniques with tread and needles, use of ultrasound wireless quilting, and improve product quality



      2. Indentation can be arbitrary design, the replacement of spent rounds, can make different patterns logos



      3. Indentation of change, make product more attractive, with three-dimensional sense, to lead the trend of the times



      4. Special mechanical design plus a torque motor to ensure that the winding formation, constant tension



      5. Imports ultrasound systems, upgrade products and the strength of the suture firmly uniformity, thereby greatly increasing production efficiency



      6. This equipment with a voltage regulator to ensure that machinery and the stability of life



      7. The touch-screen equipment use PLC control, simple to learn.



      8. Die adopt special sclerosis treatment, durable





    Use Scope:



      This applies bedgown equipment, sleeping bags,  space jacket, ski clothing, bedding, bedspreads, sofa covers, mattresses, bed sheets, and many other industries.





    Technical parameters:



Name	Ultrasonic quilt machine
Model	SH-2
Acoustic generator power	600W-1500W
Frequency	20KHZ
Power	380V, 50HZ
Motor power	3KW+1.5KW
Output	12KW
Speed	800 m/h
Dimension (about)	8500 mm×2200 mm×2100 mm
Weight	1800 KG
Efficiency	10-20 m/min
