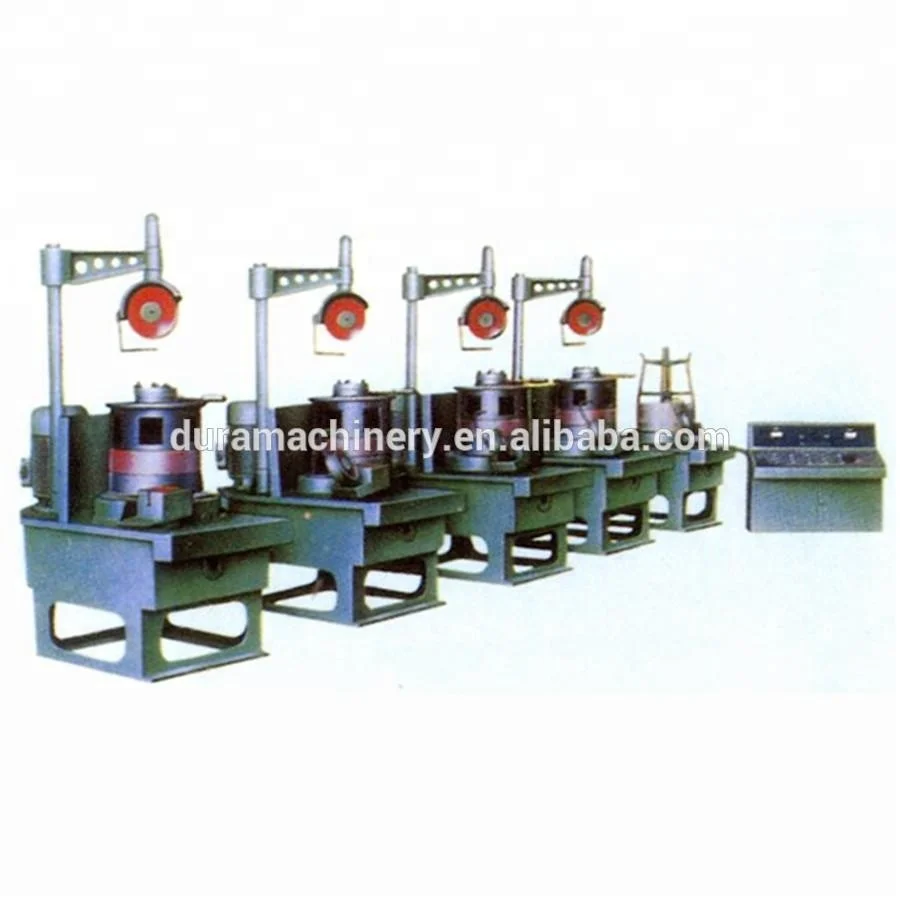

Wire drawing machine, pully/OTO type
- Category: >>>
- Supplier: Wuxi Tripod Machinery Imp. & Exp. Co. Ltd.
Share on (341423491):
Product Overview
Description
Wire Drawing Machine For Making Nail
Usage
This Kind of machines ( pulley or OTO type ) is an ideal equipment applied for drawing steel wire material of high, medium and low carbon steel, as well as copper,alumium and alloy wire, the machines are applied to draw wire in the factories and nail, screw and rivet making factories etc.
Technical Specifications
Item | unit | Continuous Multi-block Type | ||
Model |
| LW- n/ 560 | LW-n/450 | LW-n/350 |
Max. drawing pass (n) |
| n: 1 - 10 | n: 1 – 8 | n: 1- 8 |
Tensile strength of wire rod | Kg/mm2 | >110 | 128 | >140 |
Max. dia. of wire rod | mm | 6.5 | 3.4 | 2.5 |
Min. dia. of finished wire | mm | 2.5 | 1 | 0.75 |
Typical configuration | -- | LW1- 6/560 | LW1-7/450 | LW1-6/350 |
Max. average reduction percent | % | 30 | 20 | 21 |
Designed total reduction percent | % | 78-88.5 | 77.9 | 78 |
Max. speed of block | m/min. | 245 (block 6) | 346.9 (block 7) | 200 (block 6) |
Total power | kw | 18.5-30 | 7.5-11 | 7.5-11 |
Weight | kg | 2000 | 1500 | 1000 |
Overall dimensions(L*W*H) | mm | 1700x1150x1750 | 1520x810x1700 | 1400x800x1500 |
