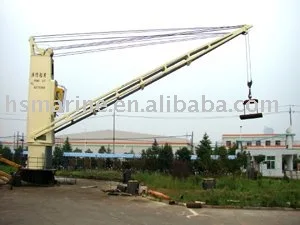

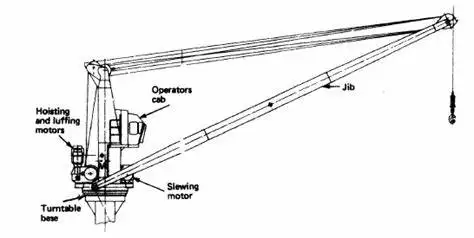

Wire Luffing Crane

Main specifications
| 30T/36T Series Deck Cranes (High Speed Type) | ||||||||
| Specification | 3022 | 3024 | 3026 | 3028 | 3030 | 3626 | 3628 | |
| Hoist load | 30/12/5 t | 36/14/5 t | ||||||
| Hoist speed | 25/50/63 m/min | 22/44/55 m/min | ||||||
| Lowering speed | 63 m/min | 55 m/min | ||||||
| Luffing time | 41sec. | 48sec. | 49sec. | 50sec. | 52sec. | 54sec. | 55sec. | |
| slewing speed | 0.75rpm | 0.7rpm | 0.6rpm | 0.55rpm | 0.5rpm | 0.6rpm | 0.55rpm | |
| working radius | Max. | 22m | 24m | 26m | 28m | 30m | 26m | 28m |
| Min. | 4m | 4.5m | 4.5m | 5m | 5m | 4.5m | 5m | |
| Slewing angle | 360°endless | |||||||
| Head Lift | 35m | |||||||
| Hydraulic Pump Group | Self-contained | |||||||
| Type of Hydraulic Motor | winding from up | Axial piston motor | ||||||
| Luffing | Do. | |||||||
| Rotate | Do. | |||||||
| Electric motor | 132kW cont.320kW ED15% | |||||||
| Power | Main Power | AC440V X 60Hz 3phase | ||||||
| Light and indoor warmer | AC220V X 60Hz 1phase | |||||||
| Design Condition | Heel Max.5°+ Trim Max.2° | |||||||
| Total Weight | 35t | 36t | 40t | 45t | 48t | 45t | 47t | |
| 30T/36T Series Deck Cranes (Standard Speed Type) | ||||||||
| Specification | 3022 | 3024 | 3026 | 3028 | 3030 | 3626 | 3628 | |
| Hoist load | 30/12/5 t | 36/14/5 t | ||||||
| Hoist speed | 18.5/37/63 m/min | 16/32/55 m/min | ||||||
| Lowering speed | 63 m/min | 55 m/min | ||||||
| Luffing time | 41sec. | 48sec. | 49sec. | 50sec. | 52sec. | 54sec. | 55sec. | |
| slewing speed | 0.75rpm | 0.7rpm | 0.6rpm | 0.55rpm | 0.5rpm | 0.6rpm | 0.55rpm | |
| working radius | Max. | 22m | 24m | 26m | 28m | 30m | 26m | 28m |
| Min. | 4m | 4.5m | 4.5m | 5m | 5m | 4.5m | 5m | |
| Slewing angle | 360°endless | |||||||
| Head Lift | 35m | |||||||
| Hydraulic Pump Group | Self-contained | |||||||
| Type of Hydraulic Motor | winding from up | Axial piston motor | ||||||
| Luffing | Do. | |||||||
| Rotate | Do. | |||||||
| Electric motor | 105kW cont.240kW ED15% | |||||||
| Power | Main Power | AC440V X 60Hz 3phase | ||||||
| Light and indoor warmer | AC220V X 60Hz 1phase | |||||||
| Design Condition | Heel Max.5°+ Trim Max.2° | |||||||
| Total Weight | 35t | 36t | 40t | 45t | 48t | 45t | 47t | |
Note: Specific parameters take technical specifications and drawings as standard.
1. Quality Assurance
All of our products are strictly manufuctureedin accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspectiomn department of the manufacturing plant.
2. Product Customization Service
Our company can supply both standard and non-standard products to meet your varioud needs. We can customize products according to your drawings.

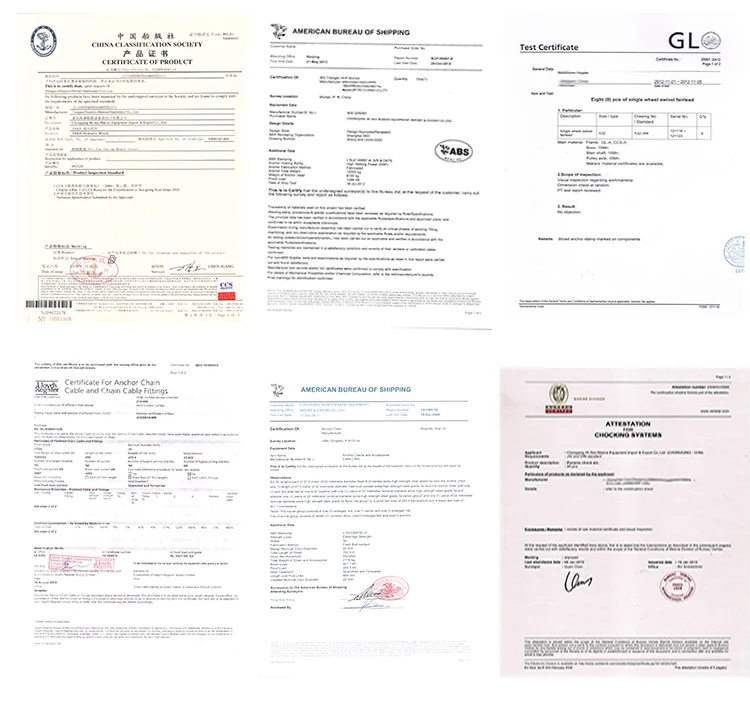

3. Providing Classification Society Certificates
We can supply various certificates of Classification Societies: ABS, CCS, BV, LR, GL, DNV, NK, KR, RINA, RS, etc.
4. Excellent Pre-sale and After-sale Service
Our salesmen are adhering to trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
![JI[CZD3OO]Q7RP[MN_T[3ZV.png](http://sc03.alicdn.com/kf/H3e4438a07a6b4890a9444fd999d023f13/200257640/H3e4438a07a6b4890a9444fd999d023f13.png)
Our company is located in the largest industrial city Chongqing of China. We are the earliest professional manufacturer and exporter of marine equipment and offshore equipment since 1996 year. As the business continues expand, our business items haved covered Shipbuilding project co-operation, Oil and Gas Field, Electric Power, Metallurgy. Universal Machine, mining. We can design and produce the products comply with the sample or drawing also. We have exported our products to most of countries in the world for many years, also have co-operated with many shipyards, offshore engineering companies and other field companies already. Ww send our engineers to help our cllients to install and test these exported equipment. We have good honor in these fields. Company has its own shareholding factories, also as the exportagent for many quality products factories. We have the professional and high efficient international sales team. Meanwhile, our company as among the first few alibaba co-operation company certified by BV, ABS, KR, NK, GL, LR, RINA, CCS, IRS, DNV classification society certificate for many products. Our products field included the following: Marine Equipment and Parts Offshore Equipment Oil...insist on doing everything seriously, and continuously improve our team services capabilities to satisfy clients requirement. Once you selected, we want to be your partner forever! Welcome you to visit in Chongqing, China.
