Epoxy Dotted Insulation Kraft Paper/DDP insulation paper for oil transformer winding
- Category: >>>
- Supplier: Shanghai Orinno International Business Co. Ltd.
Share on (341979745):
Product Overview
Description
Products Description

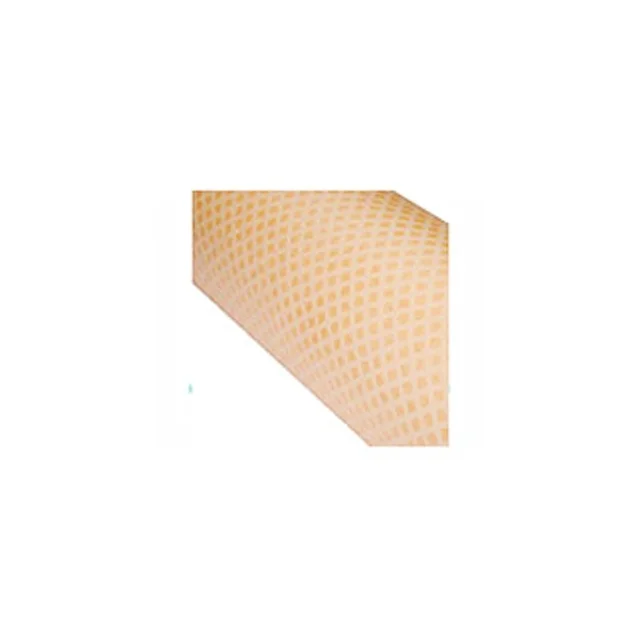

D.D.P.-Diamond Dotted Insulation Paper is made of electrical
insulating paper with diamond-shape epoxy resin dotted
in both sides.The epoxy resin used in D.D.P.contains a kind of incubative hardener material,it is a dry and crisp material at
normal temperature(below 35°C).
Characters and Application
This product has good dielectric properties and excellent
mechanical properties after being heat-solidification.
It can be as interturn insulation material for coils of oil immersed transformer and interlayer insulation of distribution
transformers.
Specification
Thickness: 0.08mm,0.13mm,0.18mm,0.20mm,0.25mm
Common width: 960mm by roll
insulating paper with diamond-shape epoxy resin dotted
in both sides.The epoxy resin used in D.D.P.contains a kind of incubative hardener material,it is a dry and crisp material at
normal temperature(below 35°C).
Characters and Application
This product has good dielectric properties and excellent
mechanical properties after being heat-solidification.
It can be as interturn insulation material for coils of oil immersed transformer and interlayer insulation of distribution
transformers.
Specification
Thickness: 0.08mm,0.13mm,0.18mm,0.20mm,0.25mm
Common width: 960mm by roll
