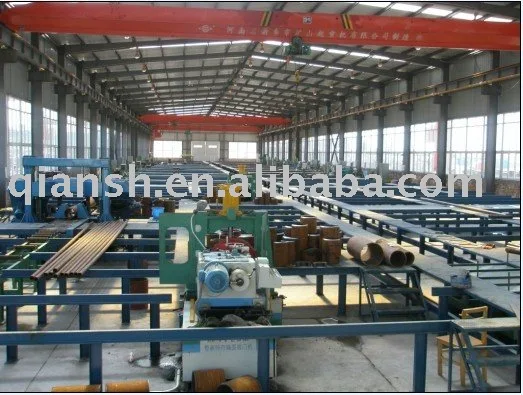

Pipe fabrication line;Pipe spool fabrication production line (Fixed type)
- Category: >>>
- Supplier: Shanghai Qianshan Piping Technology Co. Ltd.
Share on (342520324):
Product Overview
Description
Fixed Type Pipe Fabrication Production Line; Automatic Pipe Sool Fabrication Production Line
Spec & Model: FPPPL-24A
Performance Festures:
1.Basic Configuration:

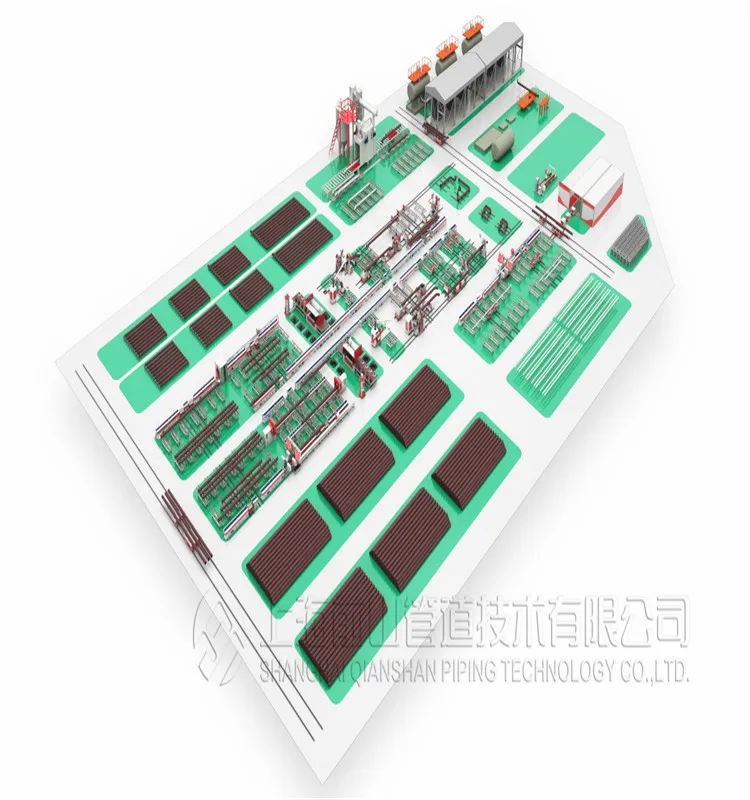

Workshop Type Piping/ Pipe Spool Fabrication System
High Speed Pipe Cutting and Beveling Machine (All-In-One Machine).
CNC Pipe Flame/Plasma Cutting and Beveling Machine.
High Speed Pipe Cutting Band Saw Machine
High Speed Pipe End Beveling Machine
Piping Prefabrication Fast Fitting-up Station
Piping Prefabrication Automatic Welding Machine
Piping cantilever Automatic Welding Machine
Piping Handling Conveying System
Steel Structure Pipe Racks.
2. Production Efficiency: Eextremely high ( Hoisting by overhead traveling crane, Beveling by
High Speed Pipe Cutting and Beveling Machine and Welding by Automatic Welding Station)
3. Applicable Industries: OIL & GAS, OIL REFINERY FACILITIES, PETROCHEMICAL, ONSHORE & OFFSHORE,
CHEMICAL ENGINEERING, NUCLEAR POWER PLANT, SHIPBUILDING, POWER PLANT, ENERGY, AEROSPACE.
4. Production Capacity: 20, 000~150, 000 DI/ month (or depend on workshop size or machines config),
reduce manpower input, improve automation level & efficiency, and save much more cost.
Technical Parameters:
Technical Description | Standard Type : | Custom-Made : |
Suit for Pipe Diameter: | 2"-16"/24"/32" | 2"-40"/48" or above |
Pipe Wall Thickness: | 3-80 (mm) | 3-80 (mm) |
Conveying Speed: | 2-20 m/min | 2-20 m/min |
Welding type: | Automatic root pass, fill in & final pass | Automatic root pass, fill in & final pass |
Welding Process: | TIG/MIG/MAG/SAW | TIG/MIG/MAG/SAW |
Automatic Pipe Welding Rate: | ≥60% | ≥60% |
| Pipe Cutting & Beveling Speed: | ≤5min/ two bevels(8"Sch40) | ≤5min/ two bevels(8"Sch40) |
| Pipe Spool Prefabrication Ratio: | ≥60%-80% | ≥60%-80% |
| Piping Design Software: | PDSOFT 3D Piping | PDSOFT 3D Piping |
| Process Management Software: | PDSOFT SPFMS | PDSOFT SPFMS |
Welcome to you visiting our factory or project site at any time in Shanghai City, P.R.China; For more detail information please contact us. Thank you !

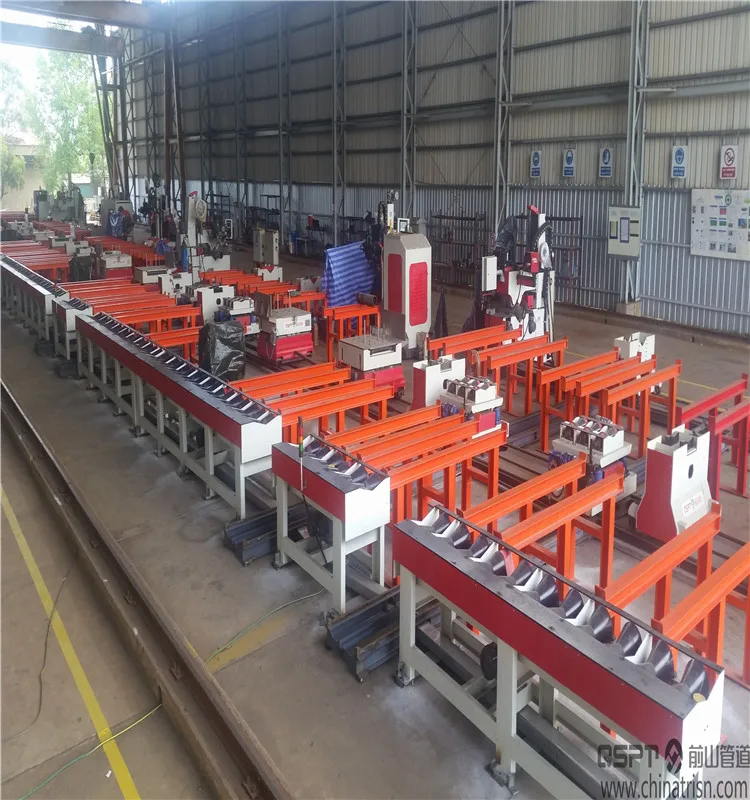

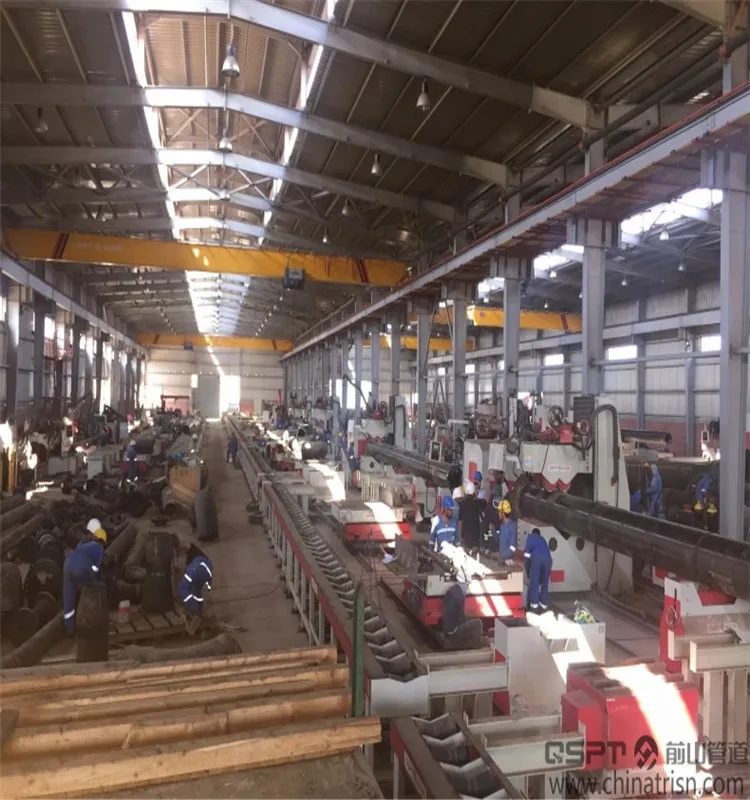

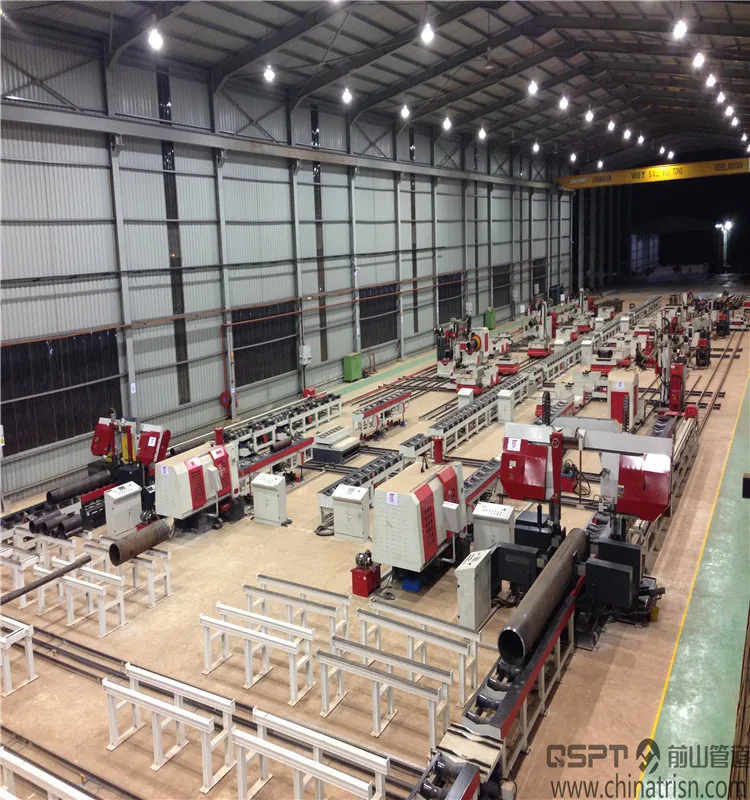

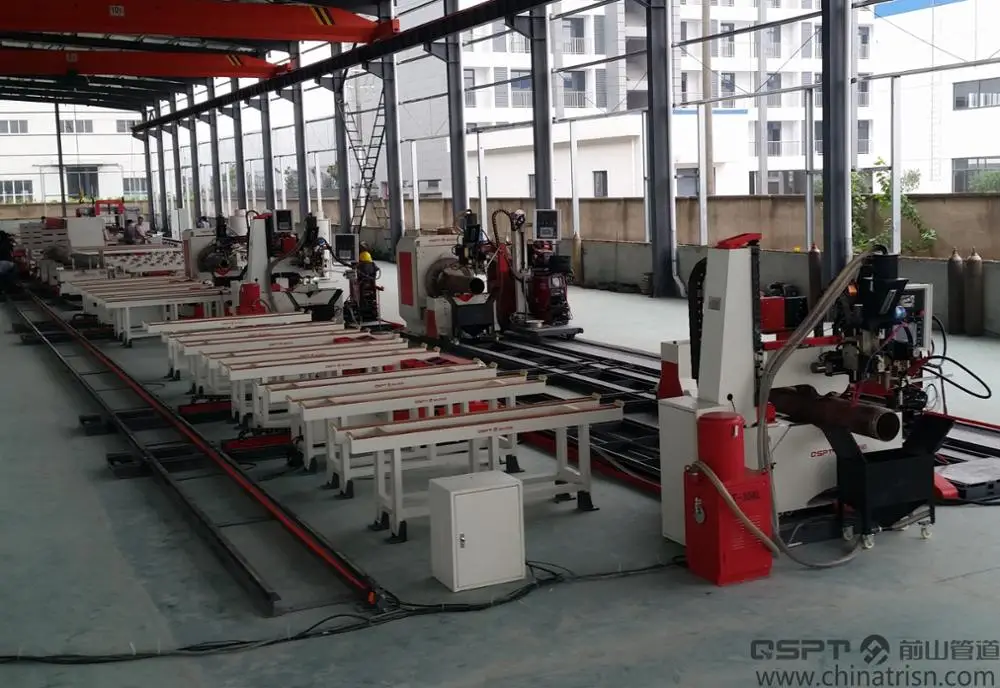

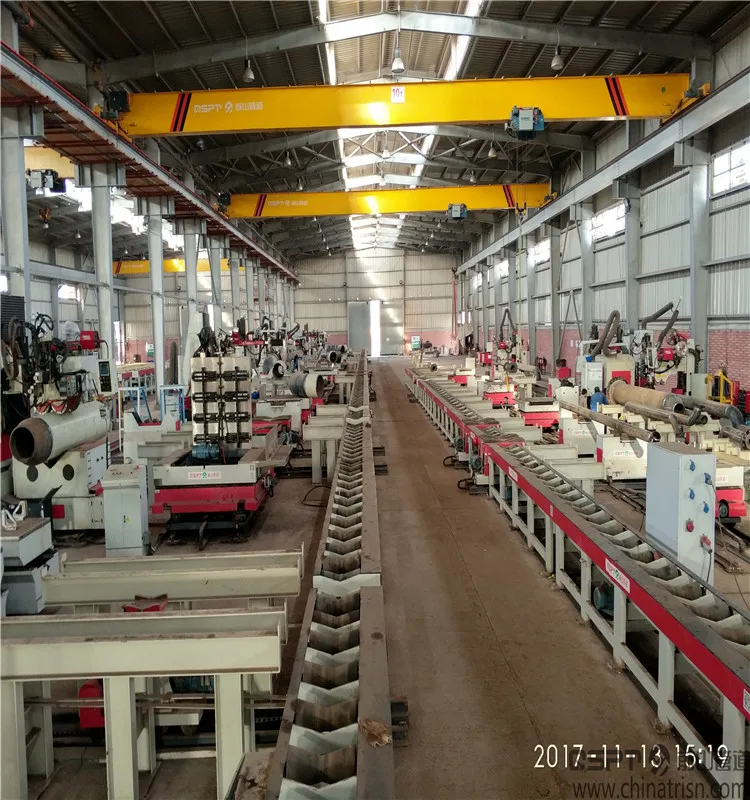

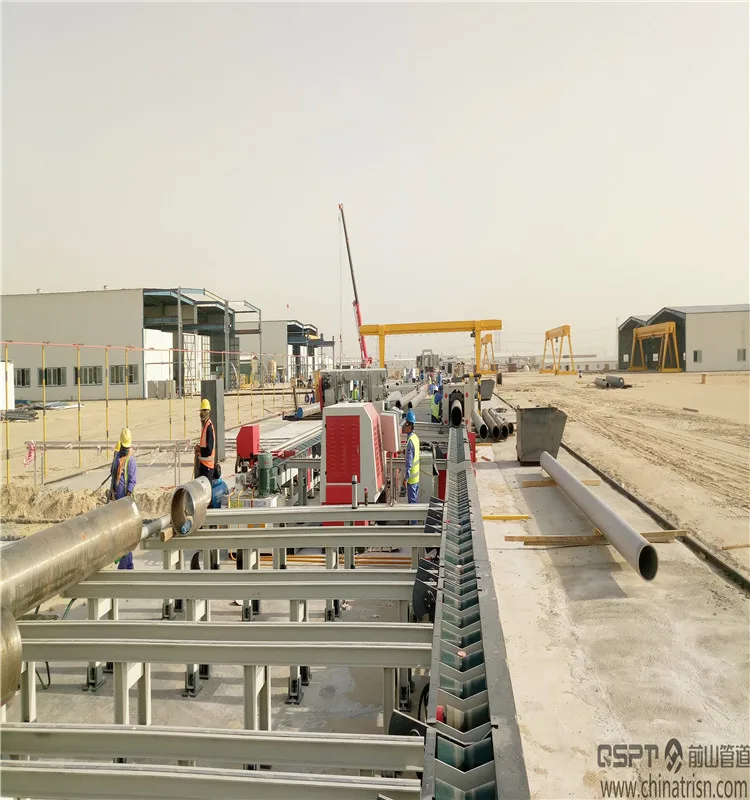

Photos:
