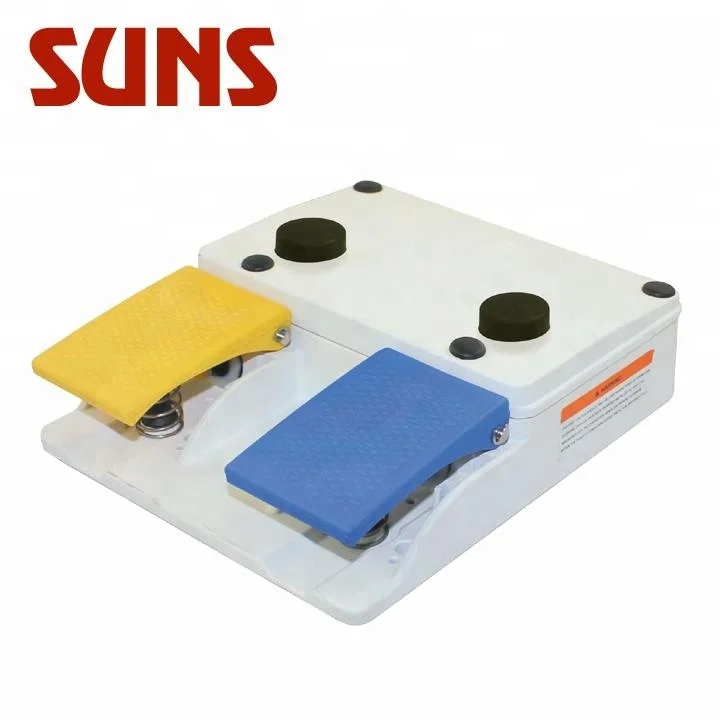

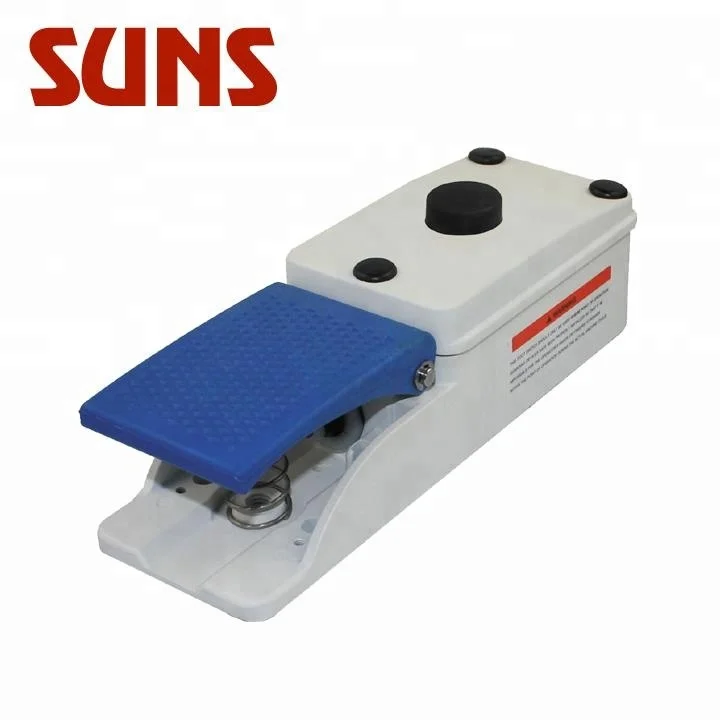

Medical Potentiometer Foot Switch
- Category: >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (343378702):
Product Overview
Description
Basic Paremeters:Potentiometer Foot Switch
| Features: | |
| 1)Robust aluminum alloy die cast body | |
| 2)Choice of different type of contact blocks | |
| 3)Water-proof to IPX8 | |
| 4)Galvanically separated contacts | |
| 5)Screw terminals with self-lifting clamps for easy writing | |
| 6)Positive Opening of NC contacts | |
| 7)Safety reset option available | |
| 8)Threaded Hole available in:PG13.5,M20x1.5 and 1/2PT | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <30mΩ |
| Rated Current/Voltage | 10A/250V or 2A/250VAC |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1.0×106 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -30~+80℃(-22~+176°F) |
| Degree of Protection: | IPX8 |

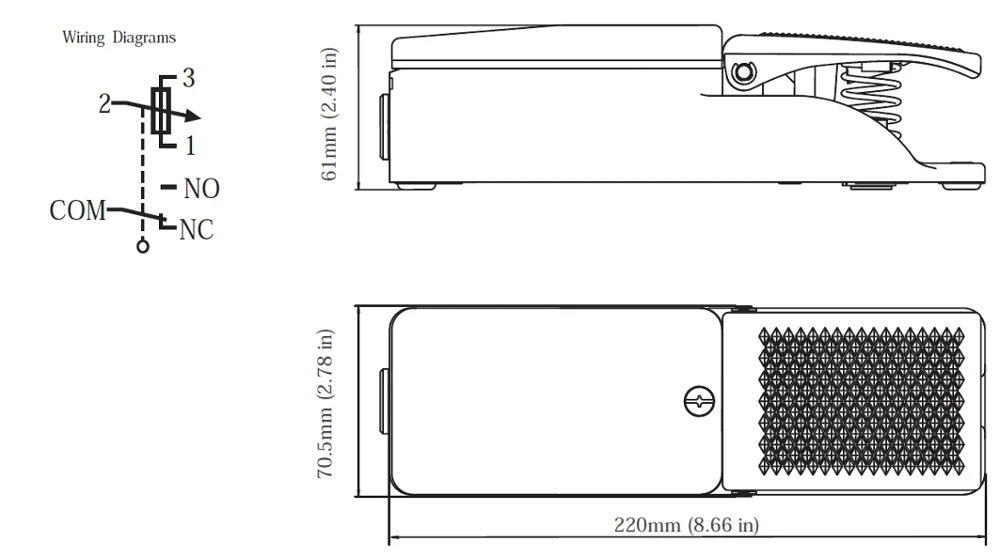

Technical Drawing:Potentiometer Foot Switch
