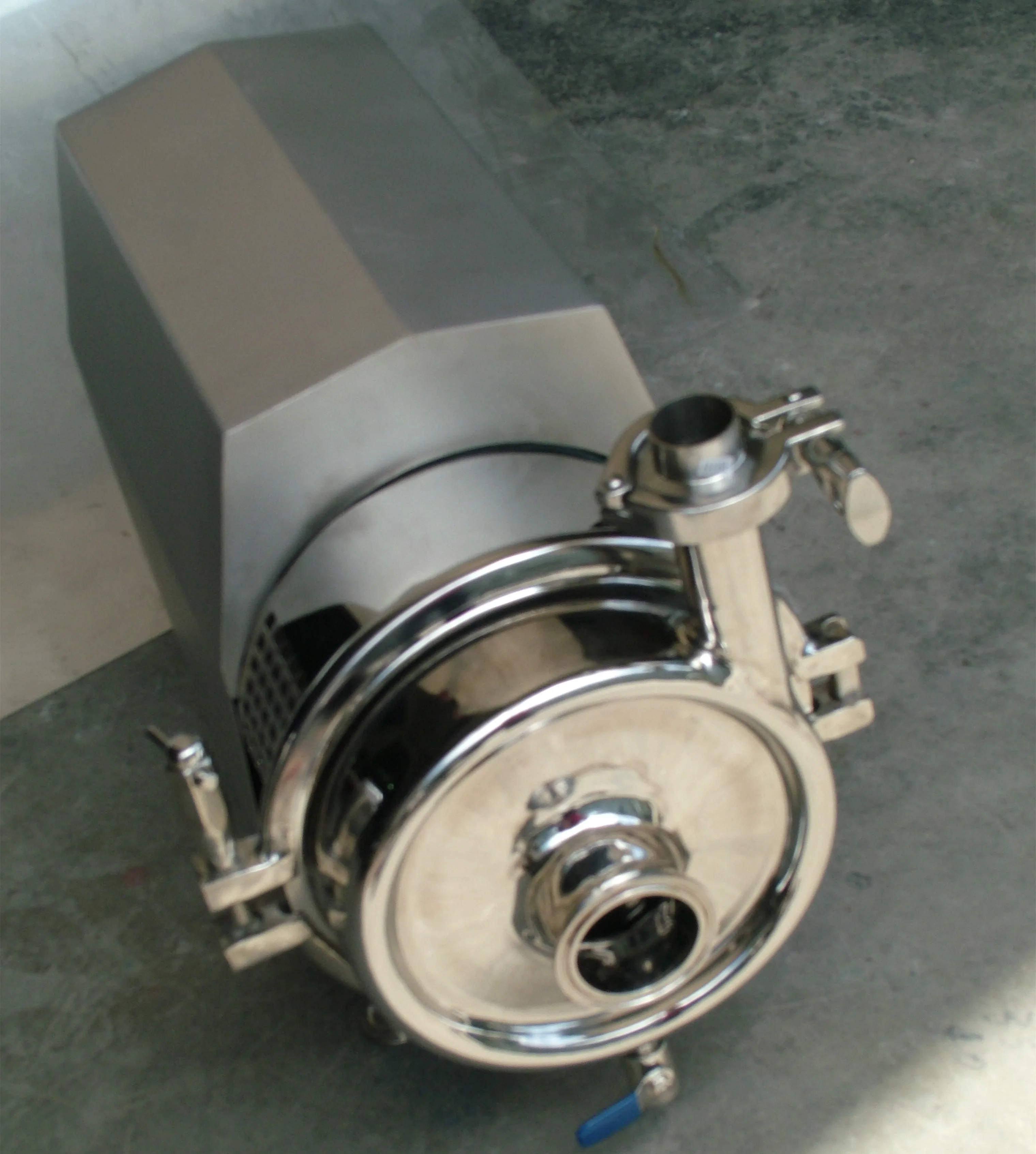

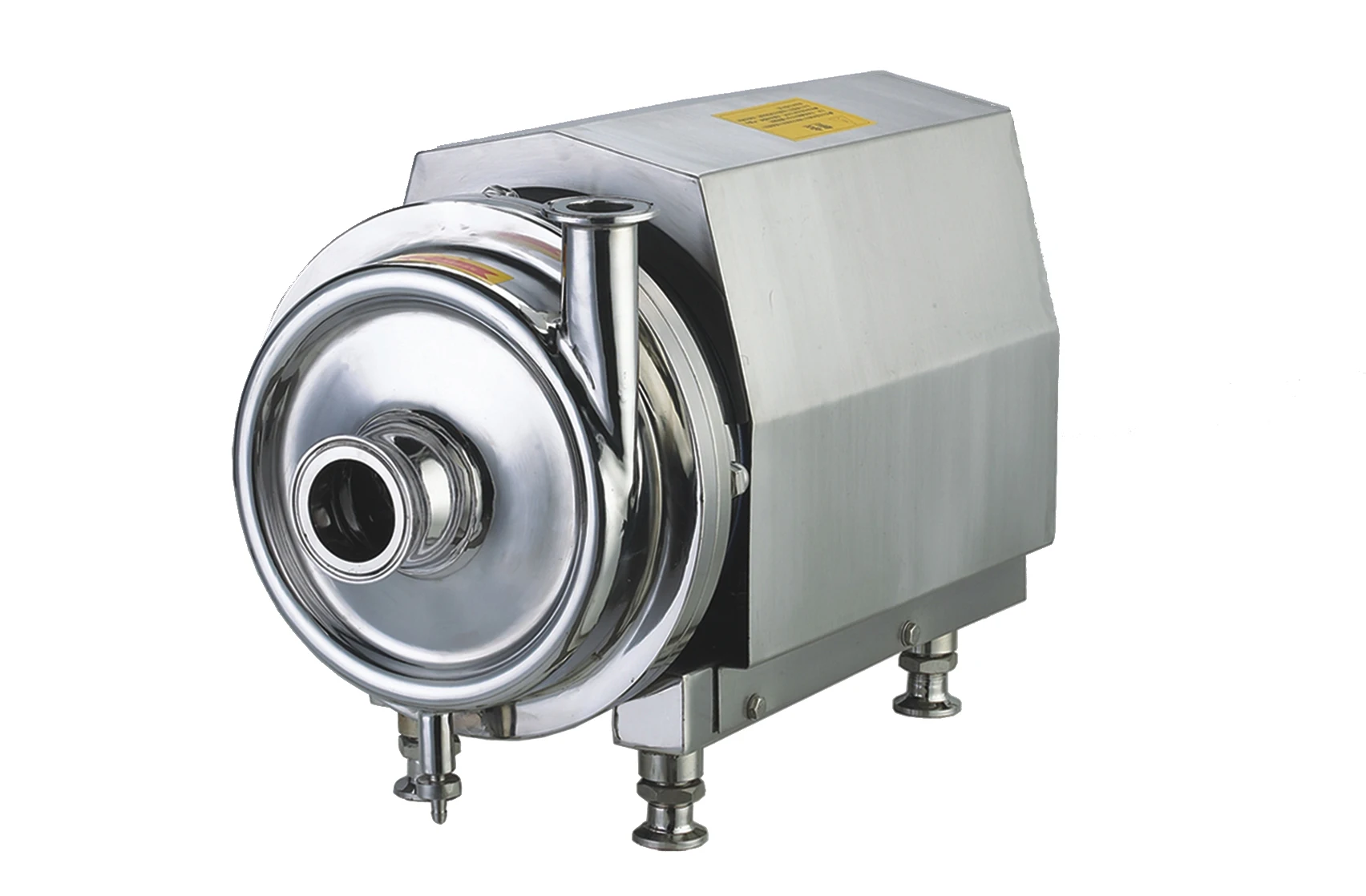

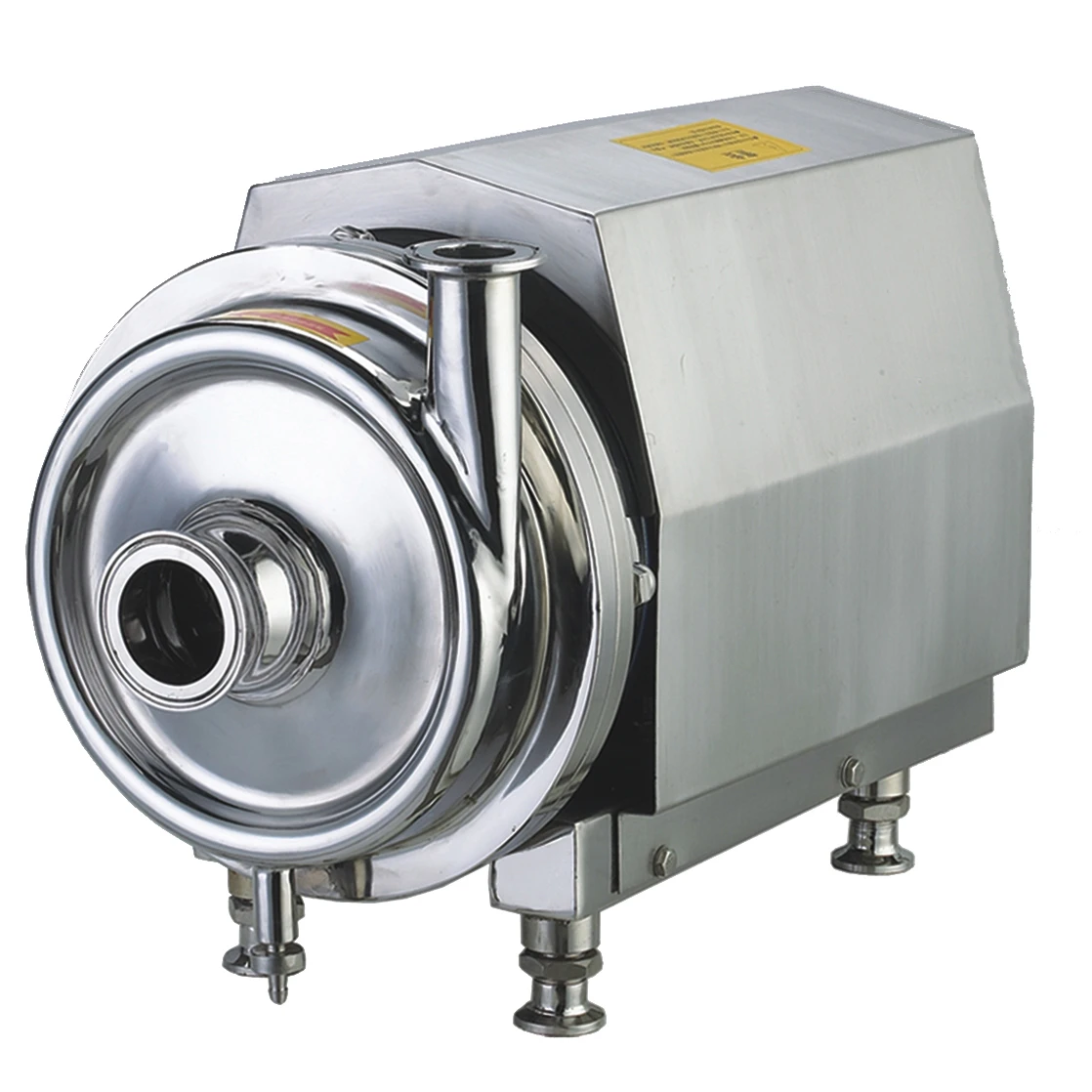

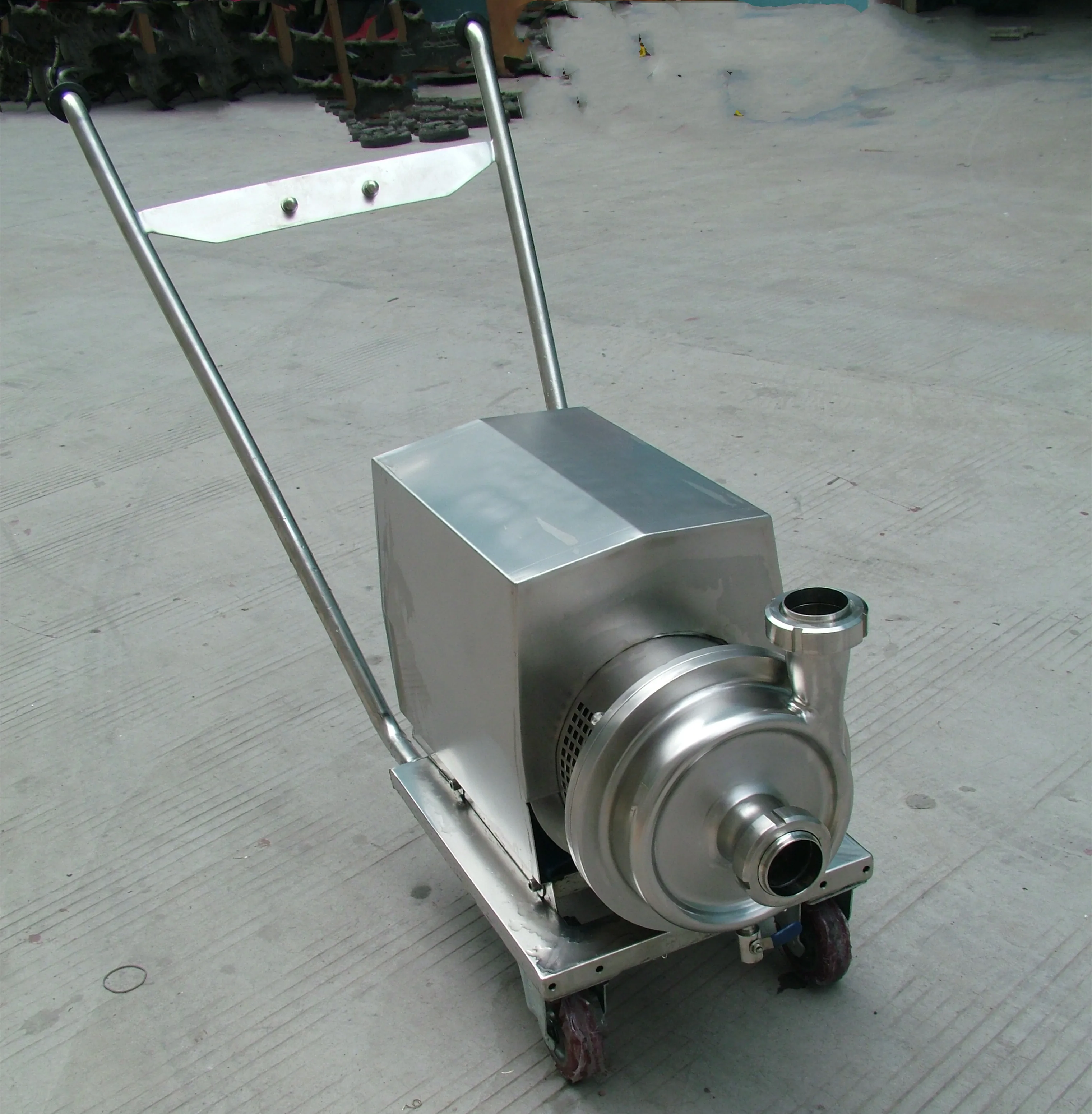

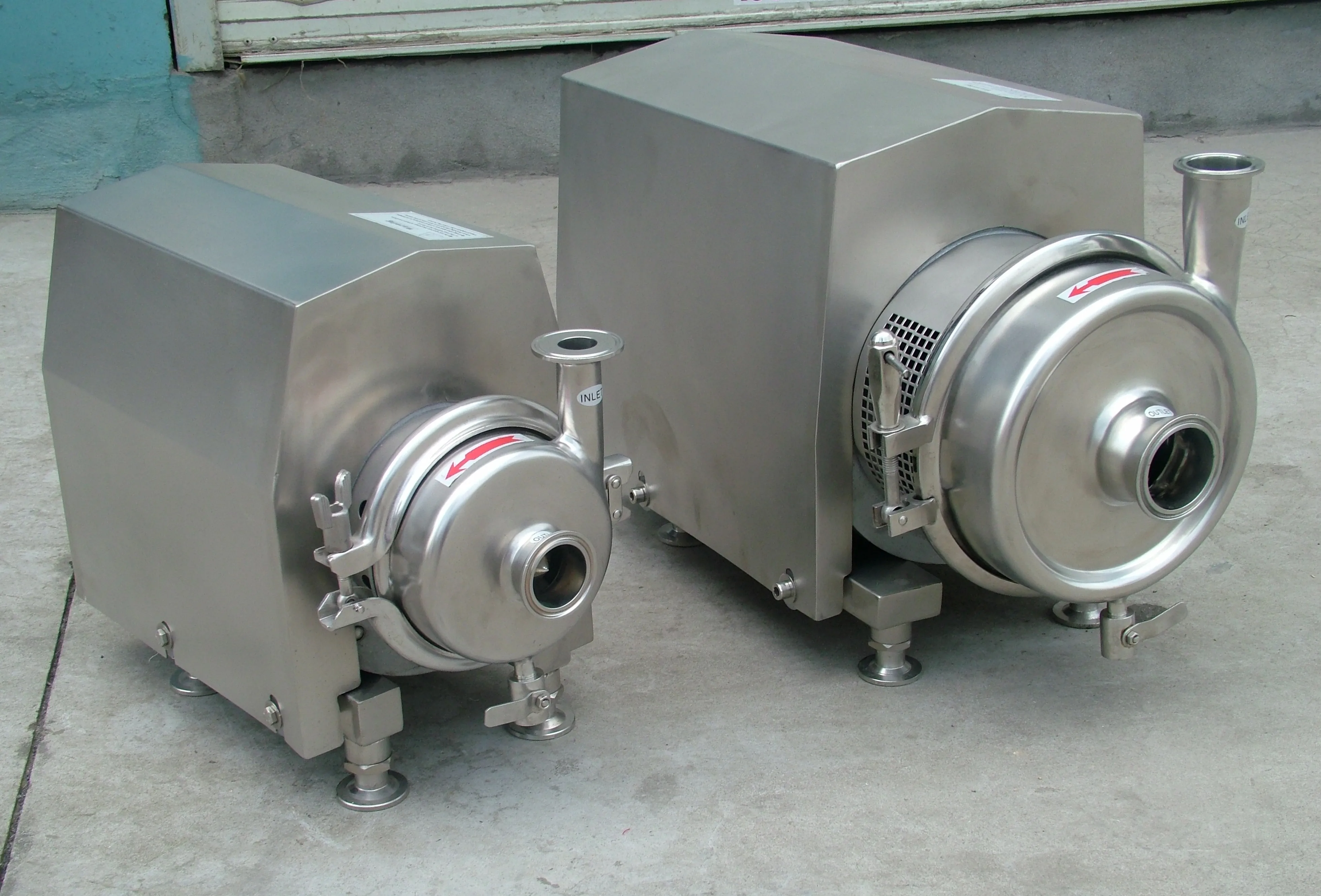

BOSP-L Multistage centrifugal pump is a new design of BOAO company, a special design has impeller and shaft sleeve are forged integrally, and directly installed on the output shaft of the motor. Advantage: high concentricity of shaft, strong rigidity, small vibration and prolonged service lift of mechanical seal. Disadvantage : only suitable for small power ,the maximum power rate is 2.2kw. Applications BOSP centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries. Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
2.Working principle: Housed inside the casing, the impeller rotates in conjunction with the pump shaft .With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy. This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
3.Technical parameters: Design and features Different connections standard:DIN,SMS,JIS, ISO. Open impeller manufactured with stainless steel investment casting technology.
Product Name
Sanitary Centrifugal Pump
Material
SS304,SS316L
Power
0.5-220 T/H
Feature
High efficiency,Long service life,Easy to clean.suitable ≤500 cp medium
Buyer offer Info.
Medium(Viscosity),Flow rate,Head,Voltage,Material,and other request,then we can suggest our model for you.
Certificate
Packing & Delivery
Company Introduction
Our company BOAO Mechanical Manufacturing Co.,Ltd,is a famous high-end sanitary pump supplier in China,established in the year 2003,experienced in the polishing machine,Food Grade Emulsifier,pump,mixer producing and researching and developing,our product quality is stable.
BOAO adopts the CNC machining center,CNC lather advanced processing equipment to produce the high quality products.
BOAO awarded multiple pump and mixer's patents.
Our company provide:design,simulation experiment test and manufacturing integrated production through the COMSOL Multiphysics.
FAQ
Q:Warranty
A:1year.
Q:Can the mixer/homogenizer/pump be customized?
A:Yes,we can customize the mixer according to customer's working condition.
Q:Packing
A:Plywood case,carton,also can packing according to the customer's requirement.
