BSD 6600LF Medium Torque Compact DC Automatic Electric Screwdriver electric driver
- Category: Power Screw Drivers >>>
- Supplier: Kilews Electric Tools (Shanghai) Co. Ltd.
Share on (343620622):
Product Overview
Description
Medium Torque Compact DC Automatic Trigger Start Electric Screwdriver (electric screwdriver for assembly)

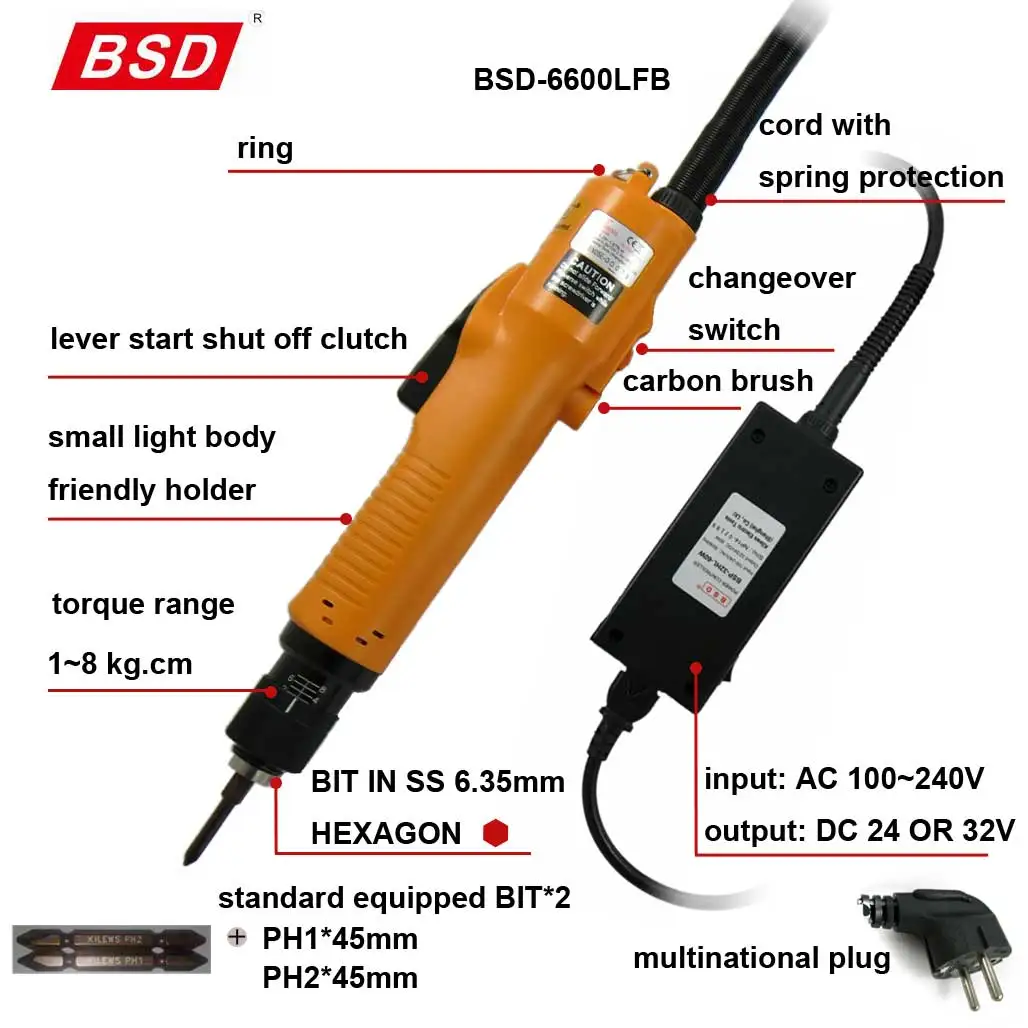

1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240 50/60Hz
c) Output voltage: Low DC 20V Hi DC 32V
d) Outside dimensions: 145*60*35mm
e) Weight: 250g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.1~0.78 N.m
1) The power controller features:
a) Model: BSP-32HL-60W
b) Input voltage: AC 100~240 50/60Hz
c) Output voltage: Low DC 20V Hi DC 32V
d) Outside dimensions: 145*60*35mm
e) Weight: 250g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.1~0.78 N.m
b) New technology high temperature-resistant, vibrating-resistant, slippery-resistant, friendly holder, free from fatigue under long-time using and improve production efficiency.
c) Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency.
d) High tech DC motor made by Japanese materials. Fast start with low electric current. Stable rotation and precision±3%.
e) 0-8 stepless torque adjustment, rotation speed selected by switche Hi& Lo or VR(freely adjust).
f) Suitable for high-tech PC, notebook computers, game cube, etc. Torque fixing ring(KC-3) can be set to fix torque.

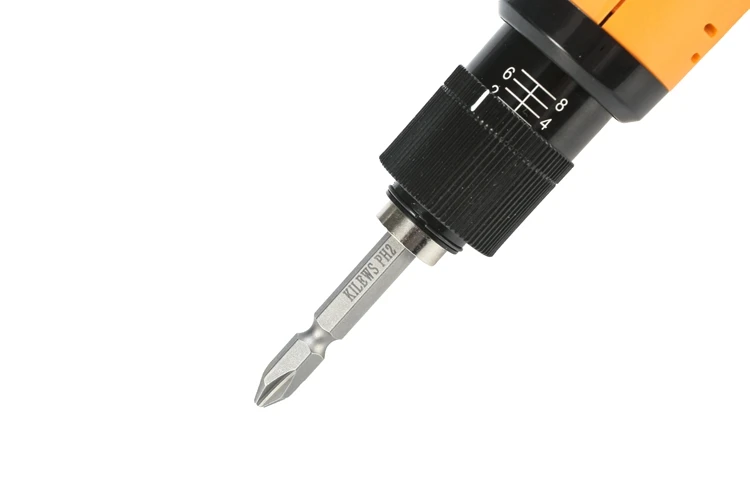

g) There are four kinds of bit holder- A,B,C,D. Any screws, sockets and nuts can be used.
c) Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency.
d) High tech DC motor made by Japanese materials. Fast start with low electric current. Stable rotation and precision±3%.
e) 0-8 stepless torque adjustment, rotation speed selected by switche Hi& Lo or VR(freely adjust).
f) Suitable for high-tech PC, notebook computers, game cube, etc. Torque fixing ring(KC-3) can be set to fix torque.
g) There are four kinds of bit holder- A,B,C,D. Any screws, sockets and nuts can be used.
Product Overview
FEATURES AT A GLANCE
Economical solution for general assembly
High speed model available
Carrying case available upon request
CE available upon request
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Torque | 0.1~0.78 N.m | 1~8 kgf.cm | 0.88~7.04 Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | 2000 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 1.6~3.0(Machine Screw) | 1.6~2.6(Tapping Screw) | |
5 | Power Consumption | 48W | ||
6 | Weight(g) | 480 | ||
7 | Length(mm) | 230 | ||
8 | Repeatable Torque Accuracy (%) | ±3% |
PRODUCT CONFIGURATION
