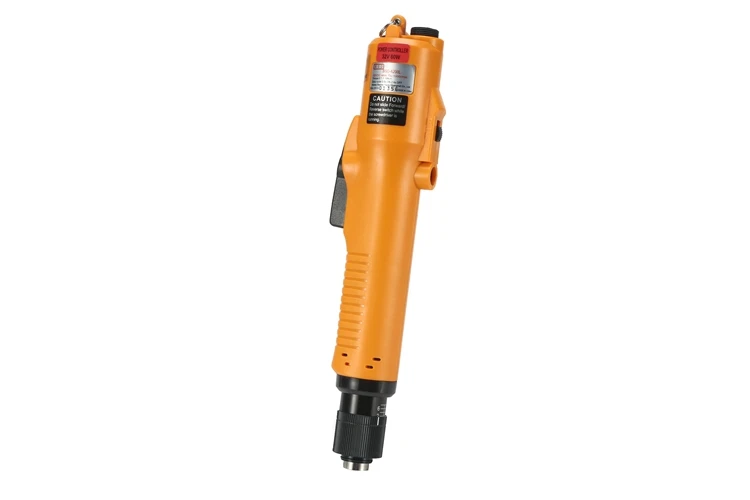

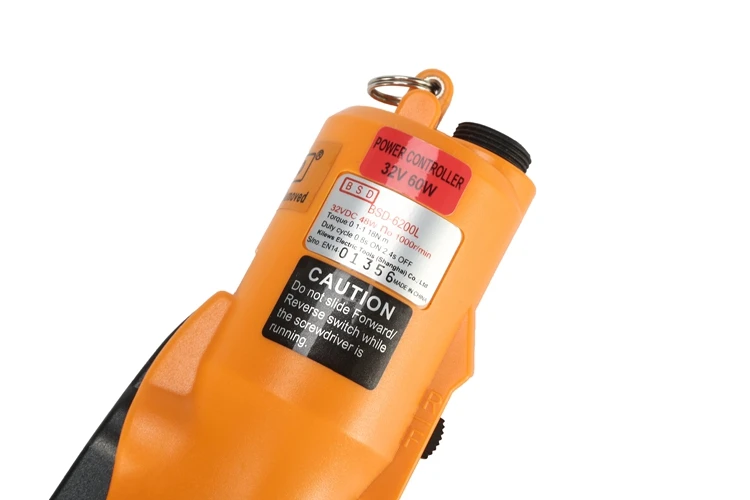

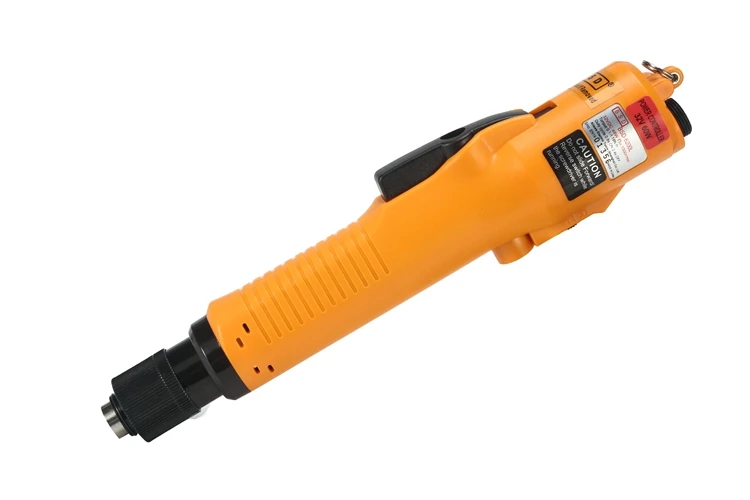

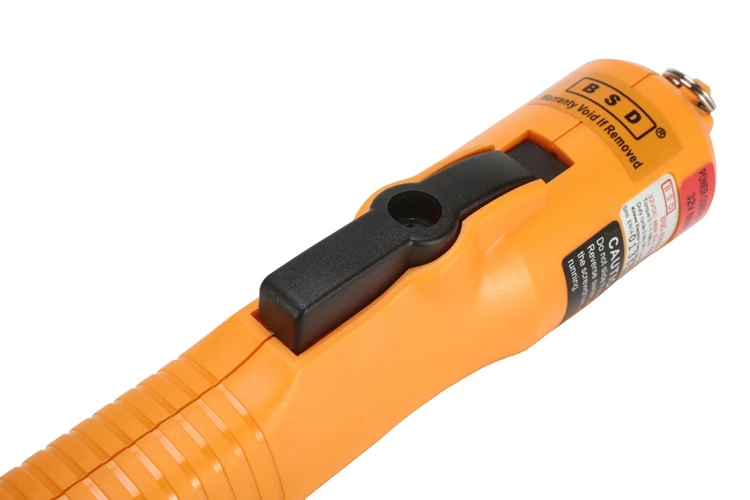

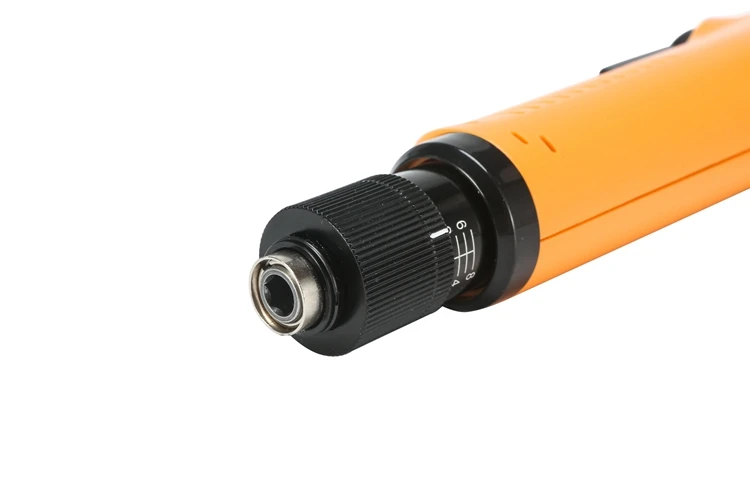

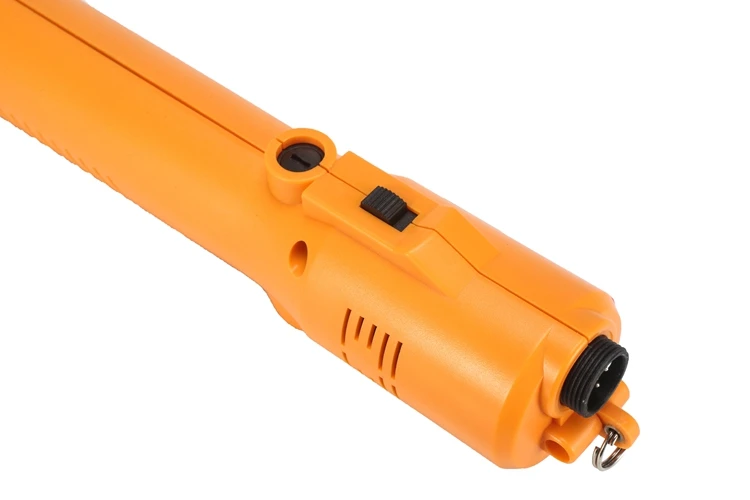

BSD Torque Precision Fully Automatic Electric Screwdriver for production line ,production tools, shut off clutch

Product Overview

Description

Medium torque compact DC automatic trigger start type series (power tool,electric screwdriver,drill)

American and Japanese high-tech DC high performance servo-motors are applied with super strong magnetic iron. The motor starts up quickly with a small current. With heat radiation fan and ventilation holes, the motor heat is disseminated quickly. It can continuously operate at low temperature rise. Gear assembly and clutch are manufactured with alloy steel materials imported from Japan. They have low torque attenuation, high stability and long lifetime.

Specifications:

1) Torque: 1-12kgf.cm

2) Unloaded rotation speed: 1,000/600rpm

3) Screw diameter a) Machine screw: 1.6 - 3.0mm b) Tapping screw: 1.6 - 2.6mm

4) Weight: 480g

5) Length: 230mm

6) Suspension rack model: KH-3 (KH-3)

7) Torque fixing ring model: KC-3

8) BIT type: a) M3 ø4mm b) M6 ø5mm c) HEX 5mm d) HEX 6.35mm
