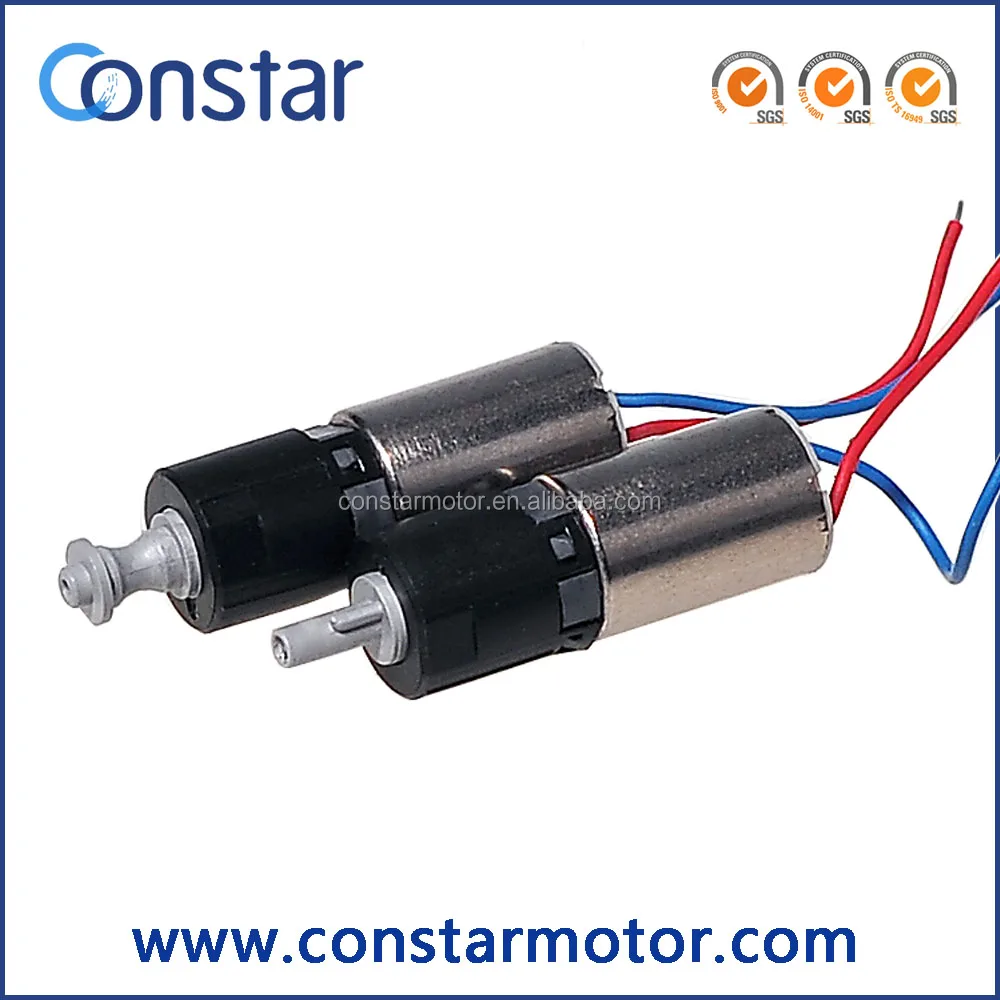

Low rpm high torque Plastic DC Planetary Gear Motor

Product Overview

Description

     Low rpm high torque Plastic DC Planetary Gear Motor





CONSTAR MICROMOTOR
PRECISION DC CORELESS MOTOR	BRUSHLESS DC MOTOR	SERVO MOTOR
GEAR MOTOR	STEP MOTOR	MINI CORELESS MOTOR

1. Applications: Audio and visual products, high-end toys, personal health care products and security equipment

2. Operating Environment:  -10~+70°C; 15~90%RH

3. Characteristics:



Standard Size Series	Voltage (V)	Terminal resistance (Ω)	No-load Speed (rpm)	No-load Current (mA)	Load Torque (mNm)	Load Speed (rpm)	Load Current (mA)	Max Torque (mNm)	Reduction ratio

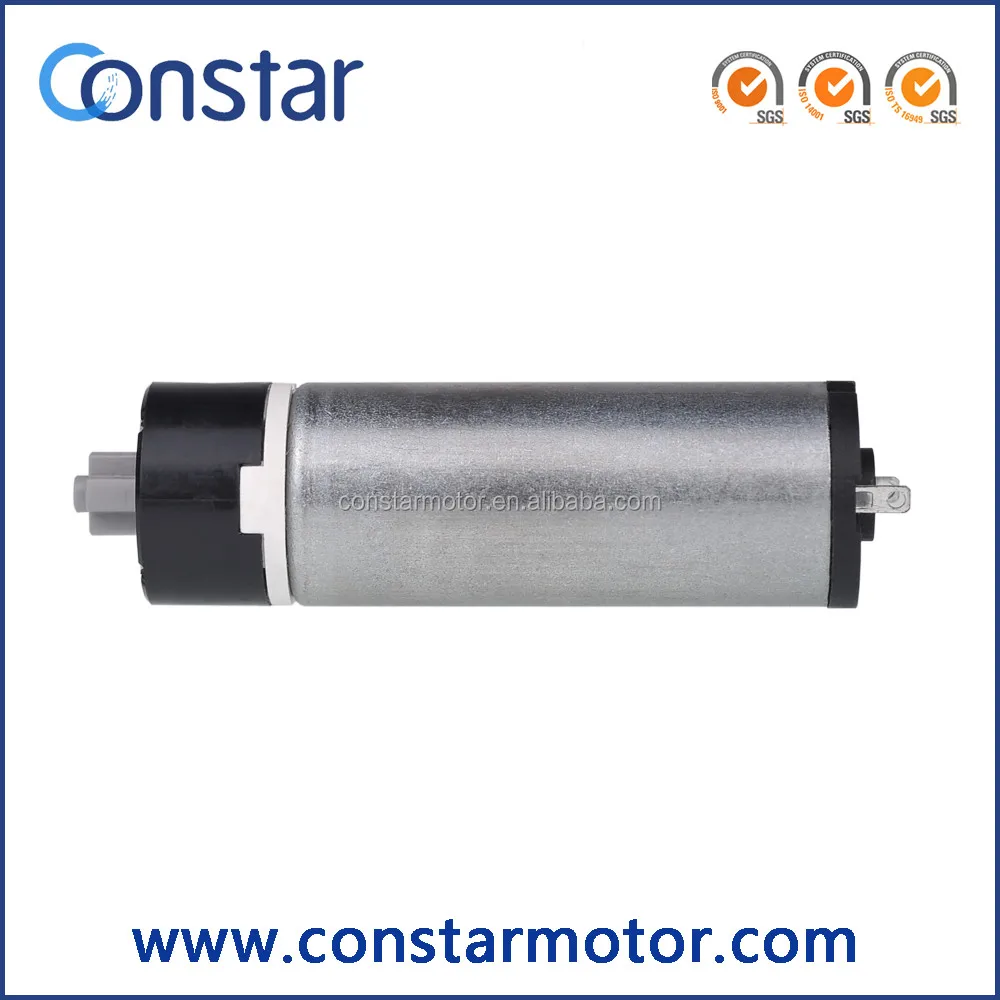

GH1208RC -1230R004-5.0	5	7.5	86	70	19.6	75	160	137.2	1/120


4. Options: Lead wires length, shaft length, special coils, gearheads.

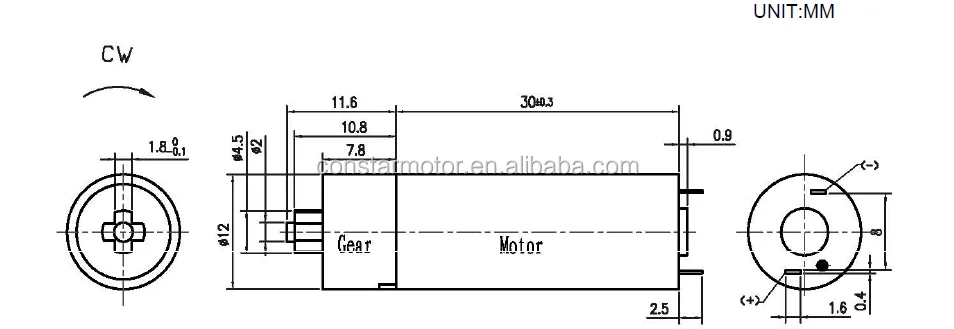

5,Outline Drawing:

...

6.Characteristics Curve:



6



5,

CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core  Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

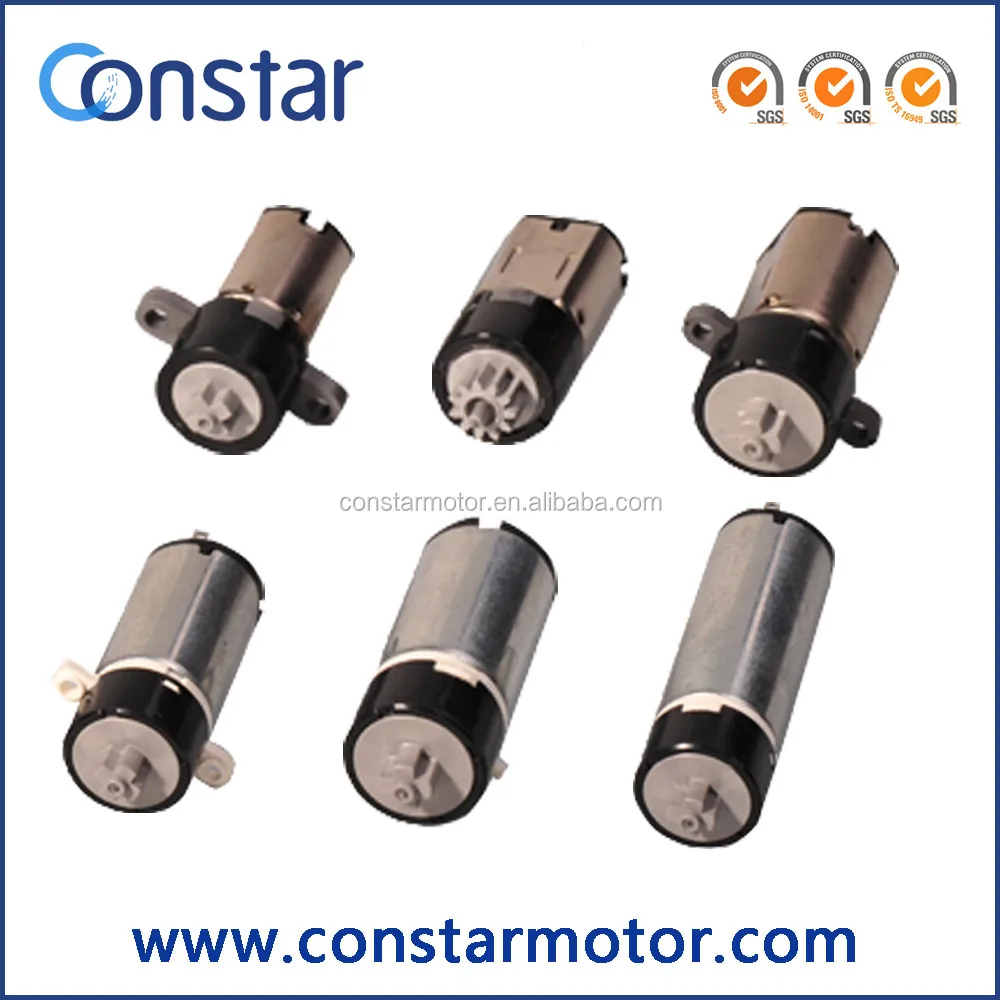

7.Other Item:

The following are our standard products, we also provide customized products and service.

Series	Voltage (V)	Termanal resistence (Ω)	No-load Speed (rpm)	No-Load Current (mA)	Max Torque (mNm)	Reduction Ratio
GH0607F -0609R001-20-3.0	3	13.7	1240	45	32	1/25
GH1007FC-1012F050-2.5	2.5	3.7	110	100	37.2	1/171
GH1007FG-1012F050-2.5	2.5	3.1	110	100	37.2	1/171
GH1007RC-1012F050-2.5	2.5	3.7	110	100	37.2	1/171
GH1208FC-1215F050 -2.5	2.5	3.5	95	60	68.6	1/120
GH1208FC-1215F051 -5.0	5	17.8	88	35	62.7	1/120
GH1208FC-1220R018 -3.0	3	4	105	100	76.4	1/120
GH1208FC-1230R003 -2.5	2.5	1.2	100	150	166.6	1/120
GH1208RC-1230R004 -5.0	5	7.5	86	70	137.2	1/120
