Product Overview
Description
Product Description
1DK-14 Centrifugal pump
Applications:
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate. Suitable to pump cleanwater or
non-aggressive liquid changed with small slid impurity. To be used in flow irrigation systems in gardening, agriculture and
industrial fittings.
Operating conditions:
Liquid temperature up to 60°C;
Ambient temperature up to 40°C;
Total Suction lift up to 9mt;
Continuous duty
Motor:
Two-pole induction motor (n=2850r.p.m);
Insulation Class B;
Protection IP44
Material:
Pump body: Cast iron;
Motor support: Cast iron; Aluminum, Cast iron for HPN
Impeller: Brass; PPO for HMC-S,AISI 304 SS of HMCCS-S
Shaft with rotor:45# Steel, AISI 416;
Applications:
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate. Suitable to pump cleanwater or
non-aggressive liquid changed with small slid impurity. To be used in flow irrigation systems in gardening, agriculture and
industrial fittings.
Operating conditions:
Liquid temperature up to 60°C;
Ambient temperature up to 40°C;
Total Suction lift up to 9mt;
Continuous duty
Motor:
Two-pole induction motor (n=2850r.p.m);
Insulation Class B;
Protection IP44
Material:
Pump body: Cast iron;
Motor support: Cast iron; Aluminum, Cast iron for HPN
Impeller: Brass; PPO for HMC-S,AISI 304 SS of HMCCS-S
Shaft with rotor:45# Steel, AISI 416;
stainless steel if request;
Mechanical seal: Carbon/Ceramic;
Single phase 220V-240V/50Hz;
Single phase 110V-127v/60Hz if request;
Single/three phase 220V/60Hz if request;
Mechanical seal: Carbon/Ceramic;
Single phase 220V-240V/50Hz;
Single phase 110V-127v/60Hz if request;
Single/three phase 220V/60Hz if request;
Remarks:
We can also produce the pumps with different specifications according to the customers’ requirements.

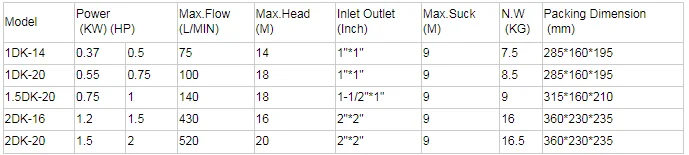

Specification
item | value |
Customized support | OEM, ODM, OBM |
Brand Name | DAMINGLONG |
Model Number | 1DK-14 |
Place of Origin | China |
Zhejiang | |
Power Source | Electric |
Structure | Single-stage Pump |
Power | Electric |
Pressure | High Pressure |
Standard or Nonstandard | Standard |
Usage | Water |
Theory | Centrifugal Pump |
Color | According to customers' demand |
Certificate | CCC,ISO 9001,ISO 2000 |
Fuel | electricity |
Application | pump water |
FAQ
1. who are we?
We are based in Zhejiang, China, start from 1998,sell to Domestic Market(80.00%),Eastern Europe(7.00%),Africa(6.00%),Mid East(4.00%),Southeast Asia(2.00%),South Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pump
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Escrow;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 1998,sell to Domestic Market(80.00%),Eastern Europe(7.00%),Africa(6.00%),Mid East(4.00%),Southeast Asia(2.00%),South Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pump
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Escrow;
Language Spoken:English,Chinese
