BG60A 4C Linear Type Plastic Soya bean Soymilk Soybean Milk Cup Filling and Sealing Machine
- Category: >>>
- Supplier: Wenzhou Chunlai Packing Machinery Co. Ltd.
Share on (344665471):
Product Overview
Description
Product Description
BG60A-6C Line Type Juice Cup Filling and Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or die-cut foil
Filling: liquid, paste, powder, granule
Features:BG60-6C Line Type Juice Cup Filling Sealing Machine (Intermittent Motion) can be customized for packaging a wide range of liquid, paste, granulated and powdered products into pre-formed containers of various size and shapes. The machine can be used in a variety of applications for the food industry, such as sour cream, yogurt, cheese, butter, guacamole, salsa, mayonnaise, margarine, hummus, dip, salad dressings, seasoning, soup, chocolate, jelly, honey, jam, ketchup, chili sauce, coffee, dry products, cosmetic cream and more.
Depending on the output required, the BG60 series Linear Type Cup Filling and Sealing Machine can be designed for 2 cups, 4 cups, 6 cups, 8 cups, 10 cups per time or more. The filling units which can be combined different type fillers on a same machine.
Machine basic function include cup dispenser, filling, heat sealing, automatic outfeed
Optional Configuration
Operation panel: Touch Screen
Servo motor driving
Empty cup dispensing function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter
into mold accurately.
Empty cup detecting function: no cup no filling or no cup machine stops
Filling: cup lifting function
Filling tank: mixing, level control, double jacket, CIP washing ball
Roll Film Storage Device
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Automatic Capping System: put plastic cap after sealing
Safety protection: it is optional function, it make up by plexi glass plates, aluminium and stainless steel, has safety switches
which protect the operator.
Laminar flow-HEPA filter unit
Out-feed conveyor
Technical Parameter
Model | BG60A-6C | ||
Production capacity | 4800-6000 cups/hour, 6 cups per time can be customize 2, 4, 8, 10 cups per time or more | ||
Filling range | can be customized | ||
Filling accuracy | <±1.5% | ||
Vessel | cup, tray, bottle, box, can, container, tub, bucket, pot, etc. | ||
Voltage | 3phase 380V 50/60Hz single phase 220V, 50/60Hz | ||
4Air consumption | 2 Kw | 1.5 Kw | |
Dimension | 0.8 m3 /min | 0.8 m3/min | |
size | 3000mm x 800mm x 1750mm | 2500mmX1630mmX1750mm | |
Weight | 700Kg | 500Kg | |
Details Images
Main Function

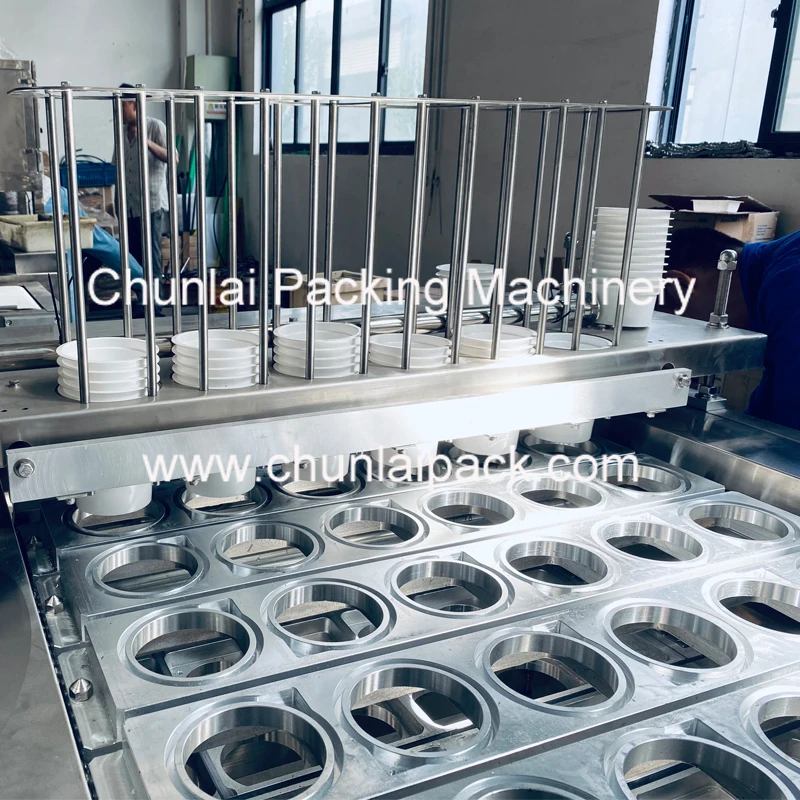

automatic cup drop

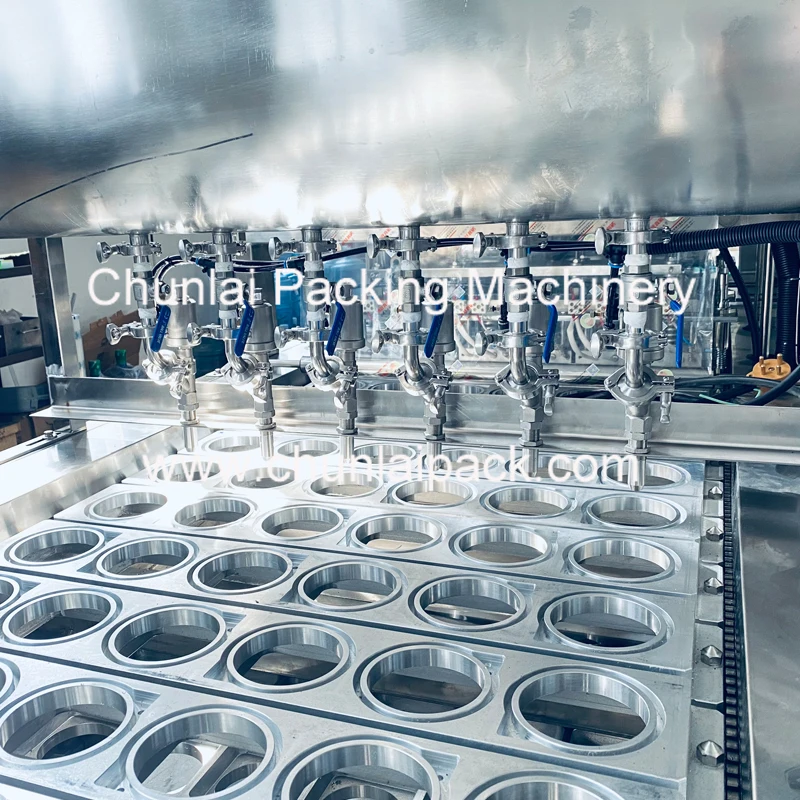

automatic filling

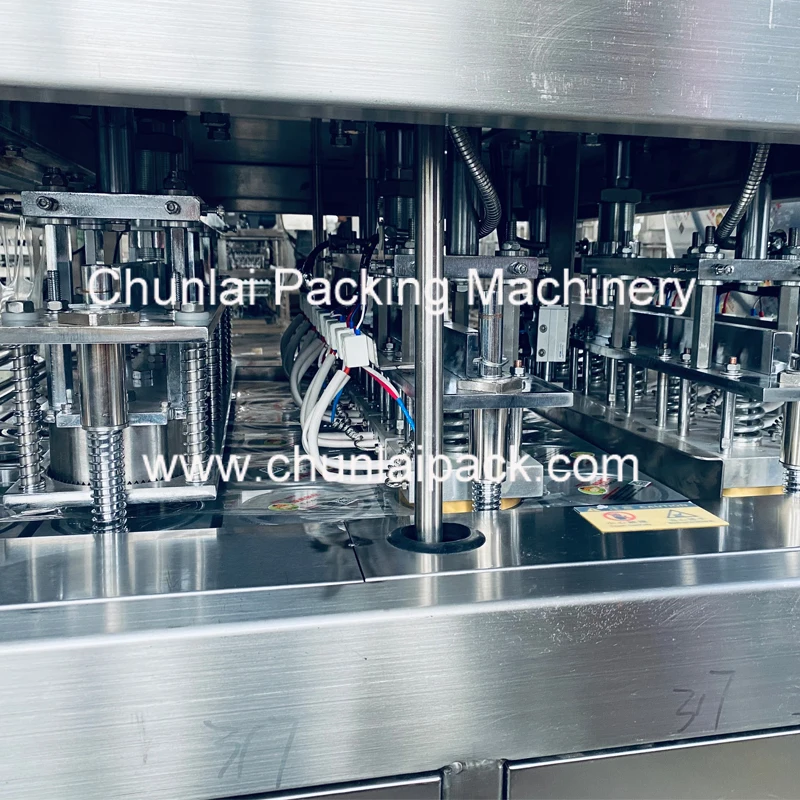

automatic sealing & cutting

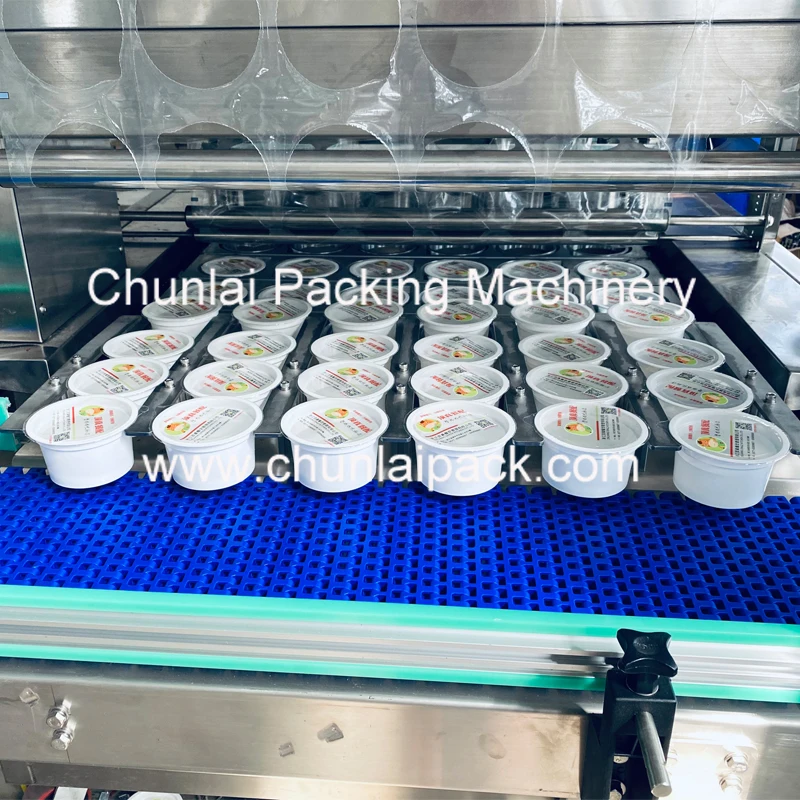

automatic cup exiting
control panel
sample
Optional Machine Configuration
Output round table
Conveyor belt
Company Information
CHUNLAI PACKING MACHINERY CO.,LTD produces "CHUNLAI" brand packing machinery and food machinery. Our company has complete equipment, powerful technology, strict management, and high efficiency. Our company produces special order and kinds of machines such as manual tray sealer, automatic tray & cup denesting filling sealing and capping machine, rotary cup filling sealing machine, linear continuous motion filling sealing machine, Modified Atmosphere Packaging (MAP), bottle filling capping machine, pre-made pouch filling sealing machine, etc.. The major products of our company have been pased by CE testing. "CHUNLAI" people have always been persisting in the policy"quality first, customer first" and our products are well sold to more than 30 countries and gets a great reputation from customers with high quality, reliable price and distinguished service. "CHUNLAI" people
are willing to cooperate with friends from at home and abroad, march forward hand in hand and create brilliance.
are willing to cooperate with friends from at home and abroad, march forward hand in hand and create brilliance.
office
Conference Room
Production workshop
To participate in the exhibition
Scope Of Application | ||||||||
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | ||||
Sauce Filling Sealing Machine | Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | Coffee Filling Sealing Machine | Lunch box Sealing Machine | ||||
Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||||
Dehumidifier Box Filling Sealing Machine | Wet Wipe Can Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||||||
Main Market
Packaging & Shipping
Packaging | Shipping |
First Rust inhibitor | First contact you the machine is ok. |
Second Wrap film | Second put the freight come and take the machine. |
Third Plywood cases | Receiving |
Last in container | Accept. |
Our Services
1. Best Service: Professional suggestion before order
2. 12H on line.
3. After sales service: video online support
2. 12H on line.
3. After sales service: video online support
FAQ
Q: First time import, how can I believe that you would send product ?
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick
up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you
within 12 hours, I'll give you detail instruction.
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick
up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you
within 12 hours, I'll give you detail instruction.
