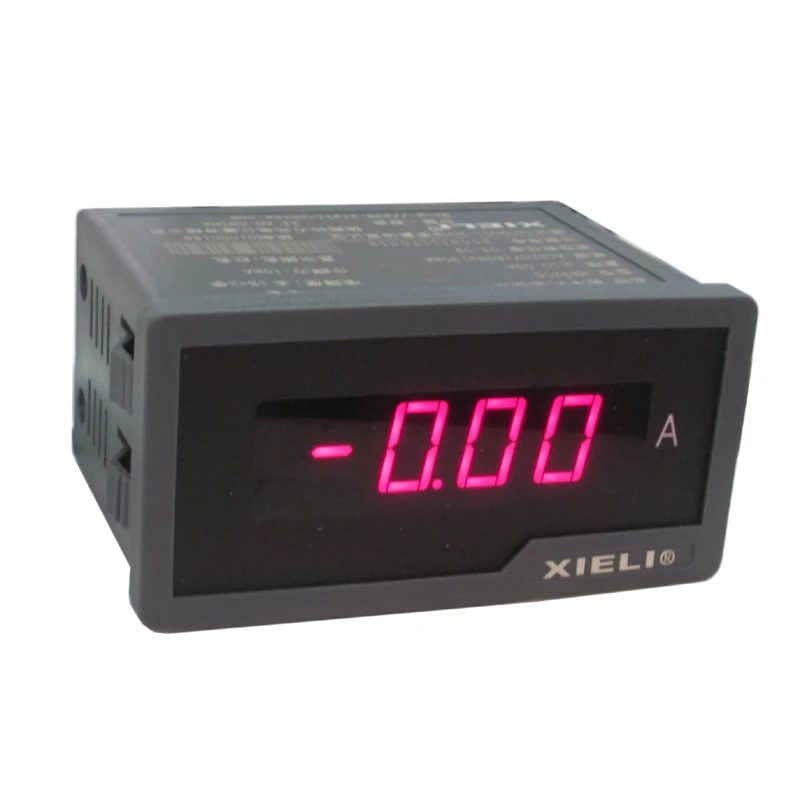

96x48 3 1/2 DIGIT AC Voltmeter PANEL METER

Product Overview

Description





MB3300 Series  AC voltmeter  3 1/2 digit, 0.56” LED display

Model	Range	Accuracy	Resolution	Impedance	Momentary Max. Input	Power Supply
MB3301	AC199.9mV	±0.5%+3digit	100uV	10MΩ	AC10V	120v/220vac
MB3302	AC1.999V	±0.5%+3 digit	1mV	100kΩ	AC35V	120v/220vac
MB3303	AC19.99V	±0.5%+3 digit	10mV	10MΩ	AC250V	120v/220vac
MB3304	AC199.9V	±0.5%+3 digit	100mV	10MΩ	AC400V	120v/220vac
MB3305	AC500V	±1%+3 digit	1V	10MΩ	AC700V	120v/220vac





NOTE:

1      Power Supply:  5vdc,150mA common ground * Default power style

               12vdc, 9v/12vAc common ground power style available

               5v/12v/24v isolation power style available, 9-18v/18-36v wide range isolation power module style

               110V/120V/ 220V/240VAC power style available

2      Data transfer display: Input 75mV/5v/10v volt, or 4-20mA, 1A/5A amp signal display appointed value, max. 19999

3      Meter extra function Selection:  a. AC TrMS measure  [Any wave format signal measuring ]

                             b. RS232/RS485/MODBUS communicating port [MB4000 series meter]

                             c. 4-20mA output

                             d. Up/Down limit relay switch output, Setting by panel front button[MB3000 series meter]

4      LED Display Color:  Red/Blue color Available

5         DC polarity: Automatic,  “-” display  negative DC Volt/Amp,  default will be Positive DC signal

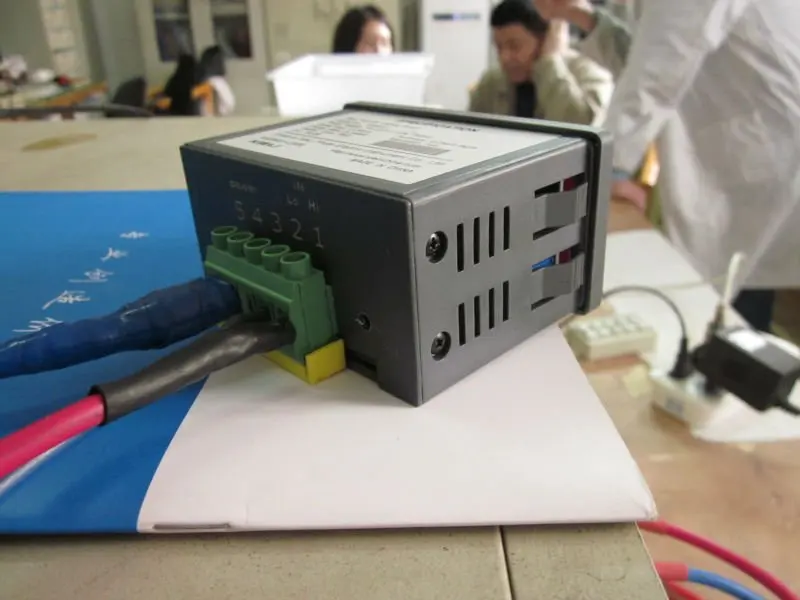

6         Dimension:  w96 x h48 x d77mm[d87mm if the meter with RS485/RS232/MODBUS, 4-20mA /relay switch output]

Panel mounting size: w90x h45mm          Mounting method: Snap-in /Guide-screw
