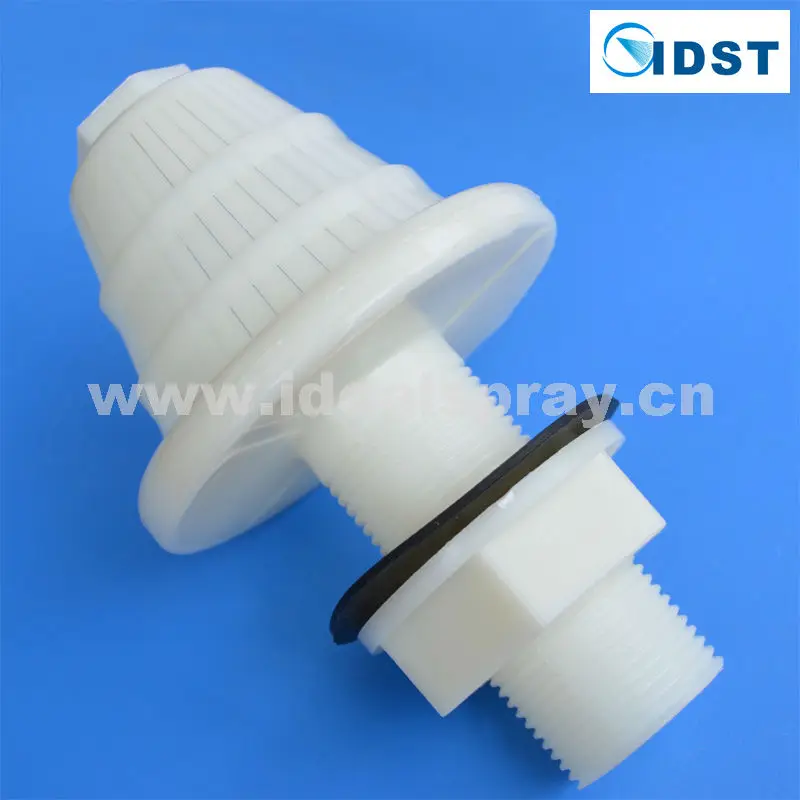

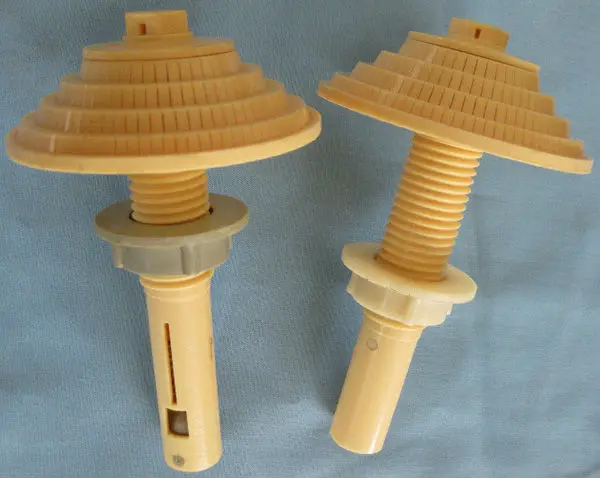

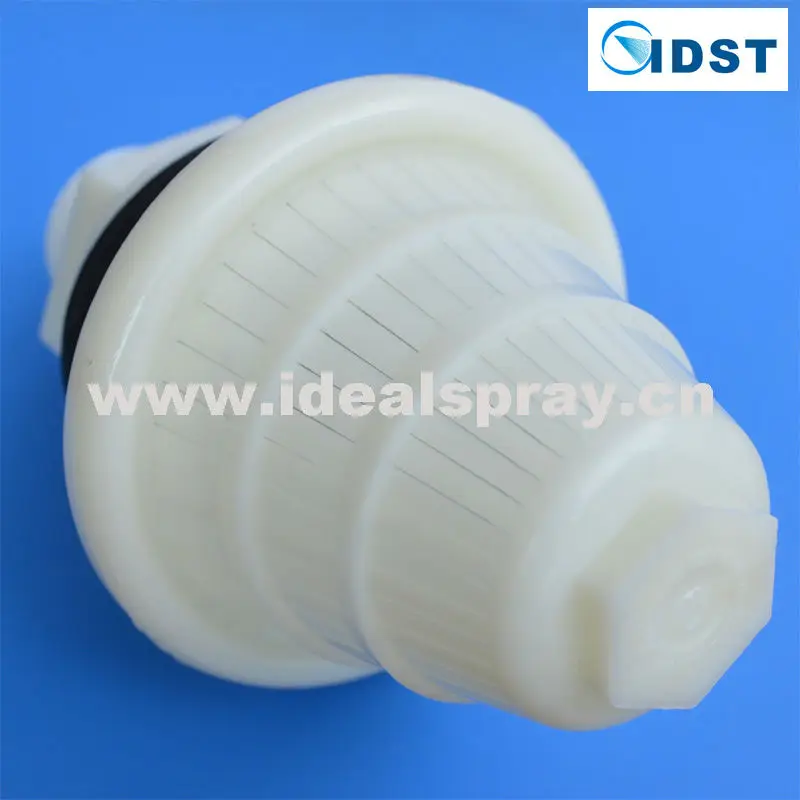

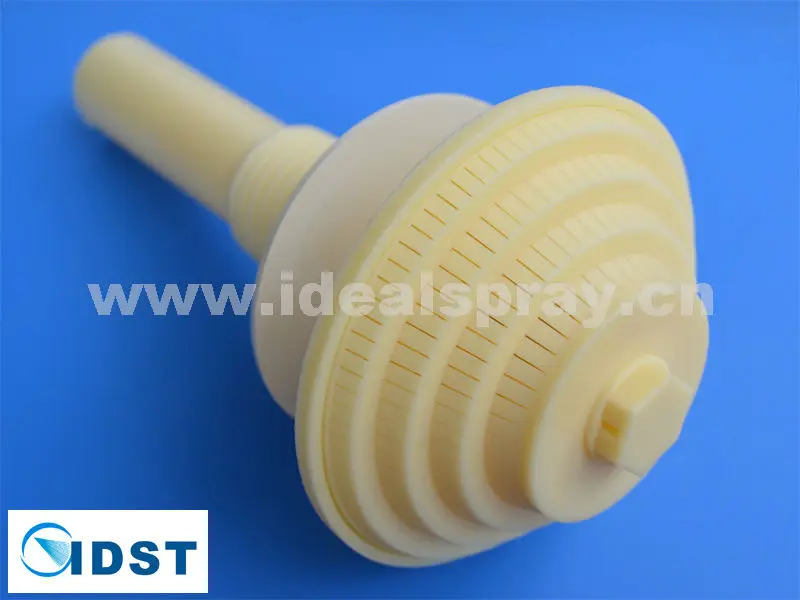

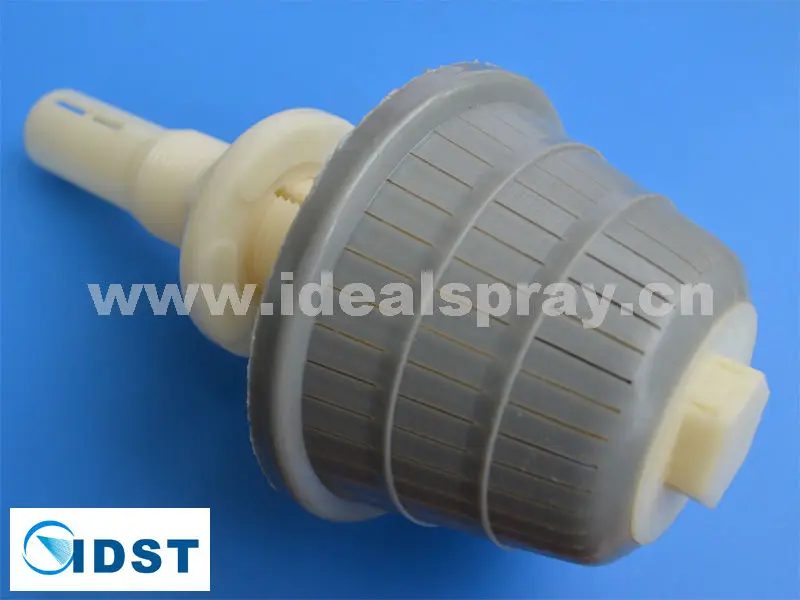

Sand Filter Nozzles

Product Overview

Description

IDST has a wide selection of sand filter nozzles which are available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Water Treatment Plants (WTP) for producing drinking water; Sewerage Treatment Plants (STP) and other urban and industrial waste water treatment plants. There are also filters and collectors for swimming pools.



We supply high quality various specifications Sand Filter Nozzle, Cylinder Filter Nozzle,filter nozzles and tower packings/fillings for waste water treatment.

Filter Nozzle, Cylinder filter nozzle,tower packing for waste water treatment, and Sand filter.



Material: ABS,PP



Specifications:

1) 250kg-DN15

2) 500kg-DN20

3) 1000kg-DN25



Filter Nozzles with Vertical Slots		Filter Nozzles with Horizontal Slots
Slot openings :	0.25 - 4 mm	Slot openings :	0.10 - 4 mm
Threads :	3/8''G - 1¼''W	Threads :	1/2''G - 1¼''W
Stem Lengths :	14 - 450 mm	Stem Lengths :	20 - 450mm
Materials :	PP - ABS - PPFV - PVDF	Materials :	PP - ABS - PPFV - PVDF - AISI 304 - AISI 316L - Hastelloy
Other dimensions, material, slot openings are subject to request.		Other dimensions, material, slot openings are subject to request.





Please contact us for details. and Free Samples Available
