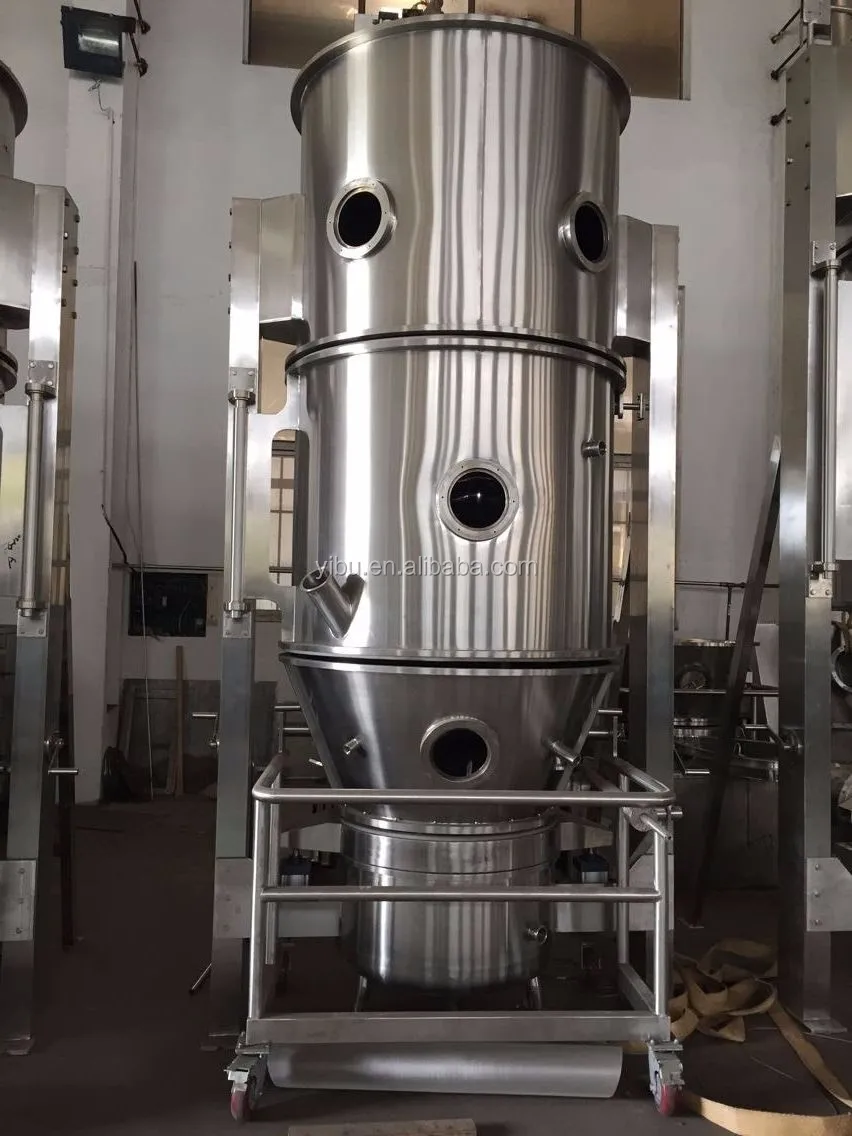

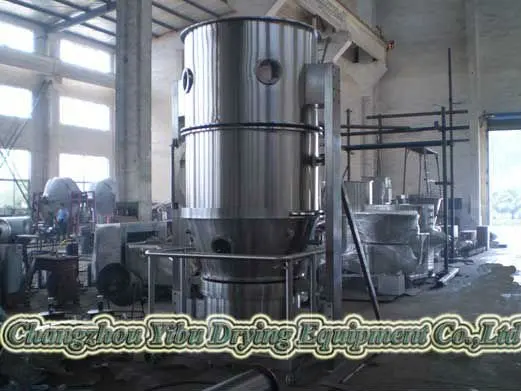

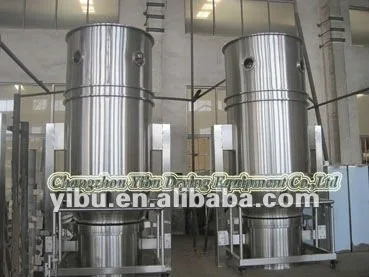

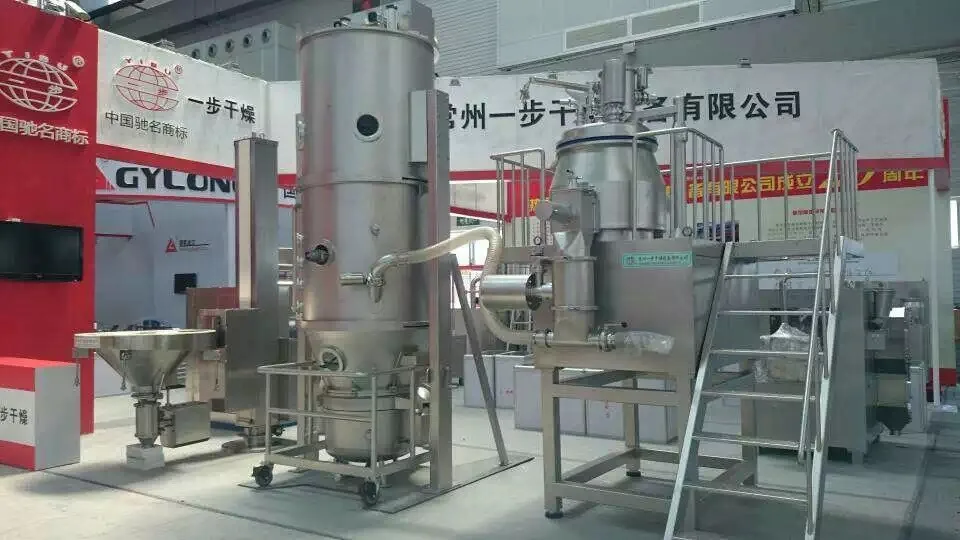

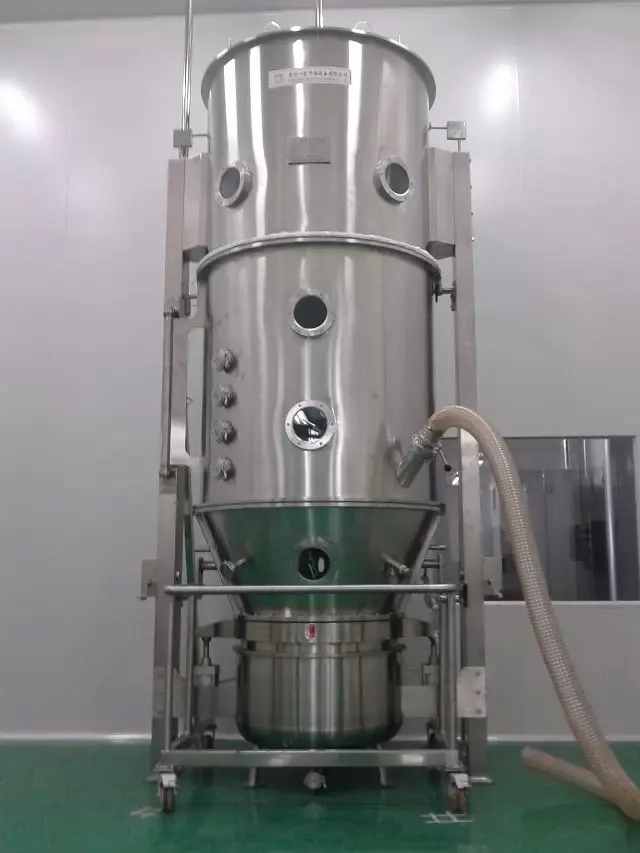

FG Series Vertical Fluidizing Dryer

Product Overview

Description

Application:

The machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and so on industries.

Features:

Fluid bed to achieve fast heat transmission of medium.

Seal negative pressure operation, there is no dust.

Because of using anti-static material as filter, it is safe in operation;

The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;

It is in conformity with the requirements of GMP.

Principle

Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Technical parameters

Spec			3	5	30	60	120	200	300	500	1000
item		unit
container raw material	dim	mm	300	400	700	1000	1200	1400	1600	1800	2200
	volume	L	12	22	100	220	420	670	1000	1500	2500
production capacity	min	Kg/batch	1.5	4	15	30	80	100	150	250	500
	Max	Kg/batch	4	6	36	72	140	240	360	600	1100
consume of steam		Kg/batch	12	23	70	140	211	282	366	465	800
amount of compressed air		m3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
power of fan		kw	2.2	4	5.5	11	18.5	22	30	45	75
temperature		°C	Adjustable from ambient to 120
collection rate		%	>99
time of operation		min	15-30 (depends on material)
content of final product		%	~0.2 (depends on material)
noise		db	≤75
height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200
