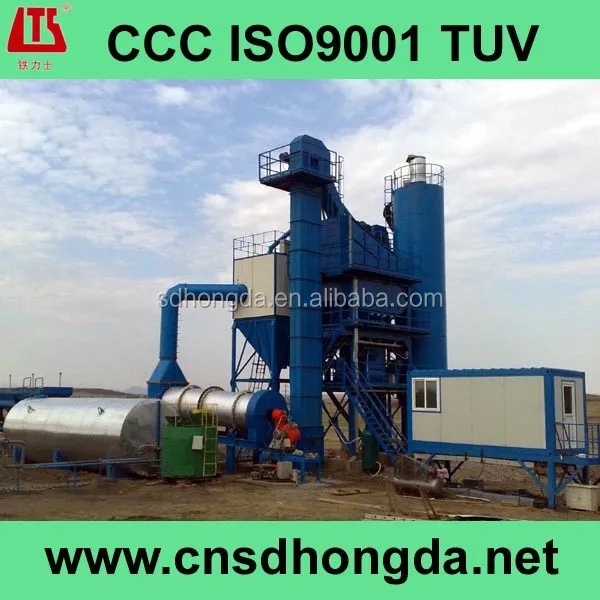

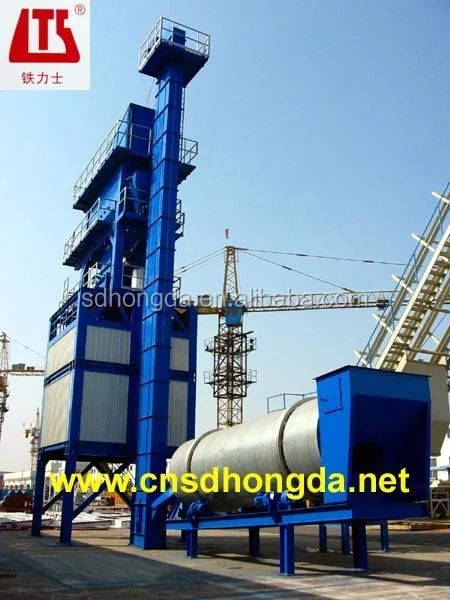

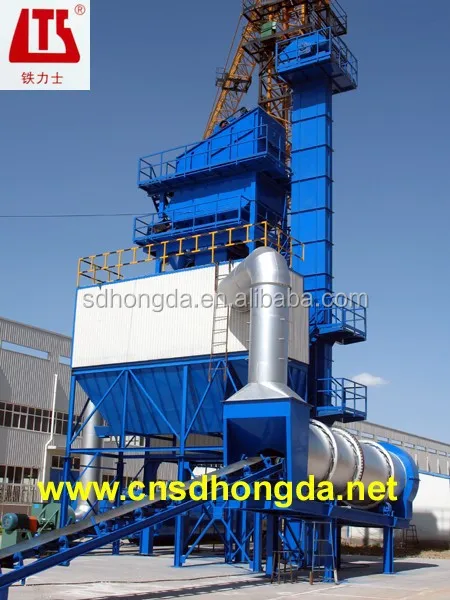

(40 60 80 120 160 200 t/h) Asphalt Mixing Plant

Product Overview

Description



Modular Asphalt Batching Plant ,Road Construction Equipment



      Tie Li Shi (Iron Giant) Brand









1. The original modular design of the mixing plant makes transport and installation work quick and convenient. It can separate extra-large flotsam from usable stuff.

2. The loop belt feeder for the measuring hopper has a frequency-conversion speed regulator which can provide high and low speed. Its original structure facilitates belt change and makes material feeding more fluent, which reduces power consumption. Besides, there is a warning light which will remind the user when the machine uses up raw material.

3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient. Moreover, the high-efficiency and energy-saving imported burner can use both heavy oil and diesel, which reduces energy consumption.

4. The vibrating screen adopts the linear and completely-closed design with the vibrator placed outside. The sieving efficiency is high, the maintenance and changing of screen is easy, and the imported bearings are more reliable.
5. The hot aggregate bin is equipped with a continuous level indicator which enables the operator to know the level of material at a glance. The measurement of aggregate is conducted twice through large and small doors, which greatly improves the measuring precision. The unique structure of the material emptying door reduces the chance of blockage and will work more reliably.
6. The main mixing machine designed with European technology has double reducers with a high-speed synchronization capacity. Accurately-weighed asphalt can be directly pumped into the agitating kettle and powder material can be conveyed into the agitating kettle through the helix, which makes agitating more even and speedy. Besides, it has an opening to add wood fiber and an inlet to add used material to be recycled.
7. The dust-removing system adopts imported NOMEX bags which limit the density of dust discharged into the air within 50mg/m³, which is completely up to the national standard of environmental protection. The dust blown down will be collected into the collection tank through the dust lifter for reuse to avoid secondary pollution.

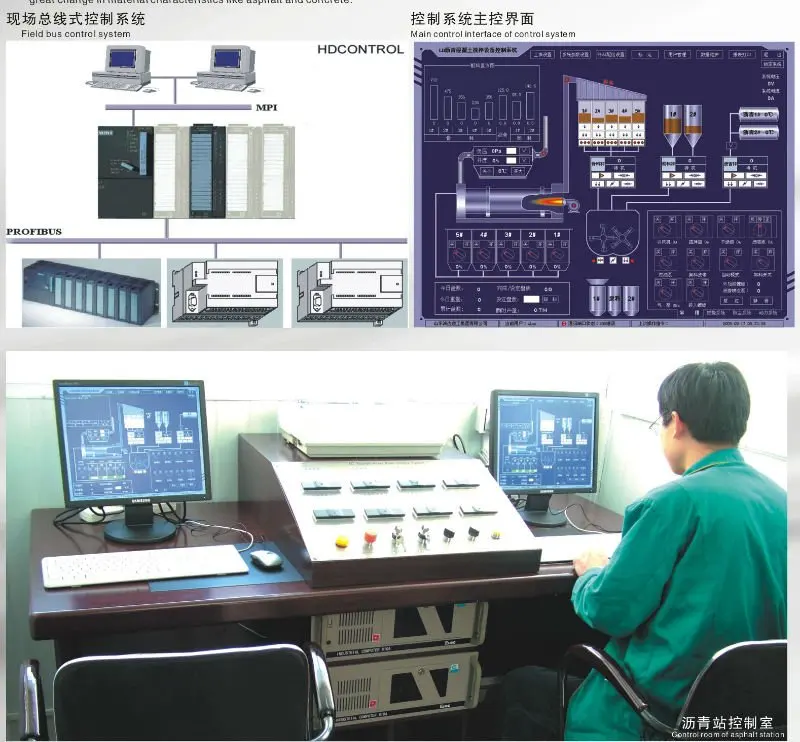

8. The control system adopts the SIEMENS integrated solution which plays a leading role in the industrial automation field. It also uses the PROFIBUS field bus to form a large and medium-sized distributed automatic system. In operation, the equipment adopts the technology of double hot standby on the industrial computer, dynamic display and buttonless design. All operations are done through the mouse. It has the real-time fault monitoring and control system with functions like parameter setting, data management and fault diagnosis. It measures precisely and can be controlled automatically, semi-automatically and manually, showing a stable and reliable performance.



 Main Technical Parameters

Type		LB2500
Rated Productivity		200 t/h
Cold Aggregate Bin		5 ×11m3
Dry Drum		2.35m×9m
Bag-type Dust-collector		CNM832
Emission Standard		50mg/nm3
Vibrating Screen		5 layers
Hot Aggregate Bin		40t
Mixing Kettle Capacity		2500kg
Mixing Cycle		45s
Mineral Powder Tank Volume		30+43t
Asphalt Tank Volume		2×50000L
Heat Conduction Oil Stove		500,000 kcol/h
Capacity of End-product Container		110t
Control System		Manual /Semi-auto / Automatic
Weighing Accuracy	Aggregate	≤±0.4%
	Powder Material	≤±0.3%
	Asphalt	≤±0.2%
General Installed Power		530kw



We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”.Our productshavepassed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.



Our main products are:

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

2. Construction Elevators(multi-speed, stepless-speed);

3. Concrete Mixers(rotary-drum-type, double-horizontal-shaft);

4. Concrete Batchers;

5. Concrete Mixing/BatchingPlants(25-480m³/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

6. Concrete Truck Mixers(6-16m³);

7. Truck-mounted Concrete Pumps (diesel, electric);

8. Trailer-mountedConcrete Pumps (diesel, electric);

9. Concrete Pump Trucks (with 24-52m booms);

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning) ...
