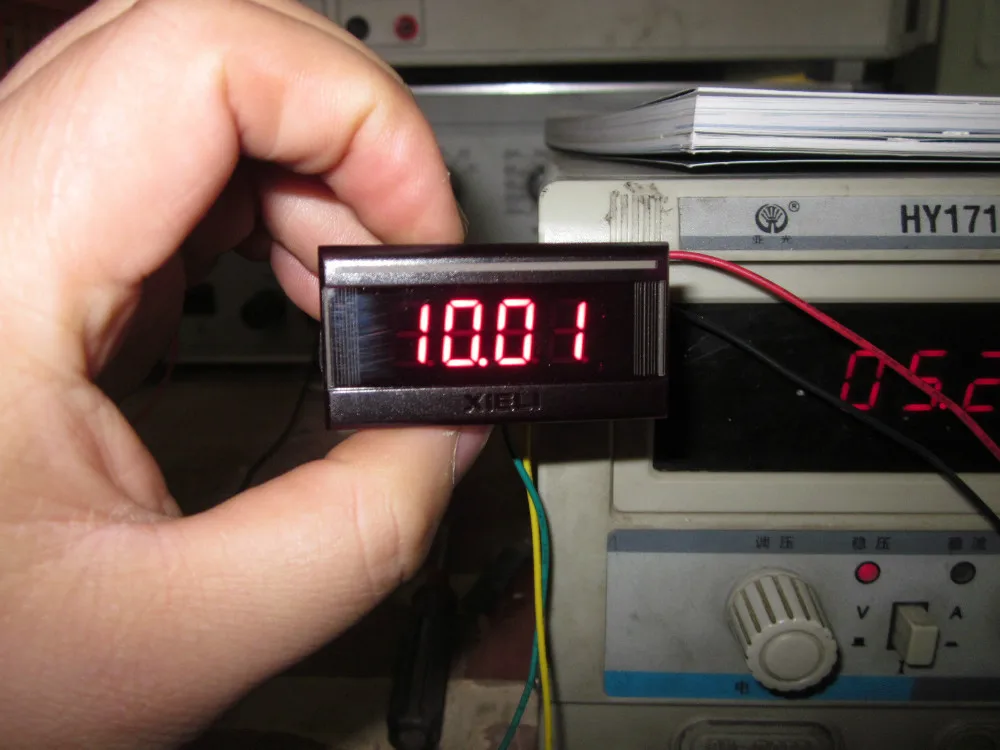

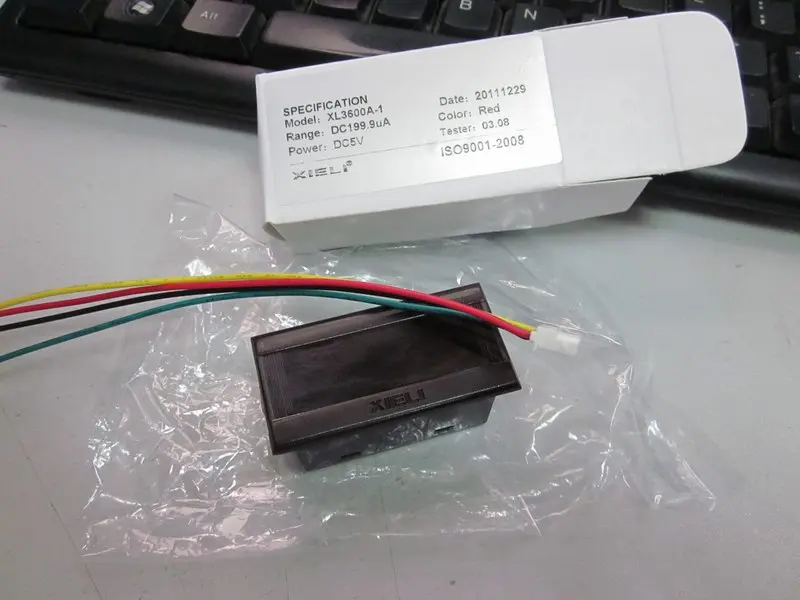

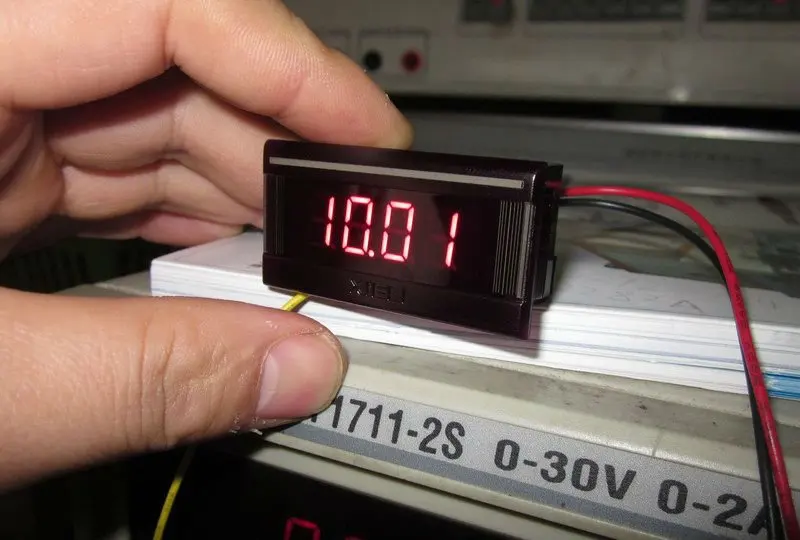

mini designed 3 1/2 digit LED voltmeter

Product Overview

Description

XL3600 series-SUPER-MINI power supply DC measuring Voltage- voltage meter



Power supply:            DC 5V,DC12V,DC8-24V

Full range:                 + 199.9V, DC8-30V

Digital display:           LED red,blue and green display available

                                  14mm digital height

Decimal Point:            Can be selected by user

Calibration Potentimeter: can be re-calibrated by adjusting by the user

Operating temperaure:0--50 degree

Relative humidity:       20--80%

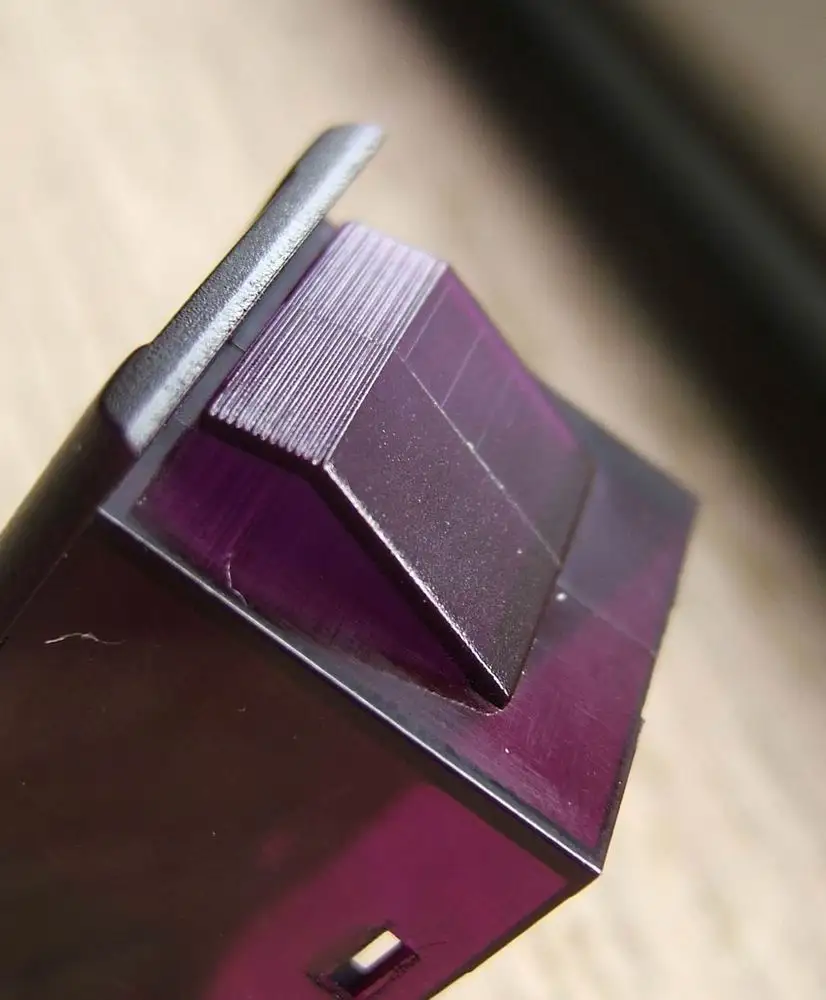

Installation method:    inlay

Tapping size:             (46.5+0.1)x(23.5+0.1)mm

Dimension:                 (W)50X (H)26 X (D)23.5mm

















XL3600 series-SUPER-MINI power supply DC measuring Voltage- voltage meter

Model	Full measurement	Resolution	Accuracy	Input impedance	Max voltage input
XL3600V-1	±199.9mV	0.1mA	±0.3%+1 digital	100MΩ	±10V
XL3600V-2	±1.999V	1mA	±0.3%+1 digital	100MΩ	±35V
XL3600V-3	±19.99V	10mA	±0.3%+1 digital	1MΩ	±200V
XL3600V-4	±199.9V	100mA	±0.5%+1 digital	1MΩ	±300V



* Dark filter color piece
* Certification ISO9001 & CE
* Easy to read under the high light(sunshine)
* More than 70000 hours Longlife
* High quality components(LSI) and high stability
* 70-80% components from internaitonal well know manufacturers
* Easy to use high accuracy
* Many years of export experience and over 20 years experience cooperation with Panasonic
